CN202634824U - Sunlight-LED (Light-Emitting Diode) complementary all-weather green illumination device - Google Patents
Sunlight-LED (Light-Emitting Diode) complementary all-weather green illumination device Download PDFInfo
- Publication number
- CN202634824U CN202634824U CN2012202540640U CN201220254064U CN202634824U CN 202634824 U CN202634824 U CN 202634824U CN 2012202540640 U CN2012202540640 U CN 2012202540640U CN 201220254064 U CN201220254064 U CN 201220254064U CN 202634824 U CN202634824 U CN 202634824U
- Authority
- CN
- China
- Prior art keywords
- led
- wind
- light
- indoor
- light pipe
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02E—REDUCTION OF GREENHOUSE GAS [GHG] EMISSIONS, RELATED TO ENERGY GENERATION, TRANSMISSION OR DISTRIBUTION
- Y02E10/00—Energy generation through renewable energy sources
- Y02E10/50—Photovoltaic [PV] energy
Landscapes
- Non-Portable Lighting Devices Or Systems Thereof (AREA)
Abstract
The utility model relates to a sunlight-LED (Light-Emitting Diode) complementary all-weather green illumination device, which is characterized in that a light guide pipe passes through an indoor and outdoor separation facility and the indoor and outdoor separation facility is divided into a light guide pipe outdoor section and a light guide pipe indoor section; a light collection cover is fixedly arranged at the end part of the light guide pipe outdoor section; a diffuser is fixedly arranged at the end part of the light guide pipe indoor section; a wind driven generator is arranged on the light guide pipe outdoor section; a solar photovoltaic plate is arranged between an air blower rod and the indoor and outdoor separation facility and is adhered to the outer surface of the light guide pipe outdoor section in a cylindrical face shape; an electric energy output end of the wind driven generator and an electric energy output end of the solar photovoltaic plate are connected with a wind-light complementary control circuit; and an output end of the wind-light complementary control circuit is connected with an LED annular lamp tube. The system has the advantages of greenness and environmental friendliness, small volume, convenience for installation, strong capability of being adapted to a complicated environment, high energy source utilization rate and unattended guarding and management, and can be conveniently applied to various fields needing illumination.
Description
Technical field
The utility model relates to a kind of complementary type green lighting system, and green energy resources such as comprehensive utilization sunlight, solar energy, wind energy can be fit to illumination application such as room lighting.
Background technology
At present; The green energy resource illuminator has wind energy illuminator, solar illuminating system, wind light mutual complementing illuminator and light-conducting system etc.; Said system is utilized the green energy resource illumination or is directly gathered sunlight and throws light on; Will increase the volume of system, cost and power if the system that utilizes green energy resource to throw light on realizes round-the-clock illumination, the system that utilizes light-conducting system to throw light on can't realize round-the-clock illumination.
Summary of the invention
Can't realize round-the-clock automatic green energy resource illumination and the low deficiency of system's energy utilization rate in order to overcome prior art; The utility model provides a kind of daylight-LED complementary round-the-clock green lighting system; Light-conducting system and wind and solar hybrid generating system are integrated in a system; This system can not only realize the various automatic round-the-clock green illuminations that need the illumination place; And volume is little, simple installation, adaptation complex environment ability is strong, energy utilization rate is high, the personnel that need not management on duty, can be applied to the various places that need illumination easily.
The complementary round-the-clock green illumination device of a kind of daylight-LED is characterized in that comprising dome skylight 1, light pipe, diffuser 12, wind-driven generator, solar energy photovoltaic panel 9, LED annular lamp tube 11 and wind light mutual complementing control circuit; Light pipe passes indoor and outdoor isolation facility 10; And be divided into outdoor section 2 of light pipe and light pipe indoor section 3; Dome skylight 1 is fixed on the end of outdoor section 2 of light pipe; Diffuser 12 is fixed on the end of indoor section 3 of light pipe, and wind-driven generator is located on outdoor section 2 of the light pipe, and the blower fan bar 7 of wind-driven generator and light pipe form vertical the connection for outdoor section 2; Solar energy photovoltaic panel 9 is located between blower fan bar 7 and the indoor and outdoor isolation facility 10, is attached at the outer surface of outdoor section 2 of light pipe with cylindrical shape; The electric energy output end of the electric energy output end of wind-driven generator and solar energy photovoltaic panel 9 is connected with the wind light mutual complementing control circuit, and the output of wind light mutual complementing control circuit connects LED annular lamp tube 11.
Said wind light mutual complementing control circuit comprises batteries, sense control module and single-chip microcomputer; Sense control module places indoor, and its induction information exports connected single-chip microcomputer to, and single-chip microcomputer is according to the power supply circuits conducting or the disconnection of induction information control batteries and LED annular lamp tube 11.
Said sense control module is the series circuit of photo resistance and fixed value resistance, and photo resistance and fixed value resistance series connection point are output as the input of single-chip microcomputer.
The LED annular lamp tube that said LED is made up of a plurality of LED.
The beneficial effect of the utility model is: on daytime, system acquisition sunlight and conduction utilize, and have realized the daylight illumination in illumination place, can be the enough energy of illumination deposit at night simultaneously.At night, system utilizes the electric energy illumination place of savings on daytime that the LED illumination of low-power consumption is provided, and the switching of light illumination mode is accomplished by the sense control module of system, and system has realized the automatic round-the-clock green illumination in illumination place.Wind-driven generator in the system and solar energy photovoltaic panel are one with systems incorporate structurally, and it is little to make that system takies volume, are convenient to install.Solar energy photovoltaic panel in the system adopts cylindrical-shaped structure; Agree with the light pipe external surface shape; Having overcome traditional solar energy photovoltaic panel needs the shortcoming of mounting bracket; Simultaneously, columned solar energy photovoltaic panel helps preventing that dust and snow drift from stopping on it, makes that system's energy utilization rate is high and ability anti-complex environment is strong.System's environmental protection, volume are little, simple installation, adaptation complex environment ability is strong, energy utilization rate is high, the personnel that need not management on duty, can be applied to the various places that need illumination easily.
Description of drawings

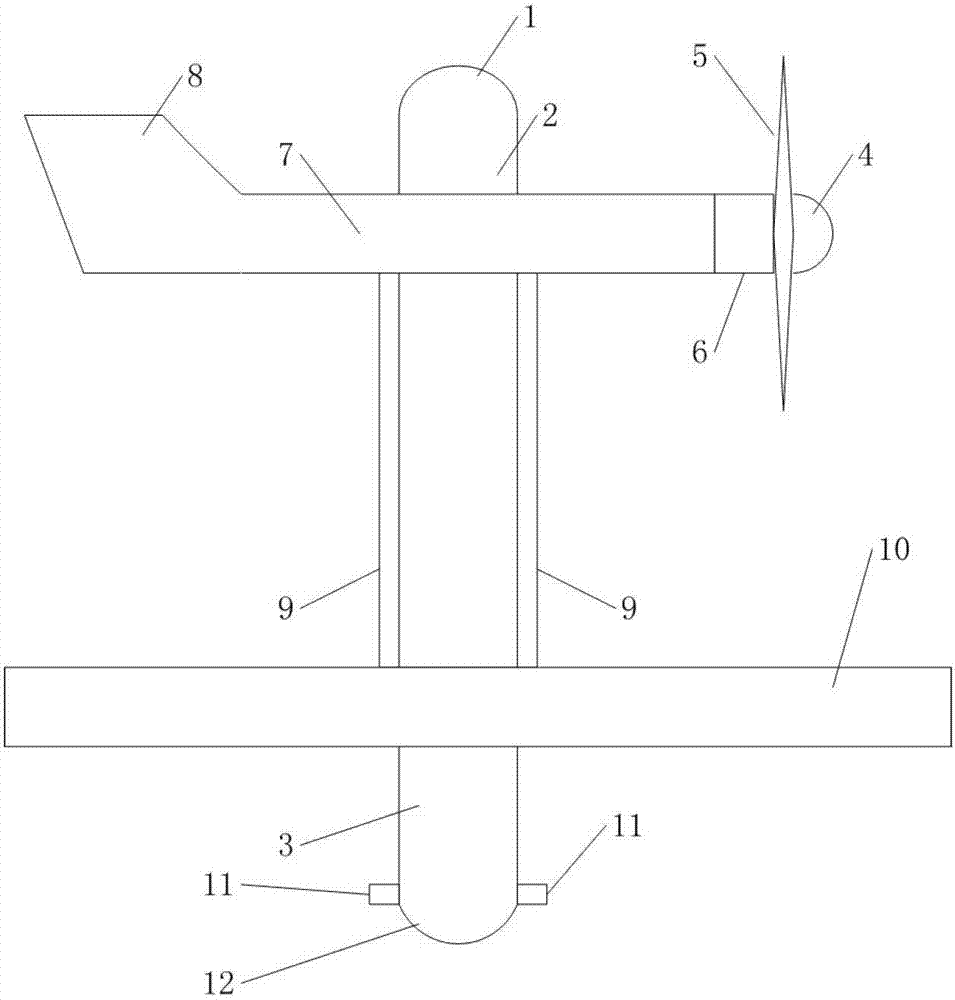

Fig. 1 is the system configuration profile of the utility model.
Fig. 2 is sense control modular structure figure.
Fig. 3 is the system works theory diagram.
Fig. 4 is system works flow process figure.
Among the figure, 1-dome skylight, outdoor section of 2-light pipe, indoor section of 3-light pipe, 4-wind wheel; The 5-fan blade, 6-blower fan generator, 7-blower fan bar, 8-blower fan tail vane; The 9-solar energy photovoltaic panel, 10-indoor and outdoor isolation facility, 11-LED annular lamp tube, 12-diffuser; The 13-photo resistance, 14-fixed value resistance, 15-single-chip microcomputer, 16-batteries.
Embodiment
In Fig. 1, outdoor section 2 top of dome skylight 1 and light pipe is connected, indoor section 3 bottom of light pipe is connected with diffuser 12, and light pipe structurally is an one, is divided into outdoor section 2 of light pipe and light pipe indoor section 3 by indoor and outdoor isolation facility 10.Wind-driven generator is connected and composed in regular turn by wind wheel 4, fan blade 5, blower fan generator 6, blower fan bar 7, blower fan tail vane 8 and is connected for outdoor section 2 fixing through blower fan bar 7 and light pipe.Solar energy photovoltaic panel 9 is between blower fan bar 7 and indoor and outdoor isolation facility 10, and is planar and be attached at outdoor section 2 outer surface of light pipe for cylinder.LED annular lamp tube 11 is attached at indoor section 3 outer surface of light pipe.
In Fig. 2, be connected between photo resistance 13 forming circuit of connecting with fixed value resistance 14, single-chip microcomputer 15 1 ends and photo resistance 13 and fixed value resistance 14, single-chip microcomputer 15 other ends are connected with batteries 16.
The electric energy output end of the electric energy output end of wind-driven generator and solar energy photovoltaic panel 9 is connected with the wind light mutual complementing control circuit, and the output of wind light mutual complementing control circuit connects LED annular lamp tube 11.
The utility model solves the technical scheme that its technical problem adopted: outdoor section top of dome skylight and light pipe is connected; Indoor section bottom of light pipe is connected with diffuser; Light pipe structurally is an one with indoor section for outdoor section, is divided by the indoor and outdoor isolation facility.In outdoor section body outer upper ends of light pipe wind-driven generator is installed, wind-driven generator is made up of wind wheel, fan blade, blower fan generator, blower fan bar, blower fan tail vane etc. in regular turn, is connected fixing with light pipe by the blower fan bar.Wind-driven generator outdoor section of light pipe is installed cylindrical solar energy photovoltaic panel with the lower part outer surface of tube body; Outer surface is installed the LED annular lamp tube of being made up of some LED in the outside lower end of indoor section body of light pipe; The LED annular lamp tube connects batteries; The sense control module of batteries connected system, the circuit that the sense control module of system is made up of photo resistance and fixed value resistance is connected single-chip microcomputer and forms.Wind-driven generator is connected the wind light mutual complementing control circuit jointly with solar energy photovoltaic panel, and the wind light mutual complementing control circuit connects batteries it is carried out round-the-clock wind light mutual complementing electric power storage.Whole system works in two kinds of patterns: daylight illumination pattern and LED light illumination mode.System works was in the daylight illumination pattern when be higher than threshold value when indoor intensity of illumination daytime, and system works was in the LED light illumination mode when night or daytime, indoor intensity of illumination was lower than threshold value.Batteries is controlled by sense control module, night or when daytime, indoor intensity of illumination was lower than threshold value to LED illumination supply power, when indoor intensity of illumination is higher than threshold value, stop batteries daytime and supply power.With one is example round the clock: early morning; At certain time point; When indoor intensity of illumination reaches preset threshold value, by intensity signal in the photo resistance nernst cell in the sense control module and with message transmission to single-chip microcomputer, single-chip microcomputer stops the batteries power supply according to the information that receives; Thereby halt system LED light illumination mode, system gets into the daylight illumination pattern; When perhaps daytime, room light was according to undercapacity at dusk; At certain time point; When indoor intensity of illumination is lower than preset threshold value; By the induction intensity signal of the photo resistance in the sense control module and with message transmission to single-chip microcomputer, single-chip microcomputer starts the batteries power supply according to the information that receives, system gets into the LED light illumination mode.
Claims (4)
1. the complementary round-the-clock green illumination device of daylight-LED is characterized in that comprising dome skylight (1), light pipe, diffuser (12), wind-driven generator, solar energy photovoltaic panel (9), LED annular lamp tube (11) and wind light mutual complementing control circuit; Light pipe passes indoor and outdoor isolation facility (10); And be divided into light pipe outdoor section (2) and indoor section of light pipe (3); Dome skylight (1) is fixed on the end of light pipe outdoor section (2); Diffuser (12) is fixed on the end of light pipe indoor section (3), and wind-driven generator is located on the light pipe outdoor section (2), and the blower fan bar (7) and the light pipe of wind-driven generator outdoor section (2) forms vertical connection; Solar energy photovoltaic panel (9) is located between blower fan bar (7) and the indoor and outdoor isolation facility (10), is attached at the outer surface of light pipe outdoor section (2) with cylindrical shape; The electric energy output end of the electric energy output end of wind-driven generator and solar energy photovoltaic panel (9) is connected with the wind light mutual complementing control circuit, and the output of wind light mutual complementing control circuit connects LED annular lamp tube (11).
2. according to the complementary round-the-clock green illumination device of the said daylight of claim 1-LED, it is characterized in that: said wind light mutual complementing control circuit comprises batteries, sense control module and single-chip microcomputer; Sense control module places indoor, and its induction information exports connected single-chip microcomputer to, and single-chip microcomputer is according to the power supply circuits conducting or the disconnection of induction information control batteries and LED annular lamp tube (11).
3. according to the complementary round-the-clock green illumination device of the said daylight of claim 1-LED, it is characterized in that: said sense control module is the series circuit of photo resistance and fixed value resistance, and photo resistance and fixed value resistance series connection point are output as the input of single-chip microcomputer.
4. according to the complementary round-the-clock green illumination device of the said daylight of claim 1-LED, it is characterized in that: the LED annular lamp tube that said LED is made up of a plurality of LED.
