Abstract

The utility model discloses a greenhouse with a double camber surface zigzag roof. The greenhouse comprises a main body structure, an outdoor sunshade system and a roof sprinkling and cooling system. The double camber surface zigzag roof is arranged in the main body structure and comprises a first camber roof and a second camber roof. A film rolling skylight is arranged between the first camber roof and the second camber roof. According to the double camber surface zigzag roof provided by the utility model, water can be rapidly discharged along the double camber surface zigzag roof when water falls onto the double camber surface zigzag roof so as to reduce accumulation of water drops on the roof and ensure illumination required by crops growing in the greenhouse. Simultaneously, the roof sprinkling and cooling system can spray water to carry away the heat inside the greenhouse rapidly, and has high cooling efficiency. The greenhouse is provided with the roller shutter skylight and side windows and has a remarkable effect of natural ventilation. An outdoor sunshade net is arranged, so the greenhouse can serve as a sunshade shelter at high temperature, so that the cooling operation cost is greatly reduced. The greenhouse can be widely applied.

Description

Two cambered surface sawtooth pattern greenhouse of roof
Technical field
The utility model relates to the agricultural facility technical field, particularly a kind of pair of cambered surface sawtooth pattern greenhouse of roof.
Background technology
Connect a circular arch greenhouse ubiquity manufacturing cost height owing to the South China is existing, have high input, a little less than the wind resistance calamity ability, heat-insulating property is poor, and the greenhouse is short service life, and in the use of circular arch greenhouse, big, the shortcomings such as efficient is low, use cost height of the energy consumption of lowering the temperature.
The utility model content
The purpose of the utility model; Be to provide a kind of pair of cambered surface sawtooth pattern greenhouse of roof; It adopts the little sawtooth pattern of two cambered surfaces to connect a structure; Have scientific structure, economize material, stable height, aeration-cooling energy consumption be low, realizes identical wind resistance and the aeration-cooling performance in the same economical greenhouse of class with material usage still less with less energy consumption.
The solution that the utility model solves its technical problem is: two cambered surface sawtooth pattern greenhouse of roof; Comprise agent structure, outdoor shading system and terrace spraying cooling system; Be provided with two cambered surface sawtooth pattern roofs in the said agent structure; Be provided with first arched top and second arched top in the said pair of cambered surface sawtooth pattern roof, be provided with volume film skylight between said first arched top and second arched top.
As the further improvement of technique scheme, also be provided with volume film side window around the said agent structure.
As the further improvement of technique scheme, said outdoor shading system is arranged on top, two cambered surface sawtooth pattern roof, is provided with retractable sunshade net in the said outdoor shading system.
As the further improvement of technique scheme, said terrace spraying cooling system is arranged on sunshade side on the net.
As the further improvement of technique scheme, said agent structure also is provided with some oblique ropes outward.
The beneficial effect of the utility model is: the utility model is through being provided with first arched top and second arched top; And both constitute two cambered surface sawtooth pattern roofs; So after water is fallen two cambered surface sawtooth pattern roofs; Discharge rapidly along first arched top and second arched top, reduced water droplet to greatest extent, guarantee the illumination that indoor plant growth is required the gathering of roof.
The utility model also is provided with volume film skylight and side window, after opening or closing skylight and side window, can realize strengthening or weakening the indoor-outdoor air convection current so, realizes gravity-flow ventilation cooling or heat insulation effect.
The utility model also is provided with the terrace spraying cooling system, can take away the greenhouse internal heat rapidly through shower water, improves cooling efficient.
The utility model when temperature is high, can make the greenhouse change a shading shed into the sunshade net unfolding also through retractable sunshade net is set so, greatly reduces the cooling energy consumption, practices thrift operating cost.
The utility model can be used as the greenhouse extensive use.
Description of drawings
Below in conjunction with accompanying drawing and instance the utility model is further described.

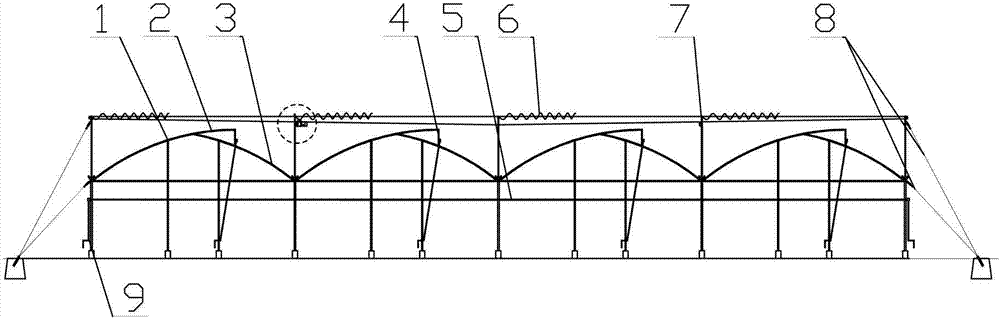

Fig. 1 is the structural representation of the utility model;
Fig. 2 is the main arch elevation of the utility model;
Fig. 3 is that broken circle frame institute frame is obtained partial enlarged drawing among the utility model Fig. 1.
Embodiment
Below in conjunction with accompanying drawing, specify the application of the utility model.
With reference to Fig. 1~Fig. 3; A kind of pair of cambered surface sawtooth pattern greenhouse of roof; Comprise agent structure, outdoor shading system and terrace spraying cooling system 7; Be provided with two cambered surface sawtooth pattern roofs 1 in the said agent structure, be provided with first arched top 2 and second arched top 3 in the said pair of cambered surface sawtooth pattern roof, said first arched top 2 and 3 of second arched top are provided with volume film skylight 4.
Through being provided with first arched top 2 and second arched top 3; And both constitute two cambered surface sawtooth pattern roofs; So after water is fallen two cambered surface sawtooth pattern roofs; Two cambered surface sawtooth patterns roof can realize that draining is smooth and easy, reduced water droplet to greatest extent the gathering of terrace, and guarantees the illumination that indoor plant growth is required; Also be provided with volume film skylight 4, after opening volume film skylight 4, can strengthen the indoor-outdoor air convection current so, reach the gravity-flow ventilation cool effect, behind the pass closed-book film skylight 4, can realize heat insulation effect.
Further as preferred embodiment, also be provided with volume film side window 5 around the said agent structure, the function that the film realization is opened or closed is rolled or put down to this volume film side window 5 mainly by film rolling axis; Film rolling axis is connected with volume film machine output shaft, when needs are opened or are closed this volume film side window, and rotatable volume film cleaner handgrip 9; Make volume film machine output shaft drive film rolling axis folding and unfolding film; And cooperate the switch of rolling up film skylight 4, and constitute a natural ventilation system, can realize regulating naturally of greenhouse temperature.
Further as preferred embodiment, said outdoor shading system is arranged on two 1 tops, cambered surface sawtooth pattern roof, is provided with retractable sunshade net 6 in the said outdoor shading system.This sunshade net 6 is driven by motor 10, parts such as the power transmission shaft that also comprises those skilled in the art certainly and be familiar with, shaft coupling, steel wire rope, pulley, the outdoor shading system of the complete formation the utility model of these parts.This outdoor shading system makes the greenhouse when temperature is high, change a shading shed into, greatly reduces the operating cost of cooling.
Further as preferred embodiment, said terrace spraying cooling system 7 is arranged on sunshade net 6 tops, and said terrace spraying cooling system 7 spraying coolings cover two cambered surface sawtooth patterns roof 1 thereunder.
Further as preferred embodiment, said agent structure also is provided with some oblique ropes 8 outward, adopts oblique rope 8 to reinforce agent structure; Can practice thrift the structure material of the utility model effectively, improve the resistance to overturning and enhancing rated wind velocity of agent structure, the utility model wind loading rating reaches 10 grades; Oblique rope 8 is also reinforced the sunshade skeleton of placing sunshade net 6, economizes on material effectively, simplified structure; Improve the stability of sunshade skeleton, strengthen wind loading rating.
More than be that preferred embodiments to the utility model specifies; But the invention is not limited to said embodiment; Those of ordinary skill in the art also can make all equivalent modifications or replacement under the prerequisite of the utility model spirit, modification that these are equal to or replacement all are included in the application's claim institute restricted portion.

Claims (5)

1. two cambered surface sawtooth pattern greenhouse of roof; Comprise agent structure, outdoor shading system and terrace spraying cooling system (7); It is characterized in that: be provided with two cambered surface sawtooth pattern roofs (1) in the said agent structure; Be provided with first arched top (2) and second arched top (3) in the said pair of cambered surface sawtooth pattern roof, be provided with volume film skylight (4) between said first arched top (2) and second arched top (3).
2. according to claim 1 pair of cambered surface sawtooth pattern greenhouse of roof is characterized in that: also be provided with volume film side window (5) around the said agent structure.
3. according to claim 1 pair of cambered surface sawtooth pattern greenhouse of roof is characterized in that: said outdoor shading system is arranged on top, two cambered surface sawtooth pattern roof (1), is provided with retractable sunshade net (6) in the said outdoor shading system.
4. according to claim 1 pair of cambered surface sawtooth pattern greenhouse of roof is characterized in that: said terrace spraying cooling system (7) is arranged on sunshade net (6) top.
5. according to claim 1 pair of cambered surface sawtooth pattern greenhouse of roof is characterized in that: said agent structure also is provided with some oblique ropes (8) outward.
