Abstract

The utility model relates to a temperature monitoring system used for patrol and detection of electric power operation. The temperature monitoring system comprises a temperature sensor, a RFID label, a RFID reader, a wireless communication network, a server, internet, and a remote management terminal. The temperature sensor is connected with the RFID label connected with the RFID reader, while the RFID reader is connected with the server through the wireless communication network. The server is connected with the remote management terminal through the internet. Compared with a product in the prior art, the temperature monitoring system has advantages of real-time-sampled temperature data of electric power operating equipment, real-time transmission of the temperature data to the server, and high measurement accuracy.

Description

A kind of operation power that is used for is maked an inspection tour the temperature monitoring system that detects
Technical field
The utility model relates to a kind of temperature monitoring system, especially relates to a kind of operation power that is used for and makes an inspection tour the temperature monitoring system that detects.
Background technology
Along with global The development in society and economy, need for electricity constantly increases, and scale of power constantly enlarges, and the uncertain factor and the potential risk that influence safe operation of power system also increase thereupon.On the one hand, grid equipment quantity is various, and closeness is high, and manual inspection needs the input of a large amount of manpowers, and consuming time longer; On the other hand, omission, flase drop also possibly take place in manual inspection, lack the supervision that puts in place, thereby the people cause unnecessary economic loss.Utilization is deployed in sensor node ability exact acquisition running environment and the status information of equipment on the grid equipment, replaces manual detection, and testing result more accurately is provided, and improves work quality.
But the temperature acquisition that existing operation power detects all relatively disperses, and the data precision that causes gathering is poor, has reduced collecting efficiency, and detecting for follow-up operation power provides data wrong or time-delay, thereby causes the generation of accident.
The utility model content
The purpose of the utility model is exactly to provide a kind of operation power that is used for to make an inspection tour the temperature monitoring system that detects for the defective that overcomes above-mentioned prior art existence.
The purpose of the utility model can realize through following technical scheme:
A kind of operation power that is used for is maked an inspection tour the temperature monitoring system that detects; It is characterized in that; Comprise temperature sensor, RFID label, RFID reader, cordless communication network, server, Internet and remote administration terminal, described temperature sensor is connected with the RFID label, and described RFID label is connected with the RFID reader; Described RFID reader is connected with server through cordless communication network, and described server is connected with remote administration terminal through Internet.
Described cordless communication network comprises blueteeth network or ZigBee network.
Described server is provided with the first real time temperature display module, temperature data memory module and local alarm module.
Described remote administration terminal is provided with the second real time temperature display module, remote alarms module and temperature data enquiry module.
Compared with prior art, the utlity model has the temperature data of real-time collection operation power equipment, and real-time Transmission gives server, measuring accuracy is high, and making an inspection tour to detect for operation power provides accurate and effective temperature data.
Description of drawings

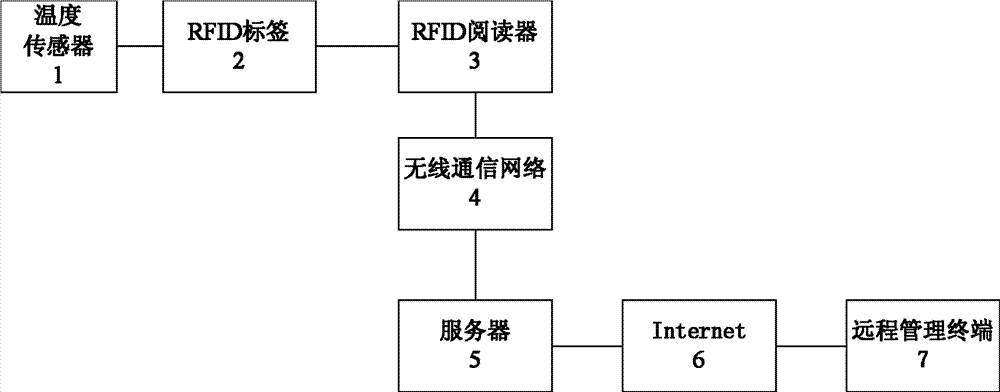

Fig. 1 is the structural representation of the utility model.
Embodiment
Below in conjunction with accompanying drawing and specific embodiment the utility model is elaborated.
Embodiment
As shown in Figure 1; A kind of operation power that is used for is maked an inspection tour the temperature monitoring system that detects; Comprise temperature sensor 1, RFID label 2, RFID reader 3, cordless communication network 4, server 4, Internet5 and remote administration terminal 6; Described temperature sensor 1 is connected with RFID label 2; Described RFID label 2 is connected with RFID reader 3, and described RFID reader 3 is connected with server 5 through cordless communication network 4, and described server 5 is connected with remote administration terminal 7 through Internet6.
Described cordless communication network 4 comprises blueteeth network or ZigBee network.Described server 5 is provided with the first real time temperature display module, temperature data memory module and local alarm module.Described remote administration terminal 7 is provided with the second real time temperature display module, remote alarms module and temperature data enquiry module.

Claims (4)

1. one kind is used for the temperature monitoring system that operation power is maked an inspection tour detection; It is characterized in that; Comprise temperature sensor, RFID label, RFID reader, cordless communication network, server, Internet and remote administration terminal, described temperature sensor is connected with the RFID label, and described RFID label is connected with the RFID reader; Described RFID reader is connected with server through cordless communication network, and described server is connected with remote administration terminal through Internet.
2. a kind of operation power that is used for according to claim 1 is maked an inspection tour the temperature monitoring system that detects, and it is characterized in that described cordless communication network comprises blueteeth network or ZigBee network.
3. a kind of operation power that is used for according to claim 1 is maked an inspection tour the temperature monitoring system that detects, and it is characterized in that described server is provided with the first real time temperature display module, temperature data memory module and local alarm module.
4. a kind of operation power that is used for according to claim 1 is maked an inspection tour the temperature monitoring system that detects, and it is characterized in that described remote administration terminal is provided with the second real time temperature display module, remote alarms module and temperature data enquiry module.
