Abstract
本实用新型公开水环真空泵装置，由水环真空泵和电机组成，其中，所述水环真空泵的个数至少为两个，所述电机的个数与水环真空泵的个数相同，每个电机分别与所有水环真空泵连接。这样，当其中一个电机出现故障时，其他电机还能驱动所述水环真空泵工作，保证生产不会受到影响。或者，当一个电机不足以满足一个水环真空泵工作时，可以同时由两个或三个电机驱动水环真空泵的工作，确认生产的顺利进行。
The utility model discloses a water ring vacuum pump device, which is composed of a water ring vacuum pump and a motor, wherein the number of the water ring vacuum pump is at least two, the number of the motor is the same as that of the water ring vacuum pump, and each motor Connect with all water ring vacuum pumps separately. In this way, when one of the motors fails, other motors can also drive the water ring vacuum pump to work, ensuring that production will not be affected. Or, when one motor is not enough for one water ring vacuum pump, two or three motors can drive the water ring vacuum pump at the same time to confirm the smooth progress of production.
Description
技术领域 technical field
本实用新型涉及一种水环真空泵装置。 The utility model relates to a water ring vacuum pump device. the
背景技术 Background technique
现有的水环真空泵装置，由多个水环真空泵和多个电机组成，一个水环真空泵分别与一个电机连接，由电机驱动水环真空泵的发动。以3个水环真空泵和3个电机组成如图1所示，第一水环真空泵与第一电机连接，第二水环真空泵与第二电机连接，第三水环真空泵与第三电机连接，每个水环真空泵都由各自的电机驱动。这样的结构，当其中的电机出现故障时，所对应的水环真空泵就必须停止工作，影响生产效率。而且，水环真空泵由于只有一个电机驱动，当水环真空泵所需功率高时，一个电机不能满足水环真空泵的需要，导致生产效率降低。 The existing water ring vacuum pump device is composed of multiple water ring vacuum pumps and multiple motors, one water ring vacuum pump is respectively connected with one motor, and the motor drives the start of the water ring vacuum pump. Composed of 3 water ring vacuum pumps and 3 motors as shown in Figure 1, the first water ring vacuum pump is connected to the first motor, the second water ring vacuum pump is connected to the second motor, and the third water ring vacuum pump is connected to the third motor. Each water ring vacuum pump is driven by its own motor. With such a structure, when the motor therein fails, the corresponding water ring vacuum pump must stop working, which affects production efficiency. Moreover, since the water ring vacuum pump is driven by only one motor, when the power required by the water ring vacuum pump is high, one motor cannot meet the needs of the water ring vacuum pump, resulting in reduced production efficiency. the
因此，现有技术还有待于改进和发展。 Therefore, the prior art still needs to be improved and developed. the
实用新型内容 Utility model content
鉴于上述现有技术的不足，本实用新型的目的在于提供一种水环真空泵装置，旨在解决现有水环真空泵装置生产效率易受单个电机影响的问题。 In view of the shortcomings of the prior art above, the purpose of this utility model is to provide a water ring vacuum pump device, which aims to solve the problem that the production efficiency of the existing water ring vacuum pump device is easily affected by a single motor. the
本实用新型的技术方案如下： The technical scheme of the utility model is as follows:
一种水环真空泵装置，由水环真空泵和电机组成，其中，所述水环真空泵的个数至少为两个，所述电机的个数与水环真空泵的个数相同，每个电机分别与所有水环真空泵连接。 A water ring vacuum pump device is composed of a water ring vacuum pump and a motor, wherein the number of the water ring vacuum pumps is at least two, the number of the motors is the same as the number of the water ring vacuum pumps, and each motor is connected to the water ring vacuum pump respectively. All water ring vacuum pump connections.
[0006]所述的水环真空泵装置，其中，所述水环真空泵的个数为3。 [0006] The water ring vacuum pump device, wherein the number of the water ring vacuum pump is 3.
[0007] 有益效果：本实用新型所提供的水环真空泵装置，每个电机都分别与3个水环真空泵连接，当其中一个电机出现故障时，另外两个电机还能驱动三个水环真空泵工作，保证生产不会受到影响。或者，当一个电机不足以满足一个水环真空泵工作时，可以同时由两个或三个电机驱动水环真空泵的工作，确认生产的顺利进行。 Beneficial effect: the water ring vacuum pump device provided by the utility model, each motor is connected with 3 water ring vacuum pumps respectively, when one of the motors broke down, the other two motors can also drive three water ring vacuum pumps Work to ensure that production will not be affected. Or, when one motor is not enough for one water ring vacuum pump, two or three motors can drive the water ring vacuum pump at the same time to confirm the smooth progress of production.
附图说明 Description of drawings
图1为现有的水环真空泵装置的结构示意图。 FIG. 1 is a schematic structural view of an existing water ring vacuum pump device. the

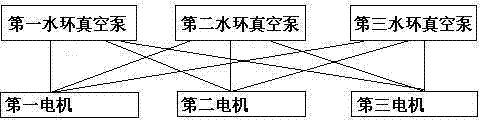

图2为本实用新型实施例中的水环真空泵装置的结构示意图。 Fig. 2 is a schematic structural diagram of a water ring vacuum pump device in an embodiment of the present invention. the
具体实施方式 Detailed ways
本实用新型提供一种水环真空泵装置，为使本实用新型的目的、技术方案及效果更加清楚、明确，以下对本实用新型进一步详细说明。应当理解，此处所描述的具体实施例仅仅用以解释本实用新型，并不用于限定本实用新型。 The utility model provides a water ring vacuum pump device. In order to make the purpose, technical solution and effect of the utility model clearer and clearer, the utility model will be further described in detail below. It should be understood that the specific embodiments described here are only used to explain the utility model, and are not intended to limit the utility model. the
本实用新型所提供的水环真空泵装置，由3个水环真空泵和3个电机组成，如图2所示，每个电机都分别与3个水环真空泵连接。具体为第一电机与第一水环真空泵、第二水环真空泵和第三水环真空泵相连接，第二电机与第一水环真空泵、第二水环真空泵和第三水环真空泵相连接，第三电机与第一水环真空泵、第二水环真空泵和第三水环真空泵相连接。这样，每个水环真空泵都能由任一个电机驱动。 The water ring vacuum pump device provided by the utility model is composed of 3 water ring vacuum pumps and 3 motors, as shown in Figure 2, each motor is connected with 3 water ring vacuum pumps respectively. Specifically, the first motor is connected with the first water ring vacuum pump, the second water ring vacuum pump and the third water ring vacuum pump, the second motor is connected with the first water ring vacuum pump, the second water ring vacuum pump and the third water ring vacuum pump, The third motor is connected with the first water ring vacuum pump, the second water ring vacuum pump and the third water ring vacuum pump. In this way, each water ring vacuum pump can be driven by either motor. the
这样，当其中一个电机出现故障时，另外两个电机还能驱动三个水环真空泵工作，保证生产不会受到影响。或者，当一个电机不足以满足一个水环真空泵工作时，可以同时由两个或三个电机驱动水环真空泵的工作，确认生产的顺利进行。 In this way, when one of the motors fails, the other two motors can also drive the three water ring vacuum pumps to ensure that the production will not be affected. Or, when one motor is not enough for one water ring vacuum pump, two or three motors can drive the water ring vacuum pump at the same time to confirm the smooth progress of production. the
进一步地，所述水环真空泵装置可以由水环真空泵和电机组成，其中，所述水环真空泵的个数至少为两个，所述电机的个数与水环真空泵的个数相同，每个电机分别与所有水环真空泵连接。 Further, the water ring vacuum pump device may be composed of a water ring vacuum pump and a motor, wherein the number of the water ring vacuum pump is at least two, the number of the motor is the same as the number of the water ring vacuum pump, each The motors are respectively connected with all water ring vacuum pumps. the
应当理解的是，本实用新型的应用不限于上述的举例，对本领域普通技术人员来说，可以根据上述说明加以改进或变换，所有这些改进和变换都应属于本实用新型所附权利要求的保护范围。 It should be understood that the application of the present utility model is not limited to the above examples, and those skilled in the art can improve or change according to the above description, and all these improvements and changes should belong to the protection of the appended claims of the present utility model scope. the
