The utility model relates to a domestic wastewater utilization device, which mainly comprises a water storage tank and a flushing tank, wherein the water storage tank is provided with a water inlet pipe and an overflow pipe; the flushing tank is provided with a flushing valve and a flushing pipe; a submersible pump is arranged in the water storage tank; one end of a water delivery pipe is communicated with the submersible pump, and the other end of the water delivery pipe is communicated with the flushing tank; a water level switch is electrically connected with the submersible pump; and the flushing tank is also provided with a water replenishing pipe and a water intake pipe. According to the domestic wastewater utilization device, domestic wastewater (water for washing clothes, faces and vegetables) is collected in the water storage tank and is conveyed into the flushing tank by the water delivery pipe to be used for flushing urinals, watering flowers, flushing mops and the like, so that the domestic wastewater is recycled. The domestic wastewater utilization device is simple in structure, easy to manufacture and convenient to use.

Description

A kind of daily life sewage use device
Technical field:The utility model relates to a kind of waste water utilization device, the device that particularly a kind of suitable house daily life sewage utilizes.
Background technology:The deficiency of existing water resource is the increase day by day of the global problem, particularly urban water consumption that faces jointly, and the saving of water resource is seemed more urgent with fully rationally utilizing.Water-saving theory is rooted in the hearts of the people, but really will accomplish using water wisely, except the good habit of individual water, also needs could really reach through various effective water saving fixtures the purpose of water saving.Existing many various water saving fixtures, but, do not obtain excellent popularization and use mostly because of complex structure.
Summary of the invention:The purpose of the utility model provides a kind of simple in structure, the device that the house daily life sewage is effectively utilized once more.
The daily life sewage use device of the utility model; Mainly comprise storage tank and flushing tank, storage tank is provided with water inlet pipe, overflow pipe, and flushing tank is provided with flushing valve, jet water spout; It is characterized in that: be provided with submersible pump in the storage tank; Water-supply-pipe one end is communicated with submersible pump, and the other end of water-supply-pipe is communicated with flushing tank, and water level switch is electrically connected with submersible pump.Said flushing tank also is provided with filling pipe and intake pipe.
Owing to adopt technique scheme; Daily life sewage (do washing, wash one's face and wash the dish water) can be collected in the storage tank of the utility model, sends into flushing tank by submersible pump through water-supply-pipe then; Be used for flushing toilet bowl or flushing mop etc., realized the utilization once more of daily life sewage.The utility model is simple in structure, and is easy to manufacture, easy to use.
Description of drawings:Below in conjunction with accompanying drawing and embodiment the utility model is further specified.

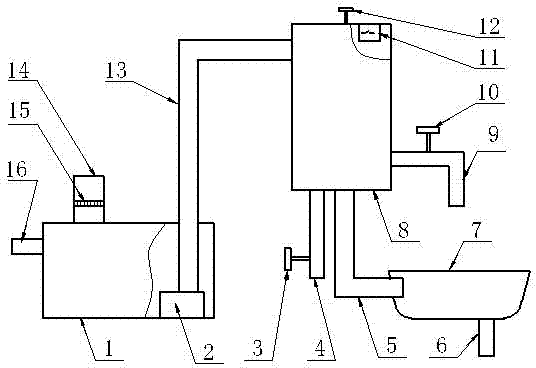

Accompanying drawing 1 is the structural representation of the utility model.
Accompanying drawing 2 is the circuit theory diagrams of the utility model.
1. storage tanks, 2. submersible pumps, 3. water compensating valves, 4. filling pipes, 5. jet water spouts, 6. sewer pipes, 7. urinals, 8. flushing tanks, 9. intake pipes, 10. water intake valves, 11. water level switches, 12. flushing valves, 13. water-supply-pipes, 14. water inlet pipes, 15. filter screens, 16. overflow pipes among the figure.
The specific embodiment:Referring to accompanying drawing, in the daily life, washing machine, wash basin and wash the daily life sewage that nappy is discharged filter the back from water inlet pipe 14 through filter screen 15 and get into storage tanks 1, and after storage tank 1 storage was full, unnecessary waste water was expelled to sewer from overflow pipe 16.Submersible pump 2 is delivered to flushing tank 8 through water-supply-pipe 13 with the water in the storage tank 1, and the water level of flushing tank 8 reaches in limited time, and water level switch 11 breaks off, and submersible pump 2 stops to send water to flushing tank 8.When needing flushing toilet bowl 7, press flushing valve 12, the daily life sewage in the flushing tank 8 flows into urinal 7 through jet water spout 5, is expelled to sewer from sewer pipe 6 then.Open water intake valve 10, the daily life sewage in the flushing tank 8 also can take out from intake pipe 9, is used to water flowers, washes other purposes such as mop.After daily life sewage in the flushing tank 8 uses, the drawdown in the flushing tank 8, water level switch 11 is connected, and submersible pump 2 send water to flushing tank 8 again, and when full, water level switch 11 breaks off to flushing tank 8 water, and submersible pump 2 stops to send water.Flushing tank 8 also is provided with filling pipe 4, and filling pipe 4 inserts the tap water pipe network, when daily life sewage is not enough, can open water compensating valve 3 to flushing tank 8 moisturizings, to keep normal wash water.
