Abstract

The utility model relates to a water-saving device for residents in a residential building, which belongs to the technical field of urban water saving devices. The water-saving device comprises a rainwater collecting disk, overflow connecting pipes, water collecting selection valves, water inlet pipes, waste water pipes, an upper water collecting tank, an intermediate water collecting tank and a lower water collecting tank, wherein the upper water collecting tank, the intermediate water collecting tank and the lower water collecting tank are arranged in all floors of the residential building respectively, each water collecting selection valve is arranged in a drain hole of each floor, the rainwater collecting disk is mounted at the top of the residential building and connected with the upper water collecting tank through a rainwater delivery pipe, an overflow opening is arranged at the upper end of each of the upper water collecting tank, the intermediate water collecting tank and the lower water collecting tank, and the overflow openings are connected with the intermediate water collecting tank, the lower water collecting tank and an underground drainage pipeline through the overflow connecting pipes. The water-saving device is simple in structure, reasonable in design, convenient in mounting and fine in water-saving effect, is permanently benefited by being mounted once and has positive popularization significance. Undoubtedly, by means of popularization and use of the water-saving device, positive economical effects can be realized for families, and positive social effects can be realized for the nation.

Description

A kind of residential building resident water saving fixtures
Technical field
The utility model relates to a kind of residential building resident water saving fixtures, belongs to urban water use water saving fixtures technical field.
Background technology
Have more than 400 city to have the problem of insufficient water in more than 600 city of China 20 end of the centurys, and wherein more serious lack of water city reaches 110; National urban lack of water total amount is 60 billion cubic meters; In daily life and work, using water wisely is a kind of mode that solves shortage of water resources, is to solve the indispensable mode of shortage of water resources and make full use of water resource; This point has also all obtained people's generally understanding.
Have data to show, the laundry water accounts for 1/3 of whole domestic waters in people's daily life, and general conventional laundry apparatus is washed a clothes water between 150-180 liters.China's washing machine recoverable amount is about 1.2 hundred million at present, with inferior on every Wendesdays frequency of utilization rough calculation, and annual water consumption at least 30 billion cubic meters of whole washing machines.In the daily life, the bath water amount is average 50-60 liters for each person every day, takies 31%-35% of water inventory; Other as cook, the water of toilet stool washing etc., take 28%-35% of water inventory.Usually the water after these laundries, bathing are used all is to follow old water discharge method directly to discharge through sewer, is a waste to water resource promptly, has also increased the water rate expenditure simultaneously.
Summary of the invention
The purpose of the utility model is: a kind of rainwater that can roof platform be collected is provided and the sewage that is discharged when laundry, bathing in people's daily life is collected selectively; Carrying out the second time utilizes; To reach using water wisely, make full use of water resource, the water after the existing laundry of solution, bathing are used follows old water discharge method and directly discharges through sewer; Be a waste promptly, also increased water rate simultaneously and propped up the residential building resident water saving fixtures that go wrong water resource.
The utility model is to realize above-mentioned purpose through following technical scheme:
A kind of residential building resident water saving fixtures; It is made up of rainwater catch tray, spilling water tube connector, the selector valve that catchments, water inlet pipe, waste water pipe, upper condensate sump, middle header tank, lower condensate sump; It is characterized in that: be respectively arranged with upper condensate sump, middle header tank and lower condensate sump from top to bottom in each floor of residential building; The below of each header tank is respectively arranged with closet; Be respectively arranged with the selector valve that catchments in the ground small opening of each floor plates, the rainwater catch tray is equipped with at the top of residential building, and the rainwater catch tray is connected with upper condensate sump through the rainwater carrier pipe; The upper end of upper condensate sump, middle header tank and lower condensate sump is respectively arranged with overfall gap, and overfall gap is connected with middle header tank, lower condensate sump and subsoil drain respectively through the spilling water tube connector; Be respectively arranged with water inlet pipe and waste water pipe on the described selector valve that catchments, the selector valve that catchments is connected with sewer pipe through waste water pipe, and is connected with lower condensate sump with middle header tank respectively through water inlet pipe.
Described upper condensate sump, middle header tank and lower condensate sump are connected with closet through cleaning hose respectively, and closet is connected with sewer pipe through the closet pipe.
The beneficial effect of the utility model is:
These residence building resident's water saving fixtures are simple in structure, reasonable in design, easy for installation, once mounting; Permanent being benefited; Water-saving result is good, through rainwater catch tray and the rainwater carrier pipe that is connected with upper condensate sump, and the spilling water tube connector on each header tank; Can the rainwater of collecting be stored in each header tank step by step; Resident family of lower floor can collect the laundry water or the bathing water of upper strata resident family through the selector valve that catchments of upper floor laminate installation selectively, and satisfactory water gets into the header tank second use through water inlet pipe; Undesirable water gets into the sewer pipe discharging through waste water pipe.Promoting the use of of these water saving fixtures can produce positive economic effect to family undoubtedly, brings positive social effect to country.
Description of drawings:

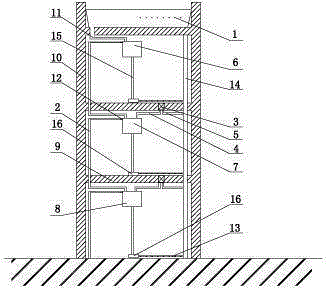

Accompanying drawing is the structural representation of the utility model.
Among the figure: 1, rainwater catch tray, 2, the spilling water tube connector, 3, the selector valve that catchments, 4, water inlet pipe; 5, waste water pipe, 6, upper condensate sump, 7, middle header tank, 8, lower condensate sump; 9, floor plates, 10, residential building, 11, the rainwater carrier pipe, 12, overfall gap; 13, closet pipe, 14, sewer pipe, 15, cleaning hose, 16, closet.
The specific embodiment:
This residential building resident water saving fixtures are made up of rainwater catch tray 1, spilling water tube connector 2, the selector valve 3 that catchments, water inlet pipe 4, waste water pipe 5, upper condensate sump 6, middle header tank 7, lower condensate sump 8.Be respectively arranged with upper condensate sump 6, middle header tank 7 and lower condensate sump 8 in residential building 10 floors from top to bottom; The below of each header tank is respectively arranged with closet 16; Be respectively arranged with the selector valve 3 that catchments in the ground small opening of each floor plates 9; Catchmenting is respectively arranged with water inlet pipe 4 and waste water pipe 5 on the selector valve 3, and the selector valve 3 that catchments is connected with sewer pipe 14 through waste water pipe 5, and the selector valve 3 that catchments passes through water inlet pipe 4 and is connected with lower condensate sump 8 with middle header tank 7 respectively.Rainwater catch tray 1 is equipped with at the top of residential building 10.Rainwater catch tray 1 is connected with upper condensate sump 6 through rainwater carrier pipe 11.
The upper end of upper condensate sump 6, middle header tank 7 and lower condensate sump 8 is respectively arranged with overfall gap 12, and overfall gap 12 is connected with subsoil drain (drawing among the figure) with middle header tank 6, lower condensate sump 7 respectively through spilling water tube connector 2.Upper condensate sump 6, middle header tank 7 and lower condensate sump 8 are connected with closet 16 through cleaning hose 15 respectively, and closet 16 is connected with sewer pipe 14 through closet pipe 13.
The utility model especially is fit to residential building collective and installs and uses; Through rainwater catch tray 1 and the upper condensate sump 6 that is connected with rainwater catch tray 1 through rainwater carrier pipe 11; And the spilling water tube connector 2 on each header tank, can the rainwater of collecting be stored in each header tank step by step, resident family of lower floor can be through the selector valve 3 that catchments of upper floor laminate installation; Can the laundry water or the bathing water of upper strata resident family be collected selectively, satisfactory water gets into each header tank second use through water inlet pipe 4; Undesirable water gets into sewer pipe 14 dischargings through waste water pipe 5.The water that each header tank is collected is used to wash closet 16 to be used, and flushing water enters sewer pipe 14 through closet pipe 13.After lower condensate sump 8 fills with water of below, the water that overflows enters subsoil drain through overfall gap 12.These water saving fixtures are simple in structure, reasonable in design, and are easy for installation, once mounting, and permanent being benefited, water-saving result is good, has positive dissemination, promotes the use of, and can produce positive economic effect to family undoubtedly, brings positive social effect to country.

Claims (2)

1. residential building resident water saving fixtures; It is made up of rainwater catch tray (1), spilling water tube connector (2), the selector valve that catchments (3), water inlet pipe (4), waste water pipe (5), upper condensate sump (6), middle header tank (7), lower condensate sump (8); It is characterized in that: be respectively arranged with upper condensate sump (6), middle header tank (7) and lower condensate sump (8) in each floor of residential building (10) from top to bottom; The below of each header tank is respectively arranged with closet (16); Be respectively arranged with the selector valve that catchments (3) in the ground small opening of each floor plates (9); Rainwater catch tray (1) is equipped with at the top of residential building (10), and rainwater catch tray (1) is connected with upper condensate sump (6) through rainwater carrier pipe (11); The upper end of upper condensate sump (6), middle header tank (7) and lower condensate sump (8) is respectively arranged with overfall gap (12), and overfall gap (12) is connected with subsoil drain with middle header tank (7), lower condensate sump (8) respectively through spilling water tube connector (2); Be respectively arranged with water inlet pipe (4) and waste water pipe (5) on the described selector valve that catchments (3); The selector valve (3) that catchments is connected with sewer pipe (14) through waste water pipe (5), and the selector valve that catchments (3) also is connected with lower condensate sump (8) with middle header tank (7) respectively through water inlet pipe (4).
2. residential building resident water saving fixtures according to claim 1; It is characterized in that: described upper condensate sump (6), middle header tank (7) and lower condensate sump (8) are connected closet 16 through cleaning hose (15) with closet (16) respectively) be connected with sewer pipe (14) through closet pipe (13).
