Abstract
At the places such as an urban slow lane, a narrow lane, a residential area, a tourist area, a park and a square and in a residential yard, an attractive yard lamp is commonly used for decoration and night lighting. According to a night lighting requirement, the power consumption of the yard lamp is high, and the power supply load of an urban power grid is aggravated. The utility model discloses a wind power generation yard lamp. The wind power generation yard lamp comprises a lamp shade and a lamp pole which is arranged on a base, wherein the lamp shade is arranged on the top of the lamp pole; a light emitting diode (LED) lamp is arranged in the lamp shade; a wind power generator is arranged outside the lamp pole; a storage battery is arranged in the base; an output end of the wind power generator is connected with the storage battery; and a blade of the wind power generator has a spiral structure. By adoption of the wind power generation yard lamp provided by the utility model, according to the advantages that the installation height of the yard lamp commonly is over 2.5 m and the yard lamp is in an open space where wind is strong, electric energy is generated by using wind power and stored, power is auxiliarily supplied to the yard lamp as required, and the utilization efficiency of wind energy is high.
Description
Technical field
The utility model relates to lighting field, relates in particular to the garden lamp that a kind of ability is collected and the storage wind energy is used to throw light on.
Background technology
The garden lamp that in place such as city slow lane, narrow track, residential quarter, tourist attraction, park, square and oneself garden of resident, adopts beautiful design through regular meeting is as decorating and night lighting uses.Garden lamp can prolong people's the outdoor activities time, improves resident's quality of life, increases resident's at night the person and property safety.But for the needs of night illumination, the power consumption of garden lamp own is not little, has further increased the weight of the supply load of urban distribution network.
Summary of the invention
For addressing the above problem, the utility model discloses a kind of wind-power electricity generation garden lamp, can make full use of environmental advantage of living in, wind-driven generator collection wind energy is set on lamppost also stores, be used for the powered lighting at night.
The utility model provides following technical scheme:
A kind of wind-power electricity generation garden lamp; Comprise lampshade and be installed in the lamppost on the base, said lampshade is installed in the lamppost top, and the LED lamp is installed in the lampshade; Said lamppost outside also is equipped with wind-driven generator; In the said base battery is installed, the wind-driven generator output links to each other with battery, and the blade of said wind-driven generator is a sped structure.
As improvement, the light sensation switch is installed on the said base, said light sensation switch is connected with battery.
As improvement, said wind-driven generator outside is equipped with protection network.
The wind-power electricity generation garden lamp that the utility model provides utilizes garden lamp usually more than 2.5m, and zone of living in is comparatively spacious; The advantage that wind-force is bigger; Utilizing wind-force to produce electric energy and also store, is the auxiliary supply capability of garden lamp, and the screw blade structure has effectively improved Wind Power Utilization efficient.In addition, can also when light is dark, carry out the automatic priority power supply automatically, reduce urban electric power consumption through light sensation switch control battery.Further, protection network is set outside wind-driven generator, effectively reduces the damage probability of wind-driven generator.
Description of drawings

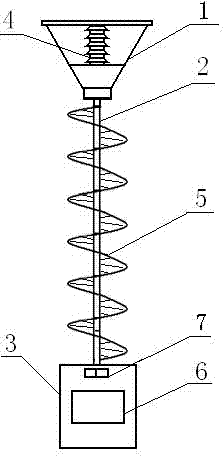

The structural representation of the wind-power electricity generation garden lamp that Fig. 1 provides for embodiment one.
The structural representation of the wind-power electricity generation garden lamp that Fig. 2 provides for embodiment two.
Accompanying drawing is indicated tabulation:
The 1-lampshade, 2-lamppost, 3-base, 4-LED lamp, 5-wind-driven generator, 6-battery, 7-light sensation switch, 8-protection network.
The specific embodiment
Below in conjunction with the accompanying drawing and the specific embodiment, further illustrate the utility model, should understand the following specific embodiment only be used to the utility model is described and be not used in the restriction the utility model scope.Need to prove; Describe below the word " preceding " that uses, " back ", " left side ", " right side ", " on " and D score refer to the direction in the accompanying drawing, word " interior " and " outward " refer to respectively towards or away from the direction of specific features geometric center.
As shown in Figure 1, a kind of wind-power electricity generation garden lamp comprises lampshade 1 and is installed in the lamppost 2 on the base 3; Said lampshade 1 is installed in lamppost 2 tops, and LED lamp 4 is installed in the lampshade 1, it is characterized in that: said lamppost 2 outsides also are equipped with wind-driven generator 5; Wind-driven generator is generally the vane drive formula, and in this example, the blade of wind-driven generator 5 is a sped structure; Utilization ratio to wind energy is high, when gentle breeze passes through, also can drive wind-driven generator 5 runnings.Battery 6 is installed in the base 3, and the output of wind-driven generator 5 links to each other with battery 6.
When having wind to pass through, the blade on the wind-driven generator is by driving and generating electric power and be stored in the battery 6, for LED lamp 4 provides electric energy supplement, has made full use of this clean energy resource of wind energy, for urban distribution network reduces the heavy burdens, and environmental.
As improvement, light sensation switch 7 is installed on the said base, said light sensation switch 7 is connected with battery 6, and light sensation switch 7 control batteries carry out automatic power, energy savings to the LED lamp when night or light are dark.
Embodiment two:
As shown in Figure 2, a kind of wind-power electricity generation garden lamp comprises lampshade 1 and is installed in the lamppost 2 on the base 3; Said lampshade 1 is installed in lamppost 2 tops, and LED lamp 4 is installed in the lampshade 1, it is characterized in that: said lamppost 2 outsides also are equipped with wind-driven generator 5; Wind-driven generator is generally the vane drive formula, and in this example, the blade of wind-driven generator 5 is a sped structure; Utilization ratio to wind energy is high, when gentle breeze passes through, also can drive wind-driven generator 5 runnings.Battery 6 is installed in the base 3, and the output of wind-driven generator 5 links to each other with battery 6.Light sensation switch 7 is installed on the said base, and said light sensation switch 7 is connected with battery 6, and light sensation switch 7 control batteries carry out automatic power, energy savings to the LED lamp when night or light are dark.
In this example, be damaged in order to prevent blade of wind-driven generator, wind-driven generator 5 outsides preferably are equipped with protection network 8.The mesh of protection network 8 should be tried one's best greatly with through more wind, and preferably as shown in Figure 2 is grid-like.
The disclosed technological means of the utility model scheme is not limited only to the disclosed technological means of above-mentioned technological means, also comprises the technical scheme of being made up of above technical characterictic combination in any.
Claims (3)
1. wind-power electricity generation garden lamp; Comprise lampshade and be installed in the lamppost on the base, said lampshade is installed in the lamppost top, and the LED lamp is installed in the lampshade; It is characterized in that: said lamppost outside also is equipped with wind-driven generator; In the said base battery is installed, the wind-driven generator output links to each other with battery, and the blade of said wind-driven generator is a sped structure.
2. wind-power electricity generation garden lamp according to claim 1 and 2 is characterized in that: the light sensation switch is installed on the said base, and said light sensation switch is connected with battery.
3. wind-power electricity generation garden lamp according to claim 1 and 2 is characterized in that: said wind-driven generator outside is equipped with protection network.
