本实用新型公开了一种太阳能LED室内照明灯，其特征在于：所述太阳能LED室内照明灯包括灯罩、太阳能板、蓄电池、电路控制板、LED发光二极管，太阳能板与蓄电池电连接，蓄电池与LED发光二极管电连接，太阳能板安装在灯罩的内侧。所述蓄电池为锂电池。所述灯罩上安装有充电指示灯。所述灯罩上安装有遥控开关。所述灯罩上安装有水银环形板。所述灯罩上安装有多菱玻璃板。本实用新型具有节约能源、成本低、安装与使用方便的优点。
The utility model discloses a solar LED indoor lighting lamp, which is characterized in that: the solar LED indoor lighting lamp comprises a lampshade, a solar panel, a battery, a circuit control board, and an LED light-emitting diode, the solar panel is electrically connected to the battery, and the battery is connected to the LED The LEDs are electrically connected, and the solar panel is mounted on the inside of the lampshade. The storage battery is a lithium battery. A charging indicator light is installed on the lampshade. A remote control switch is installed on the lampshade. A mercury annular plate is installed on the lampshade. A multi-diamond glass plate is installed on the lampshade. The utility model has the advantages of energy saving, low cost, and convenient installation and use.
Description
技术领域technical field
本实用新型涉及一种太阳能LED室内照明灯，具体地说是一种节约能源、成本低、安装与使用方便的太阳能LED室内照明灯。The utility model relates to a solar LED indoor lighting lamp, in particular to a solar LED indoor lighting lamp which saves energy, has low cost, and is convenient to install and use.
背景技术Background technique
新能源是二十一世纪世界经济发展中最具决定力的技术领域之一。太阳能是一种清洁、高效和永不衰竭的新能源。在实际中，各国政府都将太阳能资源利用作为国家可持续发展战略的重要内容。通常，利用太阳能发电的照明装置是利用太阳光产生电的太阳能电池、储存太阳能电池所产生的电的蓄电池、由蓄电池供电以发光的灯。照明装置在白天利用阳光产生电，然后将产生的电输送到蓄电池，在夜间将储存在蓄电池的电供给发光灯。目前，市场上已出现许多太阳能照明产品，但普遍成本高，满足不了消费者的需要。New energy is one of the most decisive technical fields in the world economic development in the 21st century. Solar energy is a clean, efficient and inexhaustible new energy source. In practice, the governments of various countries regard the utilization of solar energy resources as an important content of the national sustainable development strategy. Generally, a lighting device using solar power generation is a solar cell generating electricity using sunlight, a storage battery storing electricity generated by the solar cell, and a lamp powered by the storage battery to emit light. The lighting device uses sunlight to generate electricity during the day, then sends the generated electricity to the battery, and supplies the electricity stored in the battery to the light-emitting lamp at night. At present, many solar lighting products have appeared on the market, but the general cost is high and cannot meet the needs of consumers.
发明内容Contents of the invention
本实用新型的目的是提供一种节约能源、成本低、安装与使用方便的太阳能LED室内照明灯。The purpose of the utility model is to provide a solar LED indoor lighting lamp which saves energy, is low in cost, and is easy to install and use.
本实用新型的目的通过以下技术方案来实现。The purpose of this utility model is achieved through the following technical solutions.
一种太阳能LED室内照明灯，其特征在于：所述太阳能LED室内照明灯包括灯罩、太阳能板、蓄电池、电路控制板、LED发光二极管，太阳能板与蓄电池电连接，蓄电池与LED发光二极管电连接，太阳能板安装在灯罩的内侧。A solar LED indoor lighting lamp, characterized in that: the solar LED indoor lighting lamp includes a lampshade, a solar panel, a battery, a circuit control board, and an LED light-emitting diode, the solar panel is electrically connected to the battery, and the battery is electrically connected to the LED light-emitting diode. The solar panel is mounted on the inner side of the lampshade.
所述蓄电池为锂电池。The storage battery is a lithium battery.
所述灯罩上安装有充电指示灯。A charging indicator light is installed on the lampshade.
所述灯罩上安装有遥控开关。A remote control switch is installed on the lampshade.
所述灯罩上安装有水银环形板。A mercury annular plate is installed on the lampshade.
所述灯罩上安装有多菱玻璃板。A multi-diamond glass plate is installed on the lampshade.
本实用新型与现有技术相比具有以下优点。Compared with the prior art, the utility model has the following advantages.
本实用新型太阳能LED室内照明灯采用了高效节能、寿命长、环保、绿色照明的LED发光二极管，并采用遥控开关控制，使用方便。本实用新型充分利用发光二极管发出的光能，由太阳能板吸收并转换成电能贮存在锂电池中，这样一边使用一边贮存电能，白天不用时将太阳能电板对着太阳光进行充电，充分利用光转换成电，电又转换成光的原理，保证发光二极永久性电能供给。本实用新型满足了路灯的照明需求，并节约了大量电能，投资少、见效快，是一项利国利民、长远受益的产品。The solar LED indoor lighting lamp of the utility model adopts LED light-emitting diodes with high efficiency, energy saving, long service life, environmental protection and green lighting, and is controlled by a remote control switch, and is convenient to use. The utility model makes full use of the light energy emitted by the light-emitting diode, which is absorbed by the solar panel and converted into electric energy and stored in the lithium battery. In this way, the electric energy is stored while being used. The principle of converting into electricity and converting electricity into light ensures the permanent power supply of light-emitting diodes. The utility model satisfies the lighting requirement of street lamps, saves a large amount of electric energy, has low investment and quick effect, and is a product that benefits the country and the people and benefits in the long run.
附图说明Description of drawings

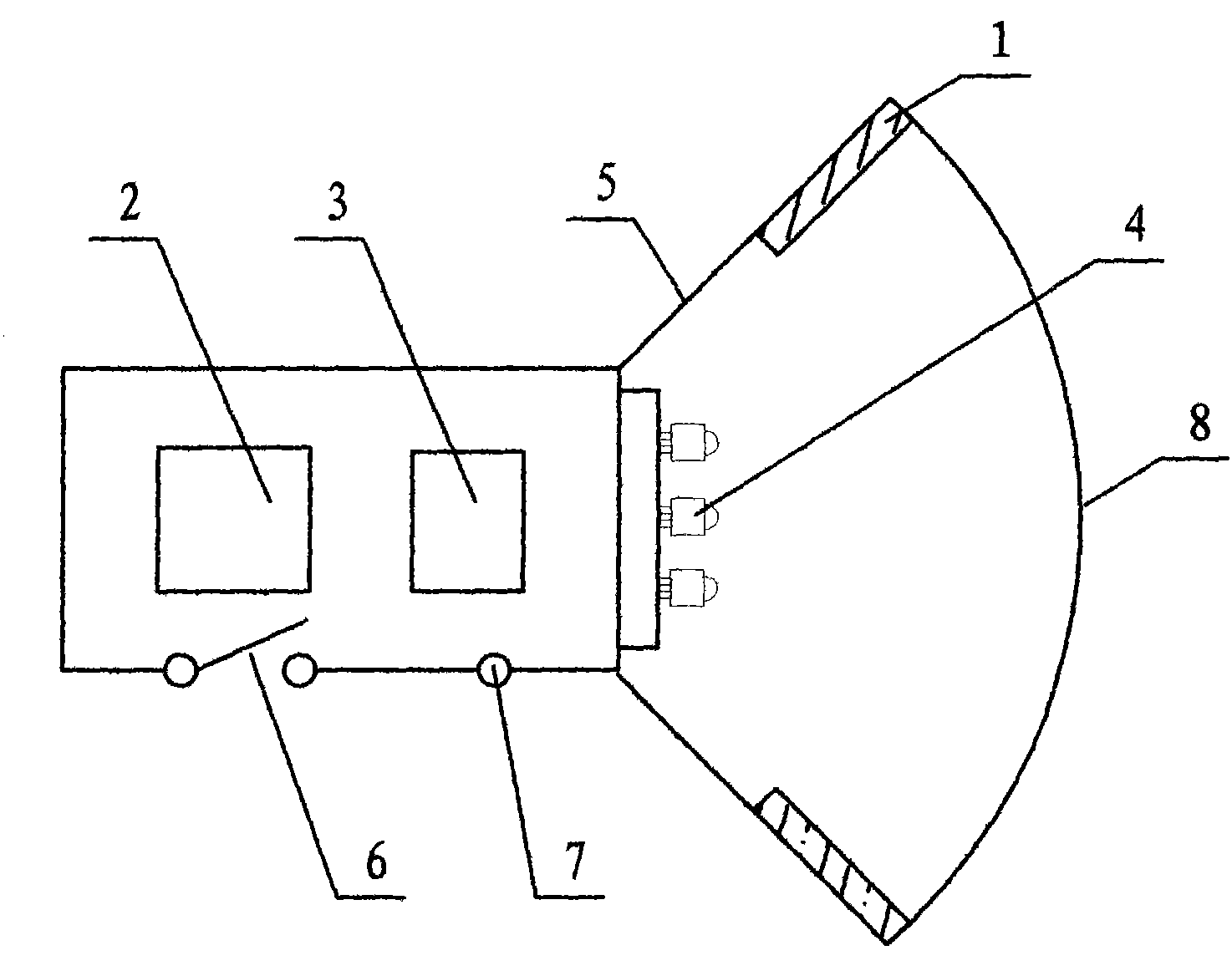

图1为本实用新型太阳能LED室内照明灯的结构示意图。Fig. 1 is a structural schematic diagram of a solar LED indoor lighting lamp of the present invention.
具体实施方式Detailed ways
下面结合附图对本实用新型太阳能LED室内照明灯作进一步详细描述。Below in conjunction with accompanying drawing, the solar LED indoor lighting lamp of the utility model is described in further detail.
如图1所示，本实用新型所述的太阳能LED室内照明灯主要由灯罩、太阳能板1、蓄电池2、电路控制板3、LED发光二极管4组成，太阳能板与蓄电池电连接，蓄电池与LED发光二极管电连接，太阳能板安装在灯罩的内侧，用于吸收二极管光能并转换成电能贮存于锂电池中。灯罩上安装有水银环形板5，水银环形板用于集光和将光反射到太阳能板上，有利于吸收光能。灯罩上安装有遥控开关6，使用时开启，不用时利用太阳光充电。灯罩上安装有充电指示灯7，指示灯可以显示充电情况。灯罩上安装多菱玻璃板8，多菱玻璃板具有透光、防尘集光的功能。本实用新型所述的太阳能LED室内照明灯具有安全可靠、无噪声、无污染、制约少、故障率低、维护简便的优点。As shown in Figure 1, the solar LED indoor lighting lamp described in the utility model is mainly composed of a lampshade, a solar panel 1, a
