Abstract
本实用新型公开了一种纳米金属簇滤料—超滤组合小型净水终端，主要由纳米金属簇滤料组件、超滤组件、支撑骨架和蠕动泵组成；纳米金属簇滤料组件和超滤组件并排串联，与蠕动泵分别安放在支撑骨架上，蠕动泵与超滤组件连接。纳米金属簇滤料组件由纳米金属簇滤料、进水布水板、滤料支撑板和外壳组成，超滤组件由中空纤维膜组件和外壳组成，蠕动泵在进水压力不足时为中空纤维膜的超滤提供动力。源头水首先经过纳米金属簇滤料过滤，再透过中空纤维膜超滤，从而达到净化。本实用新型采用了纳米金属簇滤料和超滤组合的形式，提高了进水中的各种有毒、有害物质和重金属离子的有效去除率，延长了设备使用寿命，且具有坚固耐用、造价低廉的优点。
The utility model discloses a nanometer metal cluster filter material-ultrafiltration combination small water purification terminal, which is mainly composed of a nanometer metal cluster filter material component, an ultrafiltration component, a supporting frame and a peristaltic pump; a nanometer metal cluster filter material component and an ultrafiltration filter component The components are arranged side by side and connected in series, respectively placed on the support frame with the peristaltic pump, and the peristaltic pump is connected with the ultrafiltration component. The nano-metal cluster filter material assembly is composed of nano-metal cluster filter material, water inlet distribution plate, filter material support plate and shell, the ultrafiltration component is composed of hollow fiber membrane module and shell, and the peristaltic pump is hollow fiber The membrane is powered by ultrafiltration. The source water is first filtered through the nano-metal cluster filter material, and then ultra-filtered through the hollow fiber membrane to achieve purification. The utility model adopts the combination form of nanometer metal cluster filter material and ultrafiltration, improves the effective removal rate of various toxic and harmful substances and heavy metal ions in the influent, prolongs the service life of the equipment, and has the advantages of firmness, durability and low cost. The advantages.
Description
Technical field
The utility model belongs to the water treatment device field, relates to the small-sized water purification terminal that is applicable to source water or tap water, is specifically related to a kind of nano metal bunch filtrate-ultrafiltration combined water purifying terminal.
Background technology
The micro-content organism that organic pollutant in the water source, particularly conventional processing are difficult to remove will influence HUMAN HEALTH.For solving the harm of tap water to HUMAN HEALTH, water purifier is widely used in drinking water deep and handles, and is called water quality treater, water conditioning equipment or water purification terminal again.Small-sized water purification terminal is the water source with municipal tap water or other centralized water supplies, through further handling, reaches and improves drinking-water quality, and objectionable impurities is a purpose in the removal water.
Early stage water purifier mainly is to utilize gac to remove disgusting stink in the water, improves the taste of water, the chlorine disinfection by-product in the planar water; But because behind the activated carbon filter use certain hour; Pollutent retains in the water purifier, forms the hotbed of microorganisms producing, makes that bacterial count increases in the water after the purification; And, exist shortcomings such as filtering out harmful matter is not thorough to be eliminated gradually because product structure is simple.
The water-purifying material that at present is used to remove these pollutents in the water purification industry mainly contains KDF filtrate and other porous adsorbing material.KDF is a kind of copper zinc alloy, but in use hardens into piece easily, thereby influences the flow velocity and the purifying water effect of water, and the copper of water outlet, zinc ion concentration increases morely, and purifying water effect is relatively poor.
A nano metal bunch filtrate is that another is novel after gac and KDF filtrate, multi-functional water-purifying material efficiently; Can effectively remove pollution substances such as heavy metal ion in the water, chlorine residue, organism; The phenomenon that in use do not have bacteria breed, be prone to harden, resistance increases is used in that the water field of purification is existing widely.
Ultrafiltration is a kind of Physical Separation Technology of green, is that to utilize pore diameter range be that 0.001 ~ 0.02 micron micropore filtering film reaches the purpose that purifies water.Ultrafiltration can the detention bacterium, has splendid turbidity removal and biocidal efficacies, be widely used in the clean water treatment, but not good to toxic organics in the water and heavy metal contaminants treatment effect when using separately, can not guarantee the clean water treatment quality fully.
Summary of the invention
The purpose of the utility model is the defective to above-mentioned prior art, and the combined small-sized water purification of a kind of nano metal bunch filtrate-ultrafiltration terminal is provided.The utility model makes the water purification quality obtain assurance fundamentally through combining the advantage of ultrafiltration and nano metal bunch filtrate, has advantages such as easy and simple to handle, practical, safe and reliable, cheap.
In order to achieve the above object, the utility model has adopted following technical scheme:
The combined small-sized water purification of a kind of nano metal bunch filtrate-ultrafiltration terminal mainly is made up of nano metal bunch filtrate assembly 1, ultrafiltration module 2, support frame 3 and peristaltic pump 6; Nano metal bunch filtrate assembly 1, ultrafiltration module 2 and peristaltic pump 6 are placed in respectively on the support frame 3; Wherein, Nano metal bunch filtrate assembly 1 is laid with ultrafiltration module 2 side by side; Through the series connection of colloid aqueduct, peristaltic pump 6 is positioned at the bottom of nano metal bunch filtrate assembly 1, is connected through the colloid aqueduct with ultrafiltration module 2; Support frame 3 is provided with into, and water interface 4 is connected with outer tube through the colloid aqueduct respectively with 5, two interfaces of water outlet interface; Be provided with metal screen in the water inlet interface 4, with particle bigger in the filtered water inlet; Peristaltic pump 6 drives hollow fiber ultrafiltration membrane, when intake pressure is not enough, for the hollow fiber ultrafiltration membrane filtration procedure power is provided.
Said nano metal bunch filtrate assembly 1 is made up of nano metal bunch filtrate assembly water inlet pipe 7, nano metal bunch filtrate assembly rising pipe 9, water inlet water distribution board 10, nano metal bunch filtrate 11, filtrate back up pad 12 and a nano metal bunch filtrate package shell 8; The top of nano metal bunch filtrate package shell 8 is provided with nano metal bunch filtrate assembly water inlet pipe 7; The bottom is provided with nano metal bunch filtrate assembly rising pipe 9; Inside is provided with into water water distribution board 10 and filtrate back up pad 12, and the cavity between water inlet water distribution board 10 and the filtrate back up pad 12 is placed with nano metal bunch filtrate 11.
Said ultrafiltration module 2 is made up of ultrafiltration module rising pipe 13, ultrafiltration module water inlet pipe 4, ultrafiltration module shell 15 and hollow-fibre membrane 16; The top of ultrafiltration module shell 15 is provided with ultrafiltration module water inlet pipe 13, and the bottom is provided with ultrafiltration module rising pipe 14, and inside is provided with hollow-fibre membrane 16.
Source water inlet gets into nano metal bunch filtrate assembly water inlet pipes 7 through water inlet interface 4, and the water inlet interface is built-in with metal screen with PM for particulate matter bigger in the trap water; Through nano metal bunch filtrate assembly water distribution board 10 water inlet is evenly distributed on the nano metal bunch filtrate 11 again; Realization is to the filtration removal of chlorine residue, toxic organic compound and heavy metal ion in water inlet and process that nano metal bunch filtrate 11 contact; A nano metal bunch filtrate back up pad 12 has the collection filtered water, prevents the effect that filtrate leaks with water outlet; Filtered water flows out through nano metal bunch filtrate assembly rising pipe 9; Get into the inner chamber that forms between ultrafiltration module shell 15 and the hollow-fibre membrane 16 through ultrafiltration module water inlet pipe 13 then, filtered water sees through the removal fully that hollow fiber ultrafiltration membrane 16 realizes small suspended particle and pathogenic microorganism; When intake pressure was enough, peristaltic pump 6 was closed, and utilized intake pressure for the ultrafiltration of hollow-fibre membrane 16 power to be provided; When intake pressure is not enough, open peristaltic pump 6, for the ultrafiltration of hollow-fibre membrane 16 provides power; See through the water after hollow-fibre membrane carries out ultrafiltration, flow into water outlet interface 5 through ultrafiltration module rising pipe 14, water outlet is purifies waste water.
The utility model compared with prior art has the following advantages and beneficial effect:
(1) the utility model has adopted the form of nano metal bunch filtrate and ultrafiltration combination; Make suspended solids, chlorine residue, pathogenic microorganism, harmful organic substance and heavy metal ion in the water inlet obtain effective removal, ensure that water outlet numerical value reaches the requirement of national water quality standard for drinking water;
(2) the utility model is compared with the existing simple similar water purifier of ultra-filtration technique that uses, because it is retarded to have adopted nano metal bunch filtrate to make that the film of ultra-filtration membrane pollutes, has improved the clearance to chlorine residue, toxic organic compound and heavy metal ion simultaneously;
(3) the utility model has adopted a peristaltic pump that operation power is provided, and has enlarged the use occasion of water purifier effectively, compared with prior art has more handiness and flexibility;
(4) the utility model adopts the stainless steel support frame, makes that the transportation of this equipment is easy, cheap, sturdy and durable.
Description of drawings

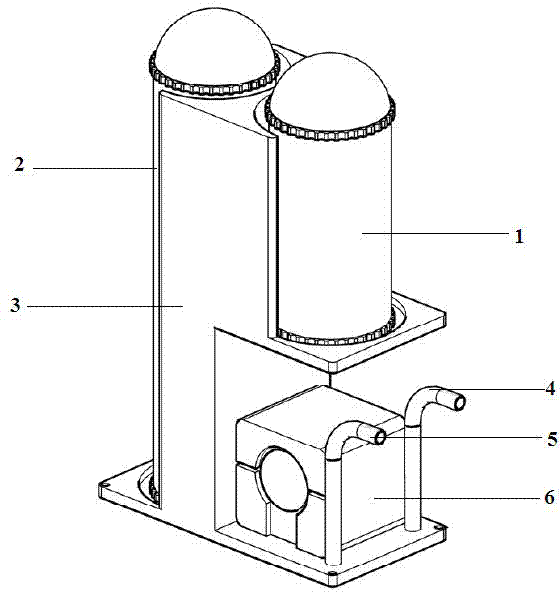

Fig. 1 is the structural representation at the combined small-sized water purification of the nano metal bunch filtrate-ultrafiltration terminal of the utility model.
Fig. 2 is the ultrafiltration module structural representation of the utility model.
Fig. 3 is the nano metal bunch filtrate unit construction synoptic diagram of the utility model.
Embodiment
Below in conjunction with embodiment and accompanying drawing the utility model is further explained, but the utility model requires the scope of protection to be not limited in this.
As shown in Figure 1, the combined small-sized water purification of the nano metal of the utility model bunch filtrate-ultrafiltration terminal mainly is made up of nano metal bunch filtrate assembly 1, ultrafiltration module 2, support frame 3 and peristaltic pump 6; Nano metal bunch filtrate assembly 1, ultrafiltration module 2 and peristaltic pump 6 are placed in respectively on the support frame 3; Wherein, Nano metal bunch filtrate assembly 1 is laid with ultrafiltration module 2 side by side; Through the series connection of colloid aqueduct, peristaltic pump 6 is positioned at the bottom of nano metal bunch filtrate assembly 1, is connected through the colloid aqueduct with ultrafiltration module 2; Support frame 3 is provided with into, and water interface 4 is connected with outer tube through the colloid aqueduct respectively with 5, two interfaces of water outlet interface; Be provided with metal screen in the water inlet interface 4, with particle bigger in the filtered water inlet; Peristaltic pump 6 drives hollow fiber ultrafiltration membrane, when intake pressure is not enough, for the hollow fiber ultrafiltration membrane filtration procedure power is provided.
As shown in Figure 2, nano metal bunch filtrate assembly 1 is made up of nano metal bunch filtrate assembly water inlet pipe 7, nano metal bunch filtrate assembly rising pipe 9, water inlet water distribution board 10, nano metal bunch filtrate 11, filtrate back up pad 12 and a nano metal bunch filtrate package shell 8; The top of nano metal bunch filtrate package shell 8 is provided with nano metal bunch filtrate assembly water inlet pipe 7; The bottom is provided with nano metal bunch filtrate assembly rising pipe 9; Inside is provided with into water water distribution board 10 and filtrate back up pad 12, and the cavity between water inlet water distribution board 10 and the filtrate back up pad 12 is placed with nano metal bunch filtrate 11.
The source water inlet gets into nano metal bunch filtrate assembly water inlet pipe 7 through water inlet interface 4; The water inlet interface is built-in with metal screen with PM for particulate matter bigger in the trap water, through nano metal bunch filtrate assembly water distribution board 10 water inlet is evenly distributed on the nano metal bunch filtrate 11 again; Realization is to the filtration removal of chlorine residue, toxic organic compound and heavy metal ion in water inlet and process that nano metal bunch filtrate 11 contact; A nano metal bunch filtrate back up pad 12 has the collection filtered water, prevents the effect that filtrate leaks with water outlet; Filtered water flows out through nano metal bunch filtrate assembly rising pipe 9, gets into ultrafiltration module 2 then.
As shown in Figure 3, ultrafiltration module 2 is made up of ultrafiltration module rising pipe 13, ultrafiltration module water inlet pipe 4, ultrafiltration module shell 15 and hollow-fibre membrane 16; The top of ultrafiltration module shell 15 is provided with ultrafiltration module water inlet pipe 13, and the bottom is provided with ultrafiltration module rising pipe 14, and inside is provided with hollow-fibre membrane 16.
The nano metal bunch filtered water that the filtrate assembly comes out gets into the inner chamber that forms between ultrafiltration module shell 15 and the hollow-fibre membrane 16 through ultrafiltration module water inlet pipe 13, and filtered water sees through the removal fully that hollow fiber ultrafiltration membrane 16 realizes small suspended particle and pathogenic microorganism; When intake pressure was enough, peristaltic pump 6 was closed, and utilized intake pressure for the ultrafiltration of hollow-fibre membrane 16 power to be provided; When intake pressure is not enough, open peristaltic pump 6, for the ultrafiltration of hollow-fibre membrane 16 provides power; See through the water after hollow-fibre membrane carries out ultrafiltration, flow into water outlet interface 5 through ultrafiltration module rising pipe 14, water outlet is purifies waste water, and reaches the purpose of removing objectionable impurities, purifying water.
Claims (4)
1. the combined small-sized water purification of a nano metal bunch filtrate-ultrafiltration terminal is characterized in that, mainly is made up of nano metal bunch filtrate assembly (1), ultrafiltration module (2), support frame (3) and peristaltic pump (6); Nano metal bunch filtrate assembly (1) ultrafiltration module (2) and peristaltic pump (6) are placed in respectively on the support frame (3); Wherein, Nano metal bunch filtrate assembly (1) and ultrafiltration module (2) are laid side by side; Through the series connection of colloid aqueduct, peristaltic pump (6) is positioned at the bottom of nano metal bunch filtrate assembly (1), is connected through the colloid aqueduct with ultrafiltration module (2); Support frame (3) is provided with into water interface (4) and water outlet interface (5), and two interfaces are connected with outer tube through the colloid aqueduct respectively; Be provided with metal screen in the water inlet interface (4), with particle bigger in the filtered water inlet; Peristaltic pump (6) drives hollow fiber ultrafiltration membrane, when intake pressure is not enough, for the hollow fiber ultrafiltration membrane filtration procedure power is provided.
2. the combined small-sized water purification of nano metal bunch filtrate-ultrafiltration according to claim 1 terminal; It is characterized in that said nano metal bunch filtrate assembly (1) is made up of nano metal bunch filtrate assembly water inlet pipe (7), nano metal bunch filtrate assembly rising pipe (9), water inlet water distribution board (10), nano metal bunch filtrate (11), filtrate back up pad (12) and a nano metal bunch filtrate package shell (8); The top of nano metal bunch filtrate package shell (8) is provided with nano metal bunch filtrate assembly water inlet pipe (7); The bottom is provided with nano metal bunch filtrate assembly rising pipe (9); Inside is provided with into water water distribution board (10) and filtrate back up pad (12), and the cavity between water inlet water distribution board (10) and the filtrate back up pad (12) is placed with nano metal bunch filtrate (11).
3. the combined small-sized water purification of nano metal bunch filtrate-ultrafiltration according to claim 1 terminal; It is characterized in that said ultrafiltration module (2) is made up of ultrafiltration module rising pipe (13), ultrafiltration module water inlet pipe (4), ultrafiltration module shell (15) and hollow-fibre membrane (16); The top of ultrafiltration module shell (15) is provided with ultrafiltration module water inlet pipe (13), and the bottom is provided with ultrafiltration module rising pipe (14), and inside is provided with hollow-fibre membrane (16).
4. according to the combined small-sized water purification of the described nano metal of one of claim 1 ~ 3 bunch filtrate-ultrafiltration terminal, it is characterized in that the source water inlet gets into nano metal bunch filtrate assembly water inlet pipe (7) through water inlet interface (4); Passing through nano metal bunch filtrate assembly water distribution board (10) again is evenly distributed to water inlet on the nano metal bunch filtrate (11); Realization is to the filtration removal of chlorine residue, toxic organic compound and heavy metal ion in water inlet and process that nano metal bunch filtrate (11) contact; A nano metal bunch filtrate back up pad (12) has the collection filtered water, prevents the effect that filtrate leaks with water outlet; Filtered water flows out through nano metal bunch filtrate assembly rising pipe (9); Get into the inner chamber that forms between ultrafiltration module shell (15) and the hollow-fibre membrane (16) through ultrafiltration module water inlet pipe (13) then, filtered water sees through hollow fiber ultrafiltration membrane (16) and realizes the removal fully to small suspended particle and pathogenic microorganism; See through the water after hollow-fibre membrane carries out ultrafiltration, flow into water outlet interface (5) through ultrafiltration module rising pipe (14), water outlet is purifies waste water.
