Abstract

The utility model relates to an LED (light-emitting diode) tunnel lamp, relating to the field of lighting lamps. The LED tunnel lamp comprises an aluminum-made shell, a bracket and a plurality of modules, wherein the plurality of modules are installed on the aluminum-made shell in parallel; the aluminum-made shell comprises two arc fixing pieces, a transverse beam and a dust-shielding hood; both the transverse beam and the dust-shielding hood are fixed between two arc fixing pieces and the dust-shielding hood is arranged at the top part of the back side of the aluminum-made shell; a heat radiation port is arranged on the dust-shielding hood; the bracket is composed of a fixing bracket, an installing bracket and two bolts; the bottom of the fixing bracket penetrates through the heat radiation port and is fixedly connected with a module on the aluminum-made shell; the upper part of the fixing bracket is hinged with the installing bracket through two bolts; an arc groove and an installing holes are arranged on the installing bracket; and one of the bolt is arranged inside the arc groove. The LED tunnel lamp has the advantages of being novel in structure, proximately adjustable in radiation angle, good in heat radiation effect and long in service life.

Description

A kind of LED Tunnel Lamp
Technical field
The utility model relates to field of illuminating lamps, relates in particular to a kind of LED Tunnel Lamp.
Background technology
Energy shortage is the hot issue of the world today, and in illuminating industry, led light source is because multiple advantages such as its efficient, energy-saving and environmental protection, long-lives, is that to replace energy consumption high, the first-selection of the traditional lighting that the life-span is short.The LED Tunnel Lamp at present branches of the regular meridians use widely, its primary structure comprises housing and interior module thereof, the main weak point that existing LED Tunnel Lamp exists is that radiating effect is poor, causes reduce service life.
Summary of the invention
The purpose of the utility model is to have the deficiency that the LED Tunnel Lamp exists now in order to overcome, and a kind of novel structure is provided, and irradiating angle can suitably be adjusted, the LED Tunnel Lamp of good heat dissipation effect long service life.
In order to realize the foregoing invention purpose, the technical scheme below the utility model has adopted:
A kind of LED Tunnel Lamp comprises aluminium shell, support and a plurality of module, and a plurality of modules are installed in parallel on the aluminium shell; Aluminium shell comprises two arc fixtures, crossbeam and screening dust hood, and crossbeam and screening dust hood all are fixed between two arc fixtures, and hide the top that dust hood is in the aluminium shell back side, hide dust hood and are provided with thermovent; Said support is made up of fixed support, mounting bracket and two bolts; The fixed support bottom is passed thermovent and is fixedly connected the module on the aluminium shell; Fixed support top is hinged through two bolts and mounting bracket; Mounting bracket is provided with deep-slotted chip breaker and installing hole, and one of them bolt is in the deep-slotted chip breaker.
As preferably, said support is 2 that are arranged in parallel.
As preferably, said module is 2-7 that is arranged in parallel within on the aluminium shell.
By a kind of LED Tunnel Lamp of technique scheme design, the heat that the thermovent on the screening dust hood produces in the time of can fast module being worked is discharged, and guarantees its service life, and the effect of thermovent not only is used to dispel the heat and also is used for the installation of support.Fixed support is hinged through two bolts and mounting bracket; One of them bolt is in the deep-slotted chip breaker of mounting bracket; Be that fixed support and mounting bracket can rotate; But rotational angle is controlled by deep-slotted chip breaker, can not 360 the rotation of degree because the light of LED Tunnel Lamp only needs the adjustment of certain angle to get final product.The advantage of this LED Tunnel Lamp is a novel structure, and irradiating angle can suitably be adjusted, the good heat dissipation effect long service life.
Description of drawings

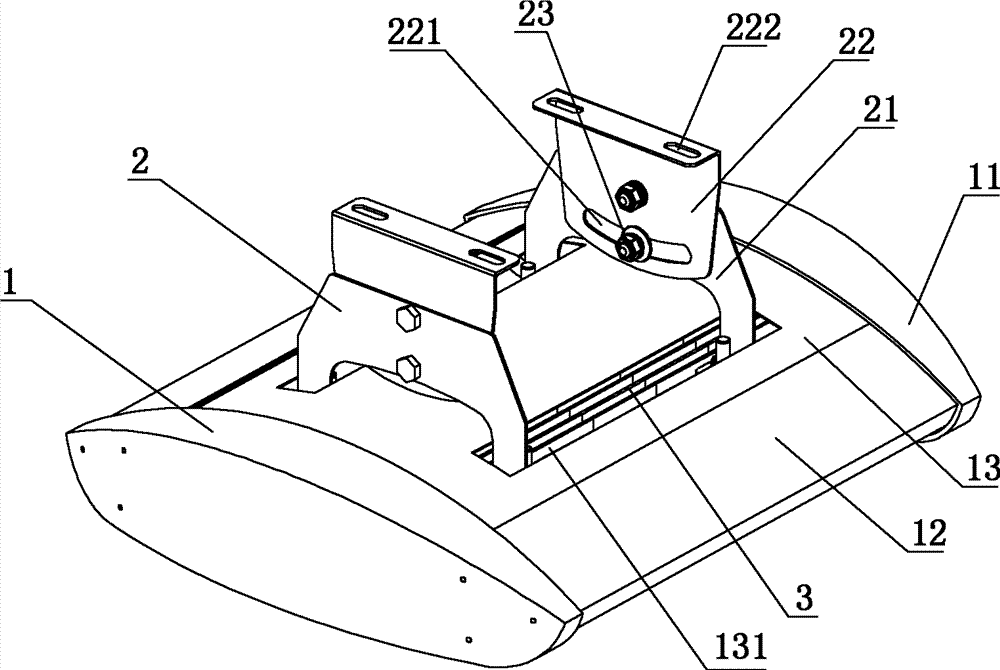

Fig. 1: the structural representation of the utility model.
The specific embodiment
Do below in conjunction with accompanying drawing 1 the utility model and to further describe.
A kind of LED Tunnel Lamp as shown in Figure 1 comprises aluminium shell 1, support 2, power supply and a plurality of module 3, and a plurality of modules 3 are installed in parallel on the aluminium shell 1, and module 3 is 2-7 that is arranged in parallel within on the aluminium shell 1.
Aluminium shell 1 comprises two arc fixtures 11, crossbeam 12 and hides dust hood 13 that crossbeam 12 and screening dust hood 13 all are fixed between two arc fixtures 11, and hide the top that dust hood 13 is in aluminium shell 1 back side, hide dust hood 13 and are provided with thermovent 131.
Support 2 is 2 that are arranged in parallel; Each support 2 constitutes by fixed support 21, mounting bracket 22 and two bolts 23; The module 3 that thermovent solid 131 connects on the aluminium shell 1 is surely passed in fixed support 21 bottoms; Fixed support 21 tops are hinged through two bolts 23 and mounting bracket 22, and mounting bracket 22 is provided with deep-slotted chip breaker 221 and installing hole 222, and the whole LED Tunnel Lamp is installed in the tunnel through installing hole 222.One of them bolt 23 is in the deep-slotted chip breaker 221, and promptly fixed support 21 can rotate with mounting bracket 22, but rotational angle is controlled rotation that can not 360 degree by deep-slotted chip breaker 221.
During use, the heat that produces during module 3 work can be discharged through thermovent 131 fast, can regulate the irradiating angle of LED Tunnel Lamp in actual use as requested voluntarily.

Claims (3)

1. a LED Tunnel Lamp is characterized in that comprising aluminium shell, support and a plurality of module, and a plurality of modules are installed in parallel on the aluminium shell; Aluminium shell comprises two arc fixtures, crossbeam and screening dust hood, and crossbeam and screening dust hood all are fixed between two arc fixtures, and hide the top that dust hood is in the aluminium shell back side, hide dust hood and are provided with thermovent; Said support is made up of fixed support, mounting bracket and two bolts; The fixed support bottom is passed thermovent and is fixedly connected the module on the aluminium shell; Fixed support top is hinged through two bolts and mounting bracket; Mounting bracket is provided with deep-slotted chip breaker and installing hole, and one of them bolt is in the deep-slotted chip breaker.
2. a kind of LED Tunnel Lamp according to claim 1 is characterized in that said module is 2-7 that is arranged in parallel within on the aluminium shell.
3. a kind of LED Tunnel Lamp according to claim 1 is characterized in that said support is 2 that are arranged in parallel.
