Abstract

The utility model discloses a solar-powered LED lamp, aiming at providing a solar-powered LED lamp with simple structure, good heat dissipation effect, energy saving and environmental protection. The utility model comprises an LED light source (1), a driving power supply (2), an upper cover (3), and a heat dissipation cover (4), the upper cover (3) is connected with the upper part of the heat dissipation cover (4), and the The driving power supply (2) is arranged in the heat dissipation cover (4), the LED light source (1) is arranged in the lower part of the heat dissipation cover (4) and is electrically connected with the driving power supply (2), and the heat dissipation cover The exterior of (4) is also provided with a number of cooling fins (41). The utility model also includes a number of solar panels (6). The solar panels (6) are arranged on the upper part of the cooling cover (4) and are connected with The driving power supply (2) is electrically connected.

Description

A solar powered LED lamp

technical field

The utility model relates to a solar powered LED lamp.

Background technique

LED lamps are used more and more widely in various lighting fields. Traditional street lighting lamps are difficult to meet higher and higher requirements due to backward technology, so they are gradually eliminated. The application of LED lamps in the field of street lighting gradually tends to Popularization, but the current LED lamps still generally rely on traditional electricity to work, the degree of dependence on traditional electric energy is high, and the cost of use is also high, and the optimal use of new energy cannot be effectively realized. Therefore, the existing LED lamps cannot further Meet the environmental protection requirements of energy saving and consumption reduction.

The use of LED lamps can effectively solve the technical defects of low efficiency and high energy consumption of traditional lamps, and meet high requirements for use. However, the LED light source chip in the LED lamp will generate a lot of heat while emitting light efficiently, and the drive of the LED light source The power supply will also generate heat, which is likely to bring safety hazards. Therefore, LED lamps need to be equipped with radiators when they are in use. The heat sink for the power supply, the existing LED street lamps ignore the heat dissipation of the driving power supply, the heat generated by the driving power supply cannot be effectively dissipated, and the continuously accumulated heat not only affects the service life of the LED lamps, but also has a large safety hazard. It poses a threat to the normal use of LED lamps. If two heat sinks are equipped in the LED lamp to dissipate heat for the LED light source and the driving power supply respectively, it will inevitably lead to a more complicated internal structure of the LED lamp, increase the volume and weight of the LED lamp, and lead to an increase in the cost of the LED lamp .

Utility model content

The technical problem to be solved by the utility model is to overcome the deficiencies of the prior art and provide a solar-powered LED lamp with simple structure, good heat dissipation effect, energy saving and environmental protection.

The technical scheme adopted by the utility model is: the utility model comprises an LED light source, a driving power supply, an upper cover, and a heat dissipation cover, the upper cover is connected with the upper part of the heat dissipation cover, and the drive power supply is arranged in the heat dissipation cover , the LED light source is arranged at the lower part of the heat dissipation cover and is electrically connected with the driving power supply, and a plurality of heat dissipation fins are arranged outside the heat dissipation cover. The utility model also includes a plurality of solar panels, and the solar panel is provided with It is on the upper part of the heat dissipation cover and is electrically connected with the driving power supply.

Preferably, the upper part of the heat dissipation cover is provided with a power slot, the driving power is arranged in the power slot, and the upper cover is fixedly connected to the upper end surface of the power slot.

Optimally, the utility model further includes a transparent protective cover, and the transparent protective cover is mated and connected with the lower part of the heat dissipation cover.

Preferably, the upper cover is provided with a fixing part and a waterproof connection port, and a power cord passes through the waterproof connection port to connect with the driving power supply.

The beneficial effects of the utility model are: since the utility model includes an LED light source, a driving power supply, an upper cover, and a heat dissipation cover, the upper cover is connected with the upper part of the heat dissipation cover, and the drive power supply is installed in the heat dissipation cover , the LED light source is installed in the lower part of the heat dissipation cover and is electrically connected with the driving power supply, and a plurality of heat dissipation fins are arranged outside the heat dissipation cover. The utility model also includes a plurality of solar panels, and the solar panel Installed on the upper part of the heat dissipation cover and electrically connected to the driving power supply, the LED light source is powered by the plurality of solar panels, getting rid of the dependence on traditional electric energy, greatly reducing the cost of use, and effectively realizing the new Optimal utilization of energy and environmental protection requirements for energy saving and consumption reduction.

When in use, the heat generated by the LED light source and the driving power supply is transferred to the heat dissipation cover, and then directly exchanges heat with the external air through a number of heat dissipation fins on the heat dissipation cover, thereby quickly dissipating heat into the air to realize the efficient heat dissipation of the LED light source and the driving power supply, ensure the stable and safe operation of the LED street lamp, and increase the service life; this structure makes the heat sink of the LED light source and the heat sink of the driving power combined For one, the heat generated by the LED light source and the driving power can be dissipated at the same time, the heat dissipation is more comprehensive and the heat dissipation efficiency is higher, and the overall structure of the lamp is greatly simplified, which is more conducive to the installation and maintenance of various components, and at the same time effectively reduces the size of the lamp. The volume and weight of the lamp further reduce the production cost of the lamp.

Description of drawings

Fig. 1 is a structural representation of the utility model;

Fig. 2 is a structural representation of the heat dissipation cover described in the utility model;

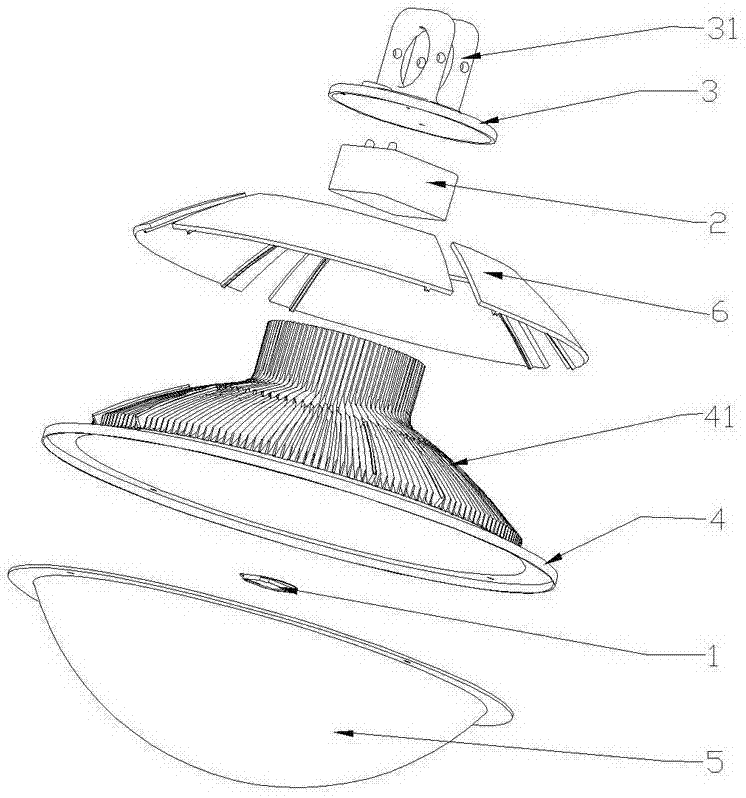

Fig. 3 is the explosion schematic diagram of the utility model;

Fig. 4 is a schematic structural view of the upper cover of the present invention.

Detailed ways

As shown in Fig. 1, Fig. 2 and Fig. 3, the utility model includes an LED light source 1, a driving power supply 2, a heat dissipation cover 4, and an upper cover 3. The LED light source 1 is electrically connected to the driving power supply 2, and the driving power The power supply 2 provides working power to the LED light source 1, so that the LED light source 1 emits light to achieve the purpose of lighting; the heat dissipation cover 4 is provided with a number of heat dissipation fins 41, and the heat dissipation fins 41 are directly connected to the outside air. Contact, the LED light source 1 is arranged at the lower part of the heat dissipation cover 4, the heat generated by the LED light source 1 is collected by the heat dissipation cover 4, the upper part of the heat dissipation cover 4 is provided with a power slot 42, and the driving power 2 is arranged in the power supply slot 42, the heat generated by the driving power supply 2 is also collected by the heat dissipation cover 4, and the upper cover 3 is fixedly connected with the upper end surface of the power supply slot 42 to realize the power supply The sealing of the groove 42; the heat dissipation cover 4 can serve as the radiator of the LED light source 1 and the driving power supply 2 at the same time, and when in use, the heat generated by the LED light source 1 and the driving power supply 2 is all absorbed The heat dissipation cover 4 collects heat, and then directly exchanges heat with the outside air through a number of heat dissipation fins 41 on the heat dissipation cover 4, thereby quickly dissipating heat into the air, and realizing the high efficiency of the LED light source 1 and the driving power supply 2 Heat dissipation ensures stable and safe operation of LED lights, and has a long service life. The radiator of the LED light source and the radiator of the driving power are combined into one, which not only efficiently dissipates heat, but also greatly simplifies the overall structure of the LED street lamp, which is more conducive to The installation and maintenance of each component can effectively reduce the volume and weight of the lamp, and further reduce the production cost of the lamp. The utility model also includes a plurality of solar cell panels 6, the solar cell panels 6 are installed on the top of the heat dissipation cover 4 and electrically connected with the driving power supply 2, and the LED light source 1 is connected to the LED light source 1 through the plurality of solar cell panels 6 Power supply, get rid of the dependence of street lamps on traditional electric energy, greatly reduce the cost of use, but also effectively realize the optimal utilization of new energy and the environmental protection requirements of energy saving and consumption reduction.

The utility model also includes a transparent protective cover 5 , which cooperates with the lower part of the heat dissipation cover 4 , and the transparent protective cover 5 protects the LED light source 1 .

As shown in FIG. 4 , the upper cover 3 is provided with a fixing part 31, and the fixing part 31 cooperates with an external light pole for installing and fixing LED lamps; the upper cover 3 is also provided with a waterproof connection port 32, The external power line is connected to the drive power supply 2 through the waterproof connection port 32 .

The utility model can be widely used in the field of solar powered LED lamps.

Claims (4)

1. solar powered formula LED light fixture; Comprise led light source (1), driving power (2), loam cake (3), heat dissipating housing (4); Said loam cake (3) is connected with the top of said heat dissipating housing (4); Said driving power (2) is arranged in the said heat dissipating housing (4); Said led light source (1) is arranged on the bottom of said heat dissipating housing (4) and is electrically connected with said driving power (2); The outside of said heat dissipating housing (4) is provided with some radiating fins (41), it is characterized in that: said a kind of solar powered formula LED light fixture also comprises plurality of solar battery panels (6), and said solar panel (6) is arranged on the top of said heat dissipating housing (4) and is electrically connected with said driving power (2).

2. a kind of solar powered formula LED light fixture according to claim 1; It is characterized in that: the top of said heat dissipating housing (4) is provided with power slot (42); Said driving power (2) is arranged in the said power slot (42), and said loam cake (3) is fixedly connected with the upper surface of said power slot (42).

3. a kind of solar powered formula LED light fixture according to claim 2 is characterized in that: said a kind of solar powered formula LED light fixture also comprises transparent protective shield (5), and said transparent protective shield (5) is connected with the bottom of said heat dissipating housing (4).

4. according to claim 1 or 2 or 3 described a kind of solar powered formula LED light fixtures, it is characterized in that: said loam cake (3) is provided with fixed part (31) and is provided with waterproof connection jaws (32).
