Abstract

A combined chair and stool is suitable for places such as families and offices, and belongs to the field of household articles. The combination chair and stool are composed of three parts: chair, large stool and small stool. The legs of the chair and the large stool have grooves and feet respectively. There are cross braces. When the chair and stool are in a combined state, the two movable panels of the chair and the large stool are respectively placed in the grooves on both sides, and the large stool and the small stool are placed inside the chair and the large stool in turn, and the three sides are kept horizontal under the support of the feet. When the chairs and stools are disassembled, take them out one by one, prop up the cross support rods, and pull out the movable panel. Therefore, the utility model has the characteristics of a large number of stools, stable structure, high space utilization rate, and convenient operation, and can be widely used in families. , offices and other places.

Description

A combination chair and stool

technical field

The utility model relates to a combination of a chair and a stool, in particular to a detachable chair and stool combination with an embedded combination, which is suitable for places such as homes and offices, and belongs to the field of household items. the

Background technique

At present, chairs and stools used in families and offices are divided into foldable and non-foldable. Non-foldable chairs and stools take up a lot of space and bring inconvenience to family life. However, common collapsible stools cannot be used after being folded, and require storage space. the

Contents of the invention

In order to overcome the shortcomings of existing folding chairs and stools, such as the space occupied by folding, the utility model provides a new combined chair and stool. The combined chair and stool has the characteristics of large number of combined stools, high space utilization rate, convenient and simple operation, and the like. the

The technical scheme adopted by the utility model to solve the technical problem is: grooves are designed on the chair legs, the four legs of the chair are equipped with feet inwardly, and the chair board is composed of two movable panels, which are used to support the intersection of the chair panels. The support rod is divided into a front support rod and a rear support rod. There are locking holes 1 and 2 on the front support rod. The four legs of the large stool are equipped with feet facing inwardly. The stool board is composed of two movable panels. The cross support rod used to support the large stool panel is divided into a front support rod and a rear support rod. There are locking holes on the front support rod 3. Locking hole 4, one end of front and rear support bar is respectively fixed on the front and rear crosspieces of the large stool. the

When the combined chair and stool are folded, the chair panels are vertically placed on both sides of the chair, fixed by the grooves on the chair legs, the front and rear support rods are placed flat, the latch 1 is inserted into the locking hole 1, and the front and rear support rods are locked; the large stool panel They are placed vertically on both sides of the stool respectively, fixed by the grooves on the legs of the stool, the front and rear support rods are laid flat, the latch 2 is inserted into the locking hole 3, and the front and rear support rods are locked. Then put the big stool into the chair. The legs of the stool are supported by the pads on the legs of the chair so that the surface of the big stool is level with the surface of the chair. Then put the small stool into the big stool. The legs of the small stool are supported by the pads on the legs of the big stool. , the stool surfaces of the two stools are horizontal. The folded combination chair stool is actually a chair, and the chair can be used normally. the

When the stool needs to be taken out, the small stool can be extracted from the chair, or the small stool can be extracted from the large stool after two stools are extracted simultaneously. After the small stool is pulled out, the latch 2 is pulled out from the locking hole 3, and the front and rear support bars of the large stool are lifted up until the locking holes 4 on the support bar are aligned, and the latch is inserted into the locking hole 4 to lock the cross support bar. Then pull out the large stool panel groove, cover it on the vacancy of the stool surface, and support the stool surface by means of the cross support bar and the edge of the stool notch. After the large stool is extracted from the chair, the operation steps are the same as above. According to the above operation steps, the combined chair and stool can be combined as required: chair + small stool, chair + large stool, chair + large stool + small stool. the

The beneficial effect of the utility model is that the combined chair and stool can accommodate a large number of stools, the structure is stable, the space utilization rate is high, and the operation is convenient. the

Description of drawings

The present invention will be further described below in conjunction with the accompanying drawings and embodiments. the

Fig. 1 is the overall shape figure of combination chair and stool. the

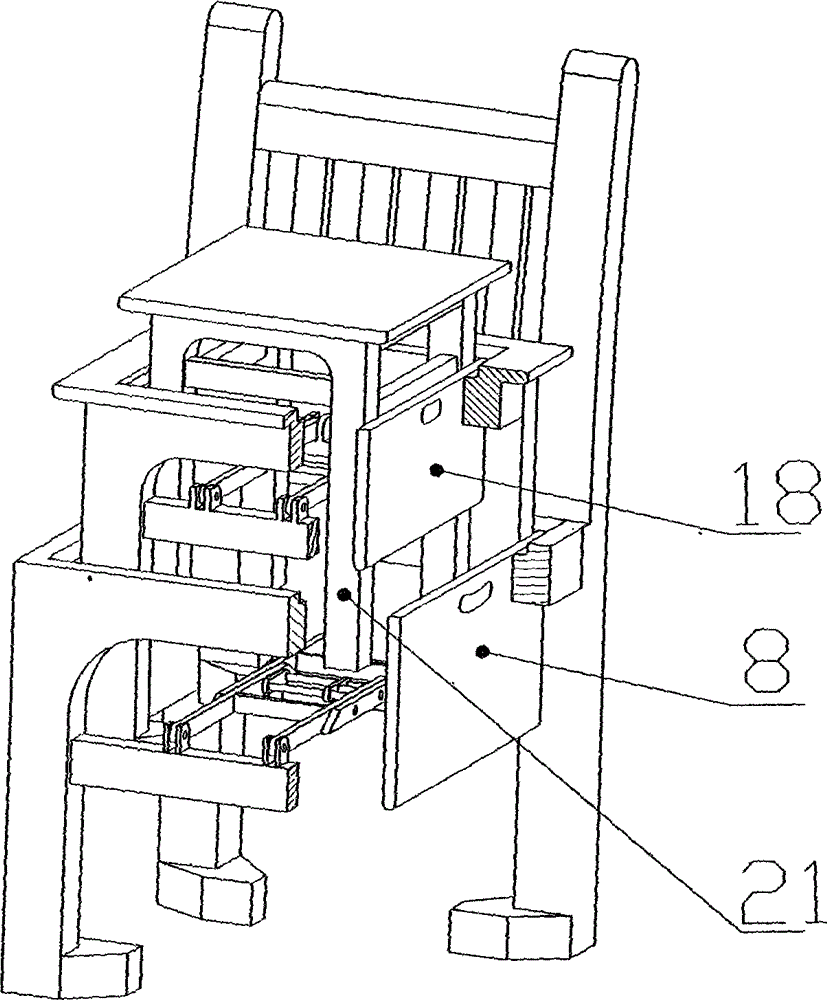

Fig. 2 is a diagram of the disassembly process of the combined chair and stool. the

Fig. 3 is a diagram of the overall shape of the chair after the combined chair and stool are disassembled. the

Fig. 4 is the overall shape diagram of the large stool after splitting. the

Fig. 5 is a partial sectional view of the chair and the stool. the

Fig. 6 is a structural diagram of the cross support bar and the movable stool surface of the large stool. the

In the figure 1. The right front leg of the chair 2. The chair foot 3. The chair foot 4. The left front leg of the chair 5. The front rail of the chair 6. The chair foot 7. The left rear leg of the chair 8. The chair panel 9. The chair backrest 10. The chair panel 11. The chair Back 12. Big stool right front leg 13. Stool foot 14. Stool foot 15. Big stool left front leg 16. Stool foot 17. Big stool left back leg 18. Big stool panel 19. Big stool panel 20. Big stool front 21 .Small stool leg 22. Large stool front support rod 23. Locking hole 3 24. Large stool rear stop 25. Large stool rear support rod 26. Locking hole 4 27. Support rod support surface 28. Support groove 29. Groove 30 .Lock 2

Detailed ways

In the accompanying drawings, grooves are designed on the right front leg of the chair (1), the left front leg of the chair (4), the left rear leg of the chair (7), and the right rear leg of the chair. The right front leg (1) is provided with a chair pad (6). The chair board is made up of chair panels (8, 10), and the cross support rods used to support the chair panels (8, 10) are divided into front support rods and rear support rods. Locking holes 1 and 2 are arranged on the front support rods. One end of support bar is fixed on the chair front rail (5) and the chair rear rail respectively; Groove (29) has been designed on the top, and four legs of big stool are provided with foot pad towards the inside, and stool foot pad (14) is equipped with as big stool left front leg (15), and stool board is made up of big stool panel (18,19), uses The cross strut bar that supports big stool panel (18,19) is divided into big stool front strut bar (22) and big stool rear strut bar (25), and locking hole 3 (23) is arranged on the big stool front strut bar (22) , locking hole 4 (26), an end of the front and rear support rods is respectively fixed on the front shelf (20) of the big stool and the back shelf (24) of the big stool. When the combined chair and stool are folded, the chair panels (8, 10) are placed vertically in the grooves on both sides of the chair respectively, the front and rear support rods are placed flat, the latch 1 is inserted into the locking hole 1, and the support rods are locked; the large stool panel ( 18 and 19) are placed vertically on both sides of the large stool respectively, fixed by the grooves (29) on the legs of the large stool, the front support bar (22) of the large stool and the rear support bar (25) of the large stool ) into the locking hole 3 (23), and the front and rear support rods are locked. Then put the big stool into the chair. The legs of the stool are supported by the pads on the legs of the chair so that the surface of the big stool is level with the surface of the chair. Then put the small stool into the big stool. The legs of the small stool are supported by the pads on the legs of the big stool. , the stool surfaces of the two stools are horizontal. The folded combination chair stool is actually a chair (Fig. 1), and the chair can be used normally. When the stool needs to be taken out, the small stool (Fig. 5) can be extracted from the combined chair and stool, or the two stools can be extracted at the same time, and then the small stool (Fig. 5) can be extracted from the large stool (Fig. 4). After pulling out the small stool (Fig. 5), the latch 2 (30) is pulled out from the locking hole 3 (23), and the front and rear support rods of the large stool are lifted up until the locking holes 4 (26) on the support rod are aligned, and the latch 2 (30) Insert the locking hole 4(26) to lock the cross brace. Then pull out the large stool panel upwards from the groove, cover the vacancy of the stool surface, and support the stool surface by means of the cross support bar and the edge of the stool gap. After the large stool is extracted from the chair, the operation steps are the same as above. According to the above operation steps, one of the combined chairs and stools can be disassembled into three combinations according to the needs: chair+small stool, chair+big stool, chair+big stool+small stool. the

Claims (2)

1. A combined chair and stool, the left front leg of the chair (4) and the left rear leg of the chair (7), the right front leg of the chair (1) and the right rear leg of the chair are respectively left with grooves on the opposite inner sides, and the chair board is two pieces Chair panel (8,10); Big stool left front leg (15) and chair left back leg (17), big stool right front leg (12) and big stool right back leg leave groove on the inner side relative surface, big stool board It is two large stool panels (18,19), cross support rods are housed in the chair and the stool, and it is characterized in that: the chair panels (8,10) and the large stool panels (18,19) of the chair and the large stool can be placed respectively In the grooves (29) on both sides, the large stool and the small stool are put into the chair and the large stool successively from top to bottom. 2. A combination chair and stool according to claim 1, characterized in that: each leg (1, 4, 7) of the chair and each leg of the stool are provided with foot pads (2, 3, 6), and the legs of the chair (1,4,7) the upper stepping feet (2,3,6) support the big stool, and the upper stepping feet (13,14,16) of the big stool legs (12,15,17) support the small stool.
