CN202492402U - Household ferro-manganese removal device for well water - Google Patents
Household ferro-manganese removal device for well water Download PDFInfo
- Publication number
- CN202492402U CN202492402U CN2012200984609U CN201220098460U CN202492402U CN 202492402 U CN202492402 U CN 202492402U CN 2012200984609 U CN2012200984609 U CN 2012200984609U CN 201220098460 U CN201220098460 U CN 201220098460U CN 202492402 U CN202492402 U CN 202492402U
- Authority
- CN
- China
- Prior art keywords
- water
- air
- outlet
- pump
- ejector
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 239000002349 well water Substances 0.000 title claims abstract description 17
- 235000020681 well water Nutrition 0.000 title claims abstract description 17
- 229910000616 Ferromanganese Inorganic materials 0.000 title claims abstract description 10
- DALUDRGQOYMVLD-UHFFFAOYSA-N iron manganese Chemical compound [Mn].[Fe] DALUDRGQOYMVLD-UHFFFAOYSA-N 0.000 title claims abstract description 9
- XLYOFNOQVPJJNP-UHFFFAOYSA-N water Substances O XLYOFNOQVPJJNP-UHFFFAOYSA-N 0.000 claims abstract description 51
- VYPSYNLAJGMNEJ-UHFFFAOYSA-N Silicium dioxide Chemical compound O=[Si]=O VYPSYNLAJGMNEJ-UHFFFAOYSA-N 0.000 claims abstract description 24
- 239000000919 ceramic Substances 0.000 claims abstract description 11
- PWHULOQIROXLJO-UHFFFAOYSA-N Manganese Chemical compound [Mn] PWHULOQIROXLJO-UHFFFAOYSA-N 0.000 claims abstract description 9
- 229910052748 manganese Inorganic materials 0.000 claims abstract description 9
- 239000011572 manganese Substances 0.000 claims abstract description 9
- 239000004576 sand Substances 0.000 claims abstract description 9
- 239000000377 silicon dioxide Substances 0.000 claims description 7
- 238000009287 sand filtration Methods 0.000 claims description 6
- 238000005273 aeration Methods 0.000 abstract description 8
- CBENFWSGALASAD-UHFFFAOYSA-N Ozone Chemical compound [O-][O+]=O CBENFWSGALASAD-UHFFFAOYSA-N 0.000 abstract description 7
- 239000006004 Quartz sand Substances 0.000 abstract 1
- 238000001914 filtration Methods 0.000 description 6
- XEEYBQQBJWHFJM-UHFFFAOYSA-N Iron Chemical compound [Fe] XEEYBQQBJWHFJM-UHFFFAOYSA-N 0.000 description 3
- 230000000694 effects Effects 0.000 description 3
- 239000000463 material Substances 0.000 description 3
- 238000010586 diagram Methods 0.000 description 2
- 238000000034 method Methods 0.000 description 2
- 230000003647 oxidation Effects 0.000 description 2
- 238000007254 oxidation reaction Methods 0.000 description 2
- 241000894006 Bacteria Species 0.000 description 1
- ZAMOUSCENKQFHK-UHFFFAOYSA-N Chlorine atom Chemical compound [Cl] ZAMOUSCENKQFHK-UHFFFAOYSA-N 0.000 description 1
- 241000295146 Gallionellaceae Species 0.000 description 1
- QVGXLLKOCUKJST-UHFFFAOYSA-N atomic oxygen Chemical compound [O] QVGXLLKOCUKJST-UHFFFAOYSA-N 0.000 description 1
- 238000006243 chemical reaction Methods 0.000 description 1
- 239000000460 chlorine Substances 0.000 description 1
- 229910052801 chlorine Inorganic materials 0.000 description 1
- 239000000645 desinfectant Substances 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- -1 ferromanganese ion Chemical class 0.000 description 1
- 239000000706 filtrate Substances 0.000 description 1
- 239000007789 gas Substances 0.000 description 1
- 238000009434 installation Methods 0.000 description 1
- 150000002500 ions Chemical class 0.000 description 1
- 229910052742 iron Inorganic materials 0.000 description 1
- 230000001590 oxidative effect Effects 0.000 description 1
- 239000001301 oxygen Substances 0.000 description 1
- 229910052760 oxygen Inorganic materials 0.000 description 1
- 238000000247 postprecipitation Methods 0.000 description 1
- 230000011218 segmentation Effects 0.000 description 1
- 238000001179 sorption measurement Methods 0.000 description 1
- 230000001954 sterilising effect Effects 0.000 description 1
- 238000004659 sterilization and disinfection Methods 0.000 description 1
- 238000006557 surface reaction Methods 0.000 description 1
- 239000003643 water by type Substances 0.000 description 1
- 238000009875 water degumming Methods 0.000 description 1
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02W—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO WASTEWATER TREATMENT OR WASTE MANAGEMENT
- Y02W10/00—Technologies for wastewater treatment
- Y02W10/10—Biological treatment of water, waste water, or sewage
Landscapes
- Treatment Of Water By Oxidation Or Reduction (AREA)
Abstract
一种家用井水除锰铁装置，包括水泵、曝气装置、储水塔及管道式过滤器；其中，所述曝气装置包括臭氧发生器、射流器、气泵和电源，气泵包括进气口和出气口，气泵的出气口通过进气管路与臭氧发生器的进气口连接，臭氧发生器的出气口通过出气管路与射流器的进气口连接，水泵通过水管与射流器的进水口连接；射流器的出水口通过水管与储水塔的进水口连接；储水塔的出水口通过水管与管道式过滤器的进水口连接，管道式过滤器从进水口到出水口依次设有锰砂滤芯、石英砂滤芯和陶瓷滤芯。所述装置能够快速曝气，占地面积小，适合于家庭使用。
A domestic well water ferromanganese removal device includes a water pump, an aeration device, a water storage tower and a pipeline filter; wherein the aeration device includes an ozone generator, a jet, an air pump and a power supply, and the air pump includes an air inlet and Air outlet, the air outlet of the air pump is connected to the air inlet of the ozone generator through the air inlet pipeline, the air outlet of the ozone generator is connected to the air inlet of the ejector through the air outlet pipe, and the water pump is connected to the water inlet of the ejector through a water pipe The water outlet of the jet is connected to the water inlet of the water storage tower through a water pipe; the water outlet of the water storage tower is connected to the water inlet of the pipeline filter through a water pipe, and the pipeline filter is sequentially provided with manganese sand filter elements, Quartz sand filter and ceramic filter. The device can aerate quickly, occupies a small area, and is suitable for family use.
Description
Technical field
The utility model relates to a kind of well water refining plant, and particularly a kind of family expenses well water removes the ferromanganese device.
Background technology
Existing well water purifying treatment mode has air aeration, manganese sand, and silica sand, filtration method, its principle of dealing with the work:
1. well pump pumps into aerating apparatus with underground water.
2. aerating apparatus utilizes the well pump overbottom pressure that airborne oxygen is mixed with the well water that contains ferromanganese ion.
Through the well water of aeration through the filtering layer in the strainer, (the 1. physical adsorption of filtrate and crown_interception, the 2. irony sull autocatalyzed oxidation of filter material surface reaction, the 3. biological oxidation of iron bacteria and manganese bacterium in the filtering layer.) through the acting in conjunction of above three kinds of forms, iron in the well water and mn ion are solidificated in the filtering layer, accomplish filtration procedure.
The shortcoming of this mode is that the aeration required time is long, and aerating apparatus and filtration unit floor space are big, and heaviness etc. are not suitable for family and use
Summary of the invention
The utility model provides a kind of family expenses well water to remove the ferromanganese device, aeration fast, and said plant area area is little, is suitable for family's use.
The utility model realizes that the technical scheme that above-mentioned purpose adopts is:
A kind of family expenses well water removes the ferromanganese device, comprises water pump, aerating apparatus, water storage tower and pipelined filter; Wherein, Said aerating apparatus comprises ozonizer, ejector, air pump and power supply; Air pump comprises inlet mouth and air outlet; The air outlet of air pump is connected with the inlet mouth of ozonizer through admission passage, and the air outlet of ozonizer is connected with the inlet mouth of ejector through outlet pipe, and water pump is connected with the water-in of ejector through water pipe; The water outlet of ejector is connected with the water-in of water storage tower through water pipe; The water outlet of water storage tower is connected with the water-in of pipelined filter through water pipe, and pipelined filter is provided with manganese sand filtration core, silica sand filter core and ceramic element successively from the water-in to the water outlet, and pipelined filter also comprises a tensimeter.
Preferably, in the said apparatus, water pump, ozonizer, ejector, manganese sand filtration core, silica sand filter core and ceramic element all can be changed separately.
Preferably, the aperture of ceramic element is 5 microns.
Can realize following technique effect through said apparatus:
1. aeration is quick, and is easy for installation.
2. can require to use flexibly according to different waters, segmentation divides matter to handle well water.
3. can play sterilization with ozone to well water as aeration source, the disinfectant effect, and the ozone highly volatile is compared more noresidue of chlorine.
4. consumptive material is changed conveniently, is prone to clean, and expense is low.
Description of drawings

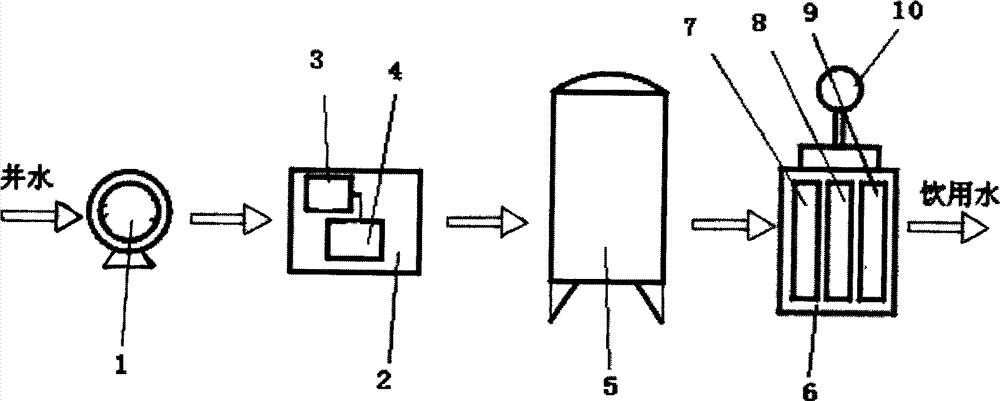

Fig. 1 is that the utility model family expenses well water removes ferromanganese device synoptic diagram;
Fig. 2 is the utility model aerating apparatus synoptic diagram.
Embodiment
The embodiment of the utility model is described below in conjunction with accompanying drawing.
Shown in Figure 1 is that the utility model family expenses well water removes the ferromanganese device, comprises water pump 1, aerating apparatus 2, water storage tower 5 and pipelined filter 6.
As shown in Figure 2; Said aerating apparatus 2 comprises ozonizer 3, ejector 4, air pump 11 and power supply 12; Air pump 11 comprises inlet mouth and air outlet; The air outlet of air pump 11 is connected with the inlet mouth of ozonizer 3 through admission passage, and the air outlet of ozonizer 3 is connected with the inlet mouth of ejector 4 through outlet pipe.
Wherein, said pipelined filter 6 is provided with manganese sand filtration core 7, silica sand filter core 8 and ceramic element 9 successively from the water-in to the water outlet, and pipelined filter 6 also comprises a tensimeter 10.Can require to select the model of ceramic element 9 according to actual used water, preferred aperture is 5 microns a ceramic element.
In the said apparatus, water pump 1, ozonizer 3, ejector 4, manganese sand filtration core 7, silica sand filter core 8 and ceramic element 9 all can be changed separately, and consumptive material is changed convenient, are prone to clean, and expense is low.
The utility model air produces ozone gas through air pump through ozonizer and gets into ejector and contain ferrimanganic well water and mix the generation oxidizing reaction and make Fe2+; Become Fe3+ and generate Fe (OH) 3 post precipitations, utilize strainer to remove, ozone can also be to playing germ-resistant effect simultaneously.
Claims (3)
1. a family expenses well water removes the ferromanganese device, it is characterized in that: comprise water pump, aerating apparatus, water storage tower and pipelined filter; Wherein, Said aerating apparatus comprises ozonizer, ejector, air pump and power supply; Air pump comprises inlet mouth and air outlet; The air outlet of air pump is connected with the inlet mouth of ozonizer through admission passage, and the air outlet of ozonizer is connected with the inlet mouth of ejector through outlet pipe, and water pump is connected with the water-in of ejector through water pipe; The water outlet of ejector is connected with the water-in of water storage tower through water pipe; The water outlet of water storage tower is connected with the water-in of pipelined filter through water pipe, and pipelined filter is provided with manganese sand filtration core, silica sand filter core and ceramic element successively from the water-in to the water outlet, and pipelined filter also comprises a tensimeter.
2. device according to claim 1 is characterized in that: water pump, ozonizer, ejector, manganese sand filtration core, silica sand filter core and ceramic element all can be changed separately.
3. device according to claim 1 and 2 is characterized in that: the aperture of said ceramic element is 5 microns.
