Abstract
The utility model discloses an intelligent home control system, including the central control host computer, user terminal, central control host computer electricity is connected with the camera, infrared detector, temperature and humidity sensor, indoor float and sink the sensor, outdoor float and sink the sensor, carbon dioxide sensor, luminance detector and a plurality of actuating mechanism, the utility model discloses a user terminal passes through the communication of home gateway with the central control host computer to the home gateway is as the integrated independent control software of intelligent home systems's core part, and the user can pass through user terminal, is the information medium with wired and wireless Internet or wireless mobile network, acquires real-time control picture through the camera, knows the operational aspect of electrical apparatus at any time, realizes the electrical equipment in the remote control this system, carries out autonomic management to all in the family.
Description
Technical field
The utility model relates to a kind of intelligent home control system.
Background technology
Along with the people's living standard is increasingly high, the Smart Home industry of China has obtained swift and violent development, and is penetrated into day by day in the middle of ordinary citizen's the life.Along with the Internet net is constantly expanded to the average family life; Consumer electronics, computing machine, communication integral trend become clear day by day, and modern Smart Home will be because characteristics such as its safety, convenient, efficient, quick, intellectuality will become the new fashion of modern society and family in 21 century.When family's intelligent gateway with family in various household electrical appliances when being connected together through home bus technical battery, just constituted powerful, highly intelligentized modern intelligent domestic system.
Abroad, U.S. control4 company is based on the home automation product of Zigbee wireless technology, and obtains very high evaluation.Zigbee is a kind of highly reliable wireless data sending network, is similar to CDMA and GSM network.The Zigbee digital transmission module is similar to the mobile network base station.Communication distance from the 75m of standard to hundreds of rice, several kilometers, and support infinite expanding.This technology has characteristics such as low-power consumption, low rate, reaction time are fast, high power capacity, high safety, is widely used in control and remote control field automatically.Control4 can provide a whole set of wired and wireless series control product.But control4 does not realize localization in China, is used for the alternating current of the 110v of continental United States, and is not suitable for the alternating current use of 220 volts in China.And the system of control4 and control interface all are literary compositions all over Britain, can not be widely used fully in Chinese market.
Through the analysis of the domestic research of relevant intelligent domestic system aspect in recent years being found the domestic PLCBUS technology of generally utilizing, the new line of electric force loading technique of PLCBUS technology employing; Utilize low frequency, wide spectrum technology to produce a kind of very superpower power communication signal, make it have strong anti-interference, the PLCBUS technology adapts to 220 volts domestic alternating current and uses; But utilizing the PLCBUS technology to focus mostly on greatly to be with one or more single-chip microcomputers is core processor, adds the hardware and software of customization, does not have independently software; A little less than the processing power, application software is not supported any operating system directly to hardware programming; Practicality is fit to fairly simple application, and extendability is not strong, and system stability mainly adopts the Analog Circuit Design relative complex; Stability is not high, safeguards complicated.
The utility model content
In order to overcome the deficiency of prior art, the utility model provides a kind of and supports multi-platform operation, with the intelligent home control system of home gateway as the exchanges data port.
The utility model solves the technical scheme that its technical matters adopted:
A kind of intelligent home control system comprises:
Central authorities' main control system: can with the home gateway communication, store various programs and preset data, send various execution control signalings after being used for incoming signalling handled;
Video camera: be electrically connected with said central main control system, be used to discern hand signal and obtain realtime graphic;
Infrared eye: whether be electrically connected with said central main control system, being used for detection has personnel to get into;
Humidity temperature pickup: be electrically connected with said central main control system, be used for testing environment temperature and humidity;
The indoor sensor that drifts along: be electrically connected with said central main control system, be used to detect the degree of drifting along of room air;
The outdoor sensor that drifts along: be electrically connected with said central main control system, be used for the degree of drifting along of sensing chamber's outer air;
Carbon dioxide sensor: be electrically connected with said central main control system, be installed in indoorly, be used for carbon dioxide in air concentration in the sensing chamber;
Luminance brightness detector: the light that is used to detect indoor environment;
Some topworkies are electrically connected with said central main control system, are used to carry out the execution control signaling that central main control system sends over;
User terminal; Said user terminal and said central main control system are through the home gateway communication.
As the further improvement of the utility model, said central main control system is family's PC.
As the further improvement of the utility model, said user terminal is the long-range PC of networking or passes through communication terminal.
The utility model detects the method whether someone gets into: at first carry out detection operations through infrared eye; Get into indoor signal if detected human body; Then input signal is given central main control system; Simultaneous camera is caught two pictures that differ time T and is compared, and the variation of catching picture material through contrast determines whether that the someone gets into.
The beneficial effect of the utility model is: user terminal of the utility model and central main control system are through the home gateway communication; With home gateway as the integrated independent Control Software in the core of intelligent domestic system; Interconnected and information sharing between each different agreement subnet all need be carried out through gateway, and the also responsible family lan access of gateway Internet, when various household electrical appliances are connected together through home bus technical battery in the family; Just constituted powerful, highly intelligentized modern intelligent domestic system; The user can pass through user terminal, is information media with wired and wireless Internet network or mobile radio network, obtains real-time monitored picture through camera; At any time understand the ruuning situation of electrical equipment; Realize the electric equipment in the remote control native system, through being installed in the terminal control software on the user terminal, the user can also be provided with and personalized the setting whole domestic automation system fast; Also can change at any time these settings, the user manages independently all of family.
Description of drawings
Below in conjunction with accompanying drawing and embodiment the utility model is further specified.

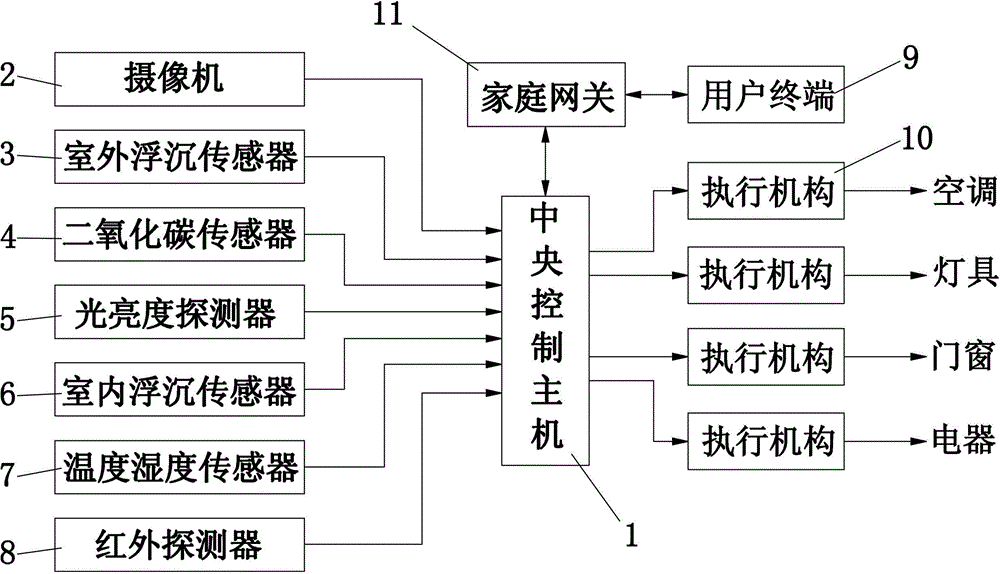

Fig. 1 is the system construction drawing of the utility model.
Embodiment
With reference to Fig. 1, a kind of intelligent home control system comprises:
Central authorities' main control system 1: can with home gateway 11 communications, store various programs and preset data, send various execution control signalings after being used for incoming signalling handled;
Video camera 2: be electrically connected with said central main control system 1, be used to discern hand signal and obtain realtime graphic;
Infrared eye 8: whether be electrically connected with said central main control system 1, being used for detection has personnel to get into;
Humidity temperature pickup 7: be electrically connected with said central main control system 1, be used for testing environment temperature and humidity;
The indoor sensor 6 that drifts along: be electrically connected with said central main control system 1, be used to detect the degree of drifting along of room air;
The outdoor sensor 3 that drifts along: be electrically connected with said central main control system 1, be used for the degree of drifting along of sensing chamber's outer air;
Carbon dioxide sensor 4: be electrically connected with said central main control system 1, be installed in indoorly, be used for carbon dioxide in air concentration in the sensing chamber;
Luminance brightness detector 5: the light that is used to detect indoor environment;
Some topworkies 10, as be connected the relay on the electrical equipment such as air-conditioning, illuminating lamp are installed in motor that door and window etc. locates, electromagnet etc., are electrically connected with said central main control system 1, are used to carry out the execution control signaling that central main control system sends over;
User terminal 9; Said user terminal 9 passes through home gateway 11 communications with said central main control system 1.
Further improvement as the utility model; Said central main control system 1 is family's PC; Family's PC can Installation of W indows platform etc. operating system; Can come the control setting gateway through traditional C/S (Client/Server client/server net) pattern, more can pass through B/S (Browser/Server structure, i.e. browser and server architecture) or intelligent family moving platform in many ways gateway is set.Because the running software of native system in windows platform etc., can come expanded function by many third party softwares, can discern user's gesture by picture recognition module, combines to handle comparatively complicated fixed cycle operator etc. by database.
As the further improvement of the utility model, said user terminal 9 is the long-range PC of networking or passes through communication terminal.The control system of the utility model is held multi-platform operating system, can pass through mobile network's remote control intelligent domestic systems such as any PC or Android, Iphone, Ipad, Saipan, also can check the real-time monitored picture in the family through computer, mobile phone.
The function of the utility model control system is mainly accomplished through automation control system and gesture control system.Automation control system mainly carries out data acquisition and device control, to accomplish the required function of user.System can be provided with by User Defined about the control of time, preset value, brightness, temperature comfort value, gesture etc.
After the system of the utility model starts working; System creates TCP automatically and monitors socket; Through continuous listening port information; If central main control system receives request signal, send request signal such as infrared eye, video camera etc., then the functional requirement that the automation application program realizes the user is called in system start-up.The automation application program is earlier carried out detection operations through infrared eye, gets into indoor signal if detected human body, then amplifies and is input to central main control system; After central authorities' main control system obtains useful signal; With the luminosity of adjusting light automatically, adjustment humidity temperature pickup, corresponding scene, start video camera simultaneously, the indoor people that whether has is compared, judged in detail to front and back seizure two pictures in certain cycle; If someone; No matter whether this person has crawler behavior, all can carry out system works, and this characteristic has remedied the deficiency of infrared eye.If unmanned, then close corresponding system.If central main control system is not received request signal, after reading of data, judge promptly whether setting-up time arrives, the time portion of setting is transferred to user oneself decision.Central main control system output corresponding signal is opened corresponding system if the time arrives, and in one hour, sets startup robotization air exchange system; Through your concentration detector of carbon dioxide; Judge whether indoor carbon dioxide concentration is higher than preset value, if be higher than preset value, then through the indoor and outdoor degree of drifting along of dust sensor comparison; Outdoor degree of drifting along is higher than the indoor exhaust fan of then opening; If be lower than and indoorly then open the window, the carbon dioxide content pulpit in is with maintenance indoor air environment fresh and comfortable.
The utility model control system can realize the cooperation of natural light and two light-source systems of energy light for the control of light.System is in start, and after all system initialization work finished, infrared eye was if detect the signal in the human body inlet chamber; Can amplify and be input to central main control system; After central authorities' main control system obtains useful signal, will carry out the initialization of lighting system, the luminance brightness detector detects room brilliancy; If brightness is different from setting value; Send adjustment illuminance signal immediately, then carry out the signal that electrically driven curtain is closed in output, then carry out the signal that electrically driven curtain is opened in output less than preset value greater than preset value.After the signal issue, if the room brilliancy value appoints so and then export the pass modulating signal greater than preset value, if then export lamp bright signal less than preset value.System can make this signal delay a period of time T, starts video camera simultaneously, and front and back are caught two pictures and compared, and catch two cycles less than T.T in the time video camera capture two pictures, picture is sent to central main control system handles, compares, judges, if detect people's signal, Smart Home control center software will trigger output time-delay T, make this zone keep illumination.No matter whether the people walks about, and video camera all will be caught picture and compared, and time-delay constantly is triggered, and illumination keeps.When indoor nobody the time, all lamps are closed.
Such as daytime, system can automatic priority select to open electrically driven curtain, utilizes natural light to replenish indoor light.According to the different situations of indoor light, the window leaf angle with the adjustment window shutter guarantees that indoor light reaches preset value.If indoor light still can not reach ideal effect through window shutter, then light can be opened by system, regulates the light luminance brightness, to reach desirable luminance brightness.
The control system of the utility model; Picture through video camera is caught is within a certain period of time compared; Whether purpose is to judge has the people in the monitoring range, as long as the people is arranged, then give lighting; Can not only guarantee when the indoor personage's of having dynamic behaviour, to throw light on, can also guarantee when the personage is static, to throw light on equally.
This control system is measured monitoring to the real-time condition of temperature, and allows the user to import the desirable comfort temperature value of setting.After system brought into operation and accomplishes system initialization, infrared eye was if detect the signal in the human body inlet chamber, then amplified and was input to central main control system; After central authorities' main control system obtained useful signal, temperature system carried out initialization, and central main control system will obtain temperature sensor numerical value automatically; Software will compare input value and temperature sensor value size of data automatically then, and when input temp value during greater than temperature sensor value, central main control system output control firing equipment is realized heat temperature raising; When input temp value during less than temperature sensor value; Central authorities' main control system control refrigeration plant is realized cooling work, next constantly obtains temperature sensor value, compares with set temperature value again; Constantly the duty (air-conditioning) of adjustment refrigeration plant and firing equipment is controlled the requirement of room temperature at design temperature to reach.When reaching set temperature value, this system will trigger output time-delay T, make this zone keep set temperature value.Start video camera simultaneously within a certain period of time, front and back are caught two pictures and are compared, and the two pictures cycles of catching are less than T.T in the time video camera catch two pictures, picture is sent to central main control system handles, compares, judges, if detect unmanned signal, then closing temperature system.
If judged the people, then carry out temperature control.The temperature comfort value is set by the user, if the people gets into the monitored area, this regional temperature is lower than setting value, then system's control intensification automatically, if be higher than setting value, then system lowers the temperature automatically.When the people gets into the monitored area, if indoor titanium dioxide degree concentration is higher than preset value, then can carry out degree regulation and control with fresh air, take a breath, guarantee air quality in the zone.
The control system of the utility model possesses the gesture control function, and the user can come control apparatus through the gesture direction is set.After system starts working, will detect regions, through camera setting detection area and detecting gesture; There is the gesture motion signal in the actuating signal of regions detecting gesture in video camera if detect, and will be input to Smart Home control center software; After receiving signal, software obtains the video camera mobile detection automatically, with the gesture direction signal; Be transferred to software and handle, compare, judge, export corresponding signal again, start corresponding scene control.
Such as passing through four points of camera setting, two is a row, is arranged as two row.Upper left is the A point, and upper right is the B point, and a left side is the C point down, and the bottom right is the D point.When personnel in the video camera detection area brandished gesture control light, video camera utilized mobile detection, and the gesture direction of gathering is sent to central main control system, if gesture is by the direction of B to C, then is that system dims light automatically; If gesture is that then system lightens light automatically by the direction of D to A; If gesture be by A to the B direction, then electric light carry out to be opened to the first value of establishing by system; If gesture be by D to the C direction, then system carries out and to close electric light etc.
Claims (3)
1. intelligent home control system is characterized in that it comprises:
Central authorities' main control system (1): can with home gateway (11) communication, store various programs and preset data, send various execution control signalings after being used for incoming signalling handled;
Video camera (2): be electrically connected with said central main control system (1), be used to discern hand signal and obtain realtime graphic;
Infrared eye (8): whether be electrically connected with said central main control system (1), being used for detection has personnel to get into;
Humidity temperature pickup (7): be electrically connected with said central main control system (1), be used for testing environment temperature and humidity;
The indoor sensor that drifts along (6): be electrically connected with said central main control system (1), be used to detect the degree of drifting along of room air;
The outdoor sensor that drifts along (3): be electrically connected with said central main control system (1), be used for the degree of drifting along of sensing chamber's outer air;
Carbon dioxide sensor (4): be electrically connected with said central main control system (1), be installed in indoorly, be used for carbon dioxide in air concentration in the sensing chamber;
Luminance brightness detector (5): the light that is used to detect indoor environment;
Some topworkies (10) are electrically connected with said central main control system (1), are used to carry out the execution control signaling that central main control system sends over;
User terminal (9); Said user terminal (9) passes through home gateway (11) communication with said central main control system (1).
2. intelligent home control system according to claim 1 is characterized in that said central main control system (1) is family's PC.
3. intelligent home control system according to claim 1 is characterized in that said user terminal (9) is the long-range PC of networking or passes through communication terminal.
