Full-automatic computer high-speed vertical press
Technical field
The utility model relates to a kind of press, specifically, relates to a kind of full-automatic computer high-speed vertical press that is used to make the bottle cap sheet.
Background technology
Common bottle cap sheet adopts that press is die-cut to be processed in the life.In the prior art, being used to make the defective that the press of bottle cap sheet has is that automaticity is low, and production efficiency is low, under the background that labour cost increases fast now, has in a disguised form improved the enterprise production cost, can not adapt to the needs of modern production.
Summary of the invention
The purpose of the utility model is the defective that overcomes prior art, and the full-automatic computer high-speed vertical press that a kind of automaticity is high, production efficiency is high is provided.
For addressing the above problem, the technical scheme that the utility model adopted is:
A kind of full-automatic computer high-speed vertical press comprises frame, main motor and is located at the decompressor of central rack that it is characterized in that: said decompressor comprises feed mechanism, die cutting die and transmission mechanism;
Said feed mechanism comprises the material spool that is located at the frame afterbody, be located at the transition roller of material spool front side and be located at the feeding roller group of transition roller front side; But the feeding roller group comprises the driven voller of fixed drive roll up-down adjustment position and for drive roll provides the feeding motor of power, the power output wheel of feeding motor and the power input wheel of drive roll are in transmission connection through driving-belt;
Said transmission mechanism comprises sliding panel, four slide bars, fixed head, power transmission shaft, the drive that is separately fixed at the power transmission shaft two ends and stabilizers, is fixed on the eccentric wheel at power transmission shaft middle part, is connected the connecting rod on the eccentric wheel wheel rim and is fixed on the drive link on the sliding panel trailing flank; Four slide bars vertically are provided with, and all are fixed on the frame; Four angles of sliding panel are socketed on the corresponding separately slide bar through sliding sleeve respectively; Fixed head is fixedly connected on the tail end of four slide bars; Power transmission shaft is installed on the end face of fixed head through bearing block; The middle part of fixed head is provided with through hole, and the bottom of connecting rod is passed this through hole and is connected with the top of drive link; The power wheel of main motor is in transmission connection through driving-belt and drive;
The pressing direction of die cutting die is for vertically downward, and its backform is fixed on the bottom surface of sliding panel, and bed die is fixed on the frame.
Say further:
The front end of said frame is provided with the waste recovery device, comprises base, is fixed on support, rotating disk and two coiled strip bars that are vertically fixed on the rotating disk on the base; The axle of rotating disk is rotatably connected on the support, and support is passed in its outer end, is installed with the rotating disk drive, and the rotating disk drive is in transmission connection through the power wheel of driving-belt and main motor.
The bed die below of said die cutting die is provided with the pad gathering-device.
Said this vertical press also comprises and is used to control main motor and feeding machine operation, and has the Computerized intelligent control system of speed regulating control and tally function.
Owing to adopted technique scheme, compared with prior art, the utility model automaticity is high, can greatly improve enterprises production efficiency, reduces the enterprise production cost, can adapt to the needs of modern production.
Below in conjunction with the accompanying drawing and the specific embodiment the utility model is done further description.
Description of drawings

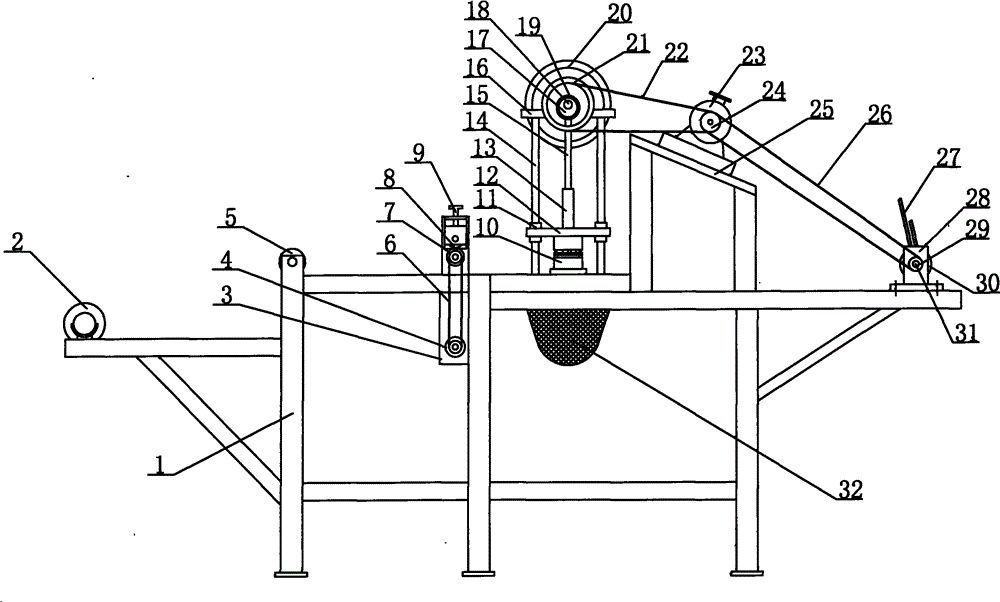

Accompanying drawing is the structural representation of a kind of embodiment of the utility model.
The specific embodiment
Embodiment:
A kind of full-automatic computer high-speed vertical press shown in accompanying drawing, comprises frame 1, main motor 23 and is located at the decompressor at frame 1 middle part.
Said decompressor comprises feed mechanism, die cutting die 10 and transmission mechanism.Wherein:
Said feed mechanism comprises the material spool 2 that is located at frame 1 afterbody, be located at the transition roller 5 of material spool 2 front sides and be located at the feeding roller group of transition roller 5 front sides; But the feeding roller group comprises the driven voller 8 of fixed drive roll 7 up-down adjustment positions and is the feeding motor 4 that drive roll 7 provides power.The position adjustments of driven voller 8 realizes through rotating adjusting screw(rod) 9, through the front and back position of adjusting driven voller 8, and then adjusts the gap length between drive roll 7 and the driven voller 8, to adapt to the material of different-thickness.Feeding motor 4 is fixedly mounted on the frame 1 through holder 3, and the power input wheel of its power output wheel and drive roll 7 is in transmission connection through driving-belt 6.
Said transmission mechanism comprises sliding panel 12, four slide bars 14, fixed head 16, power transmission shaft 18, drive 21 that is separately fixed at power transmission shaft 18 two ends and stabilizers 20, is fixed on the eccentric wheel 17 at power transmission shaft 18 middle parts, is connected the connecting rod 15 on the eccentric wheel wheel rim 19 and is fixed on the drive link 13 on sliding panel 12 trailing flanks.Four slide bars 14 vertically are provided with, and all are fixed on the frame 1.Four angles of sliding panel 12 are socketed on the corresponding separately slide bar 14 through sliding sleeve 11 respectively.Fixed head 16 is fixedly connected on the tail end of four slide bars 14.Power transmission shaft 18 is installed on the end face of fixed head 16 through bearing block.The middle part of fixed head 16 is provided with through hole, and the bottom of connecting rod 15 is passed this through hole and is connected with the top of drive link 13; The power wheel 24 of main motor 23 is in transmission connection through driving-belt 22 and drive 21.
The pressing direction of die cutting die 10 is for vertically downward, and its backform is fixed on the bottom surface of sliding panel 12, and bed die is fixed on the frame.In order to collect die-cut good pad more easily, the bed die below of die cutting die 10 is provided with pad gathering-device 32.
For make waste material after die-cut can be fast, fitly be collected, the front end of said frame 1 is provided with the waste recovery device, comprises base, is fixed on support 28, rotating disk and two coiled strip bars 27 that are vertically fixed on the rotating disk on the base; The axle 31 of rotating disk is rotatably connected on the support 28, and support 28 is passed in its outer end, is installed with rotating disk drive 29, and rotating disk drive 29 is in transmission connection through the power wheel 24 of driving-belt 26 with main motor 23.
In order to improve automatization level, said this press also comprises the Computerized intelligent control system that develops voluntarily, is used to control main motor 23 and 4 work of feeding motor, and has the function of speed regulating control, tally function and adjustment product specification size.
The operation principle of the utility model is summarized as follows:
At first, the material of rolling is twisted on the material spool 2, the initiating terminal of material volume is passed the gap of transition roller 5, drive roll 7 and driven voller 8, extend at last in the die cutting die 10.Start main motor 23 and feeding motor 4 through Computerized intelligent control system.Feeding motor 4 drives drive roll 7, and drive roll 7 and 8 whiles of driven voller are backward rotation inwardly, and then material is sent into die cutting die 10 downwards.Main motor 23 drives drive 21 through driving-belt 22; Drive 21 drives power transmission shaft 18; And then drive eccentric wheel 17; Eccentric wheel 17 is through eccentric wheel wheel rim 19 drivening rods 15, and then drives sliding panels 12 through drive link 13 and pump longitudinally, finally drives die cutting dies 10 completion die-cut to material by sliding panel 12.Main motor 23 drives rotating disk drives 29 through driving-belt 26, and then the balled scrap that die-cut back is produced is on coiled strip bar 27.Product from the punch die mouth of die cutting die 10 is discharged collects through pad gathering-device 32, and is last, accomplishes packing and gets final product.

Claims (4)

1. full-automatic computer high-speed vertical press comprises frame (1), main motor (23) and is located at the decompressor at frame (1) middle part that it is characterized in that: said decompressor comprises feed mechanism, die cutting die (10) and transmission mechanism;
Said feed mechanism comprises the material spool (2) that is located at frame (1) afterbody, be located at the transition roller (5) of material spool (2) front side and be located at the feeding roller group of transition roller (5) front side; The feeding roller group comprises fixed drive roll (7) but the driven voller (8) of up-down adjustment position and for drive roll (7) provides the feeding motor (4) of power, and the power input wheel of the power output wheel of feeding motor (4) and drive roll (7) is in transmission connection through driving-belt (6);
Said transmission mechanism comprises sliding panel (12), four slide bars (14), fixed head (16), power transmission shaft (18), the drive (21) that is separately fixed at power transmission shaft (18) two ends and stabilizer (20), is fixed on the eccentric wheel (17) at power transmission shaft (18) middle part, is connected the connecting rod (15) on the eccentric wheel wheel rim (19) and is fixed on the drive link (13) on sliding panel (12) trailing flank; Four slide bars (14) vertically are provided with, and all are fixed on the frame (1); Four angles of sliding panel (12) are socketed on the corresponding separately slide bar (14) through sliding sleeve (11) respectively; Fixed head (16) is fixedly connected on the tail end of four slide bars (14); Power transmission shaft (18) is installed on the end face of fixed head (16) through bearing block; The middle part of fixed head (16) is provided with through hole, and the bottom of connecting rod (15) is passed this through hole and is connected with the top of drive link (13); The power wheel (24) of main motor (23) is in transmission connection through driving-belt (22) and drive (21);
The pressing direction of die cutting die (10) is for vertically downward, and its backform is fixed on the bottom surface of sliding panel (12), and bed die is fixed on the frame.
2. full-automatic computer high-speed vertical press according to claim 1; It is characterized in that: the front end of said frame (1) is provided with the waste recovery device, comprises base, is fixed on support (28), rotating disk and two coiled strip bars (27) that are vertically fixed on the rotating disk on the base; The axle of rotating disk (31) is rotatably connected on the support (28), and support (28) is passed in its outer end, is installed with rotating disk drive (29), and rotating disk drive (29) is in transmission connection through the power wheel (24) of driving-belt (26) with main motor (23).
3. full-automatic computer high-speed vertical press according to claim 2 is characterized in that: the bed die below of said die cutting die (10) is provided with pad gathering-device (32).
4. full-automatic computer high-speed vertical press according to claim 3; It is characterized in that: said this vertical press also comprises and is used to control the work of main motor (23) and feeding motor (4), and has the Computerized intelligent control system of speed regulating control, tally function and adjustment product specification function.
