CN202477458U - Simple powder seasoning distributing device - Google Patents
Simple powder seasoning distributing device Download PDFInfo
- Publication number
- CN202477458U CN202477458U CN2012200820420U CN201220082042U CN202477458U CN 202477458 U CN202477458 U CN 202477458U CN 2012200820420 U CN2012200820420 U CN 2012200820420U CN 201220082042 U CN201220082042 U CN 201220082042U CN 202477458 U CN202477458 U CN 202477458U
- Authority
- CN
- China
- Prior art keywords
- amount
- button
- housed
- material cup
- plate
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Table Devices Or Equipment (AREA)
Abstract
A simple powder seasoning distributing device comprises a casing, a top cover is positioned at an opening portion of the casing, a bottom cover is arranged at the bottom of the casing, a material storage tank is installed in the casing close to the opening portion, the lower end of the material storage tank is fixed on an upper sleeve, the upper sleeve is arranged at the upper end portion of a material measuring cup, one side of the material measuring cup tightly butts against the inner wall of the material storage tank, an upper clamp plate is arranged in the material measuring cup at the fixing position of the upper sleeve, the upper clamp plate is proved with an upper blocking plate, the upper blocking plate can reciprocate on the upper clamp plate, a spring is installed on the upper blocking plate, one end of the spring abuts against the outer wall of the material measuring cup, the other end of the spring abuts against the bottom of a button, and a button pin shaft is positioned on the button. The simple powder seasoning distributing device can quantitatively measure seasoning according to requirements of people, reasonable matching of people on food ingredients can be achieved, intake amount of all seasoning in every day can be strictly controlled, and body can be maintained in healthy states.
Description
Technical field
The utility model relates to the daily living article field, specifically is exactly the small kitchen measurer that a kind of hand-held that is used for the flavouring proportioning can quantitatively be measured powder condiment.
Background technology
Along with The development in society and economy, rhythm of life is more and more faster, and people's living standard improves constantly, and is to the not only not therefore reduction of requirement of quality of life, increasingly high on the contrary.Eat, wear, live, row is as people's essential requirements of living, more and more receives people's attention, diet concerns the personal health of people, is especially paid close attention to by people.People require also that food has rationally, the proportioning of health, nutrition when improving own dietetic variety and level.But, at present, form, and artificial experience of cooking main dependence people is difficult to accomplish that fully rationally, when particularly in the kitchen, cooking, joining of various Powdered condiment put because people's diet mostly relies on manual work to cook, like salt, monosodium glutamate, starch etc.Be to use soupspoon joining the method for putting these pressed powder condiment in the kitchen, or directly throw in, can only lean on what of proficiency control condiment consumption like this, and can not accurately hold the consumption of condiment, can make the food that cooks out over-salty or sweet excessively, be unfavorable for people's health.
The utility model content
The purpose of the utility model provides a kind of simple and easy powder condiment measurer; Can provide the amount of flavor enhancement quantitatively according to people's wish, realize the rational proportion of people food ingredients; Thereby the strict intake of controlling various flavor enhancements every day, the state that health is kept fit.
Technical scheme
In order to realize above-mentioned technical purpose, the utility model designs a kind of simple and easy powder condiment measurer, comprises shell, and the shell oral area is equipped with top cover; Outer casing bottom is equipped with bottom, it is characterized in that: near oral area storage tank is housed in the said shell, the storage tank lower end is fixed on the upper bush, and upper bush is through the interference fit amount of being contained in material cup upper end; Amount material cup one sidewall is close to the storage tank inwall, with upper bush bearing train wheel bridge is housed in the amount material cup, has material spilling hole on the train wheel bridge; Overhead gage is housed on the train wheel bridge, and overhead gage can reciprocatingly slide on train wheel bridge, makes material spilling hole close or open; The last plate washer amount of passing material cup sidewall is fixed on the button, and button is contained on the shell shell wall, on the last plate washer spring is housed; The spring one end amount of propping up material cup outer wall, the other end prop up the button bottom, and the button bearing pin is housed on the button; Said amount material cup bottom is contained on the lower sleeve through interference fit; Lower plate is equipped with in amount material cup bottom and lower sleeve junction, has discharge opening on the lower plate, and lower baffle plate is housed on the lower plate; Lower baffle plate can reciprocatingly slide on lower plate; Make discharging bore closure or unlatching, the lower baffle amount of passing material cup sidewall is fixed on the extension bar, and the extension bar bearing pin is housed on the extension bar; On the amount material cup outer wall between overhead gage and the lower baffle plate support is housed fixedly, through rack pin shaft connecting rod is housed on the support, connecting rod can rotate around rack pin shaft, and an end of connecting rod is contained on the extension bar bearing pin, on the other end dress button bearing pin.
Said lower sleeve bottom has discharging opening.
All there is trapezoidal shape protruding on said train wheel bridge and the lower plate sidewall, has trapezoidal groove with the corresponding position of trapezoidal convexity on upper bush and the lower sleeve inwall.
Be carved with metering scale on the said amount material cup, adopt transparent material to make, amount material cup scale has form in the shell corresponding position.
Said train wheel bridge is a plectane, and material spilling hole is a manhole, and inside has the rectangle groove, and last plate washer is contained in the groove, and overhead gage and material spilling hole corresponding position have circular hole;
Said lower plate is a plectane, and discharge opening is a manhole, and inside has the rectangle groove, and lower baffle is contained in the groove, and lower baffle plate and discharge opening corresponding position have circular hole.
The said plate washer of going up is fixed in the button T-slot through " T " prefix, and lower baffle plate is fixed in the extension bar T-slot through " T " prefix.
Beneficial effect
Various Powdered condiment commonly used in the kitchen can deposited and measure comparatively accurately to the hand-held adjustable kitchen powder ingredients device that adopts the utility model to provide easily; Be convenient to cook in the family when cooking and food joined the rational proportion of the article of distinguishing the flavor of; Thereby the strict intake of controlling various flavor enhancements every day, the state that health is kept fit.
Description of drawings

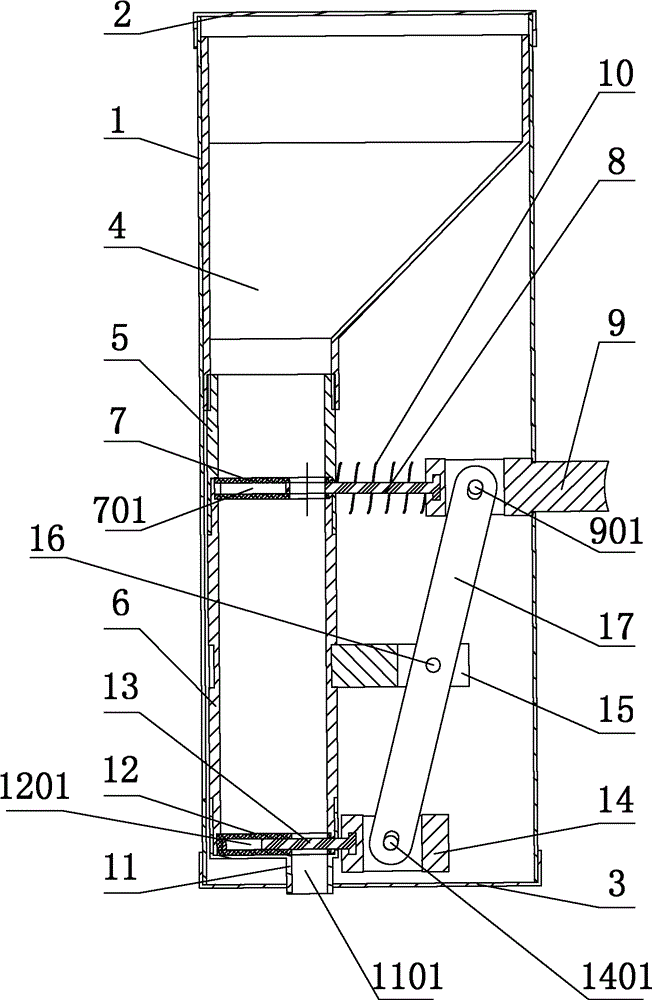

Accompanying drawing 1 is the utility model structural representation.
Accompanying drawing 2 is the utility model powder condiment structural representations that begin to annotate.
Accompanying drawing 3 is A place enlarged drawings in the accompanying drawing 2.
Accompanying drawing 4 is B place enlarged drawings in the accompanying drawing 2.
Accompanying drawing 5 is that the utility model adds and fills with powder condiment structural representation.
Accompanying drawing 6 is C place enlarged drawings in the accompanying drawing 5.
Accompanying drawing 7 is D place enlarged drawings in the accompanying drawing 5.
Accompanying drawing 8 is that the utility model adds powder condiment structural representation outward.
Accompanying drawing 9 is E place enlarged drawings in the accompanying drawing 5.
Accompanying drawing 10 is F place enlarged drawings in the accompanying drawing 5.
Accompanying drawing 11 is backing structure sketch mapes.
Accompanying drawing 12 is that baffle plate is fixed on structural representation on the button.
The specific embodiment
Below in conjunction with accompanying drawing and embodiment, the utility model is done further to set forth.
Shown in accompanying drawing 1,11 and 12, a kind of simple and easy powder condiment measurer comprises shell 1; Shell 1 oral area is equipped with top cover 2, and bottom 3 is equipped with in shell 1 bottom, wherein; Near oral area storage tank 4 is housed in the said shell 1, storage tank 4 lower ends are fixed on the upper bush 5, and upper bush 5 is through the interference fit amount of being contained in material cup 6 upper ends; Amount material cup 6 one sidewalls are close to storage tank 4 inwalls, with upper bush 5 bearings train wheel bridge 7 are housed in the amount material cup 6, have material spilling hole 701 on the train wheel bridge 7; Overhead gage 8 is housed on the train wheel bridge 7, and overhead gage 8 can reciprocatingly slide on train wheel bridge 7, makes material spilling hole 701 close or open; Last plate washer 8 amount of passing material cups 6 sidewalls are fixed on the button 9, and button 9 is contained on shell 1 shell wall, on the last plate washer 8 spring 10 is housed; The spring 10 1 end amount of propping up material cups 6 outer walls, the other end props up button 9 bottoms, and button bearing pin 901 is housed on the button 9;
Said amount material cup 6 bottoms are contained on the lower sleeve 11 through interference fit; Lower plate 12 is equipped with in amount material cup 6 bottoms and lower sleeve 11 junctions, has discharge opening 1201 on the lower plate 12, and lower baffle plate 13 is housed on the lower plate 12; Lower baffle plate 13 can reciprocatingly slide on lower plate 12; Make discharge opening 1201 close or open, lower baffle 13 amount of passing material cups 6 sidewalls are fixed on the extension bar 14, and extension bar bearing pin 1401 is housed on the extension bar 14;
On amount material cup 6 outer walls between overhead gage 8 and the lower baffle plate 13 support 15 is housed fixedly; Through rack pin shaft 16 connecting rod 17 is housed on the support 15; Connecting rod 17 can rotate around rack pin shaft 16, and an end of connecting rod 17 is contained on the extension bar bearing pin 1401, on the other end dress button bearing pin 901.
Said lower sleeve 11 bottoms have discharging opening 1101.
All there is trapezoidal shape protruding on said train wheel bridge 7 and lower plate 12 sidewalls, has trapezoidal groove with the corresponding position of trapezoidal convexity on upper bush 5 and lower sleeve 11 inwalls.
Be carved with metering scale on the said amount material cup 6, adopt transparent material to make, amount material cup 6 scales have form in shell 1 corresponding position.
Said train wheel bridge 7 is a plectane, and material spilling hole 701 is a manhole, and inside has the rectangle groove, and last plate washer 8 is contained in the groove, and overhead gage 8 has circular hole with material spilling hole 701 corresponding positions;
Said lower plate 12 is a plectane, and discharge opening 1201 is a manhole, and inside has the rectangle groove, and lower baffle 13 is contained in the groove, and lower baffle plate 13 has circular hole with discharge opening 1201 corresponding positions.
The said plate washer 8 of going up is fixed in the button 9T shape groove through " T " prefix, and lower baffle plate 13 is fixed in the extension bar 14T shape groove through " T " prefix.
Shown in accompanying drawing 2,3 and 4, open top cover 2 packed salt is put into storage tank 4, in the circular hole inlet material cup 6 of salt through train wheel bridge 7 and overhead gage 8, fill until it.Hole on the lower plate 12 is by lower baffle 13 sealings at this moment.
Shown in accompanying drawing 5,6 and 7, press button 9, drivening rod 17 motions make the circular hole of train wheel bridge 7 blocked and close by overhead gage 8 gradually, and this moment, two holes were all closed.
Shown in accompanying drawing 8,9 and 10, along with the continuation campaign of connecting rod 17, sealing is always continued in the hole on the train wheel bridge 7, and open gradually in the hole on the lower plate 12, and salt goes out from the orifice flow of lower plate 12, and flow becomes big gradually.Scale release button on required weight scale on operator's observable material cup 6 gets final product at this moment; After button 9 unclamps; The manhole of lower plate 12 is blocked by lower baffle 13; Salt no longer flows out, and the manhole of train wheel bridge 7 and overhead gage 8 aligns again, and the salt in the storage tank 4 is filled salt through circular hole inlet material cup 6 until it once more.
Various Powdered condiment commonly used in the kitchen can deposited and measure comparatively accurately to the hand-held adjustable kitchen powder ingredients device that adopts the utility model to provide easily; Be convenient to cook in the family when cooking and food joined the rational proportion of the article of distinguishing the flavor of; Thereby the strict intake of controlling various flavor enhancements every day, the state that health is kept fit.
Claims (5)
1. a simple and easy powder condiment measurer comprises shell (1), and shell (1) oral area is equipped with top cover (2); Bottom (3) is equipped with in shell (1) bottom, it is characterized in that: near oral area storage tank (4) is housed in the said shell (1), storage tank (4) lower end is fixed on the upper bush (5); Upper bush (5) is through the interference fit amount of being contained in material cup (6) upper end, and amount material cup (6) one sidewalls are close to storage tank (4) inwall, and amount is expected in the cup (6) and train wheel bridge (7) is equipped with in upper bush (5) bearing; Have material spilling hole (701) on the train wheel bridge (7), overhead gage (8) is housed on the train wheel bridge (7), overhead gage (8) can reciprocatingly slide on train wheel bridge (7); Make material spilling hole (701) close or open, last plate washer (8) amount of passing material cup (6) sidewall is fixed on the button (9), and button (9) is contained on shell (1) shell wall; Spring (10) is housed on the last plate washer (8); Spring (10) the one end amount of propping up material cup (6) outer walls, the other end prop up button (9) bottom, and button bearing pin (901) is housed on the button (9);
Said amount material cup (6) bottom is contained on the lower sleeve (11) through interference fit; Lower plate (12) is equipped with in amount material cup (6) bottom and lower sleeve (11) junction, has discharge opening (1201) on the lower plate (12), and lower baffle plate (13) is housed on the lower plate (12); Lower baffle plate (13) can reciprocatingly slide on lower plate (12); Make discharge opening (1201) close or open, lower baffle (13) amount of passing material cup (6) sidewall is fixed on the extension bar (14), and extension bar bearing pin (1401) is housed on the extension bar (14);
On amount material cup (6) outer wall between overhead gage (8) and the lower baffle plate (13) support (15) is housed fixedly; Support (15) is gone up and through rack pin shaft (16) connecting rod (17) is housed; Connecting rod (17) can rotate around rack pin shaft (16); One end of connecting rod (17) is contained on the extension bar bearing pin (1401), on the other end dress button bearing pin (901);
Said lower sleeve (11) bottom has discharging opening (1101).
2. simple and easy powder condiment measurer as claimed in claim 1 is characterized in that: all have trapezoidal shape protruding on said train wheel bridge (7) and lower plate (12) sidewall, have trapezoidal groove with the corresponding position of trapezoidal convexity on upper bush (5) and lower sleeve (11) inwall.
3. simple and easy powder condiment measurer as claimed in claim 1 is characterized in that: be carved with metering scale on the said amount material cup (6), adopt transparent material to make, amount material cup (6) scale has form in shell (1) corresponding position.
4. simple and easy powder condiment measurer as claimed in claim 1; It is characterized in that: said train wheel bridge (7) is a plectane, and material spilling hole (701) is a manhole, and inside has the rectangle groove; Last plate washer (8) is contained in the groove, and overhead gage (8) has circular hole with material spilling hole (701) corresponding position;
Said lower plate (12) is a plectane, and discharge opening (1201) is a manhole, and inside has the rectangle groove, and lower baffle (13) is contained in the groove, and lower baffle plate (13) has circular hole with discharge opening (1201) corresponding position.
5. simple and easy powder condiment measurer as claimed in claim 1 is characterized in that: the said plate washer (8) of going up is fixed in button (9) T-slot through " T " prefix, and lower baffle plate (13) is fixed in extension bar (14) T-slot through " T " prefix.
