CN202476282U - Juvenile prawn breeding pond - Google Patents
Juvenile prawn breeding pond Download PDFInfo
- Publication number
- CN202476282U CN202476282U CN2012201049740U CN201220104974U CN202476282U CN 202476282 U CN202476282 U CN 202476282U CN 2012201049740 U CN2012201049740 U CN 2012201049740U CN 201220104974 U CN201220104974 U CN 201220104974U CN 202476282 U CN202476282 U CN 202476282U
- Authority
- CN
- China
- Prior art keywords
- pond
- juvenile prawn
- fresh water
- oxygen
- temperature control
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Abstract
The utility model relates to a breeding pond, and particularly relates to a juvenile prawn breeding pond comprising a pond body, wherein a fresh water pipe and a brine pipe are respectively arranged on two sides of the pond body and are respectively used for feeding fresh water and brine into the pond, a heating pipe is circumferentially arranged on the side wall of the lower part of the pond body, and a drain hole and oxygen supply equipment are arranged at the lower bottom of the pond body. By adoption of the equipment, the living environment of juvenile prawns is manually adjusted very well, oxygen output openings of the oxygen supply equipment are scattered in a fish-bone manner, so that oxygen is relatively and evenly dispersed in the pond; and temperature control equipment is arranged at the bottom of the pond and an output end of the temperature control equipment is connected with the heating pipe, so that the environment temperature in the pond can be relatively well controlled.
Description
Technical field
The utility model relates to a kind of cultivation pond, relates in particular to a kind of juvenile prawn and cultivates the pond.
Background technology
The sea shrimp aquaculture generally is divided into juvenile prawn and cultures the stage and become the shrimp aquaculture stage; Since the ability that conforms of juvenile prawn very a little less than; So need all parameters of meticulous its living environment of control in the juvenile prawn breed stage; Present juvenile prawn is cultured and adopts independently juvenile prawn pond, in the pond, adds seawater, but other environment of juvenile prawn existence can't be regulated and control.
The utility model content
The utility model technical problem to be solved is, overcomes the deficiency that exists in the prior art, provides a kind of
The utility model is to be achieved through following technical scheme:
A kind of juvenile prawn is cultivated the pond, comprises the pond body, and the both sides of body are respectively equipped with fresh water and bittern are sent into fresh water pipe and brine pipe in the pond in the pond, and ring is provided with heating tube in week on the sidewall of body bottom, pond, and going to the bottom of pond body is provided with discharge outlet and oxygen supply equipment.
The oxygen delivery outlet of said oxygen supply equipment is the herring-bone form dispersed and distributed.
Said pond is low to be provided with temperature control device, and the output of said temperature control device is connected with heating tube.
The beneficial effect of the utility model is:
Because the both sides of body are respectively equipped with fresh water and bittern are sent into fresh water pipe and brine pipe in the pond in the pond; Ring is provided with heating tube in week on the sidewall of body bottom, pond; Going to the bottom of pond body is provided with discharge outlet and oxygen supply equipment, makes the juvenile prawn living environment obtain good manual adjustment, and the oxygen delivery outlet of oxygen supply equipment is the herring-bone form dispersed and distributed; It is more even that oxygen is disperseed in the pond; Said pond is low to be provided with temperature control device, and the output of said temperature control device is connected with heating tube, so just can better control environmental temperature in the pond.
Description of drawings

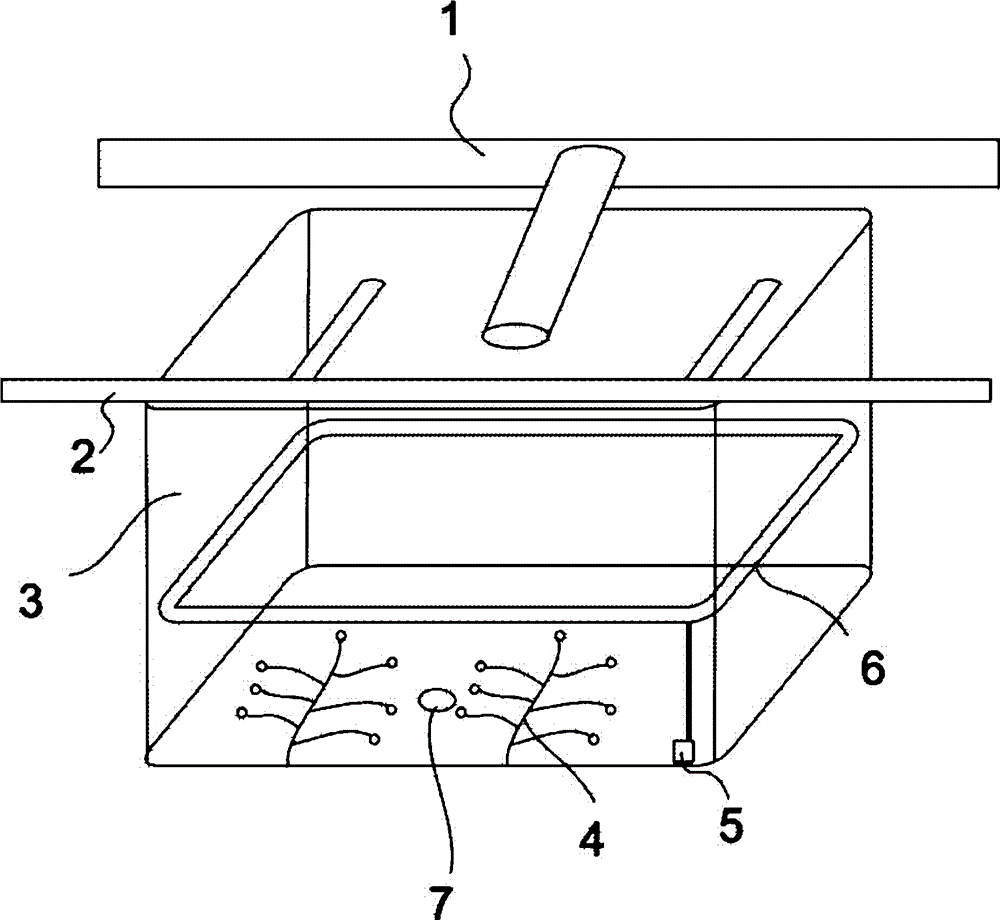

Fig. 1 is the main TV structure sketch map of the utility model.
Among the figure: 1. brine pipe, 2. fresh water pipe, 3. pond body, 4. oxygen supply equipment, 5. temperature control device, 6. heating tube, 7. discharge outlet.
Embodiment
For the technical staff who makes the present technique field understands the technical scheme of the utility model better, the utility model is done further to specify below in conjunction with accompanying drawing and most preferred embodiment.
As shown in Figure 1; A kind of juvenile prawn of the utility model is cultivated the pond, comprises pond body 3, and the both sides of body are respectively equipped with fresh water and bittern are sent into fresh water pipe 2 and brine pipe 1 in the pond in the pond; Ring is provided with heating tube 6 week on the sidewall of body bottom, pond, and going to the bottom of pond body is provided with discharge outlet 7 and oxygen supply equipment 4.
Owing to adopted the said equipment to make the juvenile prawn living environment obtain good manual adjustment; The oxygen delivery outlet of oxygen supply equipment 4 is the herring-bone form dispersed and distributed; It is more even that oxygen is disperseed in the pond; Said pond is low to be provided with temperature control device 5, and the output of said temperature control device is connected with heating tube 6, so just can better control environmental temperature in the pond.
The above only is the preferred implementation of the utility model; Should be pointed out that for those skilled in the art, under the prerequisite that does not break away from the utility model principle; Can also make some improvement and retouching, these improvement and retouching also should be regarded as the protection domain of the utility model.
Claims (3)
1. a juvenile prawn is cultivated the pond, comprises the pond body, it is characterized in that the both sides of body are respectively equipped with fresh water and bittern are sent into fresh water pipe and brine pipe in the pond in the pond, and ring is provided with heating tube in week on the sidewall of body bottom, pond, and going to the bottom of pond body is provided with discharge outlet and oxygen supply equipment.
2. a kind of juvenile prawn according to claim 1 is cultivated the pond, it is characterized in that the oxygen delivery outlet of said oxygen supply equipment is the herring-bone form dispersed and distributed.
3. a kind of juvenile prawn according to claim 1 and 2 is cultivated the pond, it is characterized in that, said pond is low to be provided with temperature control device, and the output of said temperature control device is connected with heating tube.
