Abstract
本实用新型公开了一种室内装饰灯，包括灯架，及设置在灯架上的照明灯单元，及设置在灯架上的控制装置，所述控制装置外接有一电源线，且电源线穿过控制装置连接到照明灯单元；所述照明灯单元由十个以上照明灯管和十个以上闪烁灯管组成；所述控制装置内设置有照明灯控制模块和闪烁灯控制模块；所述灯架上设置有一透明保护罩；照明灯控制模块和闪烁灯控制模块去控制照明灯管和闪烁灯管，使照明和装饰能同时达到效果，透明保护罩能添加外观度。
The utility model discloses an indoor decorative lamp, which comprises a lamp stand, a lighting unit arranged on the lamp stand, and a control device arranged on the lamp stand. The control device is externally connected with a power cord, and the power cord passes through the The control device is connected to the lighting unit; the lighting unit is composed of more than ten lighting tubes and more than ten flashing tubes; the control device is provided with a lighting control module and a flashing control module; the light frame A transparent protective cover is arranged on the top; the lighting control module and the flashing light control module control the lighting tube and the flashing tube, so that the lighting and decoration can achieve the effect at the same time, and the transparent protective cover can increase the appearance.
Description
Technical field
The utility model relates to a kind of light fixture, is specifically related to a kind of interior decoration lamp.
Background technology
At present, indoor decoration is more and more luxurious, and general lighting can not satisfy luxurious house, can become indoor important ornament by ornamental light fixture, but existing decoration inner structure is complicated, and illumination and decoration can not use simultaneously,
Summary of the invention
The technical problem that the utility model will solve provides a kind of can the decoration and illumination, and is simple in structure, the interior decoration lamp of good looking appearance.
The utility model is realized through following technical scheme: comprise lamp bracket; And be arranged on the illuminating lamp unit on the lamp bracket; And being arranged on the control device on the lamp bracket, said control device is circumscribed with a power line, and power line passes control device and is connected to the illuminating lamp unit.
Further, said illuminating lamp unit by ten above illuminating lamp tubes and more than ten the flicker fluorescent tube form;
Further, be provided with illuminating lamp control module and flashing lamp control module in the said control device;
Further, said lamp bracket is provided with a transparent protective shield.
The interior decoration lamp of the utility model, illuminating lamp control module and flashing lamp control module remove to control illuminating lamp tube and flicker fluorescent tube, make illumination and decorate and can be effective simultaneously, and transparent protective shield can be added the outward appearance degree.
Description of drawings

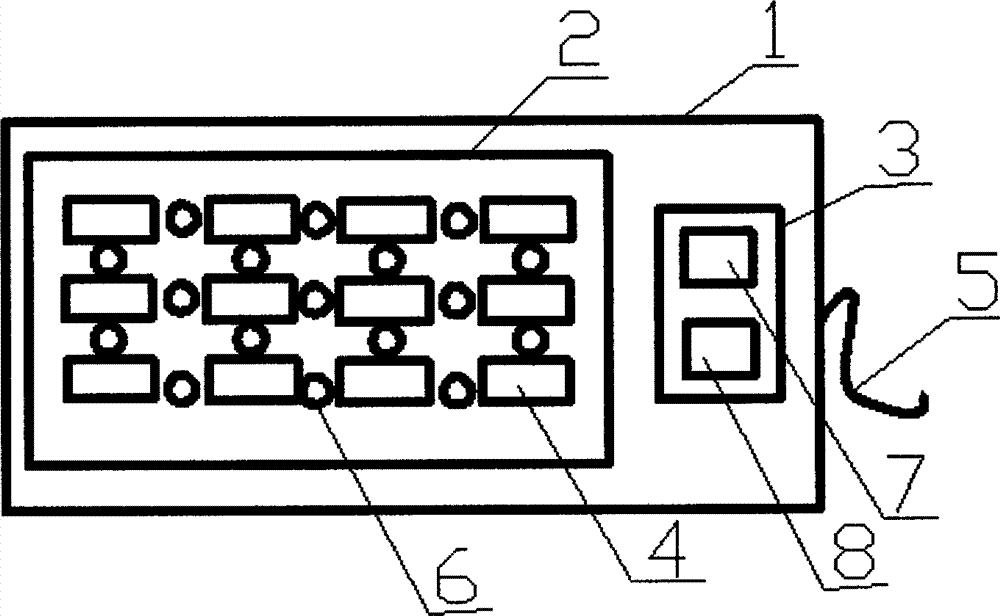

Fig. 1 is the structural representation of the utility model interior decoration lamp.
The specific embodiment
In the present embodiment; With reference to shown in Figure 1, the interior decoration lamp of the utility model comprises lamp bracket 1; And be arranged on the illuminating lamp unit 2 on the lamp bracket 1; And being arranged on the control device 3 on the lamp bracket 1, said control device 3 is circumscribed with a power line 5, and power line 5 passes control device 3 and is connected to illuminating lamp unit 2.
Wherein, said illuminating lamp unit 2 by ten above illuminating lamp tubes 4 and more than ten flicker fluorescent tube 6 form; Be provided with illuminating lamp control module 7 and flashing lamp control module 8 in the said control device 3; Said lamp bracket 1 is provided with a transparent protective shield (not shown).
The interior decoration lamp of the utility model, illuminating lamp control module and flashing lamp control module remove to control illuminating lamp tube and flicker fluorescent tube, make illumination and decorate and can be effective simultaneously, and transparent protective shield can be added the outward appearance degree.
The above is merely the specific embodiment of the utility model, but the protection domain of the utility model is not limited thereto, and any variation or replacement of expecting without creative work all should be encompassed within the protection domain of the utility model.Therefore, the protection domain of the utility model should be as the criterion with the protection domain that claims were limited.
