Abstract
A human body infrared induction LED ceiling lamp relates to a ceiling lamp. The LED lamp comprises a mounting plate, LED lamp beads, a driver and a lamp shade; the LED lamp beads are fixed on the mounting plate, the driver is fixed in the center of the mounting plate and connected with the LED lamp beads, and the lampshade is fixedly connected with the mounting plate; the infrared induction head is arranged at the center of the lampshade and is connected with the driver through a connecting wire; the utility model discloses can decide the selection certainly and illuminate the time, simple structure, simple to operate, the appearance is pleasing to the eye, and decorative strong, and this emitting diode LED's power consumption is low, and the light efficiency is good, long service life, energy-concerving and environment-protective.
Description
Technical field:
The utility model relates to a kind of lamp affixed to the ceiling, is specifically related to a kind of human body infrared induction LED lamp affixed to the ceiling.
Background technology:
Lamp affixed to the ceiling is installed in house interior, because light fixture top is more flat, installs near the roof, and similarly be to be adsorbed on the roof, so be called lamp affixed to the ceiling.Lamp affixed to the ceiling is installed simple and easy, simple generous, gives the space sunny lucid and lively sensation, and is suitable for many places illuminations such as parlor, bedroom, kitchen, toilet, is very much practical.General light source has the common white bulb, fluorescent lamp, high-intensity gas discharge lamp, halogen tungsten lamp etc.But the utilization rate of electrical of white bulb, fluorescent lamp is low, and illumination effect is poor, and the costing an arm and a leg of high-intensity gas discharge lamp, halogen tungsten lamp; These light sources all are not suitable for furniture decoration, and along with development of science and technology, the price of LED reduces the LED lamp gradually and begins popularization and application; Price also reduces gradually; The light efficiency of LED etc. is good, electric energy loss is low, long service life, and relatively environmental protection is attractive in appearance.
The utility model content:
The purpose of the utility model provides a kind of human body infrared induction LED lamp affixed to the ceiling, and it can be made by oneself and select to illuminate the time, and is simple in structure, easy for installation; Good looking appearance, ornamental strong, and the power consumption of this LED is low, and light efficiency is good; Long service life, energy-conserving and environment-protective
In order to solve the existing problem of background technology, the utility model is to adopt following technical scheme: it comprises installing plate 1, LED lamp pearl 2, driver 3, lampshade 4; LED lamp pearl 2 be fixed on installing plate 1 on, driver 3 is fixed on the center of installing plate 1, and driver 3 is connected with LED lamp pearl 2, lampshade 4 is connected fixing with installing plate 1; It also comprises infrared induction head 5, and infrared induction head 5 is arranged on the center of lampshade 4, and infrared induction head 5 is connected through connecting line and driver 3.
The utility model is when extraneous light is weak, and the people just can open by inductive switch as long as leave the distance of the infrared induction head 2-4 rice of lamp, makes to drive energising, makes the lamp pearl luminous.
The utlity model has following beneficial effect: can make by oneself and select to illuminate the time, simple in structure, easy for installation, good looking appearance, ornamental strong, and the power consumption of this LED is low, and light efficiency is good, long service life, energy-conserving and environment-protective.
Description of drawings:

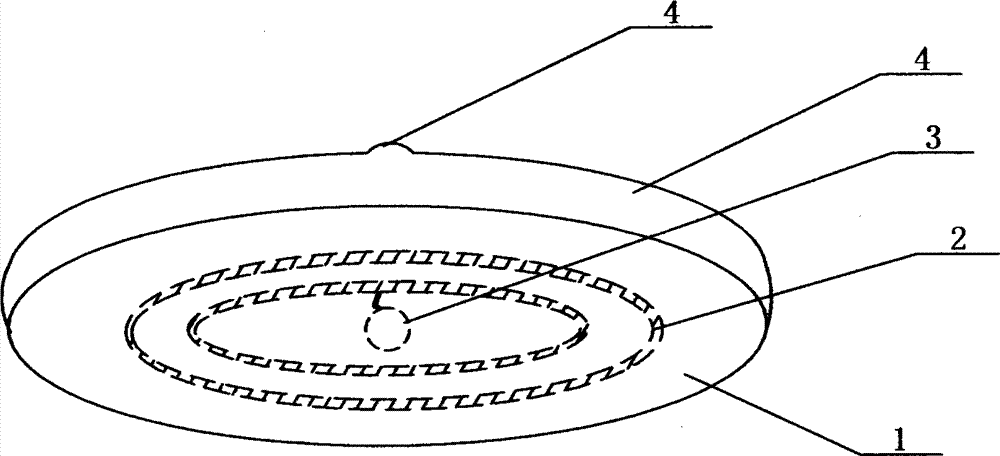

Fig. 1 is the structural representation of the utility model;
Fig. 2 is the vertical view of Fig. 1.
The specific embodiment:
Referring to Fig. 1-2, this specific embodiment adopts following technical scheme: it comprises installing plate 1, LED lamp pearl 2, driver 3, lampshade 4; LED lamp pearl 2 be fixed on installing plate 1 on, driver 3 is fixed on the center of installing plate 1, and driver 3 is connected with LED lamp pearl 2, lampshade 4 is connected fixing with installing plate 1; It also comprises infrared induction head 5, and infrared induction head 5 is arranged on the center of lampshade 4, and infrared induction head 5 is connected through connecting line and driver 3.
This specific embodiment is when extraneous light is weak, and the people just can open by inductive switch as long as leave the distance of the infrared induction head 2-4 rice of lamp, makes to drive energising, makes the lamp pearl luminous.
This specific embodiment can be made by oneself and select to illuminate the time, and is simple in structure, easy for installation, and good looking appearance is ornamental strong, and the power consumption of this LED is low, and light efficiency is good, long service life, energy-conserving and environment-protective.
Claims (1)
1. human body infrared induction LED lamp affixed to the ceiling, it comprises installing plate (1), LED lamp pearl (2), driver (3), lampshade (4); LED lamp pearl (2) be fixed on installing plate (1) on, driver (3) is fixed on the center of installing plate (1), and driver (3) is connected with LED lamp pearl (2), lampshade (4) is connected fixing with installing plate (1); It is characterized in that it also comprises infrared induction head (5), infrared induction head (5) is arranged on the center of lampshade (4), and infrared induction head (5) is connected through connecting line and driver (3).
