Abstract
The utility model relates to an inversely-arranged type automatic washing, positioning and pressing device for a wide-mouth bottle. The inversely-arranged type automatic washing, positioning and pressing device comprises a cover plate, a pressing and buffering device consisting of a spring which is arranged at the lower end of the cover plate and a supporting board, a crank arm which is arranged at the lower end of the supporting board and hinged with the supporting board through a rotating shaft, and a resetting reed which is arranged at the lateral part of the crank arm in an inclined manner and is connected with the supporting board; the crank arm and the resetting reed are arranged in a circumference manner; the crank arm is provided with two force arms which are connected in an acute angle form; a pulley is arranged on one of the force arms, and a damping block is arranged on the other force arm; and a water outlet for supplying water to an external brush is arranged on the supporting board. The inversely-arranged type automatic washing, positioning and pressing device provided by the utility model can be used for cleaning bottle-shaped vessels in batch; and the using process is controlled through a standard flow, and the operation is automatic and mechanical, so that the washing effect is ensured, and the working efficiency is improved. The inversely-arranged type automatic washing, positioning and pressing device provided by the utility model has the advantages of convenience in operation, good cleaning effect, and small occupied space. Ordinary washing water and distilled water are driven by different water pumps.
Description
Technical field
The utility model relates to a kind of wide-mouth bottle inversion type and washs positioning compression device automatically.
Background technology
Along with the continuous development of power system, oiling is tested, aquation is tested specialty and all can be faced a large amount of maintenance prerun and periodic monitoring task every year, for satisfying taking in a large number of experiment work, avoids unclean test data is produced of vessel to disturb, and the test vessel should in time clean.Clean the glassware after oil-filled, both wasted time and energy, use boiling water very easily to scald, have potential safety hazard, artificial in addition the cleaning do not have unified standard yet, is difficult to guarantee that each vessel cleannes can both be up to standard.
The utility model content
The utility model technical problem to be solved provides the wide-mouth bottle inversion type that a kind of cleaning effect is stable, simple to operate, use is safe and reliable and washs positioning compression device automatically.
The utility model adopts following technical scheme:
The utility model comprises cover plate, be arranged at that spring and the gripper shoe of cover plate lower end constitute compress buffer unit, be arranged at the gripper shoe lower end with gripper shoe cranking arm and the oblique return reed of cranking arm sidepiece and being connected that is arranged at through the rotating shaft hinge with gripper shoe; Described crank arm and the return reed is the circumference setting, described cranking arm is two arm of forces that acute angle connects, and one of them arm of force is provided with pulley, and another arm of force is provided with damping block, and described gripper shoe is provided with and is used for the delivery port that external hairbrush supplies water.
The good effect of the utility model is following:
The utility model can be cleaned the ampuliform vessel in batches, and use is through the standardized stream process control, and the automated machine operation has guaranteed clean result, has improved operating efficiency.Use the utility model simple operation, cleaning performance is good, floor space is little, common washings adopt different water pumps to drive with distilled water, specifically advantage is following:
1. vessel clean and to have merged that hot mastication, high pressure are peeled off, lotion is assisted, and technological means such as automatic switchover have guaranteed the washing cleanliness factor to greatest extent;
2. multichannel automatic electromagnetic valve control system, operation accurately can be with the residual minimums that controls to of sewage in the pipeline dead volume, thereby improve cleaning efficiency widely, and obviously shorten the work period and reduce water power consumption;
3. wide-mouth bottle inversion washing hold down gag fully compresses wide-mouth bottle by the top spring pressure, guarantees enough pressure nargin scopes simultaneously; The acute angle design is adopted in cranking arm of hold down gag, is used in various bottom structures, by the radial grasp of the level that can the part pressure at right angle be changed into of cranking arm, thereby wide-mouth bottle is promptly located;
4. each magnetic valve and motor, water pump Synchronization Control are to strengthen clean result;
5. high flux residue filtration system not only guarantees the high flux of washing, and has stopped the high rigidity residue destructiveness of high-pressure circulation pump is damaged;
6. adopt post case heat preservation technology, the casing heat loss is descended greatly.When increasing work efficiency, reduced power consumption again;
7. detachable hairbrush is applicable to the cleaning of various height and internal diameter container.
The utility model cleans vessel in strict accordance with the flow process of national Specification.In real work, obtain good effect, with using with washing, convenient efficient, the burden that lightens one's labor reduces security risk, improves technological standards, guarantees specification requirement, ensures that each item test data is accurately noiseless.Because its convenient installation, the simple easy operating of method for using can use in the oiling experiment work of power industry, has good promotion prospect.
Description of drawings

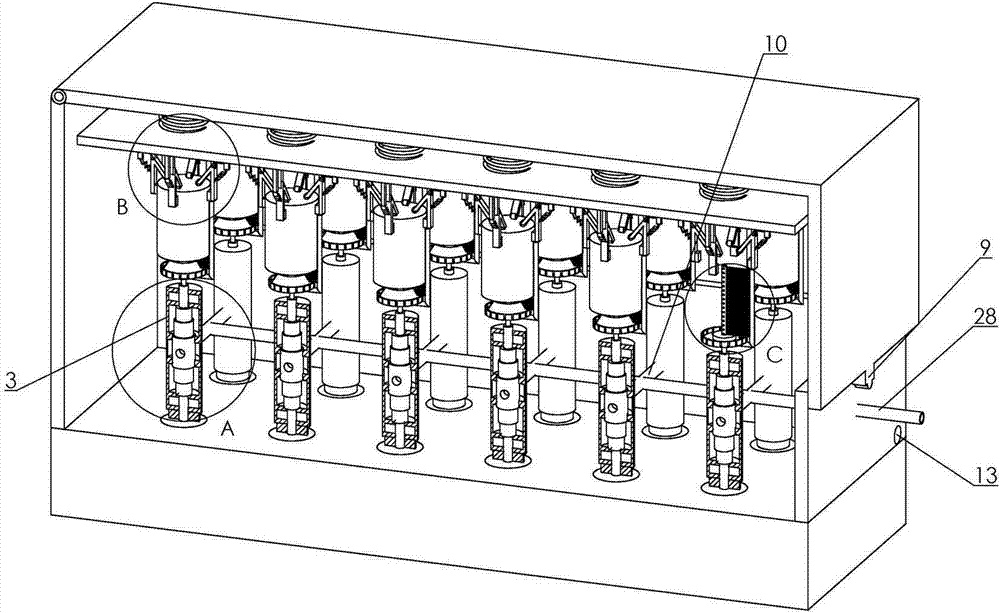

Accompanying drawing 1 is the utility model structural representation.
Accompanying drawing 2 is the utility model cleaning device structural representation.
Accompanying drawing 2-1 is the structural scheme of mechanism of the utility model hydrostatic vater tand.
Accompanying drawing 2-2 is the utility model hold down gag structural representation.
Accompanying drawing 2-3 is the utility model hair brush structure sketch map.
Accompanying drawing 3 is the utility model transmission structures sketch map.
Accompanying drawing 4 is the utility model water route control device structural representation.
Accompanying drawing 5 is the utility model control circuit structural representation.
The specific embodiment
Shown in accompanying drawing 1-5; The utility model is made up of cleaning device, hold down gag, transmission device, water route control device, described cleaning device comprises service sink 1, cover plate 2, hydrostatic vater tand 3, be arranged at the bearing block 4 at hydrostatic vater tand two ends about in the of 3, be sleeved on bearing 5 in the bearing block 4, be set in the hydrostatic vater tand 3 and be plugged in bearing 5 dead eyes be in transmission connection axle 30, interior hairbrush 7 and outer hairbrush 8 and be arranged in bottle hold in the palm 6 between hairbrush 7 and outer hairbrush 8 ends; The side wall hinge of described cover plate 2 one ends and service sink 1; The other end is connected through snap close 9 with the sidewall of service sink 1; The bottom of described service sink 1 sidewall is provided with gap 13, and 3 of described hydrostatic vater tands are connected through communicating pipe 10 and are connected with oral siphon 28, and described axle 30 bottoms and the transmission device of being in transmission connection is connected; The middle part of described connecting axle 30 is provided with water inlet 11; The center of hairbrush 7, bottle holder 6, the axle 30 that is in transmission connection is provided with the centre bore that is interconnected in described, and interrupt and are connected with water inlet 11 at described centre bore to water inlet 11 places, and described bottle holder 6 edge circumference are provided with gap 12; Be vertically arranged with internal hair bristle 14 and water jet 15 in said on the hairbrush 7, correspondence is provided with outer hairbrush hair 16 on the described outer hairbrush 8; Described hold down gag comprise by spring 17 that is arranged at cover plate 2 lower ends and gripper shoe 18 constitute compress buffer unit, be arranged at gripper shoe 18 lower ends crank arm 19 and the oblique return reed 20 of cranking arm 19 sidepieces and being connected that is arranged at gripper shoe 18 through rotating shaft 29 hinges with gripper shoe 18; Described crank arm 19 with return reed 20 be the circumference setting; Described 19 two arm of forces of cranking arm for the acute angle connection; One of them arm of force is provided with pulley 21, and another arm of force is provided with damping block 22, and described gripper shoe 18 is provided with and is used for the delivery port that external hairbrush 8 supplies water; Described transmission device comprises driving motor M, and the terminal suitable drive sprocket 24 of the axle 30 of being in transmission connection and be arranged at driving motor M and the synchronous belt 25 of 24 of drive sprockets; Described drive sprocket 25 is more than four and is two horizontal rows arranged side by side to setting, and described synchronous belt 25 is connected after alternately cooperating with inboard, the outside of each row's drive sprocket 24 after through the drive of driving motor M successively; First water pump 26 that described water route control device is connected with thermokalite water solenoid valve YV1 and clear water magnetic valve YV2 by thermokalite water solenoid valve YV1, clear water magnetic valve YV2, distilled water magnetic valve YV3, water inlet, second water pump 27 that water inlet is connected with distilled water magnetic valve YV3 and the control circuit that is used to control water route and hairbrush, the delivery port of described first water pump 26 and second water pump 27 all is connected with oral siphon 28; Described control circuit comprises contactor KM1-KM5, motor M, water pump P, thermokalite water solenoid valve YV1, clear water magnetic valve YV2, distilled water magnetic valve YV3, air switch SM, thermokalite water management switch S 1, clear water gauge tap S2, distilled water gauge tap S3 and linked switch ST1-ST3; The coil end opening outlet of described contactor KM1-KM5 all connects the N phase through air switch SM, and the outlet suitable for reading of the coil of described contactor KM1-KM3 connects the A` phase of air switch output respectively through buck gauge tap S1, clear water gauge tap S2, distilled water gauge tap S3; The contact KM1-1 of described contactor KM1 connects back parallelly connected with buck gauge tap S1 with interlock press button ST1; The contact KM2-1 of described contactor KM2 connects back parallelly connected with clear water gauge tap S2 with interlock press button ST2, the contact KM3-1 of described contactor KM3 connects back parallelly connected with distilled water gauge tap S3 with interlock press button ST3; The coil outlet suitable for reading of the contact KM1-2 of described contactor KM1, the contact KM2-2 of contactor KM2 and the termination contactor KM4 after the contact KM3-2 of contactor KM3 is parallelly connected; Its other end connects the A phase through air switch SM; The coil outlet suitable for reading of the contact KM1-3 of described contactor KM1, the contact KM2-3 of contactor KM2 and the termination contactor KM5 after the contact KM3-3 of contactor KM3 is parallelly connected; The other end connects the A phase through air switch SM; The contact KM1-4 of described contactor KM1 meets A mutually with buck magnetic valve YV1 coil series connection back one end through air switch SM; The other end connects the N phase through air switch SM, and the contact KM2-4 of described contactor KM2 meets A mutually with clear water magnetic valve YV2 coil series connection back one end through air switch SM, and the other end connects the N phase through air switch SM; The contact KM3-4 of described contactor KM3 meets A mutually with distilled water magnetic valve YV3 coil series connection back one end through air switch SM, and the other end connects the N phase through air switch SM; The contact KM4-2 of the power end of described motor M KM4-1, contactor KM4 through the contact of contactor KM4, the contact KM4-3 of contactor KM4 connect the A` phase of air switch SM, B` phase, C` phase respectively; The contact KM5-2 of the power end of described water pump P KM5-1, contactor KM5 through the contact of contactor KM5 respectively through air switch SM connect respectively N mutually with A mutually.
The utility model is made up of cleaning device, hold down gag, transmission device, water route control device, and the utility model utilizes driving motor to pass through synchronous belt and drives a plurality of connection bearing axle high speed rotating, hairbrush and outer hairbrush in the installing of connection bearing axle top is dismountable; Wherein interior hairbrush is hollow, and the gap location at its hairbrush is provided with some delivery ports simultaneously, utilizes water pump to suppress water outlet; The water route is by the water outlet successively of three groups of solenoid control three road outlet pipelines; At first add washing agent boiling water and clean, Residual oil is cleaned, re-use the flushing of pressurization running water; Cross washing only with distilled water at last, with subsequent use after vessel oven dry, the cooling.
The cleaning device of the utility model comprises service sink 1, cover plate 2, hydrostatic vater tand 3, be arranged at the bearing block 4 at hydrostatic vater tand two ends about in the of 3, be sleeved on bearing 5 in the bearing block 4, be set in hydrostatic vater tand 3 inboard and be plugged in bearing 5 dead eyes be in transmission connection axle 30, interior hairbrush 7 and outer hairbrush 8 and be arranged in hairbrush 7 and outer hairbrush 8 bottoms bottle hold in the palm 6; The sidewall top hinge of described cover plate 2 one ends and service sink 1; The other end is connected through snap close 9 with the sidewall of service sink 1, and the bottom of described service sink 1 sidewall is provided with gap 13 and draining pump, and 3 of described hydrostatic vater tands are connected through communicating pipe 10 and are connected with the water inlet pipe 31 of water route control device; Described connecting axle 4 bottoms and transmission device are connected; The middle part of described connecting axle 4 is provided with water inlet 11, and the centre of described interior hairbrush 7, bottle holder 6, the axle 30 that is in transmission connection is provided with the centre bore that is interconnected, and interrupt and are connected with water inlet 11 at described centre bore to water inlet 11 places; Described bottle holder 6 edge circumference are provided with gap 12; Be vertically arranged with internal hair bristle 14 on the hairbrush 7 in said and go out water jet 15, correspondence is provided with outer hairbrush hair 16 on the described outer hairbrush 8, and the utility model brush is made up of interior hairbrush, outer hairbrush; Main body is the structure of falling h, and its bottom is plugged on through bottle holder central openings and bearing
Scrub a pedestalThe top is by the pedestal driven rotary.Interior hairbrush, outer hairbrush adopt integrated design, rotate synchronously.Being in transmission connection is provided with two on axle 30 tops and the both direction axial wall vertical with interior hairbrush and shows flush port, when interior hairbrush, outer hairbrush rotate, flushing liquor or distilled water by the water pump pressurization after, spray through flushing brush pedestal, the washout primary drying mouth of a river; Described hold down gag comprise by spring 17 that is arranged at cover plate 2 lower ends and gripper shoe 18 constitute compress buffer unit, be arranged at gripper shoe 18 lower ends crank arm 19 and the oblique return reed 20 of cranking arm 19 sidepieces and being connected that is arranged at gripper shoe 18 through rotating shaft 19 hinges with gripper shoe 18; Described cranking arm 19 is the circumference setting with return reed 20, and 19 inboards of cranking arm are provided with cranks arm 32, and the outside is provided with cranks arm 33, and return reed 20 1 ends are fixed in cranks arm on 33, and the other end is fixed on 19 outsides of cranking arm; Described 19 two the arm shape structures of cranking arm for the acute angle connection, wherein an end is provided with pulley 21, and the other end is provided with damping block 22, and described gripper shoe 18 is provided with and is used for the delivery port that external hairbrush 8 supplies water; Described transmission device comprises driving motor 23, and the terminal suitable drive sprocket 24 of the axle 30 of being in transmission connection and be arranged at driving motor 23 and the synchronous belt 25 of 24 of drive sprockets; Described synchronous belt 25 is arranged for even number and is two horizontal rows arranged side by side to setting; Described synchronous belt 25 is connected after alternately cooperating with inboard, the outside of each row's drive sprocket 24 after through the drive of driving motor M successively; All axles 30 of being in transmission connection through the synchronous belt driven in rotation, drive the rotation of inside and outside hairbrush by motor simultaneously.Synchronous belt becomes the S type to arrange along drive sprocket; First water pump 29 that described water route control device is connected with thermokalite water solenoid valve 26 and clear water magnetic valve 27 by thermokalite water solenoid valve 26, clear water magnetic valve 27, distilled water magnetic valve 28, water inlet, second water pump 30 that water inlet is connected with distilled water magnetic valve 28 and the control circuit that is used to control water route and hairbrush; The delivery port of described first water pump 29 and second water pump 30 all is connected with oral siphon 31; The utility model is controlled respectively three magnetic valves; Thermokalite water, clear water, distilled water are selected; Added in the hydrostatic vater tand of pressing to washout head pedestal by water pump and supply water, delivery port and the centre bore through hairbrush sprays again.
Electric control loop is shown in accompanying drawing 5, and the dragging motor of flushing brush is controlled by contactor KM4, connects three phase mains.Water pump is controlled by contactor KM5, is communicated with single phase poaer supply.Three magnetic valves are respectively thermokalite water valve, purge valve, distillation water valve.Thermokalite water valve coil YV1 is by button S1 control, and purge valve coil YV2 is by button S2 control, and distilled water valve coil YV3 is controlled by button S3.Contactor KM4, KM5 coil are promptly connected in S1, S2, the arbitrary conducting of S3, and therefore in the conducting magnetic valve, the dragging motor and the water pump of flushing brush start automatically.When stopping, its normally closed linked switch ST breaks off, and removes the self-locking state of contactor KM1 or KM2 or KM3, thereby stops motor and water pump, closes magnetic valve YV1, YV2, YV3 simultaneously.
The utility model use is following:
1. the flushing brush that will clean inserts the central openings of flushing brush pedestal.Several sampling bottles (wide-mouth bottle) are inverted, bottleneck is inserted the bottle holder on the washout head bearing outer ring in the cabinet down, use hold down gag that sampling bottle (wide-mouth bottle) is compressed the location, close developing room.The buck valve is connected to the buck container, and purge valve is connected to running water pipe, and water purifying valve is connected to pure water container.
2. press the button SB1; Start the dragging motor and the intake pump of buck magnetic valve, flushing brush; Drive the rotation of flushing brush by motor through synchronous belt, flushing brush pedestal; Buck carries out the first pass washing through buck magnetic valve, first water pump, flushing brush pedestal, the ejection of washout primary drying water hole to sampling bottle (wide-mouth bottle) simultaneously, and waste water is discharged through the developing room bottom.Sampling bottle in the washing process (wide-mouth bottle) pressurized locking buffering device compresses and grasps, and does not do rotation.
3. press the button SB2; Start the dragging motor and the intake pump of clear water magnetic valve, flushing brush; Drive the rotation of flushing brush by motor through synchronous belt, flushing brush pedestal; Clear water (running water) carries out second time washing through clear water magnetic valve, first water pump, flushing brush pedestal, the ejection of washout primary drying water hole to sampling bottle (wide-mouth bottle) simultaneously, and waste water is discharged through the developing room bottom.Sampling bottle in the washing process (wide-mouth bottle) pressurized locking buffering device compresses and grasps, and does not do rotation.
4. press the button SB3; Start the dragging motor and the intake pump of distilled water magnetic valve, flushing brush; Drive the rotation of flushing brush by motor through synchronous belt, flushing brush pedestal; Pure water carries out the 3rd time washing through distilled water magnetic valve, second water pump, flushing brush pedestal, the ejection of washout primary drying water hole to sampling bottle (wide-mouth bottle) simultaneously, and waste water is discharged through the developing room bottom.Sampling bottle in the washing process (wide-mouth bottle) pressurized locking buffering device compresses and grasps, and does not do rotation.
5. after flushing is accomplished, can open developing room, automatically terminate the positioner that compresses, take off sampling bottle (wide-mouth bottle) and put it into drying box, take off the flushing brush and safeguard sampling bottle (wide-mouth bottle).
The utility model can be cleaned vessel in batches, and use is through the standardized stream process control, and the automated machine operation has guaranteed clean result, has improved operating efficiency.Use the utility model simple operation, cleaning performance is good, floor space is little.
Claims (1)
1. a wide-mouth bottle inversion type washs positioning compression device automatically, it is characterized in that it comprise cover plate (2), be arranged at that spring (17) and the gripper shoe (18) of cover plate (2) lower end constitute compress buffer unit, (18) lower end that is arranged at gripper shoe with gripper shoe (18) cranking arm (19) and the oblique return reed (20) of cranking arm (19) sidepiece and being connected that is arranged at through rotating shaft (29) hinge with gripper shoe (18); Described cranking arm (19) and return reed (20) are the circumference setting; Two arm of forces that described cranking arm (19) connects for acute angle; One of them arm of force is provided with pulley (21); Another arm of force is provided with damping block (22), and described gripper shoe (18) is provided with and is used for the delivery port that external hairbrush (8) supplies water.
