Abstract
本实用新型涉及家用电器技术领域，具体地说是一种破碎机用手把座。该破碎机用手把座包括本体，所述本体呈“D”字形，所述本体一侧设有向内凹的弧形面，另一侧上设有若干卡扣，所述卡扣上设有若干凹槽，所述本体两端各设有一个固定螺丝孔。本实用新型提供一种结构简单、安全可靠的破碎机用手把座。
The utility model relates to the technical field of household appliances, in particular to a handle seat for a crusher. The handle seat for the crusher includes a body, the body is in the shape of a "D", one side of the body is provided with an inwardly concave arc surface, and the other side is provided with several buckles, and the buckle is provided with There are several grooves, and a fixing screw hole is provided at both ends of the body. The utility model provides a handle seat for a crusher with simple structure, safety and reliability.
Description
Technical field
The utility model relates to household electrical appliance technical field, and specifically a kind of disintegrating machine is used handle bracket.
Background technology
The cup of existing disintegrating machine generally all adopts plastics to process in the market, and handle bracket and cup be made into integration, and the plastics cup is after long-term the use; Can produce harmful substance, unharmful to human body, and the easy breed bacteria of plastics cup; In addition; The handle bracket that is made into integration with the plastics cup ruptures easily, and then scalds the user, and influence is normally used.
The utility model content
The utility model provides a kind of simple in structure, safe and reliable disintegrating machine to use handle bracket.
The utility model is realized through following technical proposals:
A kind of disintegrating machine is used handle bracket, comprises body, and said body is " D " font, and said body one side is provided with the arcwall face that concaves, and opposite side is provided with some buckles, and said buckle is provided with some grooves, and said body two ends respectively are provided with a fixed screw holes.
Said body upper end outer surface is provided with the contraposition raised line.
Said body adopts ABS or PC material to process.
The beneficial effect that the utility model brought is:
In the utility model, said disintegrating machine comprises body with handle bracket, and said body is " D " font, makes things convenient for the user to take and holds said handle bracket; Said body one side is provided with the arcwall face that concaves, and said arcwall face matches with cup, makes cooperation tightr; Opposite side is provided with some buckles, is used for connection hand lid; Said buckle is provided with some grooves, under the situation that does not reduce buckle intensity, alleviates the weight of handle bracket to greatest extent; Said body two ends respectively are provided with a fixed screw holes, through screw handle bracket are fixed on the cup sidewall; Said body upper end outer surface is provided with the contraposition raised line, positions when making things convenient for handle bracket to install, and makes things convenient for the workman to install; Said body adopts ABS or PC material to process, and with low cost, moulding process is simple.
Description of drawings
Below in conjunction with accompanying drawing the utility model is done further explain.

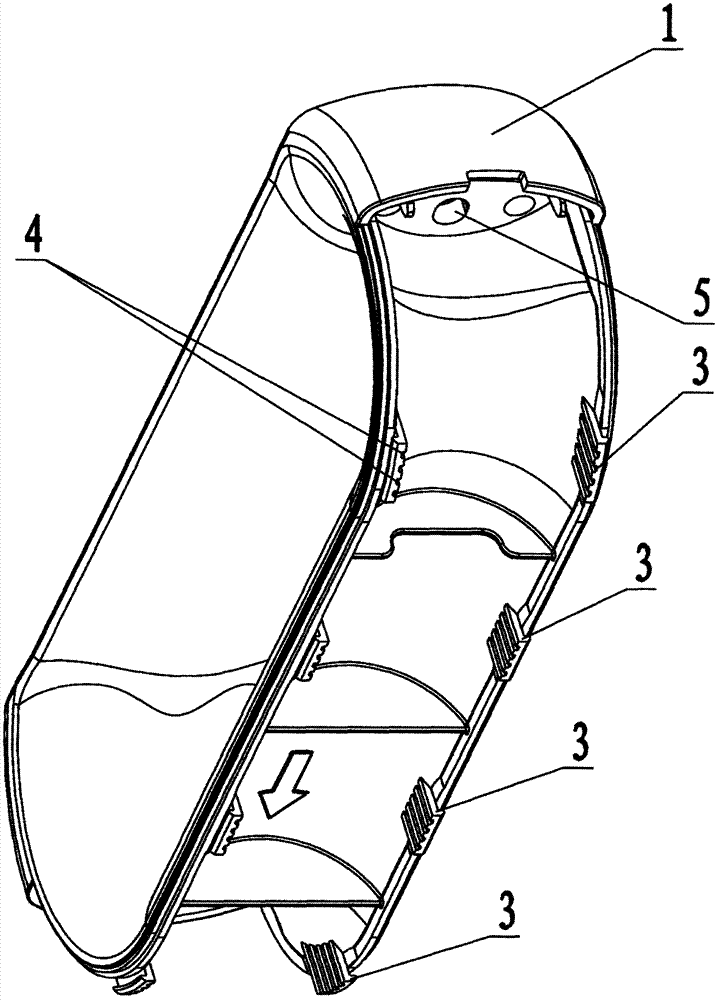

Fig. 1 is that the said disintegrating machine of the utility model is with the positive structural representation of handle bracket;
Fig. 2 is the structural representation of the said disintegrating machine of the utility model with the handle bracket reverse side.
The label that component names is corresponding among the figure is following:
1, body; 2, arcwall face; 3, buckle; 4, groove; 5, fixed screw holes; 6, contraposition raised line.
The specific embodiment
Below in conjunction with accompanying drawing and embodiment the utility model is done further to detail:
As the embodiment of the said disintegrating machine of the utility model with handle bracket; As depicted in figs. 1 and 2, comprise body 1, said body 1 is " D " font; Said body 1 one sides are provided with the arcwall face 2 that concaves; Opposite side is provided with eight buckles 3, and said buckle 3 is provided with four grooves 4, and said body 1 two ends respectively are provided with a fixed screw holes 5.
In the present embodiment, said body 1 upper end outer surface is provided with contraposition raised line 6.
In the present embodiment, said body 1 adopts the ABS material to process.
Certainly, also can be provided with six or ten buckles on the said body; Also can be provided with three or five grooves on the said buckle; Said body also can adopt the PC material to process.So, also all within the utility model protection domain, give unnecessary details no longer one by one here.
Claims (3)
1. a disintegrating machine is used handle bracket, it is characterized in that comprising body, and said body is " D " font; Said body one side is provided with the arcwall face that concaves; Opposite side is provided with some buckles, and said buckle is provided with some grooves, and said body two ends respectively are provided with a fixed screw holes.
2. disintegrating machine as claimed in claim 1 is used handle bracket, it is characterized in that said body upper end outer surface is provided with the contraposition raised line.
3. disintegrating machine as claimed in claim 2 is used handle bracket, it is characterized in that said body adopts ABS or PC material to process.
