The utility model relates to a condensing type heating water heater, and provides a condensate water collection device for gas appliance smoke pipes. The device comprises a water-containing plate and a water-containing pipe, the water-containing plate is provided with a connecting ring and a tray, the inner diameter of the connecting ring is matched with the opening end of an exhaust pipe, the outer diameter of the connecting ring is matched with the opening end of a smoke discharging pipe, a through hole is arranged in the middle of the tray, a water retaining edge is arranged on the outer edge of the tray, and one end of the connecting ring is connected with a through hole edge in the middle of the tray; the connecting ring, the tray and the water retaining edge form a water receiving circular groove, and a water outlet is opened on the water retaining edge and connected with a water outlet pipe joint; one end of the water receiving pipe is connected with a water outlet pipe joint of the water-containing plate, and the water-containing pipe is connected onto the water-containing plate. The condensate water collection device for gas tool smoke pipes has the advantages that rain or condensate water is effectively prevented from flowing backward to a heater through a water outlet pipe opening of a gas appliance; and the structure is simple, and the usage is convenient.
Description
Technical field
The utility model relates to condensed type combustion gas heating hot water stove or gas instantaneous water heater.
Background technology
Existing condensed type combustion gas heating hot water stove or gas instantaneous water heater have fume extractor usually; Its main application is as the passage of flowing through of the flue gas behind the secondary heat exchange in the main heat exchanger; Through it flue gas is finally caused the exhaust opening place, and drain into outdoor through the inner layer sleeve of coaxial smoke pipe.
The existing employed fume extractor of condensed type combustion gas heating hot water stove, because the influence of outdoor environment, when raining, rainwater can get into through the air admission hole of coaxial smoke pipe and pour in down a chimney and get in the stove; Sometimes condensed water also can take place and pour in down a chimney in the entering stove through coaxial smoke pipe in the internal layer smoke exhaust pipe.
Get into rainwater or condensed water in the stove, directly corrode main heat exchanger, have a strong impact on the heat exchange efficiency and the service life of main heat exchanger.
Summary of the invention
The purpose of the utility model is a kind of condensed water collecting device that is used for combustion gas tool smoke pipe of design, and its rainwater or condensed water that can solve smoke pipe pours in down a chimney the problem to the stove.
The technical scheme of the utility model is:
A kind of condensed water collecting device that is used for combustion gas tool smoke pipe; Comprise drip tray and water receiving pipe, said drip tray has connecting ring and pallet, and the exhaust pipe mouth end of the internal diameter of connecting ring and combustion gas tool is suitable; Make the exhaust pipe mouth end of combustion gas tool can overlap the endoporus that inserts connecting ring; The external diameter of connecting ring is suitable with the smoke evacuation nose end, the smoke evacuation nose end can be overlapped insert the connecting ring connection, and the pallet middle part has perforation; The outward flange of pallet has the dash edge, and an end disjunctor of connecting ring is connected in the limit of wearing at pallet middle part; Connecting ring, pallet and dash edge constitute the water receiving annular groove, and the dash edge has discharge outlet and connects drain connection; One end of water receiving pipe is connected on the drain connection of drip tray.
During use; Be connected with smoke exhaust pipe with the fume extractor of the utility model: the exhaust pipe mouth end (making the water receiving annular groove upwards) that makes the connection ring set insertion combustion gas tool of the utility model condensed type combustion gas heating hot water stove; Smoke evacuation nose end cover is inserted on the connecting ring of the utility model; Be that the connecting ring that smoke exhaust pipe passes through the utility model is connected with the exhaust pipe mouth end of combustion gas tool, the water receiving pipe other end of the utility model is connected on the drip tray.
When having rainwater or condensed water to pour in down a chimney on the smoke exhaust pipe, the rainwater of backflow or condensed water are dammed discharges on the pallet of the utility model and from water receiving pipe, will prevent effectively that so just rainwater or condensed water from pouring in down a chimney the problem in the stove from the exhaust pipe mouth of combustion gas tool.
The characteristics of the utility model have:
1. the utility model can will prevent effectively that rainwater or condensed water from pouring in down a chimney the problem in the stove from the exhaust pipe mouth of combustion gas tool;
2. the utility model is simple in structure, and is easy to use.
Description of drawings

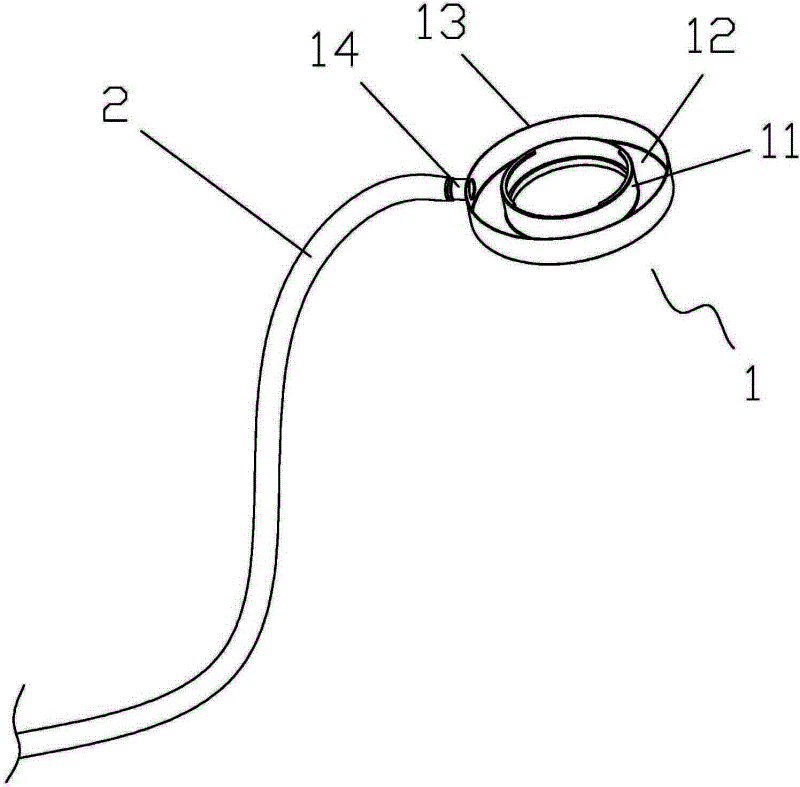

Fig. 1 is the structural representation of the utility model.
Fig. 2 is the drip tray structure sketch map in the utility model.
Fig. 3 is the vertical view of Fig. 2.
Fig. 4 is the utility model application examples sketch map.
The specific embodiment
With reference to figure 1, Fig. 2, Fig. 3 and Fig. 4, a kind of condensed water collecting device that is used for combustion gas tool smoke pipe comprises drip tray 1 and water receiving pipe 2; Drip tray 1 has connecting ring 11 and pallet 12; The exhaust pipe mouth end 3 of the internal diameter of connecting ring 11 and combustion gas tool is suitable, makes the exhaust pipe mouth end 3 of combustion gas tool can overlap the endoporus that inserts connecting ring 11, and the external diameter of connecting ring 11 is suitable with smoke evacuation nose end 4; Smoke evacuation nose end 4 can be overlapped insert connecting ring 11 connections; The middle part of pallet 12 has perforation, and the outward flange of pallet 12 has dash edge 13, and an end disjunctor of connecting ring 11 is connected in the punching edge at pallet 12 middle parts; Connecting ring 11, pallet 12 and dash edge 13 constitute water receiving annular groove 10, and dash edge 13 has discharge outlet and connects drain connection 14; One end of water receiving pipe 2 is connected on the drain connection 14 of drip tray 1.
With reference to figure 4; An application examples as the utility model; Earlier connecting ring 11 covers of the utility model are inserted the exhaust pipe mouth end 3 (making water receiving annular groove 10 upwards) of combustion gas tool; Smoke evacuation nose end 4 covers with smoke exhaust pipe 40 insert on the connecting ring 11 of the utility model again; Smoke exhaust pipe 40 is connected with the exhaust pipe mouth end 3 of gas water-heating furnace 6 through the connecting ring 11 of the utility model, and exhaust pipe mouth end 3 is the blower fan 5 air draft mouths of pipe that are connected in gas water-heating furnace 6, and the other end of the water receiving pipe 2 of the utility model is connected on the drip tray (not shown).
When having rainwater or condensed water to pour in down a chimney on the smoke exhaust pipe 40; Rainwater that refluxes or condensed water are dammed discharges on the pallet 11 of the utility model and from water receiving pipe 2, has prevented effectively that so just rainwater or condensed water from pouring in down a chimney the problem in the stove from the exhaust pipe mouth 3 of gas water-heating furnace 6.
Claims (1)
1. condensed water collecting device that is used for combustion gas tool smoke pipe; Comprise drip tray (1) and water receiving pipe (2); It is characterized in that: said drip tray (1) has connecting ring (11) and pallet (12); The internal diameter of connecting ring (11) and the exhaust pipe mouth end of combustion gas tool are suitable, and the external diameter of connecting ring (11) is suitable with the smoke evacuation nose end, and the middle part of pallet (12) has perforation; The outward flange of pallet (12) has dash edge (13), and an end disjunctor of connecting ring (11) is connected in the punching edge at pallet (12) middle part; Connecting ring (11), pallet (12) and dash edge (13) constitute water receiving annular groove (10), and dash edge (13) has discharge outlet and connects drain connection (14); One end of water receiving pipe (2) is connected on the drain connection (14) of drip tray (1).
