Abstract

The utility model relates to a pre-riveted-type frame-forming machine for a photovoltaic component, which comprises an operating floor for holding the pre-riveted photovoltaic component. A set of frame compressing devices and a control device for controlling the frame compressing devices to operate are arranged on the operating floor, and the frame compressing devices comprise four compression moulds corresponding to four corners of a frame of the photovoltaic component and driving devices for driving the compression moulds to move. The compression moulds are driven to move by the driving devices so as to realize compression of the frame of the photovoltaic component, so that quality of the pre-riveted-type frame-forming machine for the photovoltaic component is improved, and the pre-riveted frame-forming machine for the photovoltaic component is higher in compactness, simple in structure, easy to manufacture and high in working efficiency.

Description

Preparatory riveting formula photovoltaic module Frame assembling machine
Technical field
The utility model relates to photovoltaic module production equipment technical field, especially a kind of preparatory riveting formula photovoltaic module Frame assembling machine.
Background technology
Crystalline Silicon PV Module (also being solar module) is the core in the solar power system, also is to be worth the highest part in the solar power system.The technological process of production of photovoltaic module roughly is: list weldering of battery sheet and series welding, lamination lay, lamination, rim frame, dress terminal box; In the manufacture process of photovoltaic module; The group frame is an important step, and the solar panel that this step is good with lamination is assembled on the frame of aluminium alloy.Existing photovoltaic module manufacturer, the main mode that adopts artificial group frame, efficient is low, and human cost is high, and labor strength is big, and group frame tightness is not enough, frame interface break-off in manufacturing, transportation, installation process, occurs, causes product quality problem.
The utility model content
The technical problem that the utility model will solve is: for overcoming the deficiency in the prior art, a kind of preparatory riveting formula photovoltaic module Frame assembling machine is provided, drives pressing mold through drive unit and move, realize compressing of photovoltaic component frame, tightness is higher, improves the quality of products.
The utility model solves the technical scheme that its technical problem adopted: a kind of preparatory riveting formula photovoltaic module Frame assembling machine; The operating desk that comprises the photovoltaic module that placement is riveted in advance; Described operating desk is provided with the control device of a cover frame hold down gag and the work of control frame hold down gag, and described frame hold down gag comprises four drive units that move with four corresponding pressing molds in angle of photovoltaic component frame and driving pressing mold.
Described drive unit is the cylinder with feeder, and the cylinder barrel of cylinder is installed on the operating desk, and the external part of the piston rod of cylinder connects pressing mold.
For adapting to the photovoltaic module of each specification, scalable is connected between the cylinder barrel of described cylinder and the operating desk.
Described pressing mold is a square, has the frame protective layer on the contact-making surface of described pressing mold and photovoltaic component frame.
The beneficial effect of the utility model is that the preparatory riveting formula photovoltaic module Frame assembling machine of the utility model drives pressing mold through drive unit and moves, and replaces manual work to compress operation; Realize compressing automatically of photovoltaic component frame, tightness is higher, improves the quality of products; Simple in structure, be easy to make high efficiency.
Description of drawings
Below in conjunction with accompanying drawing and embodiment the utility model is further specified.

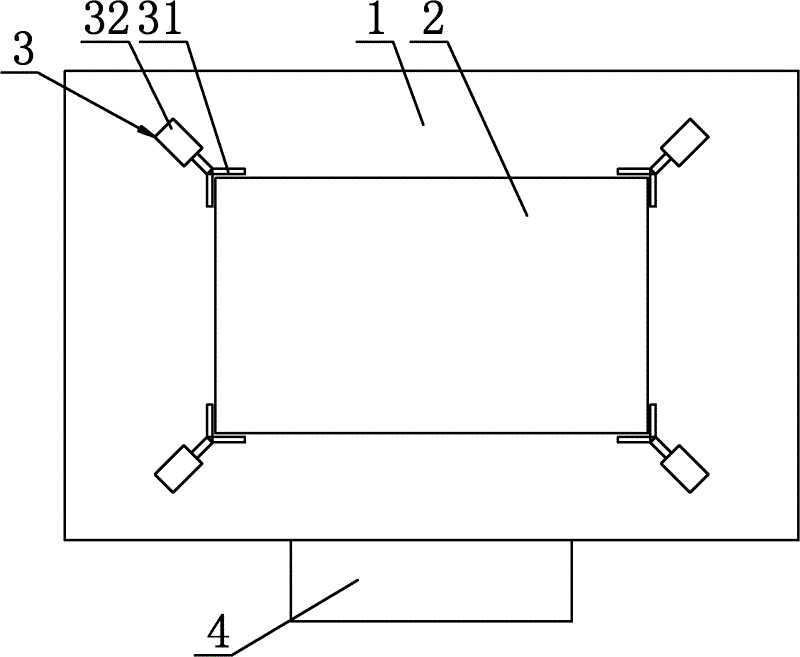

Fig. 1 is the structural representation of most preferred embodiment of the preparatory riveting formula photovoltaic module Frame assembling machine of the utility model.
Among the figure: 1. operating desk, 2. photovoltaic module, 3. frame hold down gag, 31. pressing molds, 32. drive units,
4. control device.
Embodiment
Combine accompanying drawing that the utility model is done further detailed explanation now.These accompanying drawings are the sketch map of simplification, the basic structure of the utility model only is described in a schematic way, so it only show the formation relevant with the utility model.
As shown in Figure 1; The most preferred embodiment of the preparatory riveting formula photovoltaic module Frame assembling machine of the utility model; The operating desk 1 that comprises the photovoltaic module 2 that placement is riveted in advance; Operating desk 1 is provided with one and overlaps the control device 4 of frame hold down gag 3 and 3 work of control frame hold down gag, and frame hold down gag 3 comprises four drive units 32 that move with corresponding pressing mold 31 in four angles of photovoltaic module 2 frames and driving pressing mold 31, and drive unit 32 is for having the cylinder of feeder; The cylinder barrel scalable of cylinder is installed on the operating desk 1; The external part of the piston rod of cylinder connects pressing mold 31, and pressing mold 31 is a square, has the frame protective layer on the contact-making surface of pressing mold 31 and photovoltaic module 2 frames.
Introduce the utility model below in conjunction with concrete the use, at first photovoltaic module 2 frames are adopted special-purpose angle sign indicating number riveting in advance dress, the photovoltaic module 2 that then riveting is in advance installed is placed on the operating desk 1; The solar panel of in photovoltaic module 2 frames, packing into; Frame hold down gag 3 work then, drive unit 32 drive pressing mold 31 and move to realize compressing frame, make to connect between the frame closely; The long-term use can not get loose yet, and improves the useful life of photovoltaic module.

Claims (4)

1. preparatory riveting formula photovoltaic module Frame assembling machine; It is characterized in that: the operating desk (1) that comprises the photovoltaic module (2) that placement is riveted in advance; Described operating desk (1) is provided with the control device (4) of a cover frame hold down gag (3) and control frame hold down gag (3) work, and described frame hold down gag (3) comprises four drive units (32) that move with photovoltaic module (2) four corresponding pressing molds in angle of frame (31) and driving pressing mold (31).
2. preparatory riveting formula photovoltaic module Frame assembling machine as claimed in claim 1 is characterized in that: described drive unit (32) is for having the cylinder of feeder, and the cylinder barrel of cylinder is installed on the operating desk (1), and the external part of the piston rod of cylinder connects pressing mold (31).
3. preparatory riveting formula photovoltaic module Frame assembling machine as claimed in claim 2 is characterized in that: scalable is connected between the cylinder barrel of described cylinder and the operating desk (1).
4. according to claim 1 or claim 2 preparatory riveting formula photovoltaic module Frame assembling machine, it is characterized in that: described pressing mold (31) is a square, has the frame protective layer on the contact-making surface of described pressing mold (31) and photovoltaic module (2) frame.
