The utility model relates to a rabbit dissecting table with a transfusion device. An operation flat plate is arranged on four supporting legs, two groups of sliding grooves A are respectively arranged on two sides of the operation flat plate, fixing columns A are arranged in the sliding grooves A, the sliding grooves A are in the shape of straight strips, the fixing columns A can move in the sliding grooves A so that the positions of the fixing columns A are adjusted, a blow-off hole is further arranged on the operation flat plate between the two groups of sliding grooves A and is connected with a collecting box under the operation flat plate, and a lamp socket and a heating bulb are further disposed under the operation flat plate. The rabbit dissecting table with the transfusion device is characterized in that a sliding groove B is further arranged on the operation flat plate and is arc-shaped, a telescopic rod is disposed in the sliding groove B, the bottom of the telescopic rod is embedded in the sliding groove B, the top end of the telescopic rod is connected with a hook, and the telescopic rod can move in the sliding groove B so that the position of the telescopic rod is adjusted. The service method includes that when the rabbit dissecting table is used for dissecting a rabbit, the height of the telescopic rod on the operation flat plate can be adjusted, a transfusion bottle is hung on the hook, and the rabbit is in vein medication while being dissected. The rabbit dissecting table has the advantages that the rabbit dissecting table is reasonable in structure and convenient to use, and work efficiency of a laboratory is improved.
Description
Technical field
This utility model relates to the pharmacological experiment chamber and uses equipment, specifically with the rabbit dissecting table of infusion set.
Background technology
At present, the structure of rabbit dissecting table of the prior art is made up of fixture and attemperator, but lacks the auxiliary accessories of rabbit vein administration; Make the operator feel inconvenient, implementing at present needs intravenously administrable to keep the rabbit vital sign toward contact after rabbit dissects; And observe the reaction of rabbit through intravenously administrable, in the practical operation, do not have to supply to hang the device of liquid on the rabbit dissecting table medicine; Need get transfusion hook in addition operates; Shortcoming one is to add the infusion set inconvenience temporarily, and two is not match between two covering devices, uses inconvenient.
Summary of the invention
This utility model technical problem to be solved is the deficiency that overcomes prior art; The rabbit dissecting table of band infusion set is provided, and this utility model solves the technical scheme that its technical problem adopted and is: the structure of this utility model comprises operate tablet, sliding tray A, fixed leg A, mudhole, supporting leg, socket, heating bulb, expansion link, hook, collection box, sliding tray B, fixed leg B, and operate tablet is arranged on four supporting legs; The operate tablet both sides are respectively arranged with two groups of sliding tray A; Fixed leg A is arranged in the sliding tray A, and sliding tray A is straight bar shaped, and fixed leg A can move the position of adjustment fixed leg A in sliding tray A; Also be provided with a mudhole on the operate tablet between two groups of sliding tray A; The collection box of mudhole below operate tablet is connected, and also is provided with socket and heating bulb below the operate tablet, below the operate tablet of the outboard end of the supporting leg of socket, also is provided with fixed leg B; It is characterized in that also being provided with on the operate tablet sliding tray B; Sliding tray B is an arc, is provided with an expansion link in the sliding tray B, and the bottom of expansion link is embedded in the sliding tray B; The expansion link top is connected with hook, and expansion link can move the position of adjustment expansion link in sliding tray B.
Method for using: when using this utility model to dissect rabbit, utilize sliding tray B to regulate the position and the height of the expansion link on the operate tablet, hang over infusion bottle on the hook, give the rabbit vein administration while dissecting.
The beneficial effect of this utility model is that this utility model is rational in infrastructure, and is easy to use, improved breadboard work efficiency.
Description of drawings
Fig. 1: this utility model embodiment plan structure sketch map.

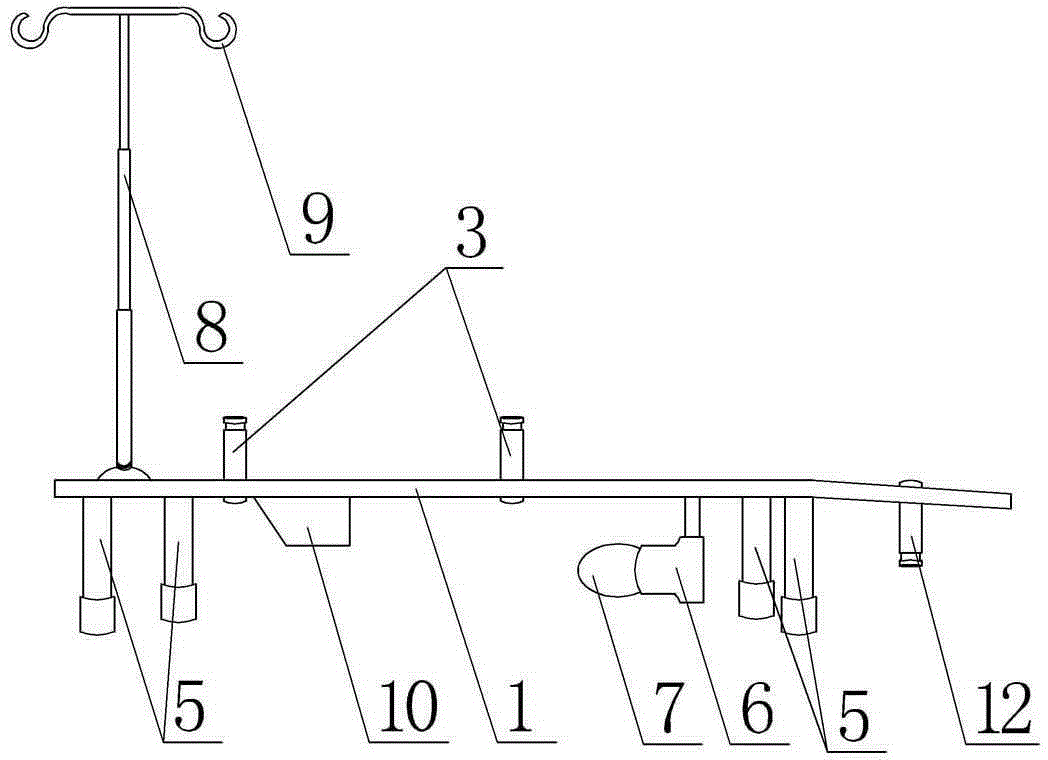

Fig. 2: this utility model embodiment side-looking structural representation.
Among the figure: operate tablet 1, sliding tray A2, fixed leg A3, mudhole 4, supporting leg 5, socket 6, heating bulb 7, expansion link 8, hook 9, collection box 10, sliding tray B11, fixed leg B12.
The specific embodiment
Concrete detailed description below with reference to description of drawings this utility model being done.Shown in accompanying drawing, the structure of this utility model comprises operate tablet 1, sliding tray A2, fixed leg A3, mudhole 4, supporting leg 5, socket 6, heating bulb 7, expansion link 8, hook 9, collects box 10, sliding tray B11, fixed leg B12, and operate tablet 1 is arranged on four supporting legs 5; Operate tablet 1 both sides are respectively arranged with two groups of sliding tray A2; Fixed leg A3 is arranged in the sliding tray A2, and sliding tray A2 is straight bar shaped, and fixed leg A3 can move the position of adjustment fixed leg A3 in sliding tray A2; Also be provided with a mudhole 4 on the operate tablet 1 between two groups of sliding tray A2; Collection box 10 below mudhole 4 and the operate tablet 1 is connected, and also is provided with socket 6 and heating bulb 7 below the operate tablet 1, below the operate tablet 1 of the outboard end of the supporting leg 5 of socket 6, also is provided with fixed leg B12; It is characterized in that also being provided with on the operate tablet 1 a sliding tray B11; Sliding tray B11 is an arc, is provided with an expansion link 8 in the sliding tray B11, and the bottom of expansion link 8 is embedded in the sliding tray B11; Expansion link 8 tops are connected with hook 9, and expansion link 8 can move the position of adjustment expansion link 8 in sliding tray B11.
Embodiment recited above describes the preferred implementation of this utility model; Be not that design and scope to this utility model limits; Under the prerequisite that does not break away from this utility model design concept, common engineers and technicians make the technical scheme of this utility model in this area various modification and improvement all should fall into the protection domain of this utility model; The technology contents that this utility model is asked for protection all is documented in claims.
Claims (1)
1. be with the rabbit dissecting table of infusion set; Comprise operate tablet (1), sliding tray A (2), fixed leg A (3), mudhole (4), supporting leg (5), socket (6), heating bulb (7), expansion link (8), hook (9), collect box (10), sliding tray B (11), fixed leg B (12); Operate tablet (1) is arranged on four supporting legs (5); Operate tablet (1) both sides are respectively arranged with two groups of sliding tray A (2); Fixed leg A (3) is arranged in the sliding tray A (2), and sliding tray A (2) is straight bar shaped, and fixed leg A (3) can move the position of adjustment fixed leg A (3) in sliding tray A (2); Also be provided with a mudhole (4) on the operate tablet (1) between two groups of sliding tray A (2); Collection box (10) below mudhole (4) and the operate tablet (1) is connected, and also is provided with socket (6) and heating bulb (7) below the operate tablet (1), below the operate tablet (1) of the outboard end of the supporting leg (5) of socket (6), also is provided with fixed leg B (12); It is characterized in that also being provided with on the operate tablet (1) a sliding tray B (11); Sliding tray B (11) is an arc, is provided with an expansion link (8) in the sliding tray B (11), and the bottom of expansion link (8) is embedded in the sliding tray B (11); Expansion link (8) top is connected with hook (9), and expansion link (8) can move the position of adjustment expansion link (8) in sliding tray B (11).
