Abstract
一种浸渍纸饰面强化指接板，它包括指接板基材（3），其特征是所述的指接板基材（3）的上表面设有装饰纸层（2），装饰纸层（2）上设有耐磨纸层或表面纸层（1），所述的指接板基材（3）的下表面设有平衡纸层（4）。本实用新型具有表面硬度高，纹理多样，成本低廉的优点。根据这种原理制作的浸渍纸饰面强化指接板保持了原指接板的优点，还能很好的解决指接板表面材质缺陷，又能克服指接板在装饰装修过程中因漆饰过程带来的有毒有害物，同时又比原指接板更美观和持久耐用。是一种新型、耐用、环保的室内装饰装修用材。
A reinforced finger-joint board with impregnated paper finish, which includes a finger-joint board base material (3), characterized in that the upper surface of the finger-joint board base material (3) is provided with a decorative paper layer (2), and the decorative paper A wear-resistant paper layer or a surface paper layer (1) is provided on the layer (2), and a balancing paper layer (4) is provided on the lower surface of the finger-jointed board substrate (3). The utility model has the advantages of high surface hardness, various textures and low cost. The impregnated paper veneer reinforced finger-joint board made according to this principle maintains the advantages of the original finger-joint board, and can also solve the surface material defects of the finger-joint board well, and can overcome the paint decoration of the finger-joint board during the decoration process. The toxic and harmful substances brought by the process are more beautiful and durable than the original finger joint board. It is a new, durable and environmentally friendly interior decoration material.
Description
Technical field
The utility model relates to a kind of construction material, especially a kind of finger plate, and specifically a kind of impregnated paper facing is strengthened the finger plate.
Background technology
The finger plate is one of material of using of decorations.The finger plate is to be that a kind of sheet material of processing is processed, glues together, overlayed to raw material through referring to tenon with the sawn timber.Mostly general material is common softwood and broadleafs such as China fir, Liu An, and the surface can be with material defectives such as in various degree knot, variable colors.The finger plate is convenient to construction because of low processing cost, is widely used in indoor decorating.In order to overcome the blemish of finger plate, can coat with lacquer decorations on its surface usually, but this lacquer decorations layer hardness low, be prone to come off, and can bring venomous injurant and peculiar smell.
Summary of the invention
The purpose of the utility model be low to the lacquer of existing finger plate decorations layer hardness, be prone to come off, and can bring the problem of venomous injurant and peculiar smell, design a kind of with low cost, surface aesthetic, wear-resisting durable impregnated paper facing reinforcement finger plate.
The technical scheme of the utility model is:
A kind of impregnated paper facing is strengthened the finger plate; It comprises finger plate substrate 3; The upper surface that it is characterized in that described finger plate substrate 3 is provided with decorative paper layer 2, and decorative paper layer 2 is provided with wear-resisting ply of paper or surface paper layer 1, and the lower surface of described finger plate substrate 3 is provided with balance ply of paper 4.
Described finger plate substrate 3 is that a kind of sheet material of processing is processed, glues together, overlayed to raw material through referring to tenon for the sawn timber with common softwood and broadleaf.
Described decorative paper layer 2 is the facing paper through melamine-impregnated.
Described wear-resisting ply of paper or surface paper layer 1 are the abrasion-proof paper or the surperficial paper of melamine-impregnated.
Described balance ply of paper 4 is the balance paper through melamine-impregnated.
The beneficial effect of the utility model:
The impregnated paper glued membrane facing technology that the utility model will be used for the production of laminated flooring is used in reference to fishplate bar processing, and it has the case hardness height, and texture is various, advantage with low cost.Impregnated paper facing according to this principles is strengthened the advantage that the finger plate has kept former finger plate; Can also well solve finger plate Facing material defective; Can overcome the venomous injurant that the finger plate brings because of lacquer decorations process again in the decorations process, simultaneously again than the more attractive in appearance and durable of former finger plate.Be that a kind of indoor decorating novel, durable, environmental protection is used material.
Description of drawings

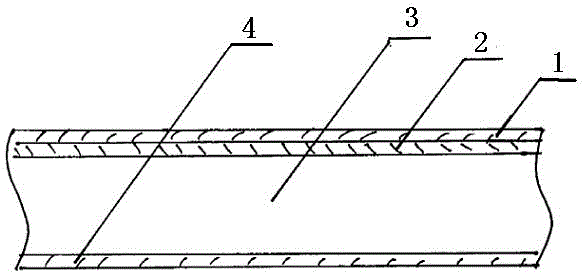

Fig. 1 is the structural representation of the utility model.
The specific embodiment
Below in conjunction with accompanying drawing and embodiment the utility model is further described.
As shown in Figure 1.
A kind of impregnated paper facing is strengthened the finger plate; It is made up of uppermost wear-resisting ply of paper or surface paper layer 1, decorative paper layer 2, finger plate substrate 3 and balance ply of paper 4 successively; As shown in Figure 1; The upper surface of described finger plate substrate 3 is provided with decorative paper layer 2, and decorative paper layer 2 is provided with wear-resisting ply of paper or surface paper layer 1, and the lower surface of described finger plate substrate 3 is provided with balance ply of paper 4.The utility model both can overlay by single face, also can two-sidedly as required overlay.The finger plate substrate 3 that the utility model adopts is common finger plate; Material is generally common softwood and broadleafs such as China fir, Liu An; Thickness is generally 12～18mm, and mostly specification is 1220mm * 2440mm, and the moisture content of finger plate substrate generally should be controlled at below 15%.Wear-resisting ply of paper or surface paper layer 1 that the upper surface of finger plate substrate is covered balance ply of paper 2 that the facing paper through melamine-impregnated forms successively and forms through the abrasion-proof paper or the surperficial paper of melamine-impregnated; The balance paper that lower surface covers through melamine-impregnated forms balance ply of paper 4; 180 ℃～210 ℃ of temperature, pressure 18MPa～22MPa condition is pressing laminate moulding next time.The facing paper that the utility model adopts is common facing paper or the woodgrained paper through melamine-impregnated; Can increase the surface aesthetic of former finger plate; The surface of abrasion-proof paper is covered with the alundum (Al wearing layer; Can make these article durable in use, more prevent the venomous injurant of former finger plate because of secondary lacquer lace.
The utility model does not relate to all identical with the prior art prior art that maybe can adopt of part to be realized.
