Abstract
The utility model relates to a pair of medical tongue clamping forceps, which comprises a forceps body, a handle and disposable protective sleeves, wherein the forceps body consists of an upper tongue clamping plate and a lower tongue clamping plate of different sizes; the medical tongue clamping forceps are mainly used for clamping a tongue body in clinical surgery and an emergency treatment process, so that the situations of tongue involution and glossoptosis of a patient in a rescue process are prevented, the blood supply of the tongue of the patient is guaranteed, meanwhile, the tongue of the patient can be conveniently fixed when oral examination is performed on the patient by a medical staff, and the working difficulty of the medical staff is reduced. The medical tongue clamping forceps have a simple structure and are easy to operate. The medical tongue clamping forceps are structurally designed according to the appearance of the human tongue body, so that human engineering is met and the patient has no discomfort. The disposable protective sleeves are adopted by the upper tongue clamping plate and the lower tongue clamping plate, slipping is avoided, and one pair of the medical tongue clamping forceps is used for one person once to prevent cross infection. Good social benefit and economic benefit can be produced; and the medical tongue clamping forceps are deeply favored by the medical staffs and patients.
Description
Technical field
This utility model belongs to medical instruments field, relates in particular to a kind of clip tongue pincers that are used for treating throat, position, oral cavity disease and patient's rescue process.
Background technology
At present hospital is in examination of mouth, clinical operation, and patient's tongue body touches that cause can't normal inspection and treatment, increases medical worker's work difficulty.Simultaneously in patient's first aid process, being prone to of situation such as glossoptosis, tongue curls inward causes the patient respiration road to stop up, and causes patient to suffocate, threat to life.The tongue forceps that generally uses clinically at present is a stainless steel, because quality is hard, makes patient's lingual surface form crush injury easily, and hinders the blood circulation of lingual surface, and easily form lingual surface necrosis than long time service time, brings misery to patient.In clinical position, need to wrap up with gauze and cloth adhesive plaster at the position of contact lingual surface, send sterilization treatment.In encapsulation process, the nurse assesses the thickness of parcel by rule of thumb, no standard and be prone to skid.After the use, can't sterilizing by cleaning-sterilizing in the parcel position, needs the nurse to remove wrappage.Yi Zaocheng nurse's occupation is infected, and increases nurse's workload simultaneously.
Summary of the invention
The purpose of this utility model provides a kind of clip tongue pincers that in clinical operation, department of otorhinolaryngology inspection and patient's first aid process, can fixedly secure patient's tongue body.These clip tongue pincers use the disposable anti-slip material, accomplish one one usefulness of a people; Guarantee the blood supply of patient's tongue simultaneously, prevent crush injury.
The concrete technical scheme of this utility model is: a kind of medical clamp tongue forceps; It is by the disposable protective sleeve of caliper 1, handle 2 and last retainer clip 5, the disposable protective sleeve 6 of retainer clip is formed down, but said caliper 1 comprises the binding clip of the clamping tongue body that is made up of last retainer clip 3 and following retainer clip 4.
Above-mentioned medical clamp tongue forceps, it is further characterized in that: the said retainer clip 3 of going up differs with following retainer clip 4 sizes, the last retainer clip 3 tongue body upper surface of fitting fully, following retainer clip 4 is shorter than retainer clip 3, also can fit in the tongue body back side fully; Last retainer clip 3 is furnished with last retainer clip protective sleeve 5 and following retainer clip protective sleeve 6 respectively with following retainer clip 4, and the material of protective sleeve is a flexible material, on the protective sleeve size less than about retainer clip; Last retainer clip protective sleeve 5, retainer clip protective sleeve 6 down, anti-skidding design is done on its surface; Following retainer clip protective sleeve 6 props up the root of the tongue and epiglottis partly has arc-shaped groove; Last retainer clip 3 intersects with following retainer clip 4 each other, and through constituting whole caliper jointly at infall punching string axle; Said handle 2 places are provided with engageable tooth bar up and down.
Description of drawings

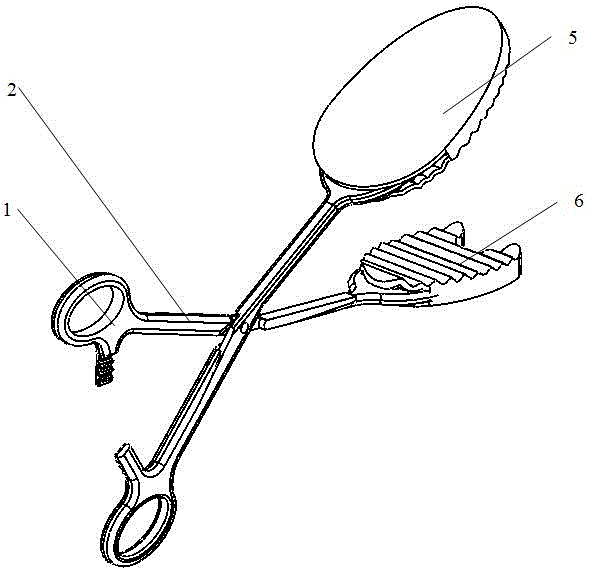

Fig. 1 is equipped with the clip tongue pincers of disposable protective sleeve for this utility model.
Fig. 2 is not equipped with the clip tongue pincers of disposable protective sleeve for this utility model.
The specific embodiment
Below in conjunction with accompanying drawing and specific embodiment this utility model is done further to set forth in detail.
This utility model such as Fig. 1, shown in Figure 2; The medical clamp tongue forceps of present embodiment is made up of caliper 1, handle 2, last retainer clip Silicone Case 5 and following retainer clip Silicone Case 6, but caliper 1 comprises the binding clip of the clamping tongue body that is made up of last retainer clip 3 and following retainer clip 4.
Caliper part is made up of retainer clip up and down, and both intersect each other, and through constituting a whole caliper in that infall punching string axle is common.
Handle portion in use staggers up and down gently, and two calipers make the engagement of tooth bar up and down that is positioned at the handle place can realize clamping.
According to the structure design of tongue body upper surface and lower surface, last retainer clip is long slightly respectively for retainer clip up and down, and following retainer clip is short slightly, makes clip tongue clamp the tongue body of in use fitting.Empty in the middle of the retainer clip up and down, both alleviated weight, applying tongue body that simultaneously can be better more comfortable after putting the protection silica gel sheath all is designed with soft Silicone Case or other softish material up and down respectively on the retainer clip,, disposable use, safety and sanitation.The Silicone Case size is less than the retainer clip size, is enclosed within on the retainer clip can not come off.Two faces that the retainer clip Silicone Case is relative up and down all have the anti-slip tank design, prevent to come off in the clip tongue process.Prop up the root of the tongue and epiglottis partly has arc-shaped groove with silica gel protected being enclosed within of retainer clip at present, meet the structure at the human body tongue body back side.
Getting up and down each a slice of retainer clip Silicone Case during use, be enclosed within respectively on two retainer clips, step up patient's tongue body with retainer clip up and down, staggers up and down and makes tooth bar interlock up and down realize fixing in the handle place.
Though this utility model with preferred embodiment openly as above; But accompanying drawing and embodiment are used for limiting this utility model; Anyly be familiar with this art; In spirit that does not break away from this utility model and scope,, all same within the protection domain of this utility model certainly when doing various variations or retouching.What therefore the protection domain of this utility model should be defined with the application's claim protection domain is as the criterion.
Claims (6)
1. medical clamp tongue forceps; It is characterized in that: it comprises caliper (1), handle (2) and the disposable protective sleeve of last retainer clip (5), the following disposable protective sleeve of retainer clip (6), said caliper (1) comprise by last retainer clip (3) with following retainer clip (4) but the binding clip of the clamping tongue body of formation.
2. medical clamp tongue forceps as claimed in claim 1; It is characterized in that: said upward retainer clip (3) and following retainer clip (4) size differ; Last retainer clip (3) the tongue body upper surface of fitting fully, following retainer clip (4) is shorter than retainer clip (3), also can fit in the tongue body back side fully.
3. medical clamp tongue forceps as claimed in claim 1; It is characterized in that: said upward retainer clip (3) and following retainer clip (4) are furnished with last retainer clip protective sleeve (5) and following retainer clip protective sleeve (6) respectively; The material of protective sleeve is a flexible material, on the protective sleeve size less than retainer clip up and down.
4. medical clamp tongue forceps as claimed in claim 1 is characterized in that: said retainer clip protective sleeve (5), the following retainer clip protective sleeve (6) gone up, anti-skidding design is done on its surface.
5. medical clamp tongue forceps as claimed in claim 1 is characterized in that: said retainer clip protective sleeve (6) down props up the root of the tongue and epiglottis partly has arc-shaped groove.
6. medical clamp tongue forceps as claimed in claim 1 is characterized in that: the said retainer clip (3) of going up intersects with following retainer clip (4) each other, and passes through at the whole caliper of the common formation of infall punching string axle; Said handle (2) locates to be provided with engageable tooth bar up and down.
