CN202286928U - Outdoor solar energy sun shading table and self-powered system - Google Patents

Outdoor solar energy sun shading table and self-powered system Download PDF

Info

Publication number
CN202286928U
CN202286928U CN 201120442646 CN201120442646U CN202286928U CN 202286928 U CN202286928 U CN 202286928U CN 201120442646 CN201120442646 CN 201120442646 CN 201120442646 U CN201120442646 U CN 201120442646U CN 202286928 U CN202286928 U CN 202286928U
Authority
CN
China
Prior art keywords
sunshade
amorphous silicon
desk
parasols
self
Prior art date
Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
Expired - Lifetime
Application number
CN 201120442646
Other languages
Chinese (zh)
Inventor
林宏达
张赛龙
李鹏
王恩忠
Current Assignee (The listed assignees may be inaccurate. Google has not performed a legal analysis and makes no representation or warranty as to the accuracy of the list.)
CHENGDU XUSHUANG SOLAR TECHNOLOGY CO., LTD.
Original Assignee
CHENGDU TAIYISI SOLAR TECHNOLOGY Co Ltd
Tunghsu Group Co Ltd
Priority date (The priority date is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the date listed.)
Filing date
Publication date
Application filed by CHENGDU TAIYISI SOLAR TECHNOLOGY Co Ltd, Tunghsu Group Co Ltd filed Critical CHENGDU TAIYISI SOLAR TECHNOLOGY Co Ltd
Priority to CN 201120442646 priority Critical patent/CN202286928U/en
Application granted granted Critical
Publication of CN202286928U publication Critical patent/CN202286928U/en
Anticipated expiration legal-status Critical
Expired - Lifetime legal-status Critical Current

Links

Landscapes

  • Photovoltaic Devices (AREA)

Abstract

The utility model provides an outdoor solar energy sun shading table and a self-powered system and aims to solve the technical problem of improving the solar energy utilization efficiency of an outdoor sun shading table. The sun shading table structurally comprises a table body and a sunshade assembled with the table body into an integral structure; amorphous silicon film solar panels are additionally arranged on the sunshade; the self-powered system structurally comprises the sunshade with the amorphous silicon film solar panels, and the table body; an energy storage device composed of a storage battery, a control circuit and an inverter is arranged in the self-powered system and is positioned below the table body through a support; the solar panels can be used for supporting a sunshade cover of the sunshade directly, or can be connected to the sunshade cover through a bracket, so that the storage battery can be charged by the solar panels absorbing sunlight, and meanwhile, small electric equipment can be supplied with power in virtue of the inverter; and the sunshade is connected with the tabletop in an inserted manner, so that the effects of simplicity, convenience and practicality can be achieved.

Description

A kind of solar energy sunshade table and self-contained electric system of outdoor use
Technical field
The utility model relates to the Application of Solar Energy field, is meant a kind of a kind of outdoor solar energy sunshade desk of processing with amorphous silicon film solar battery that generates electricity specifically.
Background technology
Desk is people's daily life, study, the requisite article of office, it provide with people at work, study, amusement and recreation, the facility of having dinner and having a meal.People are accompanied by need for electricity through regular meeting when using desk, as the stereo set of listening to the music, using, see and the computer that written word needs, chafing dish, the especially night that food and drink needs need lighting or the like that these all need be used.Above at home problem does not exist, what if is wild environment that outstanding is? The appearance of solar energy provides a lot of facilities to people, for people provide electric supply easily outdoor being sitting in when the other reading of desk is learnt or have dinner in the field.But the solar energy power supply on the market is confined to use under the intense light irradiation now, and limitation is too big, and the use of solar energy in the big mobility equipment of power consumption limited to, and utilization rate is not high.
Summary of the invention
The utility model to the efficient capable of using of solar energy, has proposed a kind of solar energy sunshade table and self-contained electric system of outdoor use in order to improve outdoor mobility equipment, particularly desk.Adopt the luminous energy absorption plant of amorphous silicon thin-film solar cell as the sunshade table; Utilized the good low light level performance of amorphous silicon membrane battery fully; Solve the problem that solar energy can only be promoted the use of under the intense light irradiation condition, improved the availability of solar energy greatly.
The utility model adopts following technical scheme: a kind of solar energy sunshade table of outdoor use, and comprise desk, assemble the parasols that is structure as a whole with desk, key is: on parasols, have additional the amorphous silicon thin-film solar cell plate.
The sunshade table self-contained electric system of processing with amorphous silicon thin-film solar cell; Comprise parasols and desk in the structure with amorphous silicon thin-film solar cell plate; Key is: in self-contained electric system, be provided with the energy storage device of battery, control circuit, inverter composition, be positioned at the below of desk by supporter.
The utility model is through increasing the amorphous silicon thin-film solar cell plate on parasols; Wherein can directly cell panel be supported the umbrella cover of parasols; Also can be connected on the umbrella cover by support; Energy through absorbing sunshine is a charge in batteries, can be the mini electrical equipment power supply by inverter simultaneously.It is simple, convenient and practical that parasols and desktop are connected plug-in type.Form between desktop base plate and the desktop and hold the space; With panel it is sealed around the space; Place controller, battery in the space, form simple and easy photovoltaic system through the circuit connection with the amorphous silicon film solar battery plate and externally generate electricity, for equipment such as illumination, sound equipment provide power supply.And there is parasols the desktop top, can bring the cool place for people during the broiling summer.Because amorphous silicon film solar battery has good low light level property, the use of all can generating electricity under the environment such as cloudy cloudy day out of doors.When facilitating, also practiced thrift the energy for people.
Description of drawings

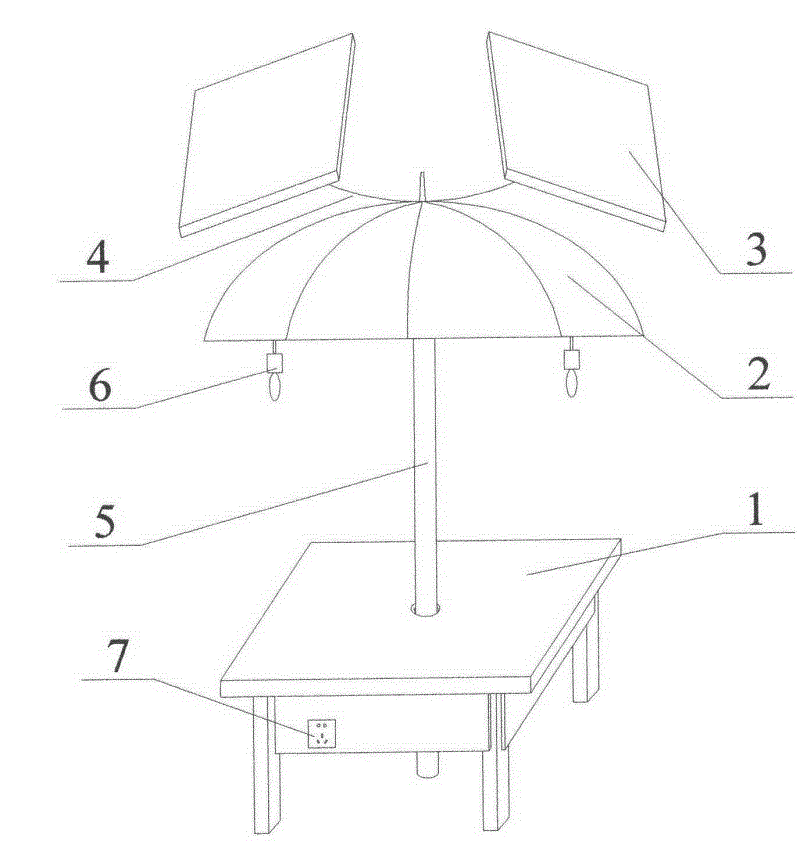

Fig. 1 is the structural representation of the utility model.
In the accompanying drawing, the 1st, desk, the 2nd, parasols, the 3rd, the amorphous silicon membrane solar panel, 4 represent support, and the 5th, umbrella bar, the 6th, illuminating lamp, the 7th, supply socket.
The specific embodiment
A kind of solar energy sunshade table of outdoor use, comprise desk 1, with the be assembled into one parasols 2 of structure of desk 1, key is: on parasols 2, have additional amorphous silicon thin-film solar cell plate 3.
The supporting setting of umbrella cover radian of the shape of above-mentioned amorphous silicon thin-film solar cell plate 3 and parasols 2, and be fixedly connected with umbrella cover.
Above-mentioned amorphous silicon thin-film solar cell plate 3 is positioned at the umbrella cover top of parasols 2 by support 4.
Above-mentioned amorphous silicon thin-film solar cell plate 3 encapsulates by safety glass.
Above-mentioned parasols 2 with the package assembly of desk 1 is: umbrella bar 5 passes the circular hole offered on the desk 1, seals by elastic rubber sleeve.
The sunshade table self-contained electric system of processing with amorphous silicon thin-film solar cell; Comprise parasols 2 and desk 1 in the structure with amorphous silicon thin-film solar cell plate 3; Key is: in self-contained electric system, be provided with the energy storage device of battery, control circuit, inverter composition, be positioned at the below of desk by supporter.
On parasols 2, also be provided with illuminating lamp 6, the power end of battery is connected with the input of illuminating lamp 6.On desk 1, also be provided with supply socket 7.
Utilize the low light level characteristic of amorphous silicon film solar battery, preparation can be used for the solar energy sunshade table of outdoor adverse circumstances.
The amorphous silicon film solar battery of choosing the encapsulation of two sides employing safety glass is used for luminous energy is converted into electric energy as cell panel.Battery size is: long 1300mm, wide 1100mm, thick 7.8mm.
Desk 1 leg directly adopts vacuum cup to be connected with desktop, and not only firmly but also attractive in appearance, and assembling is simple.
Parasols 2 adopts plug-in type to be connected with desk 1, and is simple and convenient.
One base plate is being installed below the desktop, between four table legs, and is being formed an accommodation space between the desktop, place the inside: controller is output as direct current 12V; Battery, 12V/45AH; Inverter DC12V to AC220V.Through line solar cell output is connected to photovoltaic controller, through output 12V behind the controller battery is charged, battery direct current output 12V advances inverter, finally is converted into the 220V alternating current, supplies illuminating lamp 6 and daily electrical equipment to use.

Claims (8)

1. the solar energy sunshade table of an outdoor use, comprise desk (1), with the be assembled into one parasols (2) of structure of desk (1), it is characterized in that: on parasols (2), have additional amorphous silicon thin-film solar cell plate (3).
2. the solar energy sunshade table of a kind of outdoor use according to claim 1 is characterized in that: the supporting setting of umbrella cover radian of the shape of described amorphous silicon thin-film solar cell plate (3) and parasols (2), and be fixedly connected with umbrella cover.
3. the solar energy sunshade table of a kind of outdoor use according to claim 1 is characterized in that: described amorphous silicon thin-film solar cell plate (3) is positioned at the umbrella cover top of parasols (2) by support (4).
4. the solar energy sunshade table of a kind of outdoor use according to claim 1, it is characterized in that: described amorphous silicon thin-film solar cell plate (3) encapsulates by safety glass.
5. the solar energy sunshade table of a kind of outdoor use according to claim 1 is characterized in that: described parasols (2) with the package assembly of desk (1) is: umbrella bar (5) passes the circular hole offered on the desk (1), seals by elastic rubber sleeve.
6. the sunshade table self-contained electric system of processing with amorphous silicon thin-film solar cell; Comprise parasols (2) and desk (1) in the structure with amorphous silicon thin-film solar cell plate (3); It is characterized in that: in self-contained electric system, be provided with the energy storage device of battery, control circuit, inverter composition, be positioned at the below of desk by supporter.
7. sunshade table self-contained electric system according to claim 6 is characterized in that: on parasols (2), also be provided with illuminating lamp (6), the power end of battery is connected with the input of illuminating lamp (6).
8. sunshade table self-contained electric system according to claim 6 is characterized in that: on desk (1), also be provided with supply socket (7).
