Abstract
The utility model relates to a stereo multilayer flower stand realizing free space distribution. The flower stand comprises a top pot and a bottom pot, wherein the top pot and the bottom pot are connected and supported by columns; and at least a movable pot which can freely rotate 360 degrees around each column is installed on the column. The flower stand has the following advantages: the flower stand has an ingenious and reasonable structure, is convenient to dismantle and install, can take full advantages of the available space, and well realizes the purposes of planting and putting green plants in rooms and on balconies in the home life; more different plants and flowers can be planted and put in the limited space, and the space distribution of the plants and flowers can be randomly adjusted according to the ideas of hosts, thus better presenting shape and arrangement combination of the plants and flowers, giving people more visual impacts and aesthetic enjoyment and thoroughly changing the traditional monotonous plant and flower planting and putting modes; and the flower stand is a plant cultivation container which can beautify the environment, is individualized and has a wide application range.
Description
Technical field
The utility model belongs to plant planting greening field, relates to the container that a kind of cultivated plant flowers are used, and specifically is a kind of three-dimensional multilayer free space distribution flower stand.
Background technology
Improving constantly of Along with people's living standard, also increasingly high to the requirement that beautifies, purifies of working environment and home environment, the plantation plants and flowers is interspersed daily work living environment with green plants and is paid attention to by people and like.Plants and flowers can play a positive role to air cleaning, and people's mood is loosened to some extent, is of value to physically and mentally healthy.
Present commercially available flowerpot form is varied; But all be monomer flowerpot individual layer or that be seated at ground or suspension type basically; A flowerpot can only be planted a strain plant; It is big to put floor space, can not fully use the useful space, can't directly utilize potted plant green plants to form the pattern scene of space multistory greening.When the occasion use of scape is made in the needs combination, often need produce and make the support that the scape shape adapts earlier, and then put flowerpot, it is not only loaded down with trivial details to make the scape process like this, but also the waste wide variety of materials has improved and has made the scape cost.
Summary of the invention
The purpose of the utility model is to overcome the deficiency that exists in the prior art; Provide a kind of structure ingenious, rational three-dimensional multilayer free space distribution flower stand; It can make full use of the useful space, realizes reaching in doors in the life staying idle at home plantation and placement green plants on the balcony well, in limited space, can plant, place more all kinds of plants and flowers; And can come the spatial distribution of adjusting plants and flowers arbitrarily according to owner's intention design, have wide range of applications.
The technical scheme that provides according to the utility model: three-dimensional multilayer free space distribution flower stand; It is characterized in that: comprise top basin and end basin; The top basin is connected support with end basin through column, and at least one is installed on every root post can spend the movable basin that rotates freely around column 360.
As the further improvement of the utility model, said stud wall is provided with at least one cannelure, is used to set round snap ring in the cannelure; Said movable basin edge is provided with the pivoted housing that is used to be enclosed within on the column and can rotates freely, and the pivoted housing bottom is provided with stopper slot, and said round snap ring can snap in the stopper slot and prop up and hold pivoted housing, and movable basin can not glided.
Further improvement as the utility model; Said movable basin has three; Be respectively basin, middle basin and following basin, last basin, middle basin and following basin are installed in respectively on three root posts, and last basin, middle basin and following basin are in the short transverse equal intervals layout straggly of column.
As the further improvement of the utility model, the edge of said top basin, end basin is equipped with three circumferential equally distributed installation sleeves in edge, the upper and lower side correspondence of said column the installation sleeve on top basin, the end basin and fastening through cheese head screw of packing into.
As the further improvement of the utility model, the top of said flower stand is provided with the annulus handle.
Further improvement as the utility model; Said annulus handle is installed on the basin of top; Be the annulus handle installing hole that 180 degree are symmetrically distributed along having two in the basin of top, annulus handle two ends have been bent to form gib head, and this gib head embeds in the described annulus handle installing hole.
The utility model compared with prior art; Advantage is: the utility model structure is ingenious, reasonable, easy accessibility; Can make full use of the useful space; Realize reaching in doors in the life staying idle at home plantation and placement green plants on the balcony well, in limited space, can plant, place more all kinds of plants and flowers, and can come to regulate arbitrarily the spatial distribution of plants and flowers according to owner's intention design; Thereby the form ornaments combination that presents plants and flowers better; Giving more visual impact and beautiful enjoyment, thoroughly change traditional plant flowers dull plantation and placement form, is a kind of can beautifying the environment and the rich personalized growing and cultivation container that has wide range of applications.
Description of drawings

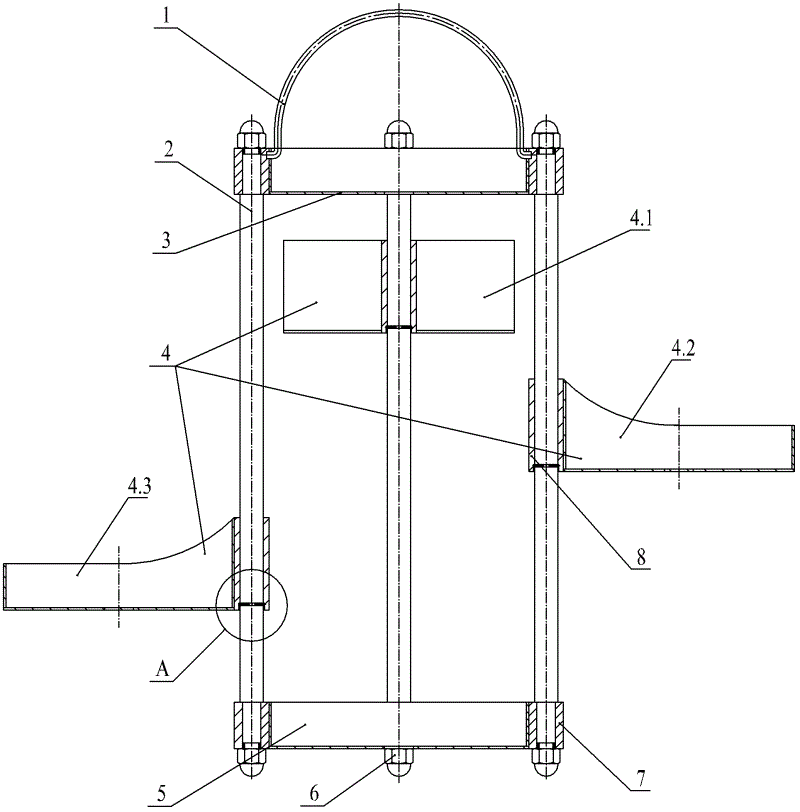

Fig. 1 is the three-dimensional multilayer free space distribution flower stand structural representation among the embodiment.
Fig. 2 is the A portion enlarged diagram among Fig. 1.
Fig. 3 is the top basin among the embodiment, the structure vertical view of end basin.
Description of reference numerals: under the movable basin of 1-annulus handle, 2-column, 3-top basin, 4-, the last basin of 4.1-, 4.2-middle basin, the 4.3-at the bottom of basin, the 5-basin, 6-cheese head screw, 7-installation sleeve, 8-pivoted housing, 9-cannelure, 10-justify snap ring, 11-stopper slot.
Embodiment
Below in conjunction with concrete accompanying drawing and embodiment the utility model is described further.
As shown in the figure, the three-dimensional multilayer free space distribution flower stand among the embodiment mainly is made up of annulus handle 1, column 2, top basin 3, last basin 4.1, middle basin 4.2, following basin 4.3, end basin 5, cheese head screw 6, installation sleeve 7, pivoted housing 8 and circle snap ring 10.
Like Fig. 1, shown in Figure 3; Said top basin 3 is connected support with end basin 5 through three root posts 2; The edge of top basin 3, end basin 5 is equipped with three circumferential equally distributed installation sleeves 7 in edge, the upper and lower side correspondence of said column 2 the installation sleeve 7 on top basin 3, the end basin 5 and fastening through cheese head screw 6 of packing into; Be equipped with one on every root post 2 and can spend the movable basin 4 that rotates freely around column 2360; In the illustrated embodiment; Three movable basins 4 are respectively basin 4.1, middle basin 4.2 and following basin 4.3 by order from top to bottom; Last basin 4.1, middle basin 4.2 and following basin 4.3 are installed in respectively on three root posts 2, and in the short transverse equal intervals layout straggly of column 2.
The mounting means of said movable basin 4 is concrete like Fig. 1, shown in Figure 2, and said column 2 walls are provided with cannelure 9, are used to set round snap ring 10 in the cannelure 9; Said movable basin 4 edges are provided with the pivoted housing 8 that is used to be enclosed within on the column 2 and can rotates freely, and pivoted housing 8 bottoms are provided with stopper slot 11, and said round snap ring 10 can snap in the stopper slot 11 and prop up and hold pivoted housing 8, and movable basin 4 can not glided.
Move for the ease of the carrying of the utility model and to put, the top of said flower stand also is provided with annulus handle 1.In the illustrated embodiment; Described annulus handle 1 is directly installed on the top basin 3; Be the annulus handle installing hole that 180 degree are symmetrically distributed along having two in the top basin 3, annulus handle 1 two ends have been bent to form gib head, and this gib head embeds in the described annulus handle installing hole; Annulus handle 1 can turn to horizontal level when not using, do not influence the overall appearance degree of the utility model.
The movable dismounting of the utility model, easy to assembly; During installation; Earlier three root posts, 2 correspondences are installed in three installation sleeves 7 on the end basin 5 and with cheese head screw 6 and fix; To justify then in the cannelure 9 that snap ring 10 correspondences are flush-mounted in diverse location on the column 2, the pivoted housing 8 of last basin 4.1, middle basin 4.2 and following basin 4.3 will be enclosed within respectively on three root posts 2, round snap ring 10 is snapped in the stopper slot 11; At last top basin 3 is installed in the top of three root posts 2 and fixes last mounting circular ring handle 1 with cheese head screw 6.
During use, earth is directly packed in each basin, plant plants and flowers then.Last basin 4.1, middle basin 4.2 and following basin 4.3 can carry out enclosing of 360 degree and change the location on the aspect of three differing heights.Under the less situation in space, can be with in the space of going up between basin 4.1, middle basin 4.2 and three columns 2 of following basin 4.3 screw-ins; Under the well-to-do situation in space, can come to regulate arbitrarily the spatial distribution of plants and flowers according to owner's intention design with going up basin 4.1, middle basin 4.2 and following basin 4.3 outside rotary expansions.When watering, can be with in the space of going up between basin 4.1, middle basin 4.2 and three columns 2 of following basin 4.3 screw-ins, water can leak down via the leaking hole of each basin bottom part layer by layer, can not trickle everywhere, keeps clean environment.
The utility model novel structure, design concept is unique, adopts three root posts 2 as supporting good stability.The locus of last basin 4.1, middle basin 4.2 and following basin 4.3 can be regulated arbitrarily, makes full use of the useful space, realizes reaching in doors in the life staying idle at home on the balcony plantation well and places green plants.In limited space, can plant, place more all kinds of plants and flowers, thereby and can appear better the form ornaments combination of plants and flowers, give more visual impact and beautiful enjoyment.Flower stand is elegant in appearance, and its colourful attitude form of expression has increased excellent enjoyment for people's live and work environment.
The height of the utility model can be increased according to practical situations, and movable basin 4 quantity on the column 2 can be provided with a plurality of.
Claims (6)
1. three-dimensional multilayer free space distribution flower stand; It is characterized in that: comprise top basin (3) and end basin (5); Top basin (3) is connected support with end basin (5) through column (2), and at least one is installed on every root post (2) can spend the movable basin (4) that rotates freely around column (2) 360.
2. three-dimensional multilayer free space distribution flower stand as claimed in claim 1, it is characterized in that: said column (2) wall is provided with at least one cannelure (9), is used to set round snap ring (10) in the cannelure (9); Said movable basin (4) edge is provided with and is used to be enclosed within the pivoted housing (8) that column (2) is gone up and can be rotated freely; Pivoted housing (8) bottom is provided with stopper slot (11); Said round snap ring (10) can snap in the stopper slot (11) and prop up and hold pivoted housing (8), and movable basin (4) can not glided.
3. three-dimensional multilayer free space distribution flower stand as claimed in claim 1; It is characterized in that: said movable basin (4) has three; Be respectively basin (4.1), middle basin (4.2) and following basin (4.3); Last basin (4.1), middle basin (4.2) and following basin (4.3) are installed in respectively on three root posts (2), and last basin (4.1), middle basin (4.2) and following basin (4.3) are in the short transverse equal intervals layout straggly of column (2).
4. three-dimensional multilayer free space distribution flower stand as claimed in claim 1; It is characterized in that: the edge of said top basin (3), end basin (5) is equipped with three circumferential equally distributed installation sleeves in edge (7), the upper and lower side correspondence of said column (2) the installation sleeve (7) on top basin (3), the end basin (5) and fastening through cheese head screw (6) of packing into.
5. three-dimensional multilayer free space distribution flower stand as claimed in claim 1, it is characterized in that: the top of said flower stand is provided with annulus handle (1).
6. three-dimensional multilayer free space distribution flower stand as claimed in claim 5; It is characterized in that: said annulus handle (1) is installed on the top basin (3); Be the annulus handle installing hole that 180 degree are symmetrically distributed along having two in the top basin (3); Annulus handle (1) two ends have been bent to form gib head, and this gib head embeds in the described annulus handle installing hole.
