The utility model provides a hydraulic cutting land infiltration infusion oxygen mixer, comprising a flange I, a connecting pipe I, a connecting pipe II, a jet pipe I, a jet pipe II and a flange II orderly connected. The connecting pipe I, the connecting pipe II, the jet pipe I and the jet pipe II are tubular. The inner inlet end of the jet pipe I is trumpet-shaped and contracts gradually from big to small. The inner side of the jet pipe II is trumpet-shaped and expands gradually from small to big till an outlet end; the inner surface of the flange I is connected with an inlet end of a nozzle while an outlet end of the nozzle is extended to the inner side of the connecting pipe II. The nozzle and the connecting pipe II encircle an oxygen mixing chamber. A gas connecting pipe is located above the connecting pipe II and communicated with the connecting pipe II. The hydraulic cutting land infiltration infusion oxygen mixer provided by the utility model not only has a simple structure and strong loading capacity, but also has double function of supply gas and agitating and improves the mixing efficiency of oxygen.
Description
Technical field
The utility model relates to a kind of mixed oxygen device, is specifically related to a kind of waterpower cutting type ground and soaks leachant and mix the oxygen device, and it is a kind of oxygen to be sneaked into the device of leaching solution through the cutting of aperture waterpower, is widely used in fields such as oil, chemical industry and the energy.
Background technology
In industry practice is used, need some gas be dissolved in the liquid, but the solubility of most of gas (for example oxygen) in water is lower usually, concentration can't reach requirement.Therefore, at the gas-liquid contact position special device is installed usually in the industry, is made gas-liquid mixed more smooth.At present, Liqiud-gas mixing device commonly used has static mixer and jet mixer etc.Static mixer is to be utilized in to install and fix all kinds of hybrid elements in the pipeline, reaches the purpose of radially mixing with the flow regime that changes fluid.But static mixer exists the contradiction of structure, resistance and adaptability and mixing efficiency, and this type device bearing capacity a little less than, the gas-liquid separation phenomenon takes place in fluid immediately behind blender, overall mixing efficiency is relatively poor.Jet mixer is through the liquid ejector principle air to be sucked in the blender automatically, thus with the liquid Forced Mixing.But existing jet mixer adopts the structure of multistage or more piece, makes that the manufacturing process of blender is complicated, and manufacturing cost is higher.
Summary of the invention
The purpose of the utility model is to provide a kind of waterpower cutting type ground to soak leachant and mixes the oxygen device, and this device is not only simple in structure, and bearing capacity is stronger, and can improve the mixing efficiency of oxygen.
Realize the technical scheme of the utility model purpose: a kind of waterpower cutting type ground soaks leachant and mixes the oxygen device, and it comprises flange connecting one, tube connector one, tube connector two, jet pipe one, jet pipe two and flange two successively; Wherein, tube connector one, tube connector two, jet pipe one and jet pipe two are tubular; The inner arrival end of the pipe of jet pipe one is horn-like, first big after small and shrinks gradually; The pipe inside of jet pipe two is horn-like, enlarges greatly gradually until the port of export after elder generation is little; The inner surface of flange one connects the arrival end of nozzle, and the port of export of nozzle extends to the inside of tube connector two, is surrounded by nozzle and tube connector two and mixes the oxygen chamber; Gas connection pipe is positioned at tube connector two tops, and is connected with tube connector two.
Aforesaid a kind of waterpower cutting type ground soaks leachant and mixes the oxygen device, and the port of export of its described nozzle is positioned at same plane with the axis of gas connection pipe.
Aforesaid a kind of waterpower cutting type ground soaks leachant and mixes the oxygen device, and the internal diameter axis of its described flange one, nozzle, tube connector one, tube connector two, jet pipe one, jet pipe two and flange two overlaps.
Aforesaid a kind of waterpower cutting type ground soaks leachant and mixes the oxygen device, and its described nozzle exit end internal diameter is less than the arrival end internal diameter of nozzle.
Aforesaid a kind of waterpower cutting type ground soaks leachant and mixes the oxygen device, and its described nozzle exit end internal diameter is less than jet pipe one arrival end internal diameter.
Aforesaid a kind of waterpower cutting type ground soaks leachant and mixes the oxygen device, and its described jet pipe one port of export has boss, and described jet pipe two arrival ends have groove; The boss of this jet pipe one port of export embeds in the groove of jet pipe two arrival ends, realizes firmly connecting.
The beneficial effect of the utility model is: the described waterpower cutting type of the utility model ground soaks leachant and mixes the oxygen device; It can sneak into leaching solution through aperture waterpower cutting with oxygen, has overcome that existing Liqiud-gas mixing device maintaining is frequent, mixing efficiency difference and baroque deficiency.The utility model device is not only simple in structure, and bearing capacity is stronger, and realizes the double action of air feed and stirring, has improved the mixing efficiency of oxygen.
Description of drawings

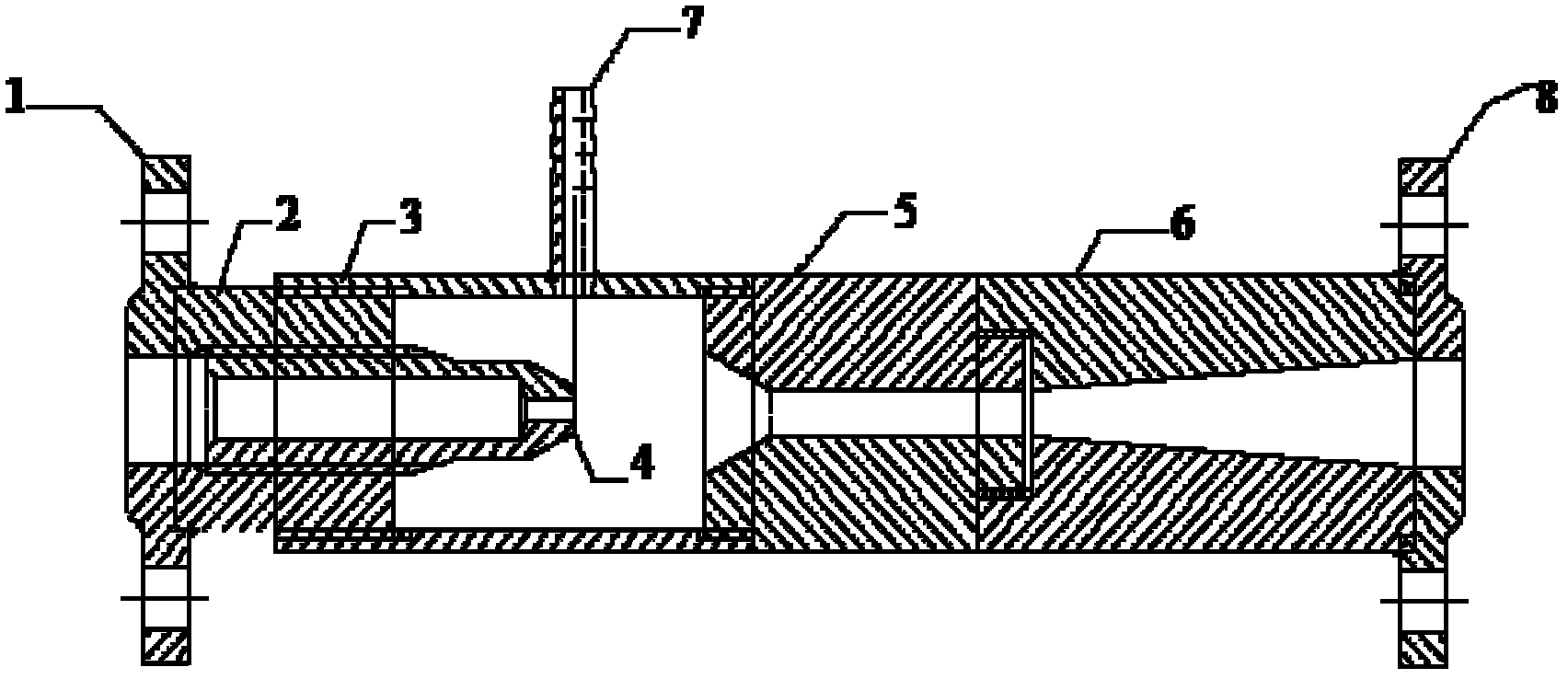

Fig. 1 is that the described waterpower cutting type of the utility model ground soaks the mixed oxygen apparatus structure sketch map of leachant;
Fig. 2 is flange one structural representation;
Fig. 3 is the nozzle arrangements sketch map;
Fig. 4 is the gas connection pipe structural representation;
Fig. 5 is tube connector one structural representation;
Fig. 6 is tube connector two structural representations;
Fig. 7 is jet pipe one structural representation;
Fig. 8 is jet pipe two structural representations.
Among the figure: 1. flange one; 2. tube connector one; 3. tube connector two; 4. nozzle; 5. jet pipe one; 6. jet pipe two; 7. gas connection pipe; 8. flange two.
The specific embodiment
Below in conjunction with accompanying drawing and specific embodiment the described waterpower cutting type of the utility model ground being soaked leachant mixes the oxygen device and further describes.
Like Fig. 1～shown in Figure 8, the described waterpower cutting type of the utility model ground soaks leachant to be mixed the oxygen device and comprises flange 1, tube connector 1, tube connector 23, jet pipe 1, jet pipe 26, flange 28, nozzle 4, gas connection pipe 7.
Wherein, flange 1, tube connector 1, tube connector 23, jet pipe 1, jet pipe 26, flange 28 are linked in sequence successively, and adjacent being between the two is threaded.Tube connector 1, tube connector 23, jet pipe 1 and jet pipe 26 are tubular.
The inner arrival end of the pipe of jet pipe 1 is horn-like, first big after small and shrinks gradually.The pipe inside of jet pipe 26 is horn-like, enlarges until the port of export greatly gradually after elder generation is little.Jet pipe one 5 ports of export have boss, and jet pipe 26 arrival ends have groove, and the boss of these jet pipe one 5 ports of export embeds in the groove of jet pipe 26 arrival ends, realize firmly connecting.
The be threaded arrival end of nozzle 4 of the inner surface of flange 1, the port of export of nozzle 4 extends to the inside of tube connector 23, is surrounded by nozzle 4 and tube connector 23 and mixes the oxygen chamber.Gas connection pipe 7 is positioned at tube connector 23 tops, and gas connection pipe 7 is connected with tube connector 23.
The internal diameter axis of flange 1, nozzle 4, tube connector 1, tube connector 23, jet pipe 1, jet pipe 26 and flange 28 overlaps.
The described waterpower cutting type of the utility model ground soaks leachant when mixing the oxygen device and using: to being connected, flange 281 ends are dirty in being connected gas connection pipe 7 ventilatory assistance ascending pipes with the fluid injection pipeline with flange one 1 one ends and fluid injection pipeline upper reaches.Because fluid produces negative pressure at gas connection pipe 7 with tube connector 23 places from nozzle 4 ejection at a high speed, oxygen is inhaled into from gas connection pipe 7 and mixes the oxygen chamber.Under the certain situation of flow, because the internal diameter of nozzle 4 less than the internal diameter that mixes the oxygen chamber, according to bernoulli's equation, mixes oxygen chamber rate of flow of fluid and reduces, pressure will increase, thereby concentration of oxygen gas is increased; Tube connector 23 diminishes with jet pipe one 5 junction internal diameters, and high-pressure fluid produces the eddy current immixture at interface.Fluid pressure increases and the eddy current mixing can improve dissolved oxygen amount, thereby reaches the purpose of mixing oxygen.
