CN202046636U - Improved waste container - Google Patents
Improved waste container Download PDFInfo
- Publication number
- CN202046636U CN202046636U CN2011201616065U CN201120161606U CN202046636U CN 202046636 U CN202046636 U CN 202046636U CN 2011201616065 U CN2011201616065 U CN 2011201616065U CN 201120161606 U CN201120161606 U CN 201120161606U CN 202046636 U CN202046636 U CN 202046636U
- Authority
- CN
- China
- Prior art keywords
- opening
- buckle
- staving
- bottom cover
- garbage
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 239000002699 waste material Substances 0.000 title 1
- 239000010813 municipal solid waste Substances 0.000 claims abstract description 23
- 239000010865 sewage Substances 0.000 claims description 13
- 238000000034 method Methods 0.000 abstract description 2
- 238000004140 cleaning Methods 0.000 description 2
- 238000005516 engineering process Methods 0.000 description 2
- 230000002950 deficient Effects 0.000 description 1
- 230000000694 effects Effects 0.000 description 1
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02W—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO WASTEWATER TREATMENT OR WASTE MANAGEMENT
- Y02W30/00—Technologies for solid waste management
- Y02W30/10—Waste collection, transportation, transfer or storage, e.g. segregated refuse collecting, electric or hybrid propulsion
Landscapes
- Refuse Receptacles (AREA)
Abstract
本实用新型是一种改进的垃圾桶，包括桶体(1)，所述桶体(1)的底部设置有开口，所述开口处设置有用于封闭该开口的底盖(3)；底盖(3)的一侧通过铰接轴(2)连接在桶体(1)的侧壁上，底盖(3)的另一侧设置有卡扣(4)，桶体(1)的侧壁上还设置有与卡扣(4)相配合的卡扣眼。倾倒垃圾时，将垃圾桶提起，打开底盖，使桶内垃圾从下方的开口处滑落，不必反转垃圾桶，因此整个过程更加省力快捷。另待垃圾倾倒完毕后，能够从下方的开口处方便地清理粘附在桶壁和底盖上的垃圾。
The utility model is an improved trash can, comprising a barrel body (1), an opening is arranged at the bottom of the barrel body (1), and a bottom cover (3) for closing the opening is arranged at the opening; the bottom cover One side of (3) is connected on the side wall of staving (1) by hinge shaft (2), and the other side of bottom cover (3) is provided with buckle (4), and on the side wall of staving (1) A buckle eye matched with the buckle (4) is also provided. When dumping garbage, lift the trash can, open the bottom cover, and let the garbage in the bucket slide down from the opening at the bottom, without reversing the trash can, so the whole process is more labor-saving and quicker. In addition, after the garbage is dumped, the garbage adhering to the barrel wall and the bottom cover can be easily cleaned from the lower opening.
Description
Technical field
The utility model relates to a kind of sewage disposer.
Background technology
Existing sewage disposer in use, at the bottom of sewage and rubbish sticked to barrel easily, because the bucket end of sewage disposer is far away apart from bung, therefore cleaning was very inconvenient.When the sewage disposer lean-out is tiped rubbish, need the sewage disposer reversing in addition, bung is toppled over downwards, uses effort and inconvenient.
The utility model content
Technical problem to be solved in the utility model is, a kind of improved sewage disposer is provided, rubbish at the bottom of can clearing up easily barrel, and it is convenient and strength-saving to dump rubbish from bucket, to overcome the defective of conventional garbage bucket.
It is as follows that the utility model solves the problems of the technologies described above the technical scheme that is adopted:
A kind of improved sewage disposer comprises that the upper end has the garbage inlet staving, and it is characterized in that: the bottom of described staving is provided with opening, and described opening part is provided with the bottom that is used to seal this opening; One side of bottom is connected by jointed shaft on the sidewall of staving, and the opposite side of bottom is provided with buckle, also is provided with the buckle eye that matches with buckle on the sidewall of staving.
Good effect of the present utility model is:
When dumping rubbish, sewage disposer is mentioned, open bottom, make of the opening part landing of barrel interior rubbish from the below, the sewage disposer that needn't reverse, therefore whole process is more laborsaving quick.Other treat rubbish topple over finish after, can clear up the rubbish that sticks on barrel wall and the bottom easily from the opening part of below.
Description of drawings

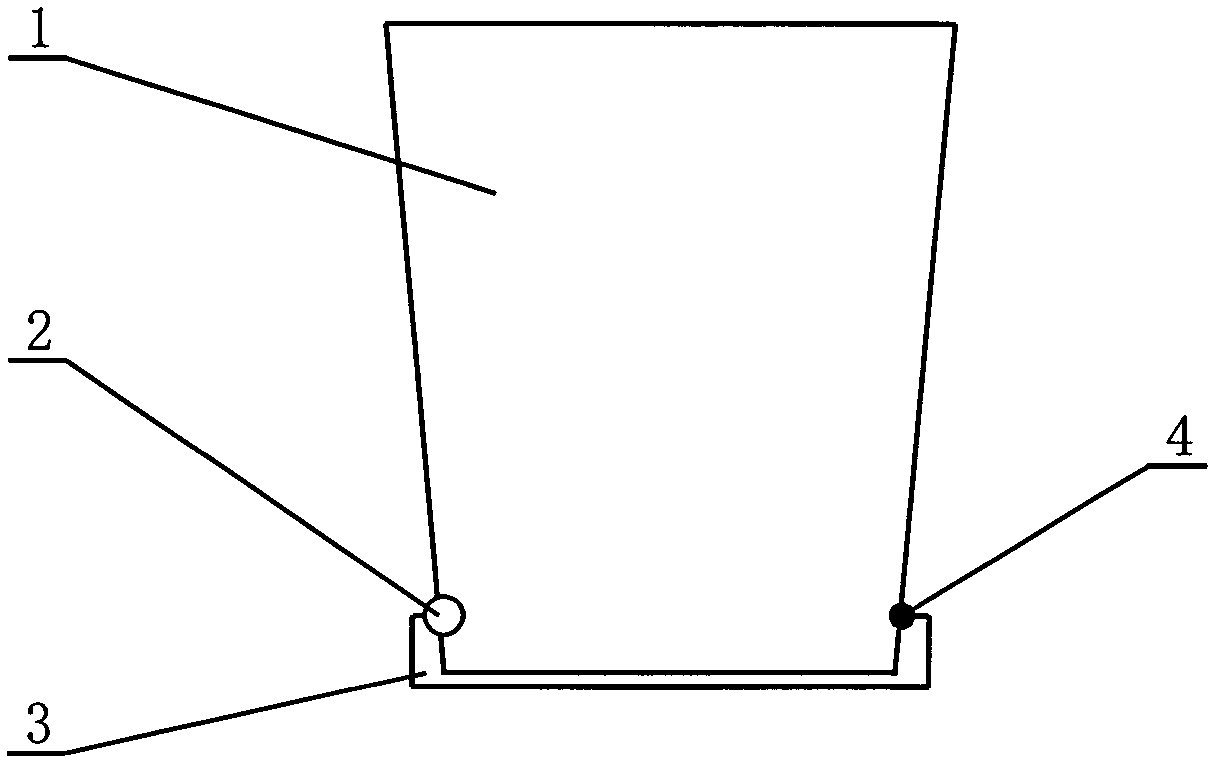

Fig. 1 is a structural representation of the present utility model.
The specific embodiment
Further specify the utility model below in conjunction with drawings and Examples.
As shown in Figure 1, present embodiment comprises that the upper end has garbage inlet staving 1, and the bottom of described staving 1 is provided with opening, and described opening part is provided with the bottom 3 that is used to seal this opening; One side of bottom 3 is connected by jointed shaft 2 on the sidewall of staving 1, and the opposite side of bottom 3 is provided with buckle 4, also is provided with the buckle eye that matches with buckle 4 on the sidewall of staving 1.
When dumping rubbish, sewage disposer is mentioned, open bottom 3 and bucket wall bonded assembly buckle 4, make of the opening part landing of barrel interior rubbish from the below.Treat rubbish topple over finish after, can stick to rubbish on barrel wall and the bottom from the cleaning of the opening part of below.
Claims (1)
1. an improved sewage disposer comprises that the upper end has the staving (1) of garbage inlet, and it is characterized in that: the bottom of described staving (1) is provided with opening, and described opening part is provided with the bottom (3) that is used to seal this opening; One side of bottom (3) is connected on the sidewall of staving (1) by jointed shaft (2), and the opposite side of bottom (3) is provided with buckle (4), also is provided with the buckle eye that matches with buckle (4) on the sidewall of staving (1).
