本实用新型公开了一种分层垃圾桶属于日常清洁用品类，特别是家庭用的普通垃圾桶。该分层垃圾桶，包括提手和桶体，其特征是：在桶体的底部有一层过滤网，桶体的底部同时开有一小孔，小孔上有一孔塞。当扔到垃圾桶里的垃圾有液体时，就会通过过滤网流到底层，从而方便的实现了固体与液体的分离，倒垃圾的时候可以先把孔塞拿开，让底层内的液体先流出，然后再倒垃圾会更加的方便。

Figure 201120174451

The utility model discloses a layered trash can, which belongs to the category of daily cleaning products, in particular to an ordinary trash can for household use. The layered garbage bin includes a handle and a barrel body, and is characterized in that a layer of filter net is arranged at the bottom of the barrel body, and a small hole is opened on the bottom of the barrel body, and a hole plug is arranged on the small hole. When there is liquid in the garbage thrown into the trash can, it will flow to the bottom layer through the filter screen, so as to realize the separation of solid and liquid conveniently. It will be more convenient to flow out and then take out the garbage.

Figure 201120174451

Description

分层垃圾桶layered trash can

技术领域 technical field

本实用新型属于日常清洁用品类，特别是家庭用的普通垃圾桶。The utility model belongs to the category of daily cleaning supplies, in particular to a common trash can for household use.

背景技术 Background technique

通常我们所使用的垃圾桶在倒垃圾的时候如果里面有液体会非常的不方便而且会将桶内壁弄的很脏。Usually, if there is liquid in the trash can we use, it will be very inconvenient and the inner wall of the trash can will be dirty.

实用新型内容 Utility model content

为了克服现有的垃圾桶里有液体时倒垃圾会很不方便的不足，本实用新型提供一种分层垃圾桶，该分层垃圾桶不仅不仅可以用来盛放垃圾，而且能实现固体与液体的自动分离和倾倒。In order to overcome the inconvenient disadvantage of dumping garbage when there is liquid in the existing garbage can, the utility model provides a layered garbage can. The layered garbage can not only can be used to hold garbage, but also can realize solid and Automatic separation and pouring of liquids.

本实用新型解决其技术问题所采用的技术方案是：一种分层垃圾桶，包括提手和桶体，其特征是：在桶体的底部有一层过滤网，桶体的底部侧面开有一排污水孔，排污水孔口上设有一孔塞。当扔到垃圾桶里的垃圾有液体时，就会通过过滤网流到底层，从而方便的实现了固体与液体的分离，倒垃圾的时候可以先把孔塞拿开，让底层内的液体先流出，然后再倒垃圾。The technical scheme adopted by the utility model to solve the technical problem is: a layered trash can, including a handle and a barrel body, which is characterized in that: there is a layer of filter net at the bottom of the barrel body, and a row of trash cans are opened on the bottom side of the barrel body. The sewage hole is provided with a hole plug on the sewage orifice. When there is liquid in the garbage thrown into the trash can, it will flow to the bottom layer through the filter screen, so as to realize the separation of solid and liquid conveniently. Drain, then take out the trash.

本实用新型的有益效果是通过过滤网实现了固体与液体自动的分离，使得在倒垃圾的时候更加的方便、干净。The beneficial effect of the utility model is that the automatic separation of solids and liquids is realized through the filter net, making it more convenient and clean when taking out garbage.

附图说明 Description of drawings

图1为本实用新型的结构示意图。Fig. 1 is the structural representation of the utility model.

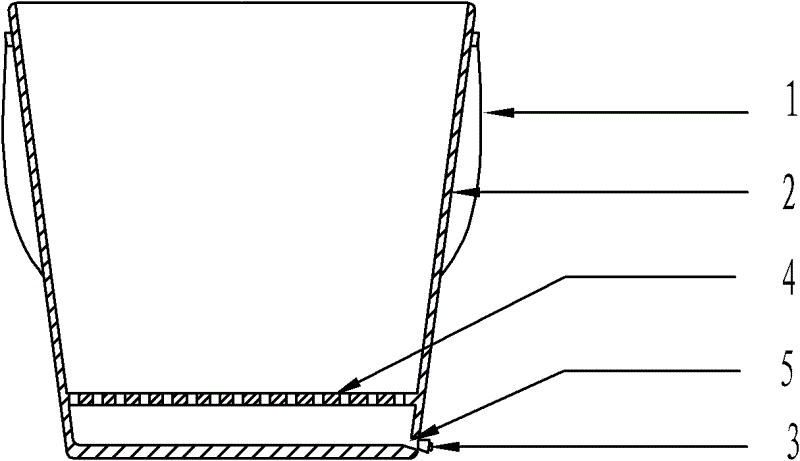

图2为图1的剖视图。FIG. 2 is a cross-sectional view of FIG. 1 .

图中，1.提手，2.桶体，3.孔塞，4.过滤网，5.排污水孔。In the figure, 1. handle, 2. bucket body, 3. hole plug, 4. filter screen, 5. drainage hole.

具体实施方式 Detailed ways

本实用新型的具体实施方式是，如图所示：The specific embodiment of the present utility model is, as shown in the figure:

实施例1，一种分层垃圾桶，包括提手1和桶体2，其特征是：在桶体的底部有一层过滤网4，桶体的底部侧面开有一排污水孔5，排污水孔口上设有一孔塞3。当扔到垃圾桶里的垃圾有液体时，就会通过过滤网4流到底层，从而方便的实现了固体与液体的分离，倒垃圾的时候可以先把孔塞拿开，让底层内的液体先流出，然后再倒垃圾会更加的方便、干净。Embodiment 1, a layered trash can, comprising a handle 1 and a barrel body 2, is characterized in that: there is a layer of filter screen 4 at the bottom of the barrel body, a row of sewage holes 5 are opened on the side of the bottom of the barrel body, and the sewage drainage holes A hole plug 3 is provided on the mouth. When there is liquid in the garbage thrown into the trash can, it will flow to the bottom layer through the filter screen 4, thereby realizing the separation of solid and liquid easily. It will be more convenient and clean to flow out first and then take out the garbage.

Claims (1)

1. a layering sewage disposer comprises handle and staving, it is characterized in that: in the bottom of staving one deck filtering net is arranged, the bottom sides of staving has a limber hole, and the sewer aperture is provided with a stopple.
