Abstract

The utility model discloses a water-saving pedestal pan, which comprises a toilet body with a defecation discharging port and at least two flushing ports, a toilet cover, a storage water tank with a flushing valve, a water supply pipe connected to the storage water tank, and a defecation discharging pipe arranged at the lower side of the toilet body and connected to the defecation discharging port, wherein a straight pipe is hermetically connected onto the defecation discharging pipe in a movable way, a telescopic defecation discharging seal pipe is hermetically connected onto the straight pipe in a movable way, a defecation discharging control valve with the lower end being provided with a spring is arranged on a position of the storage water tank close to a drainage valve, and the upper end of the defecation discharging seal pipe is fixed with the other end of the spring. The water-saving pedestal pan disclosed by the utility model has the advantages of simple structure, reasonable design, convenience in use, water saving, deodorization, difficulty in blockage, and the like.

Description

Water-saving toilet pan
Technical field
The utility model relates to a kind of sanitaryware, particularly relates to a kind of water source, water-saving toilet pan that odor-resistant result is good saved.
Background technology
At present, serious day by day along with the continuous shortage of water resource and water waste, water saving has seemed and has been even more important.In the daily life, the wash water of toilet is occupied 40-50% of the daily total water amount of the people, has become resident's daily life water most important part, that is to say that the water resource of the annual waste of this water closet has constituted the main part of city water resource waste.Common toilet generally is to be used with storage tank, the moisture storage capacity of this storage tank is about 6 liters, therefore the single washing water quantity of toilet is about 6 liters, thereby the total water amount of toilet is improved, therefore, be necessary to develop and a kind ofly can either ensure developing result, can reduce the water-saving toilet of water supply volume again.
Summary of the invention
The purpose of this utility model is to remedy the water-saving toilet pan that the deficiencies in the prior art provide a kind of obstruction simple in structure, easy to use, difficult, water-saving and deodorizing.
The purpose of this utility model is achieved through the following technical solutions.
Water-saving toilet pan of the present utility model, it comprises: the toilet body that is provided with excrement outlet and at least two bath holes, toilet lid, be provided with the storage tank of flushing valve, be connected in the upper hose of storage tank, be arranged at the toilet body downside and be connected in the hopper tube of excrement outlet, wherein, be sealedly connected with straight tube in mobilizable mode on the described hopper tube, be sealedly connected with scalable defecation sealed tube in mobilizable mode on the described straight tube, be provided with the defecation control valve that the lower end is provided with spring near draining valve on the described storage tank, the upper end of described defecation sealed tube is fixed with the other end of described spring.
The diameter of described defecation sealed tube is greater than the diameter of described excrement outlet.
The beneficial effect of water-saving toilet pan of the present utility model is: replace the serpentine hopper tube with deformable hopper tube and straight tube, simultaneously, be provided with the defecation sealed tube of diameter greater than described excrement outlet, therefore, also can rinse the stool that places excrement outlet well, after the flushing end of job with low amounts of water, described hopper tube and straight tube homing, that is, be in case of bending, also just prevented the diffusion of stink.Advantages such as simple in structure, reasonable in design, easy to use, difficult obstruction that water-saving toilet pan of the present utility model also has.
Description of drawings

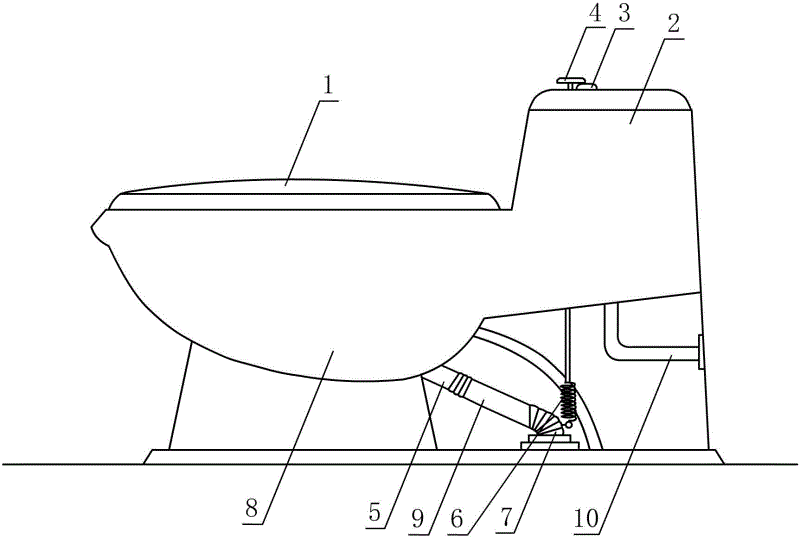

Fig. 1 is the structural representation of the utility model water-saving toilet pan.
Fig. 2 is the utility model water-saving toilet pan defecation view.
Fig. 3 is the toilet body schematic internal view of the utility model water-saving toilet pan.
Among the figure, 1, toilet lid 2, storage tank 3, draining valve 4, defecation control valve 5, hopper tube 6, spring 7, defecation sealed tube 8, toilet body 9, straight tube 10, upper hose 11, excrement outlet 12, bath hole.
The specific embodiment
As Fig. 1, Fig. 2, shown in Figure 3, water-saving toilet pan of the present utility model, it comprises the toilet body 8 that is provided with excrement outlet 11 and at least two bath holes 12, toilet lid 1, be provided with the storage tank 2 of flushing valve 3, be connected in the upper hose 10 of storage tank 2, be arranged at toilet body 8 downsides and be connected in the hopper tube 5 of excrement outlet 11, wherein, be sealedly connected with straight tube 9 in mobilizable mode on the described hopper tube 5, be sealedly connected with scalable defecation sealed tube 7 in mobilizable mode on the described straight tube 9, promptly, described hopper tube 5, straight tube 9 and defecation sealed tube 7 are tightly connected by scalable flexible pipe, seal on the described storage tank 2 and be provided with the defecation control valve 4 that the lower end is provided with spring 6 near draining valve 3, upper end one side of described defecation sealed tube 7 is fixed with the other end of described spring 6, the diameter of described defecation sealed tube 7 prevents the obstruction of closet greater than the diameter of described excrement outlet 11 with this.
As shown in Figure 2, in the water-saving toilet pan of the present utility model, when described defecation control valve 4 is pressed downwards, the spring 6 that is arranged at described defecation control valve 4 lower ends makes described defecation sealed tube 7 downward indentations, the hopper tube 5 and the straight tube 9 that connect into " V " shape at ordinary times form " one " font of inclination, meanwhile, press the residence downwards when stating defecation control valve 4, described defecation control valve 4 touches flushing valve 3, water in the storage tank 2 is sprayed in the toilet body 8, with this, rinse stool in the urinal well with low amounts of water.Flushing is decontroled described defecation control valve 4 after finishing, under the effect of described spring 6, and described defecation control valve 4 homings, described defecation sealed tube 7 and straight tube 9 be homing also,, is in case of bending that is, reaches the deodorization purpose with this.

Claims (2)

1. water-saving toilet pan, it comprises the toilet body (8) that is provided with excrement outlet (11) and at least two bath holes (12), toilet lid (1), be provided with the storage tank (2) of flushing valve (3), be connected in the upper hose (10) of storage tank (2), be arranged at toilet body (11) downside and be connected in the hopper tube (5) of excrement outlet (11), it is characterized in that: described hopper tube (5) is gone up and is sealedly connected with straight tube (9) in mobilizable mode, described straight tube (9) is gone up and is sealedly connected with scalable defecation sealed tube (7) in mobilizable mode, described storage tank (2) is gone up near draining valve (3) and is provided with the defecation control valve (4) that the lower end is provided with spring (6), and the upper end of described defecation sealed tube (7) is fixed with the other end of described spring (6).
2. water-saving toilet pan according to claim 1 is characterized in that: the diameter of described defecation sealed tube (7) is greater than the diameter of described excrement outlet (11).
