The utility model discloses a water-saving pedestal pan which comprises a main pedestal pan body and a water tank, wherein the water tank (1) is arranged on the wall above the main pedestal pan body (10); the water tank (1) is internally provided with a floating ball switch (3), the lower end of which is connected with a water inlet pipe (9) by a hose pipe; the water tank (1) is internally provided with a flushing valve (2) the lower end of which is connected with a downpipe (8), and the lower end of the downpipe (8) is connected on the main pedestal pan body (10); the side wall of the water tank (1) is fixed with a support seat (5) which is movably connected with a lever (6) the inner end of which is connected with a leather plug (4) of the flushing valve by a stayguy (7); and the outer end of a lever (5) is connected with the stayguy (7).
Description
Affiliated technical field
The utility model relates to a kind of sanitary installation, especially a kind of water-saving toilet pan.
Background technology
Water closet in the market mostly is the low level cistern water closet, the low level cistern water closet be exactly with water tank be installed in closet body above.Because the water pressure of this low level cistern water closet is little, so just need abundant water and just can wash away the interior excreta of water closet, cause water resource is caused bigger waste.
Summary of the invention
The utility model provides a kind of water-saving toilet pan at above-mentioned deficiency, and this water-saving toilet pan can improve the pressure of water, the conserve water resource.
The utility model is achieved in that a kind of water-saving toilet pan, comprise closet body, water tank, on the wall of closet body top water tank is installed, be provided with float switch in the water tank, the lower end of float switch is connected with water inlet pipe by flexible pipe, also be provided with flushing valve in the above-mentioned water tank, the lower end of flushing valve is connected with leader, and the lower end of this leader is connected on the closet body; Be fixed with bearing on the sidewall of water tank, be connected with on the bearing and shoulder bar, this inner end of shouldering bar is connected with the skin plug of flushing valve by backguy, and the outer end of shouldering bar is connected with backguy.
Employing is installed in the water tank of water closet on the wall with certain altitude, has therefore improved the pressure of water, so only needs the water yield of former low level cistern about 50% just can wash down the interior excreta of water closet.Conserve water resource significantly.
Description of drawings

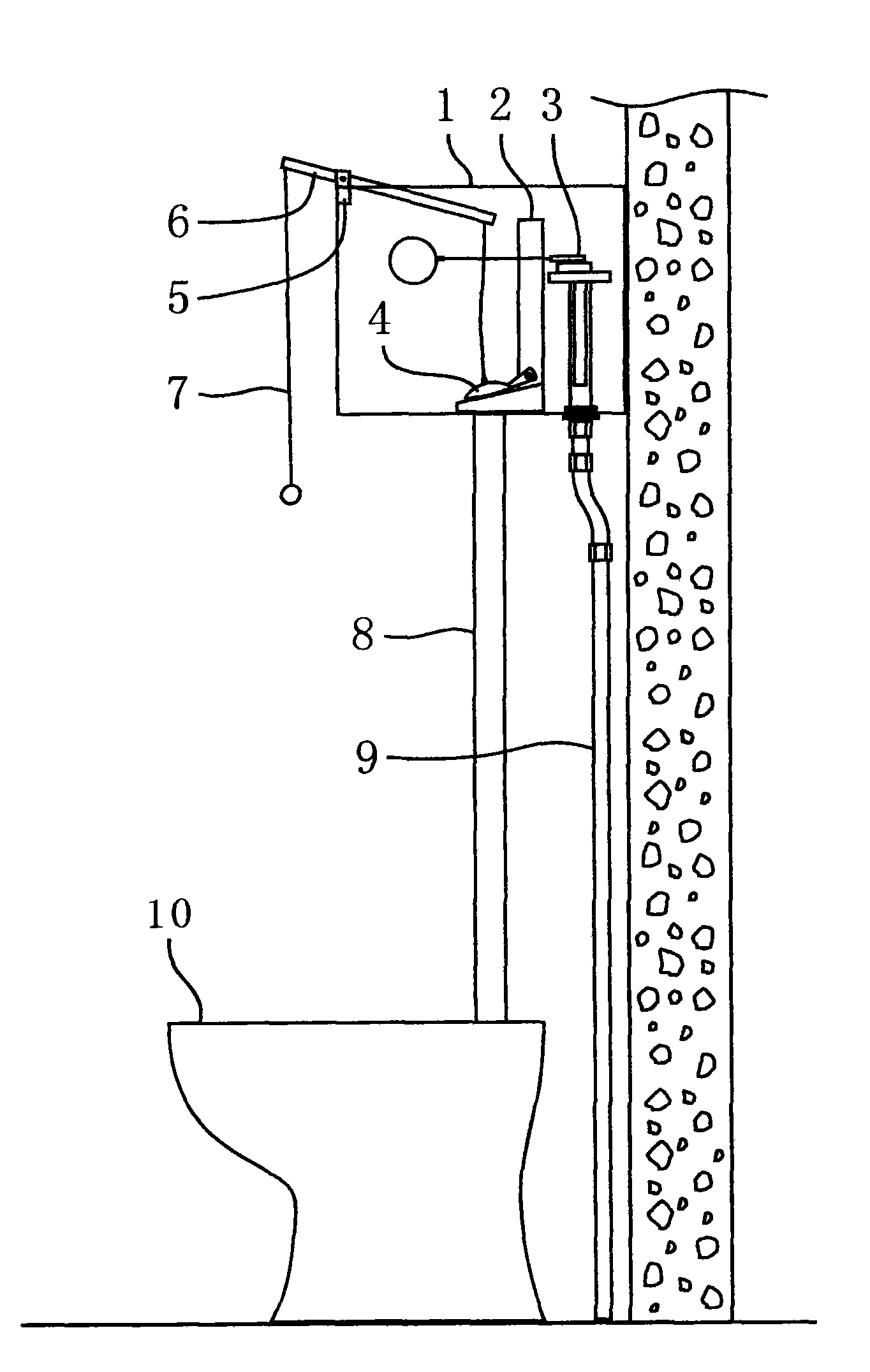

Fig. 1 is the structure chart of the utility model water-saving toilet pan.
The specific embodiment
Below in conjunction with accompanying drawing the utility model implementation column is described in further detail.
As shown in Figure 1, on the wall of closet body 10 tops water tank 1 is installed, be provided with float switch 3 in the water tank 1, the lower end of float switch 3 is connected with water inlet pipe 9 by flexible pipe, also be provided with flushing valve 2 in the above-mentioned water tank 1, the lower end of flushing valve 2 is connected with leader 8, and the lower end of this leader 8 is connected on the closet body 10; Be fixed with bearing 5 on the sidewall of water tank 1, be connected with on the bearing 5 and shoulder bar 6, this inner end of shouldering bar 6 is connected with the skin plug 4 of flushing valve by backguy, and the outer end of shouldering bar 5 is connected with backguy 7.During use, pulled down backguy 7 is opened the skin plug 4 of flushing valve, and current wash by leader 8 and then to closet body 10.
Claims (1)
1. water-saving toilet pan, comprise closet body, water tank, it is characterized in that: on the wall of closet body (10) top water tank (1) is installed, be provided with float switch (3) in the water tank (1), the lower end of float switch (3) is connected with water inlet pipe (9) by flexible pipe, also be provided with flushing valve (2) in the above-mentioned water tank (1), the lower end of flushing valve (2) is connected with leader (8), and the lower end of this leader (8) is connected on the closet body (10); Be fixed with bearing (5) on the sidewall of water tank (1), be connected with on the bearing (5) and shoulder bar (6), this inner end of shouldering bar (6) is connected with the skin plug (4) of flushing valve by backguy, and the outer end of shouldering bar (5) is connected with backguy (7).
