A muscle training racket for inner thighs belongs to the field of sport training equipment. A seat (1) is provided at top of a racket (5); the bottom of the racket (5) is fixed on a pedestal (7); a middle shaft (3) connects a movable rod (4) to the top of the racket (5), two ends of a spring (2) connects the middle position of the movable rod (4), and a foot treading board (6) is fixed at the bottom end of the racket (5). A practitioner treads on the foot treading board with his two feet, and can practice by merging the two legs to the inner side. The utility model has the advantages of a simple structure, small size, convenient moving, easy operation and a wide application range and cannot be limited by fields or time, so the utility model is a fitness apparatus necessary for schools and families.

Description

Femoribus internus is practiced the flesh frame
Technical field
The utility model relates to a kind of femoribus internus and practices the flesh frame, belongs to the Excercise training apparatus field.
Technical background
Along with carrying out of nationwide fitness programs, there are many people to utilize and sooner or later have sports, do not satisfy this hope owing to be subjected to the restriction in time and place.Though many body-building apparatus are arranged at present, but also fewer for leg exercises, this utility model are a kind ofly to utilize the short time of having a rest to carry out leg exercises, both can save time, can play the body-building apparatus of taking exercises again, to satisfy people's life requirement.Physical training is that the modern builds up health, prevent disease, adjusting psychology, joy are pleased body and mind, adapted to one of effective means of society, has positive effect in modern society's life.
Physical training has many sportsmen that injured phenomenon often takes place in training owing to be subjected to the restriction of place apparatus, weight person's paralysis, and the lighter's soreness of waist and ache in legs brings many inconvenience to sports career.This femoribus internus is practiced flesh frame creation back and is brought auxiliary practice effect for the sportsman in training.Also can use in family and office public place of entertainment, be the health and fitness facilities of school and family's indispensability.
The utility model content
According to above deficiency of the prior art, the technical problems to be solved in the utility model is: provide a kind of simple in structure, operation is practical, is not subjected to the femoribus internus of place and time restriction to practice the flesh frame.
The technical scheme that its technical problem that solves the utility model adopts is: this femoribus internus is practiced the flesh frame, it is characterized in that: comprise seat, spring, axis, motion bar, support, step on sole, base, chair mounted is at a top of the trellis, the bottom of support is fixed on the base, axis is connected to motion bar the top of support, the two ends of spring connect the centre position of motion bar, step on sole and are fixed on the support lower end.Practitioner's bipod steps down on the sole, and two legs merge inward and can practise.
During use, human body is sitting on the seat, and bipod steps down on the sole, and two legs merge inward, by coming and going alternating movement to strengthen the strength of lower limb muscles.Can temper lower limb muscles efforts of everyone amount effectively, particularly evident to the train on of femoribus internus fat reducing, can alleviate the lower limb symptom of aching.
Compared with prior art, the beneficial effect that the utility model had is: on the people was sitting on the seat, safety coefficient was bigger, was difficult for taking place injury accident.This femoribus internus is practiced the flesh frame makes thigh produce pressure, accelerates each position blood circulation, and leg muscle is strengthened, and improves the function of taking exercises, and the arthralgia patient is recovered to have the supplemental treatment effect.Can temper lower limb muscles efforts of everyone amount effectively, particularly evident to the exercise of thigh, can alleviate the lower limb symptom of aching.The utility model is simple in structure, and volume is little, be not subjected to place and time restriction, convenient in carrying, and operation easily is applicable to that relatively teenager, person in middle and old age, vast physical training and professional sports sportsman use and the supplemental treatment of diseases related.
Description of drawings

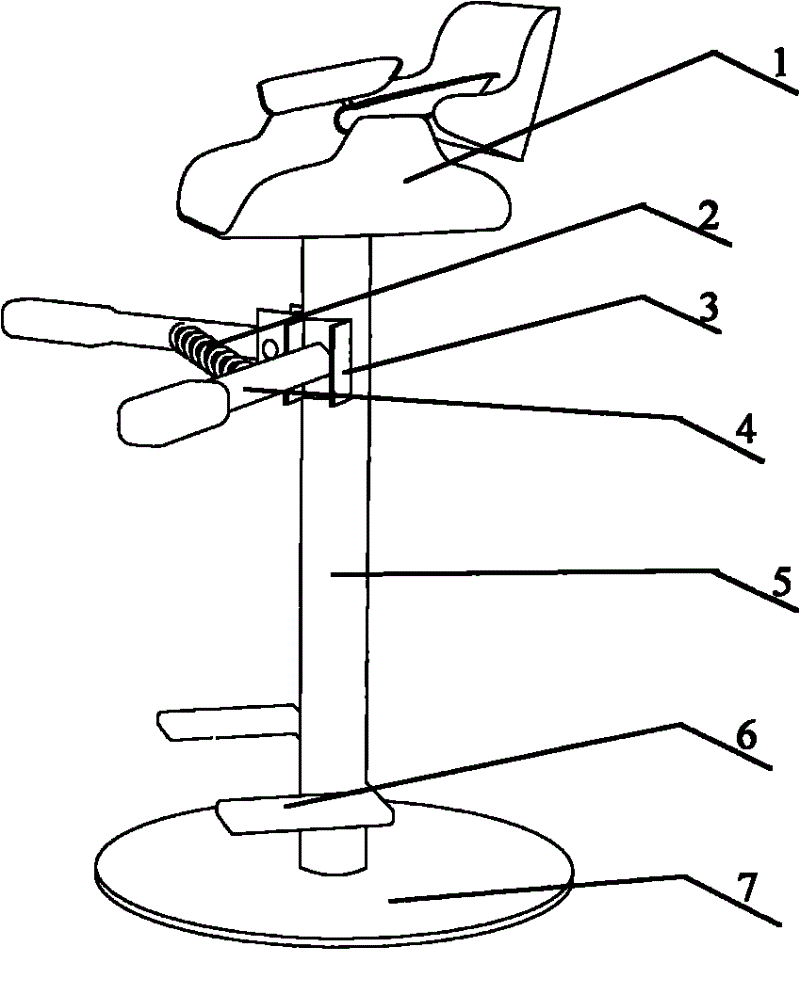

Fig. 1 is the preferred example that the utility model femoribus internus is practiced the flesh frame, and wherein: (1) seat (2) spring (3) axis (4) motion bar (5) support (6) is stepped on sole (7) base
The specific embodiment
Below in conjunction with accompanying drawing the utility model femoribus internus being practiced the flesh frame is described further:
As shown in the figure: femoribus internus is practiced the flesh frame, seat 1 is installed in support 5 tops, and the bottom of support 5 is fixed on the base 7, and axis 3 is connected to motion bar 4 top of support 5, the two ends of spring 2 connect the centre position of motion bar 4, step on sole 6 and are fixed on support 5 lower ends.Practitioner's bipod steps down on the sole, and two legs merge inward and can practise.
Spring can be with human strength size adjustment length.
During use, human body is sitting on the seat, and bipod steps down on the sole, and two legs merge inward, by coming and going alternating movement to strengthen the strength of lower limb muscles.Can temper lower limb muscles efforts of everyone amount effectively, particularly evident to the train on of femoribus internus fat reducing, can alleviate the lower limb symptom of aching.

Claims (3)

1. femoribus internus is practiced the flesh frame, and it is characterized in that: seat (1) is installed in support (5) top, and the bottom of support (5) is fixed on the base (7).
2. femoribus internus according to claim 1 is practiced the flesh frame, it is characterized in that: axis (3) is connected to the top of support (5) with motion bar (4), and the two ends of spring (2) connect the centre position of motion bars (4).
3. femoribus internus according to claim 1 is practiced the flesh frame, it is characterized in that: step on sole (6) and be fixed on support (5) lower end.
