The utility model relates to a lithium battery capping machine, which includes a frame and a workbench arranged on the frame, wherein a battery top cap component feed mechanism, a battery steel casing component feed mechanism and a capping mechanism are sequentially arranged on the workbench and are connected with a main control circuit; the battery top cap component feed mechanism is used for sending a battery top cap component to a capping work station; the battery steel casing component feed mechanism is used for sending a battery steel casing component to the capping work station; and the capping mechanism is used for assembling and pressing the battery top cap component into the battery steel casing component. In the lithium battery capping machine, the structural design is reasonable, the automatic feeding and capping operations of the battery top cap component and the battery steel casing component are realized, the capping position is accurate, the production efficiency is high, the safety factor is high, and the costs for manpower and production are greatly saved, so that the lithium battery capping machine is suitable for requirement of assembling the battery top cap components and the battery steel casing components on a large scale, and further improves the competitiveness of an enterprise in the market. Moreover, the battery top cap component can be automatically corrected during the feeding process, and the battery steel casing component can be automatically detected during the feeding process, therefore, the product quality is improved and the rejection rate is reduced.
Description
Technical field
The utility model relates to a kind of machining set-up, is meant especially a kind ofly to be used to realize be welded with the cap assembly of afflux post and to be pressed into the battery steel shell assembly self-feeding of counterdie, limit film, tetrafluoro, carbon pearl, tectorial membrane and the automation equipment of gland.
Background technology
Column type lithium cell is widely used in a plurality of fields such as electric tool, electric automobile, military equipment, Aero-Space because operating voltage height, volume are little, light weight, energy height, pollution-free, advantage such as self discharge is little, have extended cycle life.Along with the growth of social demand and the increase of lithium battery manufacturing process difficulty, enterprise has higher requirement to the production of lithium battery.
At present, the gland of lithium battery top cover is an operating type manual and that semiautomatic equipment combines, and packaging efficiency is low, labour intensity is big, the product quality of assembling is difficult to guarantee, have potential safety hazard, product yield can not be met customer need, and has had a strong impact on the market competitiveness of enterprise.
The utility model content
The purpose of this utility model provides a kind of lithium battery capping machine, with self-feeding and the gland of realizing product and enhance productivity, reduce production costs and labour's intensity.
For solving the problems of the technologies described above, the utility model by the following technical solutions:
A kind of lithium battery capping machine, comprise frame and the workbench that is located on the frame, be provided with in regular turn on the described workbench the battery cap component transfer to the battery cap assembly feed mechanism of gland station, the battery steel shell component transfer is pressed into cover pressing mechanism in the battery steel shell assembly to the battery steel shell assembly feed mechanism of gland station with the battery cap component assembling, said mechanism is connected with governor circuit.
Above-mentioned feed mechanism comprises battery cap assembly feed mechanism and battery steel shell assembly feed mechanism, battery cap assembly feed mechanism comprises the vibrating disc of placing the battery cap assembly, the feeding track that is connected with vibrating disc and carries the battery cap assembly that gets off to push away feeding cylinder one on the delivery track one and the feeding cylinder two that the battery cap assembly is fed forward feeding track, the end of delivery track one is provided with feeding cylinder three on workbench, be connected with pushing block on the feeding cylinder three, pushing block is pushed the battery cap assembly of delivery track one end to cover pressing mechanism; Battery steel shell assembly feed mechanism comprises the delivery track two of carrying the box hat anchor clamps that are placed with the battery steel shell assembly and the promotion cylinder one that the box hat anchor clamps are fed forward, and is provided with the positioning cylinder of location box hat anchor clamps below workbench upper press cover mechanism.
Above-mentioned cover pressing mechanism comprises the holder that is installed on the workbench, one portable plate is installed in the holder, be connected with stamping cylinder above the portable plate, be connected with the gland main shaft below the portable plate, the middle part of gland main shaft is equipped with gear, tooth bar with gears engaged is installed in holder, and tooth bar is by being installed on the tooth bar air cylinder driven work of holder one side, and the rack and pinion engagement drives the gland main axis rotation; The bottom of gland main shaft is equipped with magnetic drift, drift hold the battery cap assembly under the rotation of gland main shaft drives and under the work of stamping cylinder and rotate to the battery steel shell assembly above the battery cap component assembling is pressed in the battery steel shell assembly.
The gland main shaft cog above the limited block of restriction gland main axis rotation stroke is installed.
End at delivery track two is provided with the promotion cylinder two of the box hat anchor clamps being released delivery track two.
Initiating terminal at delivery track two also is provided with the inductor that whether is equipped with battery steel shell assembly tectorial membrane in the box hat that detects the battery steel shell assembly.
Whether qualified afflux post the aligning gear of proofreading and correct the battery cap assembly also be installed on the described workbench, delivery track one passes across aligning gear, this aligning gear comprises pedestal and is installed on the interior guide pad of pedestal, one clamping cylinder that is connected with guide pad is installed at the pedestal top, the bottom surface of guide pad is equipped with pressure head, correcting block is installed below guide pad, the correction cylinder that advances correcting block to proofread and correct the battery cap assembly is installed in a side of pedestal.
Waste material also is installed between aligning gear on the workbench and cover pressing mechanism releases cylinder, between delivery track one and delivery track two, be provided with the waste material blanking channel, below workbench, be provided with the recovery box, waste material release cylinder is proofreaied and correct underproof battery cap assembly with aligning gear and is pushed the waste material blanking channel to, and defective battery cap assembly is fallen into from the waste material blanking channel and reclaimed the box.
The utility model reasonable in design, the battery cap assembly and the inside that are welded with the afflux post have been pressed into counterdie, the limit film, tetrafluoro, the carbon pearl, the battery steel shell assembly of tectorial membrane is delivered to the gland station of cover pressing mechanism respectively by feed mechanism, cover pressing mechanism is pressed into the battery cap component assembling in the battery steel shell assembly, thereby realize the self-feeding and the gland of battery cap assembly and battery steel shell assembly, the gland position is accurate, the production efficiency height, the safety coefficient height, labour and production cost have been saved greatly, be fit to carry out the needs of battery cap assembly in enormous quantities and battery steel shell component assembling, improve the market competitiveness of enterprise.In addition, the battery cap assembly carries out detecting automatically in the feeding process from dynamic(al) correction and battery steel shell assembly in the feeding process, has improved product quality, has reduced percent defective.
Description of drawings

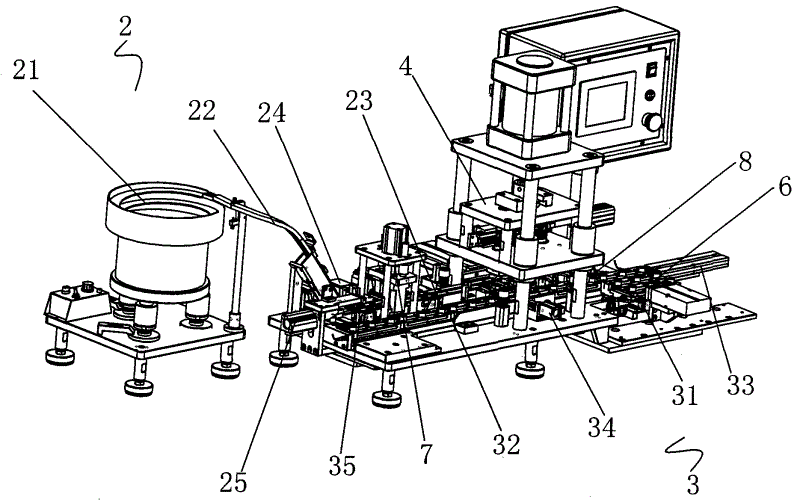

Accompanying drawing 1 is the utility model perspective view;
Accompanying drawing 3 is that the utility model internal structure is overlooked view;
Accompanying drawing 4 is the utility model cover pressing mechanism perspective view;
Accompanying drawing 6 is the utility model aligning gear perspective view.
The specific embodiment
For the ease of those skilled in the art's understanding, the utility model structural principle is further described in detail below in conjunction with specific embodiment and accompanying drawing:
As accompanying drawing 1-6, a kind of lithium battery capping machine, comprise frame and the workbench 1 that is located on the frame, on workbench 1, be provided with battery cap assembly feed mechanism 2 in regular turn, battery steel shell assembly feed mechanism 3 and aligning gear 7 and cover pressing mechanism 4, battery cap assembly feed mechanism 2 is delivered to battery cap assembly 5 the gland station of cover pressing mechanism 4, battery cap assembly 5 comprises top cover and afflux post, the afflux post is welded on the top cover, battery steel shell assembly feed mechanism 3 is delivered to battery steel shell assembly 6 the gland station of cover pressing mechanism 4, battery steel shell assembly 6 includes box hat, counterdie, the limit film, tetrafluoro, the carbon pearl, tectorial membrane, counterdie, the limit film, tetrafluoro, the carbon pearl, tectorial membrane is pressed in the box hat successively, cover pressing mechanism 4 is pressed into 5 assemblings of battery cap assembly in the battery steel shell assembly 6, and said mechanism is connected with governor circuit.
Wherein, above-mentioned battery cap assembly feed mechanism 2 comprises vibrating disc 21, the feeding track 22 that is connected with vibrating disc 21 and the delivery track 1 of placing battery cap assembly 5 and feeding cylinder 1, feeding cylinder 2 25, battery cap assembly 5 is delivered to feeding cylinder 1 by vibrating disc 21 from feeding track 22, feeding cylinder 1 pushes away battery cap assembly 5 on delivery track 23, and feeding cylinder 2 25 is fed forward battery cap assembly 5 on delivery track 1; The end of delivery track 1 is provided with feeding cylinder 3 26 on workbench 1, is connected with pushing block 27 on the feeding cylinder 3 26, and pushing block 27 is pushed the battery cap assembly 5 of delivery track one 23 ends to cover pressing mechanism 4.Battery steel shell assembly feed mechanism 3 comprises the delivery track 2 32 of carrying box hat anchor clamps 31 and promotes cylinder 1, be placed with battery steel shell assembly 6 on the box hat anchor clamps 31, promote the initiating terminal that cylinder 1 is installed on delivery track 2 32, promote cylinder 1 box hat anchor clamps 31 are fed forward on delivery track 2 32; Below workbench 1 upper press cover mechanism 4, be provided with the positioning cylinder 34 of location box hat anchor clamps 31; End at delivery track 2 32 is provided with promotion cylinder 2 35, and promoting cylinder 2 35 will carry the box hat anchor clamps 31 of coming to release delivery tracks 2 32 from delivery track 2 32; Initiating terminal at delivery track 2 32 is provided with the inductor 8 that whether is equipped with battery steel shell assembly 6 tectorial membranes in the box hat that detects battery steel shell assembly 6.During no tectorial membrane, positioning cylinder 34 is not worked in inductor 8 is sensed the box hat of battery steel shell assembly 6, and it is terminal and release delivery tracks 2 32 by promoting cylinder 2 35 that box hat anchor clamps 31 continue on to delivery track 2 32; When in inductor 8 is sensed the box hat of battery steel shell assembly 6, tectorial membrane being arranged, box hat anchor clamps 31 location are lived in positioning cylinder 34 work, cover pressing mechanism 4 is worked just, and 5 assemblings of battery cap assembly are pressed in the battery steel shell assembly 6, then, box hat anchor clamps 31 continue on to delivery track 2 32 ends and release delivery tracks 2 32 by promoting cylinder 2 35.
Above-mentioned cover pressing mechanism 4 comprises the holder 41 that is installed on the workbench 1, one portable plate 42 is installed in the holder 41, be connected with stamping cylinder 43 above the portable plate 42, stamping cylinder 43 is fixed on the holder 41, be connected with gland main shaft 44 below portable plate 42, stamping cylinder 43 task driven portable plates 42 and gland main shaft 44 can move up and down; At the middle part of gland main shaft 44 gear 45 is installed, tooth bar 46 with gear 45 engagements is installed in holder 41, the tooth bar cylinder 47 driving work of tooth bar 46 by being installed on holder 41 1 sides, 45 rotations of tooth bar cylinder 47 task driven tooth bars 46 driven gears, gear 45 drives 44 rotations of gland main shaft with tooth bar 46 engagements; Magnetic drift 48 is installed in the bottom of gland main shaft 44, drift 48 can hold battery cap assembly 5, drift 48 hold battery cap assembly 5 under the rotation of gland main shaft 44 drives and under the work of stamping cylinder 43 and rotate to battery steel shell assembly 6 above 5 assemblings of battery cap assembly are pressed in the battery steel shell assembly 6.Excessive for the rotating distance that prevents gland main shaft 44, influence accurately assembling glands of battery cap assembly 5 and battery steel shell assembly 6, gland main shaft 44 cog 45 above limited block 49 is installed.
In addition, whether qualified afflux post the aligning gear 7 of proofreading and correct battery cap assembly 5 also be installed on the above-mentioned workbench 1, delivery track 1 passes across aligning gear 7, this aligning gear 7 comprises pedestal 71 that is installed on the workbench 1 and the guide pad 72 that is installed in the pedestal 71, one clamping cylinder 73 that is connected with guide pad 72 is installed at pedestal 71 tops, the bottom surface of guide pad 72 is equipped with pressure head 74, correcting block 75 is installed below guide pad 27, the correction cylinder 76 that advances correcting blocks 75 to proofread and correct battery cap assembly 5 is installed in a side of pedestal 71.When battery cap assembly 5 is delivered to aligning gear 7 on delivery track 1, clamping cylinder 73 work move down 75 running fixes of driving correcting block and live battery cap assembly 5, and pressure head 74 is pushed down battery cap assembly 5, simultaneously, proofreading and correct cylinder 76 driving battery cap assemblies 5 is pressed in the correcting block 75, thereby the afflux post to battery cap assembly 5 is proofreaied and correct, and improves the quality of products, and reduces percent defective.
Also have, waste material also is installed between aligning gear 7 on the workbench 1 and cover pressing mechanism 4 releases cylinder 9, between delivery track 1 and delivery track 2 32, be provided with waste material blanking channel 91, below workbench 1, be provided with the recovery box.Calibrated mechanism 7 proofreaies and correct underproof battery cap assembly 5 and continues to carry on delivery track 1, when defective battery cap assembly 5 is released cylinder 9 through waste material, waste material is released cylinder 9 and is pushed battery cap assembly 5 to waste material blanking channel 91, and underproof battery cap assembly 5 is fallen into from waste material blanking channel 91 and reclaimed the box.
For the better linking work of each mechanism of control, can in each mechanism, inductor be set.
Concrete operation process of the present utility model is described in the back: at first, start governor circuit, the battery cap assembly 5 that is welded with the afflux post is delivered to feeding cylinder 1 by vibrating disc 21 from feeding track 22, and feeding cylinder 1 pushes away battery cap assembly 5 on delivery track 23.Then, feeding cylinder 2 25 is fed forward battery cap assembly 5 on delivery track 1, when battery cap assembly 5 is delivered to aligning gear 7, clamping cylinder 73 drives correcting block 75 running fixes downwards and lives battery cap assembly 5, simultaneously, pressure head 74 is pushed down battery cap assembly 5, is pressed in the correcting block 75 and proofread and correct cylinder 76 driving battery cap assemblies 5, thereby the afflux post of battery cap assembly 5 is carried out from dynamic(al) correction.Battery cap assembly 5 is continuing conveying on delivery track 1 under the promotion of feeding cylinder 2 25, when calibrated mechanism 7 proofreaies and correct underproof battery cap assembly 5 through waste material release cylinder 9, governor circuit control waste material is released cylinder 9 work and is pushed defective battery cap assembly 5 to waste material blanking channel 91, and underproof battery cap assembly 5 is fallen into from waste material blanking channel 91 and reclaimed the box.Calibrated mechanism 7 proofreaies and correct qualified battery cap assembly 5 and continues to carry on delivery track 1, when battery cap assembly 5 was delivered to delivery track one 23 ends, 3 26 work of governor circuit control feeding cylinder were pushed battery cap assembly 5 to cover pressing mechanism 4 by pushing block 27.
In 5 feedings of battery cap assembly, promoting cylinder 1 is fed forward box hat anchor clamps 31 on delivery track 2 32, whether be equipped with battery steel shell assembly 6 tectorial membranes in the box hat of inductor 8 induction detection battery steel shell assemblies 6, in inductor 8 is sensed the box hat of battery steel shell assembly 6 during no tectorial membrane, positioning cylinder 34 is not worked, and box hat anchor clamps 31 continue on to delivery track 2 32 ends and directly release delivery tracks 2 32 by promoting cylinder 2 35; When in inductor 8 is sensed the box hat of battery steel shell assembly 6 tectorial membrane being arranged, box hat anchor clamps 31 location are lived in positioning cylinder 34 work.Then, 47 work of tooth bar cylinder promote tooth bar 46 and move forward, tooth bar 46 driven gears 45 are rotated in the forward, gear 4 drives 44 rotations of gland main shaft, gland main shaft 44 drives drifts 48 and rotates to the top that feeding cylinder 3 26 promotes the battery cap assembly 5 of coming, at this moment, stamping cylinder 43 task driven portable plates 42 move down, thereby the drift 48 that drives gland main shaft 44 and be installed on the gland main shaft 44 moves downward, drift 48 holds battery cap assembly 5, stamping cylinder 43 is upwards replied drive drift 48 and is moved up, and tooth bar cylinder 47 answer work promotion tooth bar 46 moves backward, 45 reverse rotations of tooth bar 46 driven gears, gear 4 drives 44 rotations of gland main shafts, and gland main shaft 44 drives inhales the top that the drift 48 that battery cap assembly 5 is arranged rotates to battery steel shell assembly 6, and stamping cylinder 43 works on and drives portable plate 42 and move down, move downward thereby drive gland main shaft 44 and drift 48, thereby 5 assemblings of battery cap assembly are pressed in the battery steel shell assembly 6.At last, positioning cylinder 34 is replied the position, and box hat anchor clamps 31 continue to carry on delivery track 2 32, releases delivery track 2 32 by promoting cylinder 2 35 again when box hat anchor clamps 31 are delivered to delivery track 2 32 ends.So move in circles, the self-feeding and the gland of battery cap assembly 5 and battery steel shell assembly 6 have been realized, the gland position is accurate, production efficiency is high, the safety coefficient height, labour and production cost have been saved greatly, be fit to carry out the needs of battery cap assembly 5 in enormous quantities and 6 assemblings of battery steel shell assembly, improve the market competitiveness of enterprise.In addition, battery cap assembly 5 carries out detecting automatically in the feeding process from dynamic(al) correction and battery steel shell assembly 6 in the feeding process, has improved product quality, has reduced percent defective.
The foregoing description only is a preferred implementation of the present utility model, and in addition, the utility model can also have other implementations.That is to say that under the prerequisite that does not break away from the present utility model design, any conspicuous replacement all should fall within the protection domain of the present utility model.
Claims (8)
1. lithium battery capping machine, comprise frame and the workbench (1) that is located on the frame, it is characterized in that: be provided with in regular turn on the described workbench with battery cap assembly (5) be delivered to the gland station battery cap assembly feed mechanism (2), battery steel shell assembly (6) is delivered to the battery steel shell assembly feed mechanism (3) of gland station and the battery cap component assembling is pressed into cover pressing mechanism (4) in the battery steel shell assembly, said mechanism is connected with governor circuit.
2. lithium battery capping machine according to claim 1, it is characterized in that: described battery cap assembly feed mechanism comprises the vibrating disc (21) of placing the battery cap assembly, the feeding track that is connected with vibrating disc (22) and carry the battery cap assembly that gets off to push away feeding cylinder one (24) on the delivery track one (23) and the feeding cylinder two (25) that the battery cap assembly is fed forward the feeding track, the end of delivery track one is provided with feeding cylinder three (26) on workbench, be connected with pushing block (27) on the feeding cylinder three, pushing block is pushed the battery cap assembly of delivery track one end to cover pressing mechanism; Described battery steel shell assembly feed mechanism comprises the delivery track two (32) of carrying the box hat anchor clamps (31) that are placed with the battery steel shell assembly and the promotion cylinder one (33) that the box hat anchor clamps are fed forward, and is provided with the positioning cylinder (34) of location box hat anchor clamps below workbench upper press cover mechanism.
3. lithium battery capping machine according to claim 2, it is characterized in that: described cover pressing mechanism (4) comprises the holder (41) that is installed on the workbench, one portable plate (42) is installed in the holder, be connected with stamping cylinder (43) above the portable plate, be connected with gland main shaft (44) below the portable plate, the middle part of gland main shaft is equipped with gear (45), tooth bar (46) with gears engaged is installed in holder, tooth bar is by being installed on tooth bar cylinder (47) the driving work of holder one side, and the rack and pinion engagement drives the gland main axis rotation; The bottom of gland main shaft is equipped with magnetic drift (48), drift hold the battery cap assembly under the rotation of gland main shaft drives and under the work of stamping cylinder and rotate to the battery steel shell assembly above the battery cap component assembling is pressed in the battery steel shell assembly.
4. lithium battery capping machine according to claim 3 is characterized in that: the gland main shaft cog above the limited block (49) of restriction gland main axis rotation stroke is installed.
5. lithium battery capping machine according to claim 3 is characterized in that: the end at delivery track two is provided with the promotion cylinder two (35) of the box hat anchor clamps being released delivery track two.
6. according to each described lithium battery capping machine in the claim 1～5, it is characterized in that: the initiating terminal at delivery track two also is provided with the inductor (8) that whether is equipped with battery steel shell assembly tectorial membrane in the box hat that detects the battery steel shell assembly.
7. lithium battery capping machine according to claim 6, it is characterized in that: whether qualified afflux post the aligning gear (7) of proofreading and correct the battery cap assembly also be installed on the described workbench, delivery track one passes across aligning gear, this aligning gear comprises pedestal (71) and is installed on the interior guide pad (72) of pedestal, one clamping cylinder that is connected with guide pad (73) is installed at the pedestal top, the bottom surface of guide pad is equipped with pressure head (74), correcting block (75) is installed below guide pad, the correction cylinder (76) that advances correcting block to proofread and correct the battery cap assembly is installed in a side of pedestal.
8. according to the lithium battery capping machine described in the claim 7, it is characterized in that: waste material also is installed between aligning gear on the workbench and cover pressing mechanism releases cylinder (9), between delivery track one and delivery track two, be provided with waste material blanking channel (91), below workbench, be provided with the recovery box, waste material release cylinder is proofreaied and correct underproof battery cap assembly with aligning gear and is pushed the waste material blanking channel to, and defective battery cap assembly is fallen into from the waste material blanking channel and reclaimed the box.
