CN201823744U - Comprehensive treatment device for construction waste - Google Patents
Comprehensive treatment device for construction waste Download PDFInfo
- Publication number
- CN201823744U CN201823744U CN2010205622817U CN201020562281U CN201823744U CN 201823744 U CN201823744 U CN 201823744U CN 2010205622817 U CN2010205622817 U CN 2010205622817U CN 201020562281 U CN201020562281 U CN 201020562281U CN 201823744 U CN201823744 U CN 201823744U
- Authority
- CN
- China
- Prior art keywords
- roller
- building waste
- level
- processing unit
- integrated processing
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Classifications
-
- Y—GENERAL TAGGING OF NEW TECHNOLOGICAL DEVELOPMENTS; GENERAL TAGGING OF CROSS-SECTIONAL TECHNOLOGIES SPANNING OVER SEVERAL SECTIONS OF THE IPC; TECHNICAL SUBJECTS COVERED BY FORMER USPC CROSS-REFERENCE ART COLLECTIONS [XRACs] AND DIGESTS
- Y02—TECHNOLOGIES OR APPLICATIONS FOR MITIGATION OR ADAPTATION AGAINST CLIMATE CHANGE
- Y02W—CLIMATE CHANGE MITIGATION TECHNOLOGIES RELATED TO WASTEWATER TREATMENT OR WASTE MANAGEMENT
- Y02W30/00—Technologies for solid waste management
- Y02W30/50—Reuse, recycling or recovery technologies
- Y02W30/58—Construction or demolition [C&D] waste
Landscapes
- Processing Of Solid Wastes (AREA)
Abstract
The utility model discloses a comprehensive treatment device for construction waste, which comprises a primary crushing device and a secondary crushing device. The primary crushing device comprises a feeding device and a primary crusher, the primary crushing device further includes a sorting device along the material conveying direction, and the sorting device is disposed at a downstream position of the primary crusher in a connected manner. The secondary crushing device is disposed at a downstream position of the sorting device in a connected manner. The comprehensive treatment device for construction waste can continuously and automatically treat the construction waste, is low in equipment cost, reasonable in structure and simple in operation, not only is high in production efficiency, but also is high in the quality of produced reproducible building aggregate, and is wide in application range and high in yield.
Description
Technical field
The utility model relates to the building waste processing technology field.
Background technology
Along with quickening of urbanization process, the building waste that urban construction, reconstruction of the old city town produce has become big public hazards in city.Show that according to relevant data China is about more than 200,000,000 tons because of the solid waste of removing the building generation every year at present, about 100,000,000 tons of the solid waste that new building produces, two add up to about 300,000,000 tons.China's existing building 40,000,000,000 square meters, life cycle according to building was calculated in 100 years, average annual building demolition 400,000,000 square meters, average annual 500000000 tons of the building wastes that produce, the building waste that adds generations such as construction, construction and decoration adds up to about 600,000,000 tons/year, in fact owing to reasons such as building durability, urban planning changes, the building life cycle often promptly was removed less than 100 years, in addition, construction area also will constantly enlarge with social development, and the average annual output of China's building castoff will be greater than 600,000,000 tons from now on.
And the building waste overwhelming majority of present China flood tide like this is without any processing, just transport countryside or rural area to, adopt random air storage or directly the mode of landfill handle, not only taken up an area of but also contaminated environment, form the phenomenon that rubbish encloses village, besieged city, have a strong impact on the town and country image.Along with protecting farmland and the reinforcement of environmental protection, the processing mode of traditional building waste has become the major issue that enterprise in charge of construction and environmental administration face jointly.
Also there is the treatment facility of employing that building waste is handled at present, after general employing disintegrating machine carries out fragmentation to building waste, pass through conveyor delivery again, in course of conveying, the metal species foreign material in the mixture are chosen, deliver to the renewable building aggregate that classifying screen sieves out different-grain diameter at last.But in the prior art, generally before fragmentation, will sort processing to garbage raw material earlier, could carry out pile line operation by a whole set of treatment facility then, and troublesome poeration is handled in letter sorting, influence the process of entire process operation; And the treatment facility of existing building rubbish only adopts the one-level fragmentation usually, and fragmentation is not thorough, and the application of the renewable building aggregate that processes is restricted; The separator of using in treatment facility to foreign material mainly is that magnetic separator is set on conveyer, cost height not only, and can only separate the metal species material, separating effect is undesirable, influences the purity of regenerated building aggregate.In addition; when equipment is installed; in the floor projection; the length direction of the discharge gate of general disintegrating machine and vertical setting of mass transport direction of conveyer; and owing to contain a large amount of big reinforcing bars, iron block, wooden unit etc. in the building waste, or broken back building waste is longer and narrower, and above-mentioned installation site relation is unfavorable for the conveying of building waste; make the discharge gate jam of disintegrating machine through regular meeting, influence the normal use of disintegrating machine and the treatment progress of integral device.
Summary of the invention
Technical problem to be solved in the utility model is: a kind of building waste Integrated Processing Unit is provided, saved land resource, alleviated environmental pollution, overcome the defective of prior art, can handle building waste continuously automatically, equipment cost is low, simple to operate, recruitment is few, production efficiency height not only, and the renewable building aggregate quality height of producing, applied range, income height.
For solving the problems of the technologies described above, the technical solution of the utility model is: the building waste Integrated Processing Unit, comprise the one-level breaker, described one-level breaker comprises drawing-in device and one-level disintegrating machine, direction of transfer along material, described one-level breaker comprises that also linking is arranged at the sorting equipment in described one-level disintegrating machine downstream, is connected in the downstream of described sorting equipment to be provided with the two-stage crushing device.
As a kind of optimized technical scheme, described sorting equipment comprises primary conveyor and is connected the one-level vibratory sieve of the material output be arranged at described primary conveyor, and described one-level vibratory sieve comprises supports, is arranged at the feeding groove in the described support and is fixedly set in compass screen surface above the described feeding groove by fork is hinged.
As a kind of optimized technical scheme, described one-level disintegrating machine is a jaw crusher, and in floor projection, the length direction of the discharge gate of described jaw crusher is consistent with the mass transport direction of described primary conveyor.
As a kind of optimized technical scheme, along the direction of transfer of material, described two-stage crushing device comprises one-level concentration equipment, secondary breaker, secondary magnetic separation device and first grading oscillating screen that is connected setting successively.
As a kind of optimized technical scheme, described one-level concentration equipment and described secondary magnetic separation device include the two-stage conveying machine, described two-stage conveying machine comprise first roller, second roller and be surrounded on described first roller and described second roller on conveyer belt, described second roller is positioned at the material output of described two-stage conveying machine, and described second roller is provided with magnetic and inhales the iron device.
As a kind of optimized technical scheme, described second roller comprises roller axle and the roller body that is set on the described roller axle, and described magnetic is inhaled the iron device and comprised the magnet that is arranged at described roller body inside.
As a kind of optimized technical scheme, be disposed with fixed head in the internal circumferential of described roller body, be provided with dividing plate at described fixed head near a side of described roller body inwall, described magnet is fixed on the described dividing plate and with described roller body inwall and reclines.
As a kind of optimized technical scheme, described secondary breaker is hammer mill or impact breaker.
As a kind of optimized technical scheme, direction of transfer along material, described building waste Integrated Processing Unit also comprises three grades of breakers that are arranged at described two-stage crushing device downstream, and described three grades of breakers comprise successively and to be connected three grades of feeding conveyors being provided with, tertiary crusher, three grades of outfeed belt conveyors and second grading oscillating screen.
As a kind of optimized technical scheme, described tertiary crusher is a double-roll crusher.
After having adopted technique scheme, the beneficial effects of the utility model are:
1. use the utility model to carry out building waste and handle, saved land resource, alleviated pollution environment; Cost of material is low, and the renewable building aggregate of producing can be used for building materials such as production building block or decorative block, the product strength height, and quality is good, the economic benefit height.
2. the building waste material need not sort, can be directly broken, no matter great reinforced concrete block, stone, floor etc. all can directly be pulverized, having saved the preceding letter sorting of break process handles, through directly going out final products behind the Integrated Processing Unit, the entire process device is simple to operate, recruitment is few, treating capacity is big, efficient is high after feeding of building waste raw material; Low, easy to operate, the easy-maintaining of the utility model independent research cost rational in infrastructure.
3. the utility model has adopted three grades of breakers, through behind the two-stage crushing, the building aggregate of the first grading oscillating screen screening place different-grain diameter, for wherein coarse aggregate as required, can proceed break process through three grades of breakers again, to satisfy the practical application needs.The utility model is thoroughly broken, and the renewable building aggregate of producing all can reach instructions for use, applied range.
4. because in the utility model one-level breaker, the one-level disintegrating machine adopts jaw crusher, and close the installation site of jaw crusher and primary conveyor: in floor projection, the length direction of the discharge gate of jaw crusher is consistent with the mass transport direction of primary conveyor.Adopt said structure, help the smooth delivery of power of the longer and narrower stone that contains in the building waste after the fragmentation, big reinforcing bar, iron block, wooden unit etc., be difficult for stopping up discharge gate, improved the processing speed of processing horizontal and equipment greatly.
5. the utility model is provided with sorting equipment between one-level disintegrating machine and two-stage crushing device, this sorting equipment comprises primary conveyor and the one-level vibratory sieve that is connected mutually, building waste after the one-level fragmentation is sent into the one-level vibratory sieve by primary conveyor, feeding groove and compass screen surface are done directional swing, big reinforcing bar in the building waste after the one-level fragmentation, wood chip and other foreign material sift out by compass screen surface, be convenient to the workman and choose rejecting, and the sieve aperture of reproducible building aggregate by compass screen surface drains in the feeding groove, vibration output enters into the two-stage crushing device then, said structure can make secondary breaker be difficult for having been avoided the maintenance of stopping work by big foreign material obstruction, improved production efficiency, the degree of purity of the renewable building aggregate after also having guaranteed simultaneously to handle makes it be easy to more use.
6. the utility model is after sorting equipment, before the secondary breaker, after be respectively arranged with one-level concentration equipment and secondary magnetic separation device, before the two-stage crushing, broken building waste after sorting equipment letter sorting outputs on the two-stage conveying machine in the one-level concentration equipment and carries, when being transported to the terminal second roller place, inhale in magnetic under the magnetic action of iron device, reinforcing bar wherein, metal species foreign material such as iron block are attracted on the conveyer belt of the second roller outside, after this part conveyer belt turns over second roller, magnetic disappears, the metal species foreign material drop, and then sorted out, through after the two-stage crushing, under the effect of secondary magnetic separation device, carry out a magnetic separation again.The utility model concentration equipment is simple in structure, cost of manufacture is low, and result of use is good, and is effective to the magnetic separation of metal species foreign material, improved the purity of final discharging.
Description of drawings
Below in conjunction with drawings and Examples the utility model is further specified.

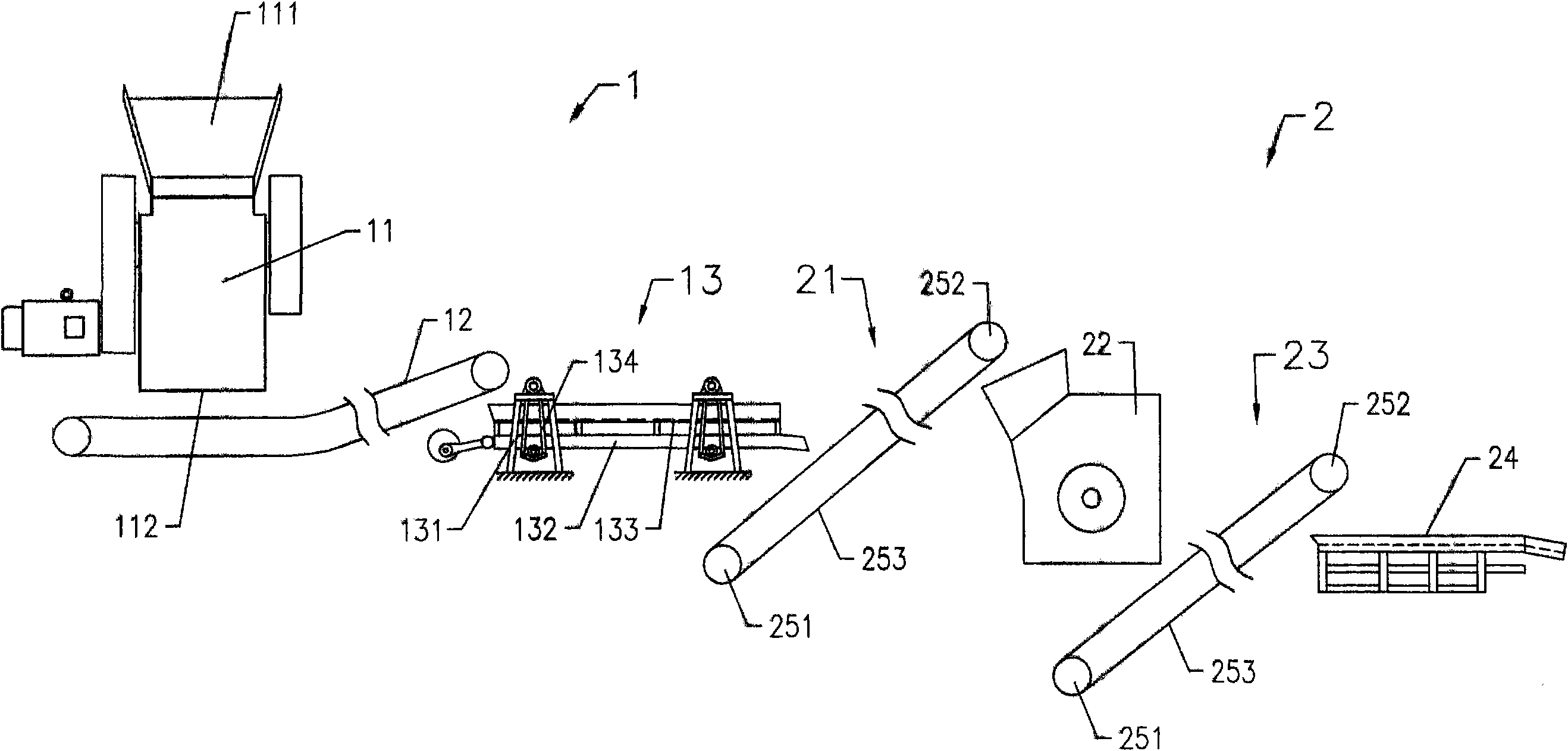

Fig. 1 is the structural representation of one-level breaker and two-stage crushing device among the utility model embodiment;
Fig. 2 is the structural representation of three grades of breakers among the utility model embodiment;
Fig. 3 is that the discharge gate of one-level disintegrating machine among the utility model embodiment and the position of primary conveyor concern schematic diagram;
Fig. 4 is the axial cutaway view of second roller among the utility model embodiment;
Fig. 5 is the transverse sectional view of second roller among the utility model embodiment.
Among the figure: 1. one-level breaker, 11. one-level disintegrating machines, 111. spouts, 112. discharge gate, 12. primary conveyor, 13. one-level vibratory sieves, 131. support 132. feeding grooves, 133. compass screen surfaces, 134. fork, 2. two-stage crushing device, 21. one-level concentration equipments, 22. secondary breaker, 23. secondary magnetic separation devices, 24. first grading oscillating screens, 251 first rollers, 252. second rollers, 2521. roller axles, 2522. roller body, 2523. magnets, 2524. fixed heads, 2525. dividing plate, 253. conveyer belts, 3. three grades of breakers, 31. three grades of feeding conveyors, 32. tertiary crusher, 33. 3 grades of outfeed belt conveyors, 34. second grading oscillating screens.
The specific embodiment
Shown in Fig. 1 and Fig. 2 are common, a kind of building waste Integrated Processing Unit.
As shown in Figure 1, this building waste Integrated Processing Unit, comprise one-level breaker 1, described one-level breaker 1 comprises drawing-in device and one-level disintegrating machine 11, wherein, drawing-in device is the spout 111 that is obliquely installed on one-level disintegrating machine 11, these one-level disintegrating machine 11 preferential jaw crushers that adopt, can broken bigger building waste, and the regeneration aggregate fineness ratio after the fragmentation is more even.Direction of transfer along material, described one-level breaker 1 comprises that also linking is arranged at the sorting equipment in one-level disintegrating machine 11 downstreams, described sorting equipment comprises primary conveyor 12 and is connected the one-level vibratory sieve 13 of the material output that is arranged at primary conveyor 12, this one-level vibratory sieve comprise support 131, by the fork 134 hinged compass screen surfaces 133 that support the feeding groove 132 on 131 and be fixedly set in feeding groove 132 tops that are arranged at.As shown in Figure 3, close the installation site of jaw crusher and primary conveyor 12: in floor projection, the length direction of the discharge gate 112 of jaw crusher is consistent with the mass transport direction of primary conveyor 12, adopt said structure, the smooth delivery of power that helps the longer and narrower stone that contains in the building waste after the one-level fragmentation, big reinforcing bar, iron block, wooden unit etc., be difficult for stopping up discharge gate, improved the processing speed of processing horizontal and equipment greatly.
Along the direction of transfer of material, be provided with two-stage crushing device 2 in the linking of the downstream of sorting equipment.Along the direction of transfer of material, described two-stage crushing device 2 comprises one-level concentration equipment 21, secondary breaker 22, secondary magnetic separation device 23 and first grading oscillating screen 24 that is connected setting successively.Wherein, described secondary breaker 22 preferential hammer mill or the impact breakers of adopting, pattern is high box, can add the bigger material of labor and materials body, breaking capacity is strong, the output height.One-level concentration equipment 21 and secondary magnetic separation device 23 include the two-stage conveying machine, described two-stage conveying machine comprises first roller 251, second roller 252 and is surrounded on conveyer belt 253 on two rollers, described second roller 252 is positioned at the material output of two-stage conveying machine, and second roller 252 is provided with magnetic and inhales the iron device.
Shown in Fig. 4 and Fig. 5 were common, in the present embodiment, second roller 252 comprised roller axle 2521 and is set in roller body 2522 on the roller axle 2521 that described magnetic is inhaled the iron device and comprised the magnet 2523 that is arranged at roller body 2522 inside.The concrete installation method of magnet 2523: the internal circumferential at roller body 2522 is disposed with fixed head 2524, side at fixed head 2524 close roller body 2522 inwalls is provided with dividing plate 2525, and described magnet is fixed on the dividing plate 2525 and with roller body 2522 inwalls and reclines.
As shown in Figure 3, direction of transfer along material, described building waste Integrated Processing Unit also comprises three grades of breakers 3 that are arranged at two-stage crushing device 2 downstreams, and described three grades of breakers 3 comprise successively and to be connected three grades of feeding conveyors 31 being provided with, tertiary crusher 32, three grades of outfeed belt conveyors 33 and second grading oscillating screens 34.Wherein: the described tertiary crusher 32 preferential double-roll crushers that adopt, material feeds from two rollers top, is extruded roller and brings into continuously between roller, be subjected to the high pressure effect of 50-200MPa after, discharge down with desirable granularity slave.
The course of work of the present utility model:
1. building waste is entered by spout 111 and carries out the fragmentation first time in the one-level disintegrating machine 11, enter sorting equipment by discharge gate 112 outputs then, be transported to one-level vibratory sieve 13 through one-level outfeed belt conveyor 12, big reinforcing bar, wood chip and other foreign material sift out by compass screen surface 133, be convenient to the workman and choose rejecting, and the sieve aperture of reproducible building aggregate by compass screen surface 133 drains in the feeding groove 132, vibration output enters into two-stage crushing device 2 then, this sorting equipment letter sorting is satisfactory for result, has guaranteed carrying out smoothly of subsequent processing;
2. the one-level concentration equipment 21 that enters in the two-stage crushing device 2 of the building waste of sorting equipment output carries out the one-level magnetic separation, at first, two-stage conveying machine in the one-level concentration equipment 21 is carried sorting the back building waste, when being transported to terminal second roller 252 places, inhale in magnetic under the magnetic action of iron device, reinforcing bar wherein, metal species foreign material such as iron block are attracted on the conveyer belt of second roller, 252 outsides, after this part conveyer belt turns over second roller 252, magnetic disappears, the metal species foreign material drop, and then sorted out, through after the two-stage crushing, under the effect of secondary magnetic separation device 23, carry out a magnetic separation again, at last, the building waste after the fragmentation for the second time is delivered to first grading oscillating screen 24 and sieves, and sieves out the regeneration aggregate of different-grain diameter.
3. if the coarse aggregate size that sieves out of first grading oscillating screen 24 can not directly use too greatly, then coarse aggregate being sent into tertiary crusher 32 by three grades of feeding conveyors 31 carries out broken for the third time, be sent to second grading oscillating screen, 34 gradation sizings through three grades of outfeed belt conveyors 33 then, make the stone or the stone flour that satisfy instructions for use.
The utility model in use, the original building refuse material need not sort, can be directly broken, no matter great reinforced concrete block, stone, floor etc. all can directly be pulverized, and the letter sorting of having saved before the break process is handled, and through directly going out final products behind the comprehensive treatment equipment, entire process equipment is simple to operate, recruitment is few, treating capacity is big, efficient is high after feeding of building waste raw material, and low, easy to operate, the easy-maintaining of the utility model independent research cost rational in infrastructure.
Use method for comprehensive treatment of construction refuse of the present invention that building waste is handled; can reach year processing building waste 3050 ten thousand steres; taking one mu of landfill according to per ten thousand tons of building wastes calculates; can save about 3050 mu of soil every year; replace fetching earth with the regenerated building aggregate; produce 3,050 ten thousand square metres of all kinds of building materials, year can be protected about 300500 mu of soil, saves mineral resources 2035 ten thousand steres.
Claims (10)
1. building waste Integrated Processing Unit, comprise the one-level breaker, described one-level breaker comprises drawing-in device and one-level disintegrating machine, it is characterized in that: along the direction of transfer of material, described one-level breaker comprises that also linking is arranged at the sorting equipment in described one-level disintegrating machine downstream, is connected in the downstream of described sorting equipment to be provided with the two-stage crushing device.
2. building waste Integrated Processing Unit as claimed in claim 1, it is characterized in that: described sorting equipment comprises primary conveyor and is connected the one-level vibratory sieve of the material output be arranged at described primary conveyor, and described one-level vibratory sieve comprises supports, is arranged at the feeding groove in the described support and is fixedly set in compass screen surface above the described feeding groove by fork is hinged.
3. building waste Integrated Processing Unit as claimed in claim 2, it is characterized in that: described one-level disintegrating machine is a jaw crusher, in floor projection, the length direction of the discharge gate of described jaw crusher is consistent with the mass transport direction of described primary conveyor.
4. building waste Integrated Processing Unit as claimed in claim 1 is characterized in that: along the direction of transfer of material, described two-stage crushing device comprises one-level concentration equipment, secondary breaker, secondary magnetic separation device and first grading oscillating screen that is connected setting successively.
5. building waste Integrated Processing Unit as claimed in claim 4, it is characterized in that: described one-level concentration equipment and described secondary magnetic separation device include the two-stage conveying machine, described two-stage conveying machine comprise first roller, second roller and be surrounded on described first roller and described second roller on conveyer belt, described second roller is positioned at the material output of described two-stage conveying machine, and described second roller is provided with magnetic and inhales the iron device.
6. building waste Integrated Processing Unit as claimed in claim 5 is characterized in that: described second roller comprises roller axle and the roller body that is set on the described roller axle, and described magnetic is inhaled the iron device and comprised the magnet that is arranged at described roller body inside.
7. building waste Integrated Processing Unit as claimed in claim 6, it is characterized in that: the internal circumferential at described roller body is disposed with fixed head, side at the close described roller body inwall of described fixed head is provided with dividing plate, and described magnet is fixed on the described dividing plate and with described roller body inwall and reclines.
8. building waste Integrated Processing Unit as claimed in claim 4 is characterized in that: described secondary breaker is hammer mill or impact breaker.
9. as the described building waste Integrated Processing Unit of the arbitrary claim of claim 1 to 8, it is characterized in that: along the direction of transfer of material, described building waste Integrated Processing Unit also comprises three grades of breakers that are arranged at described two-stage crushing device downstream, and described three grades of breakers comprise successively and to be connected three grades of feeding conveyors being provided with, tertiary crusher, three grades of outfeed belt conveyors and second grading oscillating screen.
10. building waste Integrated Processing Unit as claimed in claim 9 is characterized in that: described tertiary crusher is a double-roll crusher.
