CN201797055U - Long-service life grounding net of high-voltage cable - Google Patents
Long-service life grounding net of high-voltage cable Download PDFInfo
- Publication number
- CN201797055U CN201797055U CN2010205301816U CN201020530181U CN201797055U CN 201797055 U CN201797055 U CN 201797055U CN 2010205301816 U CN2010205301816 U CN 2010205301816U CN 201020530181 U CN201020530181 U CN 201020530181U CN 201797055 U CN201797055 U CN 201797055U
- Authority
- CN
- China
- Prior art keywords
- frame
- copper bar
- grid
- pipe joint
- welding
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
Images
Landscapes
- Suspension Of Electric Lines Or Cables (AREA)
Abstract
本实用新型公开了一种高压电缆长寿命接地网，其网架上设置有导电引出线和导电接地极，所述网架由环形边框和网格状中间框架连接而成，所述环形边框由铜条环绕连接而成，其断头处插接在管接头中并焊接固定，所述网格状中间框架由铜条交叉连接而成，铜条交叉处的断头插接在管接头中并焊接固定，所述网格状中间框架与所述环形边框通过管接头插接且焊接固定。所述铜条的截面形状为圆形或长方形。本实用新型采用铜条制作接地网，其使用寿命可达到30-60年，完全满足变电站运行时间的要求，极大的保证了电网的安全可靠运行，同时达到免维护的要求。
The utility model discloses a long-life grounding network for high-voltage cables. Conductive lead-out lines and conductive grounding electrodes are arranged on the network frame. The network frame is formed by connecting an annular frame and a grid-shaped intermediate frame. The copper strips are connected around and connected, and the broken ends are inserted into the pipe joints and fixed by welding. The grid-shaped intermediate frame is formed by cross-connecting copper strips, and the broken ends of the copper strips are inserted into the pipe joints and fixed. Welding and fixing, the grid-shaped middle frame and the annular frame are plugged and welded through pipe joints. The cross-sectional shape of the copper strip is circular or rectangular. The utility model uses copper strips to make the grounding grid, and its service life can reach 30-60 years, which fully meets the requirements of the running time of the substation, greatly ensures the safe and reliable operation of the power grid, and at the same time meets the requirements of maintenance-free.
Description
One, technical field: the utility model relates to a kind of cable grounding net, particularly relates to a kind of high-tension cable long-life ground network.
Two. background technology: along with rapid economy development, people more and more pay attention to the living environment of self, the application of various electrical equipment is more and more wider, thereby network load increases year by year, in addition, in order to improve the degree of beautifying in city, the overhead transmission line in city is progressively replaced by underground cable, forms concealed wire and arranges.In order to guarantee cable running safety; avoid harm that cable is struck by lightning and the people's life safety in the protection circuit zone; high-tension cable all will be provided with earthing device; but in the operation maintenance of cable, find; when the high-tension cable in the bustling downtown area that is laid in is carried out regular ground connection excavation and measures junction resistance; because it is many to examine the government department of agreeing excavation; the time of examining is long; and digging process to influence the city attractive in appearance; also may cause road traffic to block; the feasible defective that can not in time find ground network; threaten for the safe operation of electrical network; while is also caused the certain social economic loss, therefore improves the useful life of ground network and reach non-maintaining to be of great practical significance.
Three. the utility model content:
Technical problem to be solved in the utility model is: overcome the deficiencies in the prior art, provide that a kind of simple in structure, grounding safety is reliable, long service life and non-maintaining high-tension cable long-life ground network.
The technical solution of the utility model is: a kind of high-tension cable long-life ground network, contain rack, described rack is provided with the conduction lead-out wire and the conductive earthing utmost point, described rack is formed by connecting by annular peripheral frame and latticed central frame, described annular peripheral frame by copper bar around being formed by connecting, its broken end place is plugged in the pipe joint and welding is fixed, described latticed central frame is formed by the copper bar interconnection, the broken end of copper bar infall is plugged in the pipe joint and welding is fixed, and described latticed central frame and described annular peripheral frame are pegged graft by pipe joint and welded fixing.
The cross sectional shape of described copper bar is circle or rectangle.Described pipe joint is two pass joints, or is three-way connection, or is geneva cross.
The beneficial effects of the utility model are:
1, the utility model adopts copper bar to make ground network, its long service life, the one, because copper is not the active metal, be difficult for being corroded, the 2nd, copper can produce the very strong oxide of a kind of adhesive force---verdigris, the formation that this oxide plays blocking-up and delays to corrode on the surface of copper in by the process of soil corrosion, can reach 30-60 its useful life, satisfy the requirement of substation operation time fully, guaranteed the safe and reliable operation of electrical network greatly, reach non-maintaining requirement simultaneously.
2, the utility model is made of annular peripheral frame and latticed central frame, and its broken end place adopts elbow, three-way connection or geneva cross to peg graft, and welding is fixing, is connected firmly, and ground connection is effective.
3, the utility model is chosen circle or rectangle copper bar making ground network according to the voltage height and the diameter of cable, and amount just is suitable for, and controls cost.
4, the utility model is simple in structure, grounding safety is reliable, long service life and non-maintaining, and it is applied widely, has good economic benefit after the popularization.
Four. description of drawings:

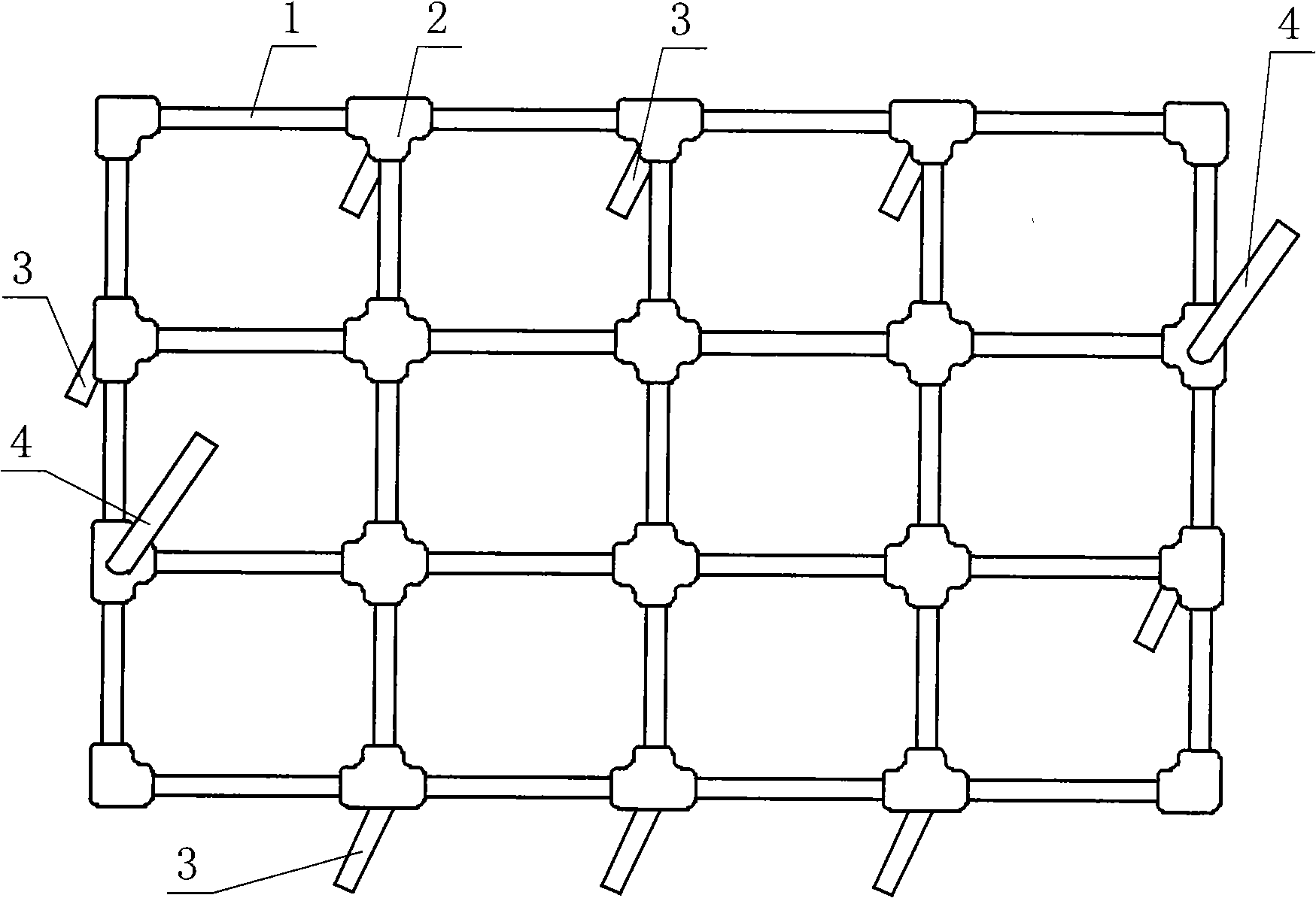

Fig. 1 is a structural representation of the present utility model;
Fig. 2 is one of cross sectional shape of copper bar among Fig. 1;
Fig. 3 be copper bar among Fig. 1 cross sectional shape two.
Five. embodiment:
Embodiment: referring to Fig. 1-Fig. 3, among the figure, 1-copper bar, 2-pipe joint, the 3-conductive earthing utmost point, 4-conduct electricity lead-out wire.
High-tension cable long-life ground network contains rack, rack is provided with the conduction lead-out wire 4 and the conductive earthing utmost point 3, conduction lead-out wire 4 is connected with high-tension cable, the conductive earthing utmost point 3 contacts with the earth, rack is formed by connecting by annular peripheral frame and latticed central frame, annular peripheral frame by copper bar 1 around being formed by connecting, its broken end place is plugged in the pipe joint 2 and welding is fixed, latticed central frame is formed by copper bar 1 interconnection, the broken end of copper bar 1 infall is plugged in the pipe joint 2 and welding is fixed, and latticed central frame and annular peripheral frame are fixing by pipe joint 2 grafting and welding.
The cross sectional shape of copper bar 1 is circle or rectangle, determines as required.Pipe joint 2 is two pass joints, or is three-way connection, or is geneva cross, and it specifically is provided with referring to Fig. 1.
Claims (3)
1. high-tension cable long-life ground network, contain rack, described rack is provided with the conduction lead-out wire and the conductive earthing utmost point, it is characterized in that: described rack is formed by connecting by annular peripheral frame and latticed central frame, described annular peripheral frame by copper bar around being formed by connecting, its broken end place is plugged in the pipe joint and welding is fixed, described latticed central frame is formed by the copper bar interconnection, the broken end of copper bar infall is plugged in the pipe joint and welding is fixed, and described latticed central frame and described annular peripheral frame are pegged graft by pipe joint and welded fixing.
2. high-tension cable long-life ground network according to claim 1 is characterized in that: the cross sectional shape of described copper bar is circle or rectangle.
3. high-tension cable long-life ground network according to claim 1 and 2 is characterized in that: described pipe joint is two pass joints, or is three-way connection, or is geneva cross.
