The utility model creatively discloses an anhydrous ecological ceramic closestool comprising a ceramic shell (1), a mixing chamber (3), a heating chamber (2), a motor (8) and an electric control device (11), wherein a closestool mouth (4) is arranged above the ceramic shell (1); the mixing chamber (3) is fixedly installed above a cavity of the ceramic shell (1) and corresponds to the closestool mouth (4); the heating chamber (2) is fixedly installed below the mixing chamber (3); the mixing chamber (3) is internally provided with a helical agitator (5); the heating chamber (2) is internally provided with a heater (7); the ceramic shell (1) is provided with the motor (8) that is connected with the agitator (5) through a transmission mechanism (9); and the mixing chamber (3) is internally provided with a microorganism filler (6). The adoption of the structure solves the defect that the existing closestool needs to be flushed by water. The anhydrous ecological ceramic closestool has the advantages of simple and reasonable structure, convenient use, quick and complete decomposition, few residues and the like.
Description
Technical field
The invention relates to a kind of toilet, particularly a kind of toilet that adopts the microorganism decomposition to need not the water flushing.
Background technology
China is the very deficient country of water resource, owing to be subjected to the day by day deficient influence of water resource, the preview of lack of water phenomenon is strong in advance.And in family's daily water consumption, except the daily life water, toilet seat closet water portion is bigger, with the average family is example, the water yield that was used to wash toilet in every month about about 1.5 tons to 2.5 tons, accounts for 1/4th to 1/2nd of family's total water amount greatly, so, carry out the toilet water conservation, benefit the nation and the people.But conventional at present toilet uses and once needs about six kilograms of water consumptions, and the toilet of economizing on water most uses once and also needs about three kilograms, and the toilet water consumption is still bigger; Next is that the ight soil processing is unsatisfactory always, is to focus on septic tank to handle at present, again by the sewage pipe discharging, stops up if cause septic tank and sewage pipe after the processing, also easily environment is polluted.For this reason, many manufacturers and knowledgeable people have carried out R and D, do not solve the problems referred to above but have than reasonable approach as yet so far.
Summary of the invention
In order to overcome the above-mentioned disadvantage that existing toilet exists, the purpose of the invention provides a kind of simple and reasonable, easy to operate, waterless ecological ceramic toilet that the ight soil direct purification can be decomposed.
The invention solves the technical scheme that its technical problem adopts, it comprises ceramic shell, teeter chamber, heating clamber, motor, electric control gear, the top of ceramic shell is provided with the toilet mouth, described teeter chamber is fixedly mounted on the chamber top of ceramic shell and corresponding with the toilet mouth, heating clamber is fixedly mounted on the below of teeter chamber, be provided with spiral helicine agitator in the teeter chamber, heater is installed in the heating clamber, motor is installed on the ceramic shell, motor is connected with agitator by transmission mechanism, is provided with microbe stuffing in the teeter chamber.
The top of described ceramic shell connects the exhaust passage that communicates with the teeter chamber, and the last exhaust outlet of exhaust passage links to each other with atmosphere.
The bottom of described teeter chamber is the cavity of semicircle shape, and heating clamber is equipped with heat-conducting medium for falling trapezoidal shape and constitute airtight cavity with the teeter chamber in this airtight cavity.
Described teeter chamber and agitator and heating clamber are made by stainless steel material.
Described toilet mouth is made by pottery or stainless steel material.
After adopting said structure, the invention has following advantage and effect: the one, and ight soil stirs with microbe stuffing after directly entering the teeter chamber, under the microbe stuffing effect, be decomposed into steam, carbon dioxide and the residue in a small amount of odorless, tasteless, steam and carbon dioxide enter atmosphere, residue is good high-efficiency organic fertilizer, need not the water flushing and just ight soil can be decomposed, not only the conserve water resource, and reduced sewage discharge and processing, stopped pollution from the source; The 2nd, heating clamber passes through heater automatically to the microbe stuffing heating, makes microbe stuffing remain capacity of decomposition preferably, accelerates the decomposition rate of ight soil.
Description of drawings

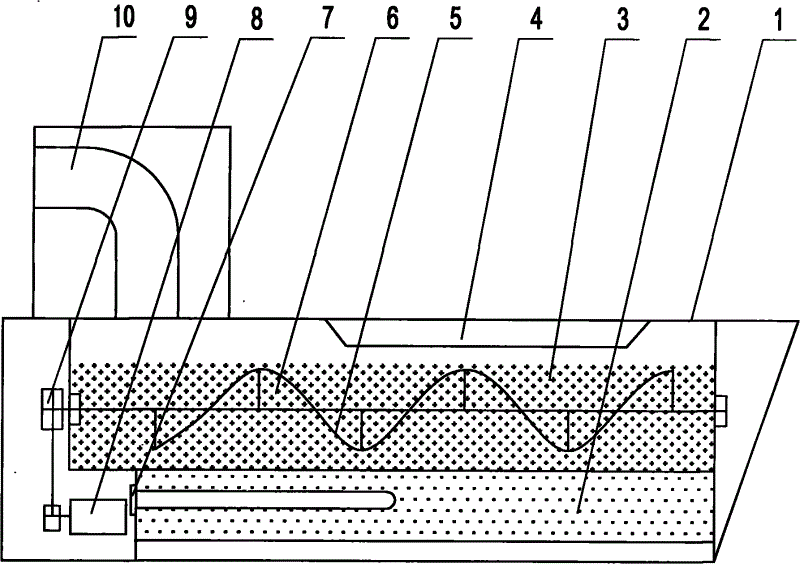

Fig. 1 is the structural representation of the invention.
Fig. 2 is the side structure schematic diagram of the invention.
The specific embodiment
Illustrated in figures 1 and 2, specific embodiments for the invention waterless ecological ceramic toilet, it comprises ceramic shell 1, teeter chamber 3, heating clamber 2, motor 8, electric control gear 11, the top of ceramic shell 1 is provided with toilet mouth 4, described teeter chamber 3 is fixedly mounted on the chamber top of ceramic shell 1 and corresponding with toilet mouth 4, heating clamber 2 is fixedly mounted on the below of teeter chamber 3, be provided with spiral helicine agitator 5 in the teeter chamber 3, heater 7 is installed in the heating clamber 2, motor 8 is installed on the ceramic shell 1, motor 8 is connected with agitator 5 by transmission mechanism 9, is provided with microbe stuffing 6 in the teeter chamber 3.The top of described ceramic shell 1 connects the exhaust passage 10 that communicates with teeter chamber 3, and the last exhaust outlet of exhaust passage 10 links to each other with atmosphere.The bottom of described teeter chamber 3 is the cavity of semicircle shape, and heating clamber 2 is equipped with heat-conducting medium for falling trapezoidal shape and constitute airtight cavity with teeter chamber 3 in this airtight cavity, and heat-conducting medium can be conduction oil or water or other heat-conducting medium.Described teeter chamber 3 and agitator 5 and heating clamber 2 are made by stainless steel material, in the teeter chamber 3 and heating clamber 2 around be provided with insulation material.Described toilet mouth 4 is made by pottery or stainless steel material.
When the invention is used, electric control gear 11 auto controlled heaters 7 are controlled at the temperature of teeter chamber 3 and heating clamber 2 in certain scope, after ight soil enters teeter chamber 3, motor 8 drives and spiral helicine agitator 5 rotations by transmission mechanism 9, the microbe stuffing 6 of ight soil in teeter chamber 3 stirs and produces degradation reaction, ight soil is decomposed into the steam of odorless, tasteless under microbe stuffing 6 effects, carbon dioxide and residue in a small amount, steam and carbon dioxide 10 are discharged from last exhaust outlet through the exhaust passage, residue is stayed in the microbe stuffing 6 in a small amount, like this, need not the water flushing just can decompose ight soil, conserve water resource not only, and reduced sewage discharge and processing.Stay the residue and the microbe stuffing 6 of teeter chamber 3, according to the situation of accumulating or regularly carry out can continuing after the some or all of replacing to use, residue that changes and microbe stuffing 6 can be used as high-quality and efficient organic fertilizer and use.
Claims (5)
1. waterless ecological ceramic toilet, comprise ceramic shell (1), teeter chamber (3), heating clamber (2), motor (8), electric control gear (11), the top of ceramic shell (1) is provided with toilet mouth (4), it is characterized in that: described teeter chamber (3) are fixedly mounted on the chamber top of ceramic shell (1) and corresponding with toilet mouth (4), heating clamber (2) is fixedly mounted on the below of teeter chamber (3), be provided with spiral helicine agitator (5) in the teeter chamber (3), heater (7) is installed in the heating clamber (2), motor (8) is installed on the ceramic shell (1), motor (8) is connected with agitator (5) by transmission mechanism (9), is provided with microbe stuffing (6) in teeter chamber (3).
2. waterless ecological ceramic toilet according to claim 1 is characterized in that:
The top of described ceramic shell (1) connects the exhaust passage (10) that communicates with teeter chamber (3), and the last exhaust outlet of exhaust passage (10) links to each other with atmosphere.
3. waterless ecological ceramic toilet according to claim 1 and 2, it is characterized in that: the bottom of described teeter chamber (3) is the cavity of semicircle shape, heating clamber (2) is equipped with heat-conducting medium for falling trapezoidal shape and constitute airtight cavity with teeter chamber (3) in this airtight cavity.
4. waterless ecological ceramic toilet according to claim 3 is characterized in that: described teeter chamber (3) and agitator (5) and heating clamber (2) are made by stainless steel material.
5. waterless ecological ceramic toilet according to claim 4 is characterized in that: described toilet mouth (4) is made by pottery or stainless steel material.
