An energy-saving environment-friendly high temperature jet type hot blast stove relates to heating production equipment of tea, medicine, chemical, food and the like for use with an industrial production line. The hot blast stove comprises a stove body connected with a waste heat recycler connected with a settling water bath dust removing tank, a smoke outlet of the stove body is connected with a smoke conveying pipe connected with a smoke discharge passage of the waste heat recycler, a smoke outlet pipe of the waste recycler is connected with a chimney, and the chimney is connected with the settling water bath dust removing tank. The hot blast stove can cool daily exhausted flue gas from about 400 DGE C to about 100 DEG C-130 DEG C, reduces heat pollution, and increases heat efficiency, a stove core of the stove body is provided with a jet ring speeding up heat exchange of air, such as convection and transmission, a particle settling chamber of the settling water bath dust removing tank can triply settle particles above 40 micrometers and discharge the particles out of a flue, and the particles are drained after settling treatment of a water bath chamber.
Description
Technical field
Energy-conserving and environment-protective high temperature jet flow hot-blast stove of the present utility model relates to the heating production equipment with the matching used tealeaves of industrial production line, medicine, chemical industry, food etc., and output temperature can reach 280-380 ℃.
Background technology
Hot-blast stove uses more extensive on market, but solve high temperature output, satisfy the industrial production needs, be still a knotty problem that everybody probes into, as the FP14 high temperature furnace, its heat conversion is reasonable inadequately, the waste heat that flue gas is taken away is about 300-400 ℃, and it has wasted resource, and a large amount of utilized thermals source has scattered and disappeared, environmental protection has been caused thermal pollution, be unworthy advocating.
Summary of the invention
The utility model and a kind of high temperature jet flow hot-blast stove of energy-conserving and environment-protective is provided.
The utility model is achieved by the following technical solution: it comprises: waste-heat recoverer, send smoke pipe, pipe, chimney support, chimney, sedimentation water bath dust-removing pond, draw the cigarette motor, draw the cigarette blower fan, body of heater, accent airduct, air-introduced machine, induced duct, body of heater blast pipe, warm-air pipe form, wherein said body of heater is made up of fire door, chassis, housing, combustion chamber, jet flow ring, combustion-supporting air port, air channel, flue, expansion loop, body of heater air inlet, outlet flue, hot-blast outlet, grate, refractory brick, base etc.; Described waste-heat recoverer is made up of lower flue, upper flue, lower air duct, upper air duct, backflow storehouse, air channel, flue backflow storehouse etc.
Described hot-blast stove connects waste-heat recoverer by body of heater, and waste-heat recoverer connects sedimentation water bath dust-removing pond and constitutes; Smoke pipe is sent in the outlet flue connection of body of heater, send smoke pipe to be connected with the lower flue of waste-heat recoverer, and the pipe of waste-heat recoverer is connected with chimney, and chimney is connected with sedimentation water bath dust-removing pond;
Described body of heater is by fire door, chassis, housing, combustion chamber, and air channel, flue constitute, and grate is located in the combustion chamber, and the jet flow ring is located at the outside of combustion chamber, is provided with flue between jet flow ring and air channel; The chassis is provided with cigarette ring and hot blast ring; Described cigarette ring is connected with outlet flue, and described hot blast ring is connected with hot-blast outlet; Outlet flue is connected with sending smoke pipe; Hot-blast outlet is connected with warm-air pipe; Housing is located at outermost layer; The front and back of grate become 180 degree to be provided with fire door and hot-blast outlet, and outlet flue is located under the hot-blast outlet; The body of heater air inlet is located at a side of base of furnace body;
Combustion chamber and flue connection are provided with expansion loop;
Described waste-heat recoverer is provided with two-layer up and down, is provided with smoke backflow storehouse and air backflow storehouse in levels intersection.
The utility model combustion chamber top is provided with four expansion loops and solves combustion chamber because of the compensation of thermal expansion to its fit dimension restriction.Waste-heat recoverer, the mode of employing shell and tube waste heat conduction carry out waste heat recovery.Waste-heat recoverer comprises lower flue and upper flue, and flue gas enters upper flue from lower flue through flue backflow storehouse; Cold wind enters upper air duct by lower air duct and carries out heat exchange through backflow storehouse, air channel.Waste-heat recoverer can be reduced to about 400 ℃ flue gas of daily discharge about 100 ℃-130 ℃, has reduced thermal pollution, has done the thermal efficiency high.The combustion chamber of body of heater is provided with the jet flow ring, makes air be quickened heat exchange, as convection current and conduction.Jet flow is equipped with countless a plurality of apertures and conveniently carries out heat exchange, and the breach that is provided with symmetry in jet flow ring bottom converges to make things convenient for hot-air.Adopt high temperature place injection heat transfer, low temperature place heat convection makes design more reasonable, and the thermal efficiency is higher.Sedimentation water bath dust-removing pond is furnished with a material expansion chamber, more than 40 μ material can be discharged flue after three sedimentations, discharges through water-bath chamber precipitation process again.
Description of drawings

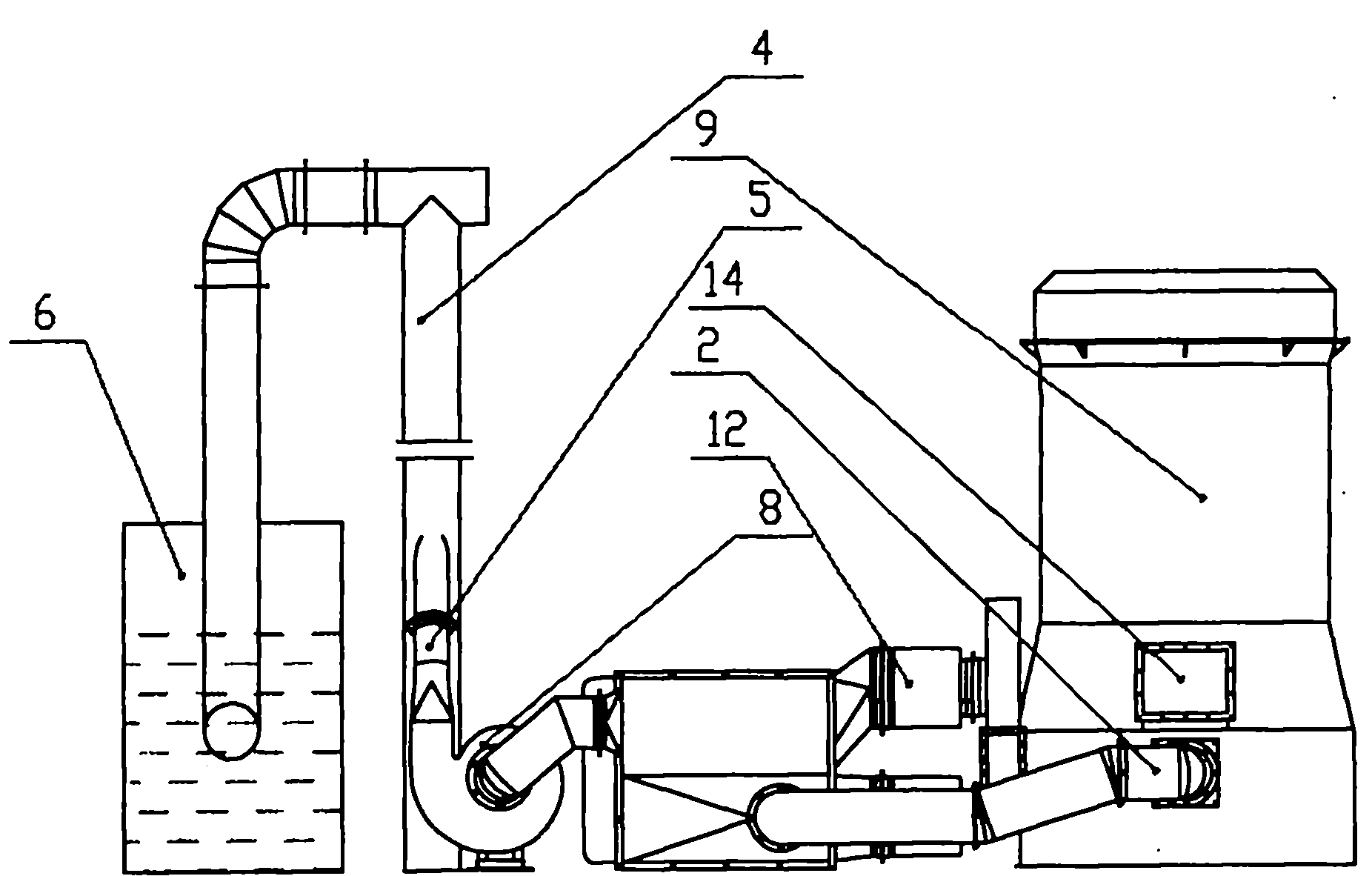

Fig. 1 is a front view of the present utility model;
Fig. 2 is a vertical view of the present utility model;
Fig. 3 is a rearview of the present utility model;
Fig. 4 is the utility model body of heater master cutaway view;
Fig. 5 is the A-A cutaway view of the utility model body of heater;
Fig. 6 is the B-B cutaway view of the utility model body of heater;
Fig. 7 is the C-C cutaway view of the utility model body of heater;
Fig. 8 is the expansion part drawing of the utility model jet flow ring;
Fig. 9 is the utility model waste-heat recoverer master cutaway view;
Figure 10 is the utility model waste-heat recoverer D-D cutaway view;
Figure 11 is the utility model sedimentation water bath dust-removing pond master's cutaway view.
The specific embodiment
Below by embodiment, and in conjunction with the accompanying drawings, the technical solution of the utility model is described in further detail.
Embodiment 1: as Fig. 1, Fig. 2, Fig. 3, Fig. 4, Fig. 6, Fig. 9, Figure 10, shown in Figure 11, the utility model mainly comprises waste-heat recoverer 1, send smoke pipe 2, pipe 3, chimney support 4, chimney 5, sedimentation water bath dust-removing pond 6, draws cigarette motor 7, draws cigarette blower fan 8, body of heater 9, transfers airduct 10, air-introduced machine 11, induced duct 12, body of heater blast pipe 13, warm-air pipe 14.Described body of heater mainly comprises fire door 901, chassis 902, housing 903, combustion chamber 904, jet flow ring 905, combustion-supporting air port 906, air channel 907, flue 908, expansion loop 909, body of heater air inlet 910, outlet flue 911, grate 912, refractory brick 913, base 914, hot-blast outlet 915 etc.; Described waste-heat recoverer 1 comprises that mainly flue 101 comprises that lower flue 1011 and upper flue 1012, air channel 102 comprise lower air duct 1021 and upper air duct 1022, backflow storehouse, air channel 103, flue backflow storehouse 104; Described chassis 902 comprises cigarette ring 9021 and hot blast ring 9023.
The outlet flue 911 of described body of heater 9 links to each other with sending smoke pipe 2, and the body of heater air inlet 910 of body of heater 9 links to each other with air inlet 13.The described smoke pipe 2 and the lower flue 1011 of waste-heat recoverer 1 of sending joins, and the upper flue 1012 of waste-heat recoverer 1 is connected with pipe 3.Describedly draw cigarette motor 7 and draw cigarette blower fan 8 and be connected.The described cigarette blower fan electricity that draws is connected with pipe 3.Described pipe 3 is connected through chimney support 4 with chimney 5.Described chimney 5 joins with sedimentation dedusting pond.Described accent airduct 10 is connected with the lower air duct 1021 of waste-heat recoverer 1.The upper air duct 1021 of described waste-heat recoverer 1 is connected with body of heater blast pipe 13 through air-introduced machine 11.Described warm-air pipe 14 is connected with body of heater 9 hot blast air outlets 915.Described waste-heat recoverer 1 wind is two-layer up and down, and lower floor advances cold air and flue gas respectively, is provided with smoke backflow storehouse 104 and air backflow storehouse 103 at described flue gas and air levels intersection.Described body of heater 9 is to form like this, and described grate 912 is located in the combustion chamber 904, and described combustion chamber is mainly made by refractory brick 913 exotic materials such as grade.Described jet flow ring 905 is located at the outside of combustion chamber 904, and described flue 908 is located between jet flow ring 905 and the air channel 907.Described expansion loop 909 is located on the combustion chamber 904 and flue 908 connections, and cigarette compiles until chassis 902.Described chassis 902 is provided with cigarette ring 9021 and hot blast ring 9023.Described cigarette ring 9021 is connected with outlet flue 911, and described hot blast ring 9022 is connected with hot-blast outlet 915.Described outlet flue 911 with send smoke pipe 2 to be connected to carry out heat exchange until waste-heat recoverer 1.Described hot-blast outlet 915 is connected with warm-air pipe 14 and offers the object of required hot blast.Be located at outermost layer at described housing 903, completely cut off the heat exchange of outside air and furnace air.Become 180 degree to be provided with fire door 901 and hot-blast outlet 915 in the front and back of described grate 912, outlet flue is located under the hot-blast outlet.Described body of heater air inlet is located at a side of base of furnace body 914.
When the utility model uses, coal is entered by fire door 901, burning is on grate 912, the combustion chamber 904 that burnt heat, start air-introduced machine 11 and draw cigarette blower fan 8, air has entered accent airduct 10 under atmospheric effect, enter upper air duct 1022 by the lower air duct 1021 of transferring airduct 10 to enter waste-heat recoverer 1 through backflow storehouse, air channel 103, enter air channel 907 through air-introduced machine 11 from body of heater air inlet 910 bottoms by upper air duct 1022, air is mainly carrying out the conductive thermal exchange with flue 908 in the air channel, when air enter combustion chamber top 904 with and during expansion loop 909, air is walked downwards from jet flow ring 905, the limit is injected in is mainly carrying out the thermal convection current exchange between combustion chamber 904 and the flue 908, reach stone or metal plate for standing a stove on as a precaution against fire 902 places at the bottom of the last air and compile by warm-air pipe 14 discharge hot blasts.Help right air to see through grate 912 and enter combustion chamber 904 from bottom of furnace body, ginseng is extracted the cigarette ring 9021 that flow to chassis 902 through flue 908 release heat with inner flue gas of the stove out by expansion loop 909, lower flue 101 through sending smoke pipe 2 to deliver to waste-heat recoverer 1, passing lower flue 101 collects in the flue backflow storehouse 104, deliver to pipe 3 through upper flue again, be drawn to chimney 5 through drawing cigarette blower fan 8, handle by sedimentation water bath dust-removing pond 6 through the flue gas of chimney 5 and carry out draining into atmosphere after twice sedimentation slagging-off.
Energy-conserving and environment-protective high temperature jet flow hot-blast stove of the present utility model can provide 280 ℃ of-390 ℃ of needed temperature of food processing, flue gas through institute's discharged flue gas temperature after the waste heat recovery between 90 ℃-110 ℃.
Claims (4)
1. an energy-conserving and environment-protective high temperature jet flow hot-blast stove comprises and draws the cigarette motor, draws the cigarette blower fan, airduct, and smoke pipe is characterized in that described hot-blast stove connects waste-heat recoverer by body of heater, waste-heat recoverer connects sedimentation water bath dust-removing pond and constitutes; Smoke pipe is sent in the outlet flue connection of body of heater, send smoke pipe to be connected with the lower flue of waste-heat recoverer, and the pipe of waste-heat recoverer is connected with chimney, and chimney is connected with sedimentation water bath dust-removing pond.
2. a kind of energy-conserving and environment-protective high temperature jet flow hot-blast stove as claimed in claim 1, it is characterized in that described body of heater by fire door, chassis, housing, combustion chamber, air channel, flue constitute, and grate is located in the combustion chamber, the jet flow ring is located at the outside of combustion chamber, is provided with flue between jet flow ring and air channel; The chassis is provided with cigarette ring and hot blast ring; Described cigarette ring is connected with outlet flue, and described hot blast ring is connected with hot-blast outlet; Outlet flue is connected with sending smoke pipe; Hot-blast outlet is connected with warm-air pipe; Housing is located at outermost layer; The front and back of grate become 180 degree to be provided with fire door and hot-blast outlet, and outlet flue is located under the hot-blast outlet; The body of heater air inlet is located at a side of base of furnace body.
3. a kind of energy-conserving and environment-protective high temperature jet flow hot-blast stove as claimed in claim 2 is characterized in that being provided with expansion loop with the flue connection on the combustion chamber.
4. a kind of energy-conserving and environment-protective high temperature jet flow hot-blast stove as claimed in claim 1, it is two-layer up and down to it is characterized in that described described waste-heat recoverer is provided with, and is provided with smoke backflow storehouse and air backflow storehouse in levels intersection.
