Abstract

一种可发电的篮球架，包括：篮球架(1)，篮球架(1)的前面板上装有篮网架(2)，所述篮球架(1)的上面、两侧面及后面都装有太阳能电池板(3)。其优点是：白天可以利用太阳能发电并将电能储存在蓄电池中，夜间利用所储存的电能照明，这样可以节约不少电能资源，使篮球架能一物多用，保护环境可持续发展。

Figure 201020214944

A basketball hoop capable of generating electricity, comprising: a basketball hoop (1), a net rack (2) is installed on the front panel of the basketball hoop (1), and the basketball hoop (1) is equipped with Solar panels (3). Its advantages are: during the day, solar energy can be used to generate electricity and store the electric energy in the storage battery, and at night, the stored electric energy can be used for lighting, which can save a lot of electric energy resources, make the basketball stand multi-purpose, and protect the environment for sustainable development.

Figure 201020214944

Description

The basketball stands that can generate electricity
Technical field
The utility model relates to the sports goods technical field, a kind of specifically basketball stands that generate electricity.
Background technology
Present basketball stands, simple in structure, function singleness, the multiple needs in the time of can not satisfying people's basketball movement; When night, people played basketball, need illumination, consume a lot of energy.
The utility model content
The purpose of this utility model is a kind of basketball stands that generate electricity that can utilize solar electrical energy generation of design.
The basketball stands that the utility model can generate electricity, comprise: basketball stands 1, net frame 2 is housed on the front panel of basketball stands 1, and solar panel 3 all is equipped with in top, the two sides and the back of described basketball stands 1, and solar panel 3 and battery, luminous lamp switch are linked to be a custom circuit.
The advantage of the basketball stands that the utility model can generate electricity is: can utilize solar electrical energy generation daytime and with electrical power storage in battery; utilize stored electric energy illumination night; can save many power resources like this, make basketball stands energy one-object-many-purposes, the protection environment sustainable development.
Description of drawings

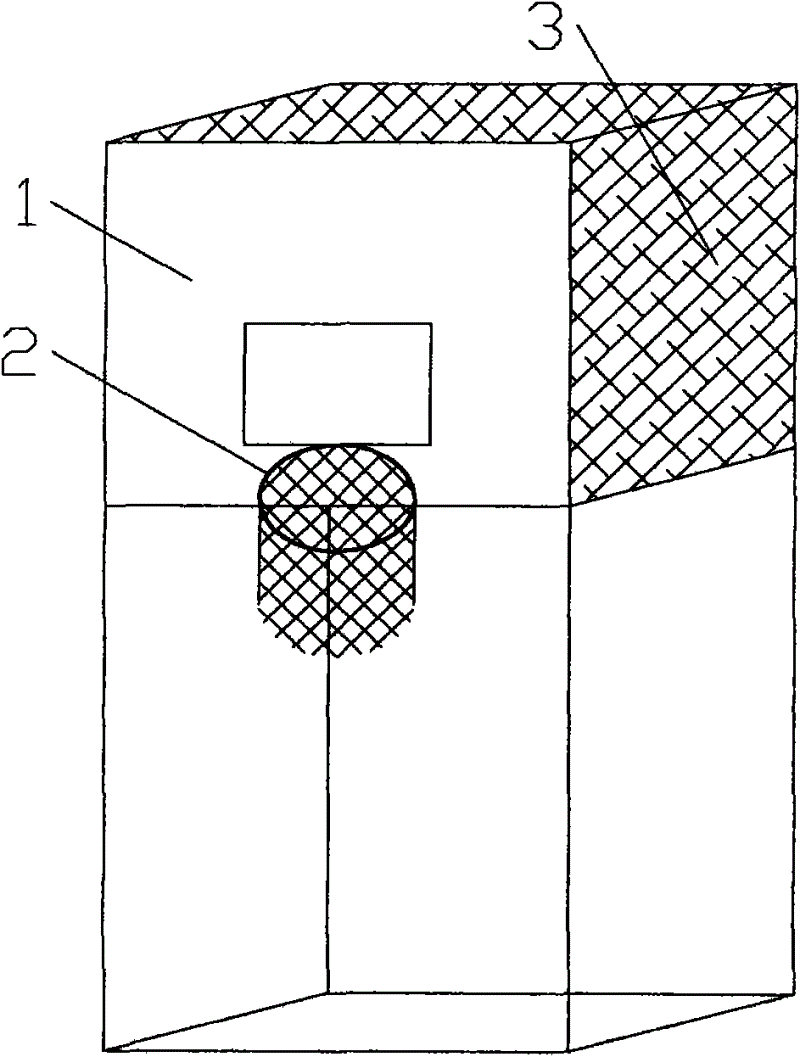

Fig. 1 is the structural representation of the basketball stands that can generate electricity.
The specific embodiment
According to shown in Figure 1, a kind of basketball stands that generate electricity comprise: basketball stands 1, be equipped with net frame 2 on the front panel of basketball stands 1, solar panel 3 all is equipped with in top, the two sides and the back of described basketball stands 1, and solar panel 3 and battery, luminous lamp switch are linked to be a custom circuit.

Claims (1)

1.一种可发电的篮球架，包括：篮球架(1)，篮球架(1)的前面板上装有篮网架(2)，其特征在于：所述篮球架(1)的上面、两侧面及后面都装有太阳能电池板(3)。1. A basketball stand capable of generating electricity, comprising: a basketball stand (1), and a net stand (2) is housed on the front panel of the basketball stand (1), it is characterized in that: above the said basketball stand (1), two Solar panels (3) are installed on the side and the back.
