Abstract
The utility model discloses an energy-saving intelligent water heater, which is characterized by comprising a water box, an electric control valve, a temperature sensor, a pressure sensor, a heating tube, a touch screen and a microprocessor; a water inlet pipe is arranged on the water box; the electric control valve is arranged on the water inlet pipe; the temperature sensor, the pressure sensor and the heating tube are all arranged at the bottom of the water box; the temperature sensor, the pressure sensor and the touch screen are all connected with the microprocessor; and a control end of the electric control valve and a control end of the heating tube are both connected with an output end of the microprocessor. The energy-saving intelligent water heater flexibly sets heating temperature and heating water quantity according to needs, and has rich functions and energy-saving effect.
Description
Technical field
The utility model relates to a kind of energy-conserving intelligent water heater.
Background technology
Existing pot-type boiler when work, can be provided with single player mode or many people pattern, but still has the flexibility deficiency and waste serious defective, such as, some user only needs a spot of hot water, and water heater heats a FCL hot water in the same old way; Sometimes, the user uses up after the water heater, and also remaining many untapped hot water cool off naturally in the boiler of discovery water heater, also cause the waste of energy consumption.For making up harmonious energy-efficient society, be necessary existing water heater is improved.
The utility model content
The utility model wants the technical solution problem to provide a kind of energy-conserving intelligent water heater, and this energy-conserving intelligent water heater can be provided with the water yield of heating-up temperature and heating as required flexibly, feature richness, and have energy-saving effect.
The utility model is to solve the problems of the technologies described above the technical scheme that is adopted to be:
A kind of energy-conserving intelligent water heater is characterized in that, comprises water tank, electrically-controlled valve, temperature sensor, pressure sensor, heating tube, touch-screen and microprocessor; Be provided with water inlet pipe on water tank, described electrically-controlled valve is arranged on the water inlet pipe; Described temperature sensor, pressure sensor and heating tube all are arranged on the bottom of water tank; Temperature sensor, pressure sensor and touch-screen all are connected with microprocessor; The control end of electrically-controlled valve and the control end of heating tube all join with the output of microprocessor.Pressure sensor is used for measuring indirectly the water yield of heating cylinder, because the degree of depth of water is directly proportional with pressure.
Described microprocessor is DSP or single-chip microcomputer.
The beneficial effects of the utility model:
1. flexibility is good, feature richness: the user can be provided with the water yield of required heating and the temperature that needs heating by touch-screen, by the water yield of microprocessor, cooperate the temperature of hot water in the control water tank with heating tube by temperature sensor then by electrically-controlled valve and pressure sensor control heating.
2. good energy saving property:, therefore, effectively avoided the waste of hot water because the user is provided with the temperature of hot water amount and hot water as required.
Description of drawings

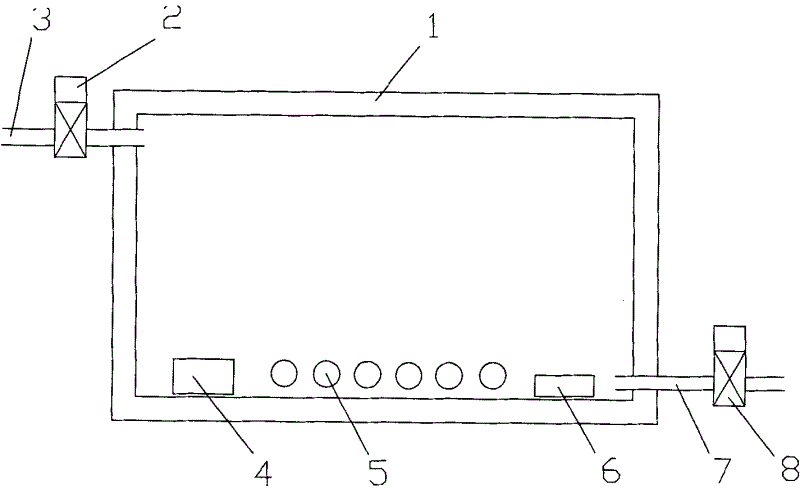

Fig. 1 is the structural representation of energy-conserving intelligent water heater;
Fig. 2 is the electric control theory diagram of energy-conserving intelligent water heater.
Label declaration:
The 1-water tank, 2-electrically-controlled valve, 3-water inlet pipe, 4-temperature sensor, 5-heating tube, 6-pressure sensor, 7-outlet pipe, 8-hand-operated valve.
The specific embodiment
The utility model is described in further detail below in conjunction with the drawings and specific embodiments.
Embodiment 1:
As depicted in figs. 1 and 2, a kind of energy-conserving intelligent water heater is characterized in that, comprises water tank 1, electrically-controlled valve 2, temperature sensor 4, pressure sensor 6, heating tube 5, touch-screen and microprocessor; Be provided with water inlet pipe 3 on water tank, described electrically-controlled valve 2 is arranged on the water inlet pipe 3; Described temperature sensor, pressure sensor and heating tube all are arranged on the bottom of water tank; Temperature sensor, pressure sensor and touch-screen all are connected with microprocessor; The control end of electrically-controlled valve and the control end of heating tube all join with the output of microprocessor.
Described microprocessor is DSP or single-chip microcomputer.
Operation principle is as follows:
The injecting process: at first the user is provided with hot water amount and the heating-up temperature that needs heating by touch-screen as required; Microprocessor is converted into the force value of water tank bottom according to the hot water amount of input, microprocessor is opened the electrically-controlled valve that is provided with on the water inlet pipe by drive circuit, cold water enters water tank by water inlet pipe, microprocessor detected pressures signal of sensor, when reaching described force value, close electrically-controlled valve, stop cold water and enter water tank again.
Heating process: microprocessor makes heating tube switch on by drive circuit, and the water in the water tank is heated; The output temperature value of microprocessor monitors temperature sensor, when this output temperature value reaches the temperature value that the user sets, then microprocessor makes the heating tube outage, stops heating.
Hot water heats, and provides prompting by microprocessor on touch-screen, and can provide corresponding sound and light alarm, and the user opens hand-operated valve, can use hot water.
Claims (2)
1. an energy-conserving intelligent water heater is characterized in that, comprises water tank, electrically-controlled valve, temperature sensor, pressure sensor, heating tube, touch-screen and microprocessor; Be provided with water inlet pipe on water tank, described electrically-controlled valve is arranged on the water inlet pipe; Described temperature sensor, pressure sensor and heating tube all are arranged on the bottom of water tank; Temperature sensor, pressure sensor and touch-screen all are connected with microprocessor; The control end of electrically-controlled valve and the control end of heating tube all join with the output of microprocessor.
2. energy-conserving intelligent water heater according to claim 1 is characterized in that, described microprocessor is DSP or single-chip microcomputer.
