Abstract

一种低能耗一体式膜生物反应器，将生物反应池与膜生物滤池一体化，污水进入一体化生物反应池(1)，在反应池内与一体化生物反应池(1)内的污泥在微孔曝气管(7)的曝气之下，充分混合反应，然后通过膜组件(2)的过滤，清水从膜组件(2)流出到清水池(5)。本实用新型的微孔曝气装置与穿孔曝气装置有效结合，比单一的使用任意一种曝气方式，在处理相同的水质水量时，能够有效的利用氧分，提高反应池的处理效果，而且处理污水，使水质达到标准的所需能耗较低。

Figure 200920231618

A low-energy integrated membrane bioreactor, which integrates the bioreaction tank and the membrane biofilter, the sewage enters the integrated bioreaction tank (1), and the sludge in the reaction tank and the integrated bioreaction tank (1) Under the aeration of the microporous aeration pipe (7), the reaction is fully mixed, and then filtered through the membrane module (2), and the clear water flows out from the membrane module (2) to the clear water tank (5). The microporous aeration device of the utility model is effectively combined with the perforated aeration device. Compared with the single use of any aeration method, it can effectively use oxygen when processing the same water quality and quantity, and improve the treatment effect of the reaction tank. Moreover, the energy consumption required to treat the sewage and make the water quality meet the standard is relatively low.

Figure 200920231618

Description

Low energy-consumption integrative membrane bioreactor
Technical field
The utility model relates to a kind of membrane bioreactor, especially a kind of integral biological reaction tank that is provided with two kinds of aerating apparatuss, specifically a kind of low energy-consumption integrative membrane bioreactor.
Background technology
The film separation unit of membrane bioreactor MBR system is placed in the Reaction Separation groove at certain intervals, and the active sludge in the groove is degraded to the organism in the sewage, and the water after the degraded is by the discharging of hollow membrane silk.Fenestra is very tiny, and particulate matter and active sludge can not be by this fenestras and separated, so can stably obtain clarifying filtered water from draining.But, in actually operating,, membrane module is produced pollute easily because the interior content of microorganisms of biological reaction tank is higher and stick to the film surface easily.In case film is contaminated, the filtration efficiency of sewage will reduce, even causes the infringement of membrane module.
Membrane bioreactor MBR system is typically provided with aeration tube, has both played to be bio-oxidation keeping effect, plays the continuous wash membrane module again, prevents the effect that membrane module pollutes.But liquid level is to the pressure of the water on aeration tube top in the bio-reactor because the air that blasts will overcome, and therefore general aeration energy consumption is very high.At present, the normally single aeration mode of the aeration tube of employing is in aeration process, if bubble is bigger, the oxygen branch that exposes to the sun can not effectively distribute in water, can not be fully used, and causes the energy consumption waste, if bubble is less, membrane module can not effectively be cleaned, and reduces the filtration efficiency of sewage.Therefore, existing single aeration mode can not, satisfy the needs of prior art.
Summary of the invention
The purpose of this utility model is single at existing membrane bioreactor aeration mode, in aeration process, if bubble is bigger, the oxygen branch that exposes to the sun can not effectively distribute in water, can not be fully used, cause the energy consumption waste, if bubble is less, membrane module can not effectively be cleaned, reduce the problem of the filtration efficiency of sewage, proposes a kind ofly when the identical water quality and quantity of processing, can effectively utilize the oxygen branch, improve the treatment effect of reaction tank, the low energy-consumption integrative membrane bioreactor that sewage treating efficiency is high.
The technical solution of the utility model is:
A kind of low energy-consumption integrative membrane bioreactor, it comprises the integral biological reaction tank, membrane module, air pump, clarified water pump, clean water basin, boring aeration pipe, micropore aeration pipe and the 4th valve, described membrane module is installed in the integral biological reaction tank, submerge under the liquid level of integral biological reaction tank, boring aeration pipe is installed in the below of membrane module, boring aeration pipe links to each other with an outlet side of air pump by pipeline, another outlet side of air pump links to each other with the micropore aeration pipe that is installed in integral biological reaction tank bottom, the water outlet of membrane module is by pipeline and clarified water pump in parallel, the corresponding end of the 4th valve links to each other, and the other end of clarified water pump and the 4th valve all links to each other with the corresponding inlet of clean water basin.
The utility model also comprises first valve, second valve, the 3rd valve, the first flow meter, second under meter, the 3rd under meter, on the pipeline between described first valve installation air pump and the micropore aeration pipe, the first flow meter is installed on the pipeline between first valve and the micropore aeration pipe, described second valve is installed on the pipeline between air pump and the boring aeration pipe, second under meter be installed in second valve and boring aeration pipe and between pipeline on, described the 3rd under meter be installed in membrane module and the 4th valve and between pipeline on, the 3rd valve is installed on the pipeline between membrane module and the 3rd under meter.
Membrane module of the present utility model comprises header, following header and organizes the film silk more, each end of organizing the film silk is installed on the header, the other end is installed in down header, and last header links to each other with clean water basin with the 4th valve by clarified water pump in parallel with the water outlet of following header as membrane module.
Film silk of the present utility model is 12 groups.
The tube head of micropore aeration pipe of the present utility model is a plurality of, and the pore diameter range of each tube head is 80-200um, and the tube head of boring aeration pipe is one, and pore diameter range is 4-5mm.
The tube head of micropore aeration pipe of the present utility model is 6.
The beneficial effects of the utility model:
Low energy-consumption integrative membrane bioreactor of the present utility model is integrated with biological reaction tank and film biological filter, sewage enters the integral biological reaction tank, in reaction tank with the integral biological reaction tank in mud under the aeration of micropore aeration pipe, the thorough mixing reaction, by the filtration of membrane module, clear water flows out to clean water basin from membrane module then, perforation and micropore composite aeration in the integral biological reaction tank, effectively reduce energy consumption, improved oxygen branch utilization ratio and reaction efficiency.
The utility model utilizes micro-pore aeration, reduces the surface-area of bubble, increases the solubleness of oxygen in water, makes oxygen fully be dissolved in water, guarantees that the reaction of microorganism can have enough oxygen to divide support.And aeration strengthens the waterpower stirring action, allows organism constantly contacts thorough mixing, organic concentration in the more effective reduction water in mud and the water.
Boring aeration pipe of the present utility model is installed in membrane module below, and under the effect of the bubble shearing force of boring aeration pipe, membrane module constantly obtains cleaning, and reduces the deposition of pollutent on the film surface.And boring aeration pipe is arranged on the below of membrane module, if go out bubble and overcome from the reaction tank liquid level to the pressure of the water of header distance down, reduced aeration energy consumption.
Microporous aeration device of the present utility model combines with the boring aeration device is effective, than any one aeration mode of single use, when handling identical water quality and quantity, can effectively utilize the oxygen branch, improve the treatment effect of reaction tank, and dispose of sewage, it is lower to make water quality reach the required energy consumption of standard.
Description of drawings

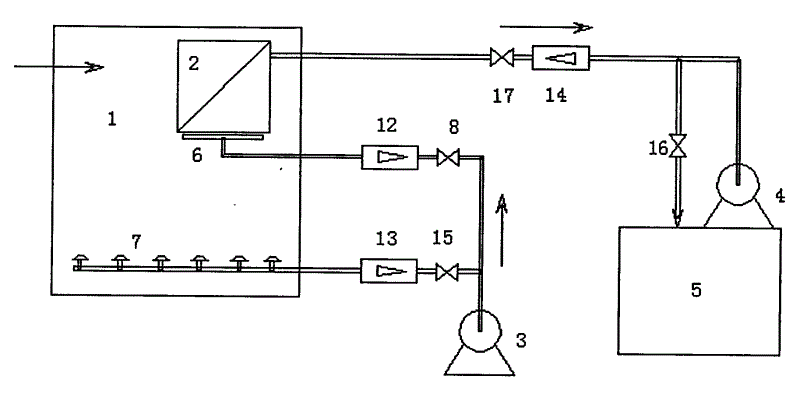

Fig. 1 is a structural representation of the present utility model.
Fig. 2 is a membrane module structure synoptic diagram of the present utility model.
Embodiment
Below in conjunction with drawings and Examples the utility model is further described.
As shown in Figure 1, it comprises integral biological reaction tank 1 a kind of low energy-consumption integrative membrane bioreactor, membrane module 2, air pump 3, clarified water pump 4, clean water basin 5, boring aeration pipe 6, micropore aeration pipe 7 and the 4th valve 16, described membrane module 2 is installed in the integral biological reaction tank 1, submerge under the liquid level of integral biological reaction tank 1, boring aeration pipe 6 is installed in the below of membrane module 2, boring aeration pipe 6 links to each other with an outlet side of air pump 3 by pipeline, another outlet side of air pump 3 links to each other with the micropore aeration pipe 7 that is installed in integral biological reaction tank 1 bottom, the water outlet of membrane module 2 is by pipeline and clarified water pump 4 in parallel, the corresponding end of the 4th valve 16 links to each other, and the other end of clarified water pump 4 and the 4th valve 16 all links to each other with the corresponding inlet of clean water basin 5.
The utility model also comprises first valve 15, second valve 8, the 3rd valve 17, first flow meter 13, second under meter 12, the 3rd under meter 14, on the pipeline that described first valve 15 is installed between air pump 3 and the micropore aeration pipe 7, first flow meter 13 is installed on the pipeline between first valve 15 and the micropore aeration pipe 7, described second valve 8 is installed on the pipeline between air pump 3 and the boring aeration pipe 6, second under meter 12 be installed in second valve 8 and boring aeration pipe 6 and between pipeline on, described the 3rd under meter 14 be installed in membrane module 2 and the 4th valve 16 and between pipeline on, the 3rd valve 17 is installed on the pipeline between membrane module 2 and the 3rd under meter 14.
Membrane module 2 of the present utility model comprises header 9, following header 11 and organizes film silk 10 more.As shown in Figure 2, film silk 14 is an example with 12 groups, each end of organizing film silk 10 is installed on the header 9, and the other end is installed in down header 11, and last header 9 links to each other with clean water basin 5 with the 4th valve 16 by clarified water pump 4 in parallel with the water outlet of following header 11 as membrane module 2.
The tube head of micropore aeration pipe 7 of the present utility model is a plurality of, and the pore diameter range of each tube head is 80-200um, and the tube head of boring aeration pipe 6 is one, and pore diameter range is 4-5mm.
The tube head of micropore aeration pipe 7 of the present utility model is 6.
Embodiment one:
A kind of low energy-consumption integrative membrane bioreactor, biological reaction tank and film biological filter is integrated, sewage enters integral biological reaction tank 1, in reaction tank with integral biological reaction tank 1 in mud under the aeration of micropore aeration pipe 7, the thorough mixing reaction, many groups film silk 10 by membrane module 2 filters then, and clear water flows out by pipeline to clean water basin 5 from the last header 9 and the following header 11 of membrane module 2.Utilize micro-pore aeration, reduce the surface-area of bubble, increase the solubleness of oxygen in water, make oxygen in water, fully be dissolved, guarantee that the reaction of microorganism can have enough oxygen to divide support.In addition, the boring aeration pipe 6 of membrane module 2 belows is emitted bubble, and under the bubble shear action of boring aeration pipe 6, membrane module 2 constantly obtains cleaning, and reduces the deposition of pollutent on film silk surface.And boring aeration pipe 6 is arranged on the below of membrane module 2, if go out bubble and overcome from the reaction tank liquid level to the pressure of the water of header distance down, reduced aeration energy consumption.
When purifying waste water when extruding the stream underfed, close the 4th valve 16, open clarified water pump 4, making purifies waste water enters clean water basin 5 by clarified water pump 4 suctions.
The utility model does not relate to the part prior art that maybe can adopt all same as the prior art to be realized.

Claims (6)

1.一种低能耗一体式膜生物反应器，其特征是它包括一体化生物反应池(1)、膜组件(2)、气泵(3)、净化水泵(4)、清水池(5)、穿孔曝气管(6)、微孔曝气管(7)和第四阀门(16)，所述的膜组件(2)安装在一体化生物反应池(1)内，没入一体化生物反应池(1)的液面下，穿孔曝气管(6)安装在膜组件(2)的下方，穿孔曝气管(6)通过管路与气泵(3)的一个出气端相连，气泵(3)的另一个出气端与安装在一体化生物反应池(1)底部的微孔曝气管(7)相连，膜组件(2)的出水口通过管路与并联的净化水泵(4)、第四阀门(16)的对应端相连，净化水泵(4)和第四阀门(16)的另一端均与清水池(5)的对应入口相连。1. A low-energy integrated membrane bioreactor is characterized in that it comprises an integrated bioreactor (1), a membrane module (2), an air pump (3), a purified water pump (4), a clear water tank (5), Perforated aeration pipe (6), microporous aeration pipe (7) and the fourth valve (16), the membrane module (2) is installed in the integrated biological reaction tank (1), submerged in the integrated biological reaction tank Under the liquid level of (1), the perforated aeration pipe (6) is installed below the membrane module (2), and the perforated aeration pipe (6) is connected to an air outlet of the air pump (3) through a pipeline, and the air pump (3) The other gas outlet of the membrane module (2) is connected to the microporous aeration pipe (7) installed at the bottom of the integrated biological reaction tank (1), and the water outlet of the membrane module (2) is connected to the parallel purified water pump (4), the fourth The corresponding ends of the valve (16) are connected, and the other ends of the purified water pump (4) and the fourth valve (16) are all connected with the corresponding inlets of the clean water tank (5). 2.根据权利要求1所述的低能耗一体式膜生物反应器，其特征是它还包括第一阀门(15)、第二阀门(8)、第三阀门(17)、第一流量计(13)、第二流量计(12)、第三流量计(14)，所述的第一阀门(15)安装气泵(3)与微孔曝气管(7)之间的管路上，第一流量计(13)安装在第一阀门(15)和微孔曝气管(7)之间的管路上，所述的第二阀门(8)安装在气泵(3)与穿孔曝气管(6)之间的管路上，第二流量计(12)安装在第二阀门(8)和穿孔曝气管(6)与之间的管路上，所述的第三流量计(14)安装在膜组件(2)和第四阀门(16)与之间的管路上，第三阀门(17)安装在膜组件(2)与第三流量计(14)之间的管路上。2. The low energy consumption integrated membrane bioreactor according to claim 1 is characterized in that it also includes a first valve (15), a second valve (8), a third valve (17), a first flow meter ( 13), the second flow meter (12), the third flow meter (14), the first valve (15) is installed on the pipeline between the air pump (3) and the microporous aeration pipe (7), the first The flow meter (13) is installed on the pipeline between the first valve (15) and the microporous aeration pipe (7), and the second valve (8) is installed between the air pump (3) and the perforated aeration pipe (6). ), the second flowmeter (12) is installed on the pipeline between the second valve (8) and the perforated aeration pipe (6), and the third flowmeter (14) is installed on the membrane On the pipeline between the module (2) and the fourth valve (16), the third valve (17) is installed on the pipeline between the membrane module (2) and the third flow meter (14). 3.根据权利要求1所述的低能耗一体式膜生物反应器，其特征是所述的膜组件(2)包括上集水管(9)、下集水管(11)和多组膜丝(10)，各组膜丝(10)的一端均安装在上集水管(9)上，另一端均安装在下集水管(11)，上集水管(9)和下集水管(11)作为膜组件(2)的出水口通过并联的净化水泵(4)和第四阀门(16)与清水池(5)相连。3. The low-energy integrated membrane bioreactor according to claim 1, characterized in that said membrane module (2) includes an upper water collection pipe (9), a lower water collection pipe (11) and multiple sets of membrane filaments (10 ), one end of each group of membrane filaments (10) is installed on the upper water collection pipe (9), and the other end is installed on the lower water collection pipe (11), and the upper water collection pipe (9) and the lower water collection pipe (11) are used as membrane components ( 2) the water outlet is connected to the clean water pool (5) through the parallel purified water pump (4) and the fourth valve (16). 4.根据权利要求3所述的低能耗一体式膜生物反应器，其特征是所述的膜丝(14)为12组。4. The integrated membrane bioreactor with low energy consumption according to claim 3, characterized in that there are 12 groups of membrane filaments (14). 5.根据权利要求1所述的低能耗一体式膜生物反应器，其特征是所述的微孔曝气管(7)的管头为多个，各管头的孔径范围是80-200um，穿孔曝气管(6)的管头为一个，孔径范围是4-5mm。5. The low energy consumption integrated membrane bioreactor according to claim 1, characterized in that there are multiple pipe heads of the microporous aeration pipe (7), and the aperture range of each pipe head is 80-200um, The pipe head of the perforated aeration pipe (6) is one, and the aperture range is 4-5mm. 6.根据权利要求5所述的低能耗一体式膜生物反应器，其特征是所述的微孔曝气管(7)的管头为6个。6. The integrated membrane bioreactor with low energy consumption according to claim 5, characterized in that the number of pipe heads of the microporous aeration pipes (7) is 6.
