Abstract
The utility model discloses a multipurpose connection operating lever based on a field high pressure test which comprises first test junction pole and a second test junction pole, wherein the first test junction pole comprises a first insulation operating lever, the second test junction pole comprises a second insulation operating lever, the multipurpose connection operating lever is characterized in that the upper end of the first insulation operating lever and the upper end of the second insulation operating lever are respectively connected with combined heads of suspension locking lines, the suspension locking line of the first test junction pole is connected with a pulley, and the other side of the pulley is connected with a pulley hook. The first insulation operating lever and the second insulation operating lever are multi-node insulation operating levers. The high pressure field test of the utility model adopts a pulley device, the multi-node insulation operating levers and the combined heads of suspension locking lines to realize lifting and connection of auxiliary test lines of test fields, and is applicable to operation of test lines with heavier manual lifting, convenient connecting test lines and tested equipment.
Description
Technical field
The utility model relates to a kind of wiring control lever of using that apply to the field wiring in the high-potting more, belongs to the high-voltage test techniques field.
Background technology
The high-tension apparatus of locating at transformer station etc. carries out high-potting, often need carry out wiring, the operation of taking out stitches.Because the device location of need wiring, taking out stitches is higher, test wire weight is heavier, and the scene often is difficult in time dispatch the equipment of ascending a height, and therefore needs a kind of portable wiring servicing unit that testing operation is carried out at the scene.
The patent No. is that 00222946.3 utility model discloses a kind of multifunction insulating control lever, it is characterized in that: control lever is responsible for 4 by plastic-steel operating head 3, operating head cross cross bar 2, control lever and is formed, wherein the cross cross bar is fixed on the plastic-steel operating head, the top of operating head is the electroscope connector, and the lower end of operating head and control lever are responsible for fixing; Control lever is responsible for the segmentation reassembling type structure that connects for by threaded connector 5, this utility model integrates purposes such as drawing knife-like switch, push-and-pull insurance, electrical verification, dismounting ground wire and GJN-10 isolation switch insulation cover, and be common to the work of 10-220KV appliance maintenance, have simple in structure, in light weight, be easy to carry and operate multi-use, advantage safe in utilization.But this control lever can not be applied to heavier examination line, and highly unadjustable.
The utility model content
The purpose of this utility model is to provide a kind of control lever that promotes easily than retry test line and connection examination line and tested device.
For solving the problems of the technologies described above, the utility model provides a kind of wiring control lever of using based on on-the-spot high-potting more, comprise the first test connection bar and the second test connection bar, the described first test connection bar comprises first insulating bar, the second test connection bar comprises second insulating bar, it is characterized in that: described first insulating bar links to each other with suspension locking wire combination head respectively with second insulating bar upper end, the suspension locking wire combination head of the described first test connection bar links to each other with pulley, and the opposite side of pulley is connected with the pulley hook.
Described first insulating bar and second insulating bar are the more piece insulating bar.
Described suspension locking wire combination head can adapt to different connecting objects, can with a kind of the linking to each other of pulley, test wire, bus etc., realize the multi-usage purpose.
The beneficial effect that the utility model reached:
High pressure site test of the present utility model adopts pulley gear, multi-section type insulating bar, hang lifting that the locking wire combination head is implemented in the auxiliary examination in testing ground line and be connected, and adopts the multi-section type insulating bar can adapt to the different work height; Adopt pulley gear can promote than reageing; Adopt suspension locking wire combination head can realize that the operator finishes wiring on ground.Because this device is manual operation, device itself is in light weight, easy to use, therefore adopt the multi-section type insulating bar, the lightweight fixed pulley, be suitable for differing heights and weight examination line, be applicable to that manpower lifting test wire is connected in test wire and the operation that tested device is connected with convenient, can adopt the various combination application of same set of device to the different tests object.
Description of drawings

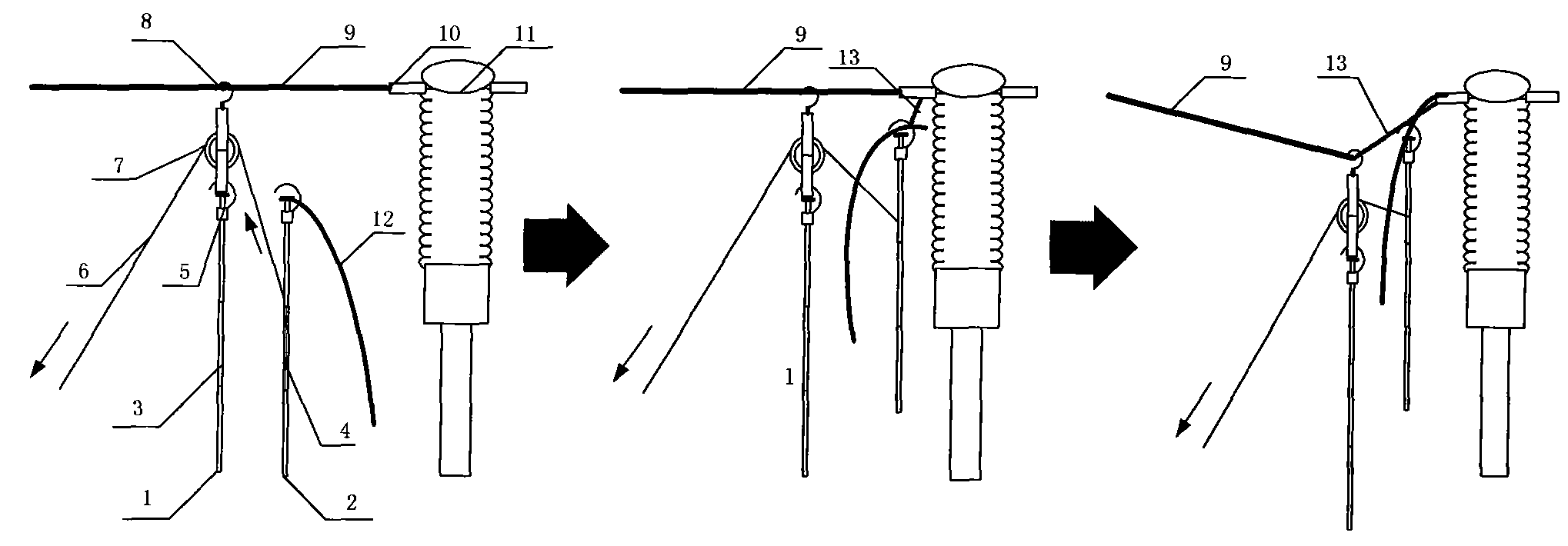

Fig. 1 is applied to the tearing open of current transformer process of the test, wiring schematic diagram for the utility model;
Fig. 2 is applied to directly articulate the bus synoptic diagram for the utility model.
Mark among the figure: the 1-first test connection bar; The 2-second test connection bar; 3-first insulating bar; 4-second insulating bar; 5-hangs the locking wire combination head; The backguy of 6-pulley; The 7-pulley; 8-pulley hook; The 9-bus; The 10-connection terminal; The 11-tested device; The 12-test wire; The 13-backguy of insulating.
Embodiment
Below in conjunction with accompanying drawing the utility model is described in further detail.
A kind of wiring control lever of using that the utility model provides based on on-the-spot high-potting more, comprise the first test connection bar 1 and the second test connection bar 2, the described first test connection bar 1 comprises first insulating bar 3, the second test connection bar 2 comprises second insulating bar 4, it is characterized in that: described first insulating bar 3 links to each other with suspension locking wire combination head 5 respectively with second insulating bar, 4 upper ends, the suspension locking wire combination head 5 of the described first test connection bar 1 links to each other with pulley 7, and the opposite side of pulley 7 is connected with pulley hook 8.
Described first insulating bar 3 and second insulating bar 4 are the more piece insulating bar.
Described suspension locking wire combination head can adapt to different connecting objects, can with a kind of the linking to each other of pulley, test wire, bus etc., realize the multi-usage purpose.
Fig. 1 is applied to the tearing open of current transformer process of the test, wiring schematic diagram for the utility model; In this process of the test, bus need be pulled down from connection terminal, and heavier test wire need be connected on the connection terminal, and specific operation process is:
1, the first test connection bar 1 is connected locking with pulley 7, pulley hook 8 is hung on the bus 9.
2, with the bar head position of the test wire 12 locking second test connection bar 2, and by pulley 7 end of backguy 6 is fixed on the correct position of the second test connection bar 2, a people spurs the other end of backguy 6, makes the second test connection bar 2 be elevated to proper height; Operating personnel will guarantee that control lever is that vertical direction rises all the time below the second test connection bar 2 in lifting process.
3, rise to bus 9 positions gently when the second test connection bar, 2 tops hooks, bus is removed personnel test wire 12 usefulness insulation backguy 13 is fixed on tested device 11, is the top of current transformer, then bus 9 is pulled down, and is fixed with the backguy 13 of insulating.At last test wire 12 is connected on the connection terminal 10, finishes experimental wiring.After test is finished, by reversed sequence, bus 9 can be restored the recovery test line by testing crew.
When carrying out the voltage transformer (VT) test, to hang locking wire combination head 5 is installed on second insulating bar 4, test wire 12 is locked on the suspension locking wire combination head 5, connect the more piece insulating bar to suitable length, the second test connection bar 2 is given rise to wiring point, and be articulated on the wiring point, by the operator till ground turns the test wire 12 of second insulating bar 4 in combination head and tie point closely contacts.
Carry out other test, if examination line weight is heavier, contact is little by electric current, allow to adopt the method that connects in succession of twisting, can adopt artificial lifting way, when the second test connection bar 2 arrived correct position, the hook that the second test connection bar, 2 tops is hung locking wire combination head 5 by terrestrial operation person under the pulley backguy is assisted hung on the tie point, till turning the test wire 12 of second insulating bar 4 in hanging locking wire combination head 5 and tie point closely contacting.
Fig. 2 is applied to directly articulate the bus synoptic diagram for the utility model, and is heavier when test wire weight, and when allowing test wire to be fastened on bus or the connection terminal simultaneously, the test connection bar can be used by the following method:
1, insulating bar 1 is connected locking with pulley 7, pulley hook 8 is hung on the bus 9.
2, test wire 12 is locked in the bar head position of the second test connection bar 2, and by pulley 7 end of backguy 6 is fixed on the second test connection bar, 2 correct positions, a people spurs the other end of backguy 6, makes the second test connection bar 2 be elevated to proper height; Operating personnel will guarantee that control lever is that vertical direction rises all the time below the second test connection bar 2 in lifting process.
3, rise to bus 9 positions gently when the second test connection bar, 2 tops hooks, below operating personnel's controlling party is to the second test connection bar 2 is hung on the bus 9; The second test connection bar, 2 below operating personnel tighten bus 9 and test wire 12, begin experiment.
4, after the off-test, the second test connection bar 2 unclamps, and pulling backguy 6 is put down the second test connection bar 2 gently.
The above only is preferred embodiment of the present utility model; not in order to restriction the utility model; all any modifications of within spirit of the present utility model and principle, being done, be equal to and replace and improvement etc., all should be included within the protection domain of the present utility model.
Claims (2)
1. wiring control lever of using based on on-the-spot high-potting more, comprise the first test connection bar (1) and the second test connection bar (2), the described first test connection bar (1) comprises first insulating bar (3), the second test connection bar (2) comprises second insulating bar (4), it is characterized in that: described first insulating bar (3) links to each other with suspension locking wire combination head (5) respectively with second insulating bar (4) upper end, the suspension locking wire combination head (5) of the described first test connection bar (1) links to each other with pulley (7), and the opposite side of pulley (7) is connected with pulley hook (8).
2. the wiring control lever of using based on on-the-spot high-potting according to claim 1, it is characterized in that: described first insulating bar (3) and second insulating bar (4) are the more piece insulating bar more.
