Abstract
本实用新型公开了一种用于大型风力发电机组的维修吊车，其包括有控制装置、设在机舱内部的行车、增速滑轮组、用于连接固定维修部件的吊具及设在风力发电机组基础平台上由所述控制装置控制的卷扬机，所述增速滑轮组与所述卷扬机之间由绕过设在所述机舱内部的引导滑轮的钢丝绳连接，所述增速滑轮组安装在所述行车上，同时与所述吊具连接。该吊车能将机舱内部的大型零部件(叶片、增速机、发电机等)吊至基础平台上或从基础平台吊入机舱内部，通过改变滑轮组的倍率和钢丝绳缠绕方式并配合适当的吊具，能够满足大型风力发电机组机舱内部所有零部件的吊装，具有便捷高效、费用相对低廉的优点。
The utility model discloses a maintenance crane for a large-scale wind power generating set, which comprises a control device, a crane arranged inside the engine room, a speed-increasing pulley block, a hanger for connecting fixed maintenance parts, and a crane set on the foundation of the wind power generating set. The hoist controlled by the control device on the platform, the speed-increasing pulley block and the hoist are connected by a wire rope bypassing the guide pulley inside the cabin, the speed-increasing pulley block is installed on the crane, At the same time, it is connected with the spreader. The crane can hoist large parts (blades, speed reducers, generators, etc.) inside the nacelle to the foundation platform or hoist them into the nacelle from the foundation platform. , which can meet the hoisting of all parts inside the nacelle of large-scale wind turbines, and has the advantages of convenience, high efficiency and relatively low cost.
Description
Technical field
The utility model relates to a kind of crane, more particularly, relates to a kind of maintenance crane that is used for Large-scale Wind Turbines.
Background technology
There are three problems in the maintenance of main parts size with replacing in the Large-scale Wind Turbines at present:
1, engine room inside narrow space, maintenance is difficult in engine room inside and finishes.
2, the weight of main parts size is heavier, and for Generator Set, the weight of its electrical generator, booster engine generally all more than ten tons, need have the equipment of enough lifting abilities.
3, the setting height(from bottom) in cabin is unfavorable for maintenance and lifting generally more than 70 meters.
For this reason, the method that adopts at present generally has three kinds:
First kind is to use the large-tonnage crawler crane, and whole cabin or gear case are hung on the ground, then gear case is keeped in repair.This mode is not only not convenient, and costly.
Second kind is that elevator is arranged in the cabin, hang on the basic platform from the cabin damaging the part that needs to change, need in the cabin, arrange the winch that liter weight is big like this, because the weight of winch self is just very big, therefore the unit design of aerogenerator and the layout of each parts are produced certain influence, and because the control housing of winch that the space is limit and operator's station are arranged and operation inconvenience very difficult.
The third be in the cabin, arrange a hoisting capacity at one ton with interior hoist ceiling crane.This can only lift by crane part, and can not the bigger parts of integral hoisting weight, if the bigger damage parts of weight must be hung whole cabin on the ground with the large-tonnage crawler crane and be keeped in repair.
The utility model content
The purpose of this utility model is to provide a kind of maintenance crane that is used for Large-scale Wind Turbines, utilizes this maintenance crane can convenient and efficient, expense is cheap relatively mode to finish the lifting problem of high-altitude, heavy parts.
The maintenance crane that is used for Large-scale Wind Turbines in the utility model, include control setup, be located at engine room inside driving, speedup assembly pulley, be used to be connected and fixed the suspender of Awaiting Parts and be located on the wind power generating set basic platform winch by described control setup control, be connected by the steel rope of walking around the guide pulley that is located at described engine room inside between described speedup assembly pulley and the described winch, described speedup assembly pulley is installed in the described driving, is connected with described suspender simultaneously.
Described speedup assembly pulley is 8 times of fast speedup assembly pulleys.
Described winch is connected with the motor of being controlled by described control setup.
Described speedup assembly pulley includes running block and fixed pulley group.
The maintenance crane that is used for Large-scale Wind Turbines in the utility model can winch to the large component of engine room inside on the basic platform or from basic platform and hang in engine room inside, has the cheap relatively advantage of convenient and efficient, expense.
Description of drawings

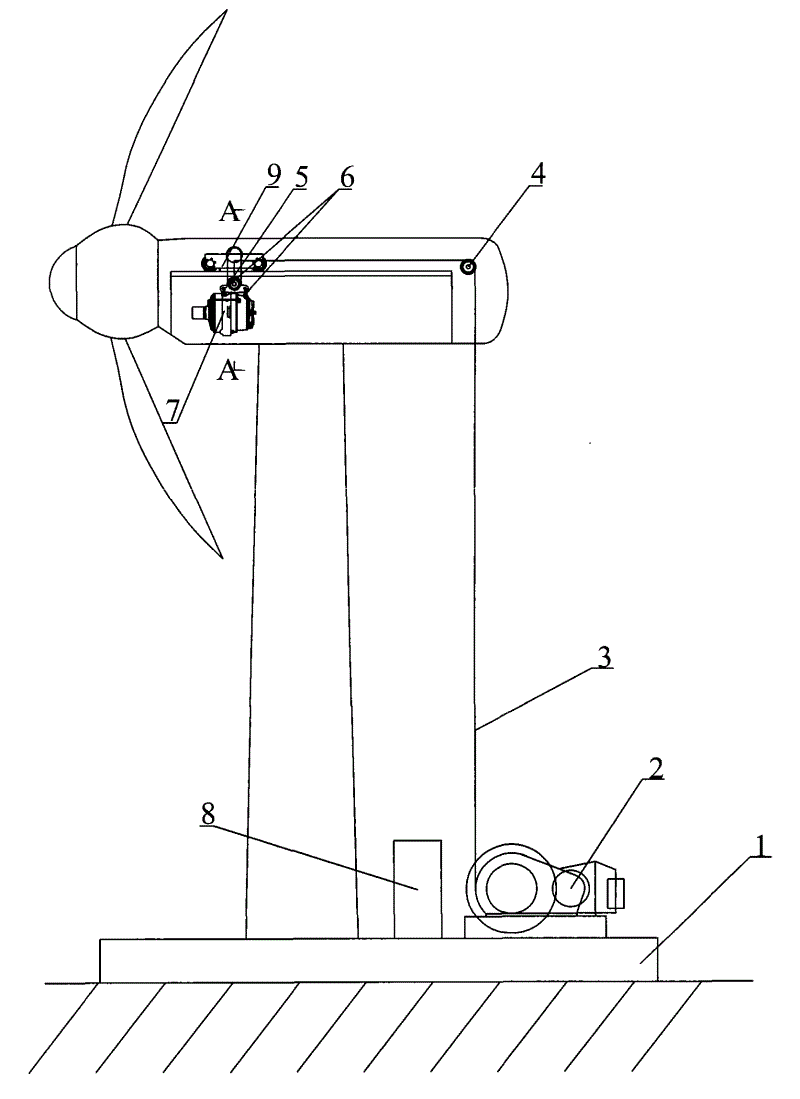

Fig. 1 is the structural representation of maintenance crane in the utility model;
Fig. 2 among Fig. 1 along the enlarged diagram of analysing and observe of A-A line.
The specific embodiment
The specific embodiment of the utility model is described in further detail below in conjunction with accompanying drawing.
As depicted in figs. 1 and 2, the maintenance crane that is used for Large-scale Wind Turbines in the utility model includes winch 2, steel rope 3, guide pulley 4, speedup assembly pulley 5, suspender 6 and control setup 8 and drives a vehicle 9.Wherein:
Speedup assembly pulley 5 is made up of fixed pulley group and running block, and winch 2 is installed on the basic platform 1 by motor-driven, and motor is controlled by control setup 8, thereby further controls winch 2.Winch 2 is connected with an end of steel rope 3, the other end of steel rope 3 extends into engine room inside, walking around guide pulley 4 is connected with fixed pulley group in the speedup assembly pulley 5, fixed pulley group in the speedup assembly pulley 5 is installed in the driving 9 of engine room inside, be connected with suspender 6 by running block in the speedup assembly pulley 5 and steel rope, speedup assembly pulley 5 can adopt 8 multiplication ski-running wheels mechanisms, and suspender 6 is used for fixing the suspension centre of connection gear case 7.When starting winch 2, gear case 7 can be sling, withdraw from the cabin, drop on the ground-surface basic platform 1, after reparation, can deliver in the cabin again.
The advantage that is used for the maintenance crane of Large-scale Wind Turbines in the utility model is:
1, control device 8 is installed on the basic platform 1 with hoist engine 2, and hoist engine 2 is by frequency control Can reach the desirable speed of service, simultaneously disposed counter at hoist engine 2, can know weight Instant height.
2, owing to adopt zoom rate assembly pulley, can satisfy all zero ones of Large-scale Wind Turbines engine room inside The lifting of part.
3, because hoist engine is arranged on the basic platform, a cover maintenance crane can satisfy many typhoons power generator The lifting of gear-box is used.
4, easy to operate, owing to hoist engine, control device are arranged on the basic platform on ground, the space is well-to-do, Be convenient to assembling personnel's operation.
5, no longer need the large-tonnage crawler crane, thereby can save the expense of lease or transportation, except low-cost.
Claims (4)
1, a kind of maintenance crane that is used for Large-scale Wind Turbines, include control setup, it is characterized in that, also include the driving, the speedup assembly pulley that are located at engine room inside, be used to be connected and fixed the suspender of Awaiting Parts and be located on the wind power generating set basic platform winch by described control setup control, be connected by the steel rope of walking around the guide pulley that is located at described engine room inside between described speedup assembly pulley and the described winch, described speedup assembly pulley is installed in the described driving, is connected with described suspender simultaneously.
2, the maintenance crane that is used for Large-scale Wind Turbines according to claim 1 is characterized in that, described speedup assembly pulley is 8 times of fast speedup assembly pulleys.
3, the maintenance crane that is used for Large-scale Wind Turbines according to claim 1 is characterized in that, described winch is connected with the motor of being controlled by described control setup.
4, the maintenance crane that is used for Large-scale Wind Turbines according to claim 1 is characterized in that, described speedup assembly pulley includes running block and fixed pulley group.
