Abstract

The utility model provides a storage box, which comprises a rectangular box bottom component, a rectangular box top component, four corner posts for connecting the box bottom component and the box top component and at least a wall panel connected between the box bottom component and the box top component and between two adjacent corner posts, wherein the wall panel is plugged and connected together with the corresponding corner posts, the box bottom component and the box top component. Since the wall panel is assembled with the corresponding corner posts, the box bottom component and the box top component through a plugging mode, and a bolt is not needed for connecting, welding and the like, and the assembly can be generally finished manually without a hoisting device, and therefore, the assembly and operation are convenient, and save time and labor, in addition, the storage box which adopts the plugging mode to assemble is convenient to detach, all components such as the box bottom component, the box top component and the like can be superposed to place after disassembling, and the storage box is beneficial for simply and closely packaging, thereby reducing the volume space, and the storage box is not only convenient fro transporting, but also can greatly save transportation cost.

Description

Storage box

Technical field

The utility model relates to a kind of storage box, the storage box of particularly a kind of assembling, convenient disassembly.

Background technology

Storage box is widely used in the means of production and the depositing and transporting as supplies for dealing with an emergency and relieving a disaster of life article.Present storage box mostly adopts steel plate to make wallboard and box top part, and it is heavier to conduct oneself with dignity, and parts assembling, dismounting are done inconvenient, needs by weight-lifting equipment time-consuming, effort usually.During the empty van transportation, need be divided into a plurality of packing parts, floor area is big, can not satisfy requirement easily and efficiently.

The utility model content

The purpose of this utility model is at above-mentioned the deficiencies in the prior art, and a kind of assembling, convenient disassembly are provided, the light-duty quick plug-in storage box that traffic cost is low.

For achieving the above object, the utility model adopts following technical scheme:

Storage box of the present utility model, comprise rectangular box bottom component, rectangular box top component, connect four corner posts of described case bottom component and case top component and be connected at least one wallboard between described case bottom component, case top component and adjacent two corner posts that wherein said wallboard and corresponding corner post and described case bottom component, the socket connection of case top component are together.

The upper and lower end portion of described wallboard is fixed with the section bar end frame that has slot respectively, is provided with corner post with described corner post joint portion on the wallboard and is connected groove, and the wallboard connection boss that the both sides that mutually combine of adjacent two wallboards are respectively equipped with coupling is connected groove with wallboard.Described case bottom component comprises the case skirt member and the some case bottom cross beams that are fixed on the case skirt member of rectangle frame shape, has the hyoplastron of the slot that can be inserted into described end frame above its raising middle flask skirt member.Described case top component comprises roof box and fixes rectangular box-like case top side rail around it, is provided with the breach of the end frame that is used to hold described wallboard below the case top side rail.Described corner post is the dihedral post, and both sides form the secondary flange, respectively is provided with the inhibiting device of a restriction wallboard at the horizontal surface intrinsic displacement in two joint portions inboard and contiguous and described wallboard of corner post.This inhibiting device comprises that the U-shaped pressing plate seat and the end that are fixed in the described dihedral post are fixed on the U-shaped pressing plate seat, and the corner post that the other end stretches into described wallboard connects the interior Z-shaped pressing plate of groove, and Z-shaped pressing plate cooperates the clamping corner post to be connected a sidewall of groove with the secondary flange.

Described case skirt member comprises that outer side bar of flute profile and cross section are Z-shaped interior side bar.The outer side bar of flute profile has relatively and upper flange, lower wing plate that is arranged in parallel and the web that is connected two blocks of wing plates, and described upper flange end upwards turnover forms described hyoplastron.The end of one side is fixedly connected on the upper limb board of the outer side bar of flute profile in the Z-shaped inner edge Liangqi, and another side is connected on the described case bottom cross beam, and the end face of described case bottom cross beam is connected on the web of the outer side bar of described flute profile.

Described case top side rail is a section bar, comprise the rectangular beam of the rectangular shaped as frame shape in cross section and the dihedral beam L-shaped with the cross section of its one, be used to hold the bottom surface that the breach of holding frame is arranged on rectangular beam, and contiguous its inner face, inner face is provided with and is used to limit the locating part of described wallboard at the vertical plane surface intrinsic displacement, and the bottom surface of rectangular beam is provided with in-flanges.The vertical edge end of described L shaped dihedral beam is connected the end face of described rectangular beam and near inner face, horizontal sides connects described roof box.

Have certain distance between the lower wing plate of the outer side bar of described case skirt member and the described case bottom cross beam bottom surface, this distance is equal to or greater than the roof box upper surface to the distance between the upper surface of the rectangular beam of case top side rail.

The web of the outer side bar of the flute profile of described case skirt member is provided with screw.

Described wallboard comprises two aluminium alloy panel and the sandwich extruded sheet between two aluminium alloy panel; Described roof box is blind brush line aluminium alloy plate.

An assembly wherein is installed at least one wallboard, the door assembly comprises door-plate, is fixed in door-plate door-plate frame all around and the door opening doorframe all around that is installed in wallboard, wherein on the door-plate frame, be provided with the sealing member that is used for hermatic door sheet frame and doorframe, one side of door-plate frame is hinged on the doorframe by hinge, and opposite side is equipped with door lock.

The advantage and the good effect of storage box described in the utility model are: in the utility model, because wallboard is with corner post and case bottom component, case top component all adopt the plug-in type assembling accordingly, non-bolt connects, there is not welding etc., usually manually can finish, not need weight-lifting equipment, so assembly manipulation is convenient, save time, laborsaving; In addition, adopt the storage box convenient disassembly of plug-in type assembling, each assembly, as can overlappingly placing after the dismountings such as case bottom component, case top component, be beneficial to easy packing compactly, thereby reduced volumetric spaces to greatest extent, convenient transportation not only, and can save traffic cost significantly.

With reference to the accompanying drawing description of a preferred embodiment, above-mentioned and other purpose of the present utility model, feature and advantage will be more obvious by following.

Description of drawings

Figure 1A is the structural representation of storage box of the present utility model;

Figure 1B is Figure 1A " E " view;

Fig. 1 C is Figure 1B " F " view;

Fig. 2 A is the structural representation of the wallboard in the utility model;

Fig. 2 B is the Q-Q generalized section among Fig. 2 A;

Fig. 2 C is the R-R generalized section among Fig. 2 A, is illustrated in when between adjacent two corner posts a wallboard only being installed the structure of wallboard;

Fig. 2 D is illustrated in when between adjacent two corner posts the polylith wallboard being installed, the structure when two wallboards are connected the groove connection by wallboard connection boss with wallboard;

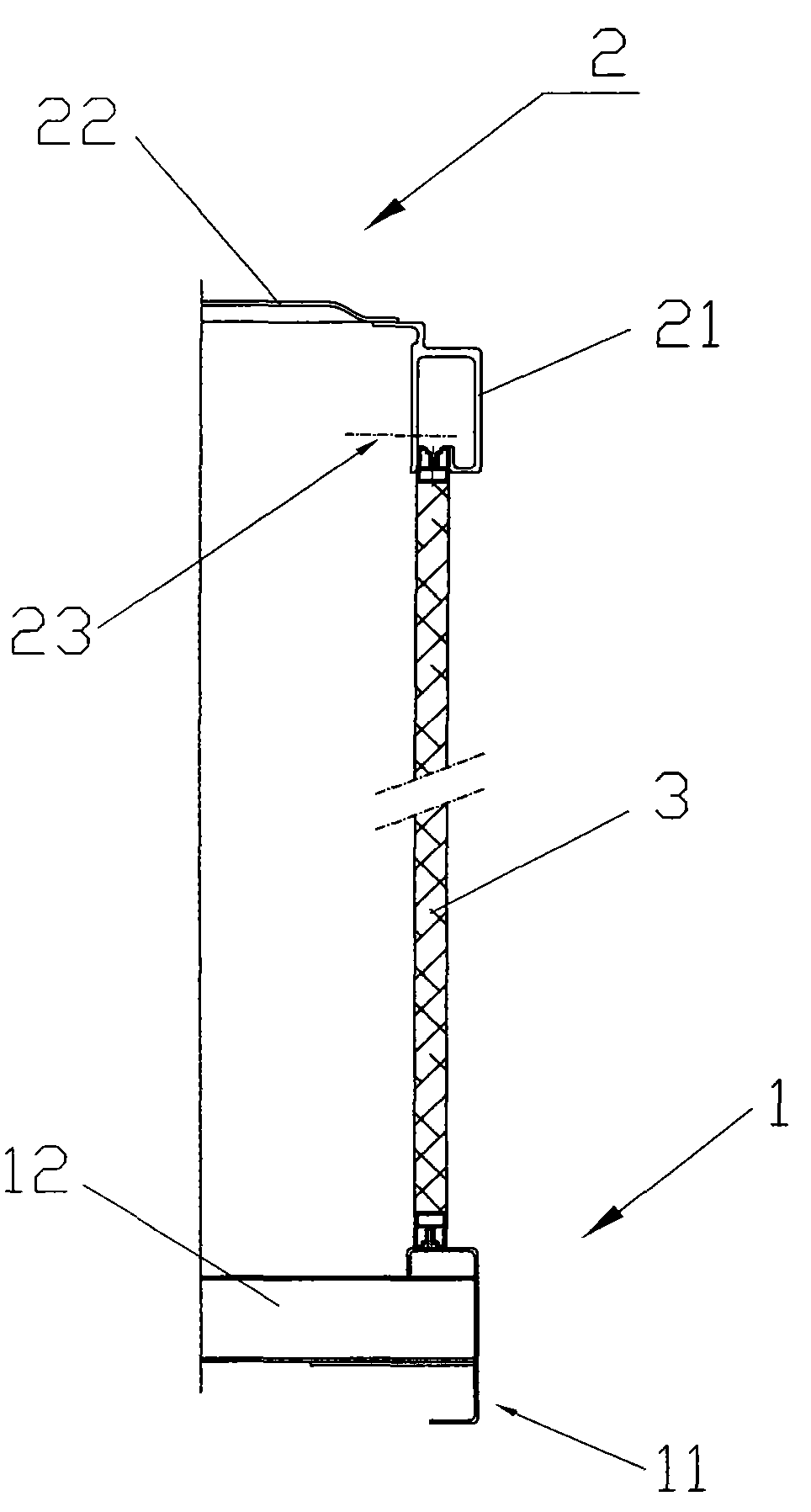

Fig. 3 A is the P-P generalized section among Figure 1A;

Fig. 3 B is the structural representation of the case skirt member shown in Fig. 3 A;

Fig. 3 C is the structural representation of the case top side rail shown in Fig. 3 A;

Fig. 4 A is the wall panel structure scheme drawing that has door-plate in the utility model;

Fig. 4 B is the S-S generalized section among Fig. 4 A;

Fig. 5 represents the structural representation of wallboard and corner post socket connection;

Fig. 6 is in the utility model, dismounting back roof box, box plate packing scheme drawing.

The specific embodiment

To describe specific embodiment of the utility model in detail below.Should be noted that the embodiments described herein only is used for casehistory, is not limited to the utility model.

Shown in Figure 1A, Figure 1B and Fig. 1 C, storage box of the present utility model, four corner posts 4 that comprise rectangular box bottom component 1, rectangular box top component 2, captive joint case bottom component 1 and case top component 2, socket connection has at least one wallboard 3 between case bottom component 1, case top component 2 and adjacent two corner posts.Among this embodiment, two wallboards 3 of socket connection between adjacent two corner posts 4.Can suitably select the quantity of the wallboard 3 between adjacent two corner posts 4 according to the size of storage box volume, the storage box less as volume can only be installed a wallboard between two corner posts 4; Wallboard quantity between the capacious storage box, two corner posts 4 can be three, five, eight etc.

Shown in Fig. 2 A, Fig. 2 B, Fig. 2 C and Fig. 2 D, every wallboard in the utility model is made up of two aluminium alloy panel 34 and the sandwich extruded sheet 33 between two aluminium alloy panel 34, and this wallboard is estimated one's own ability gently, and high insulating effect.The upper and lower end portion of wallboard 3 is fixed with respectively and is used for and case bottom component 1 and case top component 2 bonded assembly section bar end frames 31, and end frame 31 is provided with Y shape slot 311.Slot 311 also can be other shapes such as rectangle.The left and right side of wallboard 3 is fixed with section bar side frame 35 respectively.Be provided with corner post with the side frame 35 of described corner post 4 bonded assembly wallboards and be connected groove 321; Two side frames 35 that are connected of adjacent two wallboards 3 are provided with the wallboard connection groove 323 that is complementary and are connected boss 322 with wallboard.Wallboard connection groove 323 is connected boss 322 and not only adjacent two wallboards 3 can be connected together with wallboard, also help the rigidity of strengthening the storage box integral side walls simultaneously.

Shown in Fig. 3 A and Fig. 3 B, the case bottom component 1 in the utility model comprise the rectangle frame shape case skirt member 11, be fixed on the some case bottom cross beams 12 on the case skirt member 11 and cover box plate (not shown) on some case bottom cross beams 12.Case skirt member 11 comprises that outer side bar 111 of flute profile and cross section are Z-shaped interior side bar 112, and the outer side bar 111 of flute profile has relatively and the upper flange that is arranged in parallel and lower wing plate and the web that is connected two blocks of wing plates, and there is retrousse hyoplastron 1110 end of upper flange; Side bar 112 wherein is fixedly connected on the flute profile upper flange end of side bar 111 outward in the end of one side in Z-shaped, and another side is connected on the case bottom cross beam 12.The end face of case bottom cross beam 12 is connected on the web of the outer side bar 111 of flute profile.In addition, in the utility model, outside the flute profile of case skirt member 11, be provided with screw on the web of side bar 111, use during in order to the dismounting packing.

Shown in Fig. 3 A and Fig. 3 C, the case top component 2 in the utility model comprises roof box 22 that blind brush line aluminium alloy plate is made and the case top side rail 21 of fixing its rectangle frame shape all around.The section bar of case top side rail 21 for making by aluminum alloy materials, comprise rectangular rectangular beam in cross section 212 and the dihedral beam 211 L-shaped with its all-in-one-piece cross section, the breach 2120 that is used to hold the end frame 31 of wallboard 3 is arranged on the bottom surface of rectangular beam, and contiguous its inner face 2121.The bottom surface of rectangular beam 212 is provided with in-flanges 2122.Apart from breach 2120 certain altitude places, be provided with the stop screw 23 of restriction wallboard 3 at the inner face 2121 of rectangular beam 212 at the vertical plane surface intrinsic displacement.Rectangular beam 212 has certain degree of depth, to guarantee wallboard 3 the essential space that moves up is arranged when inserting breach 2120.The vertical edge end of L shaped dihedral beam 211 is connected the end face of rectangular beam 212 and near its inner face 2121, horizontal sides is fixedly connected on roof box 22 lower surface edges.

Shown in Figure 1A, Fig. 4 A and Fig. 4 B, in the utility model, an assembly 30 is installed at least one wallboard 3, door assembly 30 comprises door-plate 301, is fixed in door-plate 301 door-plate frame 302 all around and the door opening doorframe 306 all around that is installed in wallboard 3, wherein is provided with the sealing member 303 that is used for hermatic door sheet frame 302 and doorframe 306 on door-plate frame 302.One side of door-plate frame 302 is hinged on the doorframe 306 by hinge 304, and opposite side is equipped with door lock 305.The structure of doorframe 306 can be identical with the end frame 31 of wallboard 3.Door-plate 301 is made up of two aluminium alloy panel and the sandwich extruded sheet between two aluminium alloy panel.

As shown in Figure 5, described corner post 4 in the utility model is the dihedral post, both sides form secondary flange 41, two joint portions inboard and contiguous and described wallboard 3 at corner post respectively are provided with the inhibiting device 5 of a restriction wallboard 3 at the horizontal surface intrinsic displacement, inhibiting device 5 comprises that the U-shaped pressing plate seat 52 and the end that are fixed on described dihedral post 4 are fixed on the U-shaped pressing plate seat 52, the corner post that the other end stretches into described wallboard 3 connects the Z-shaped pressing plate 51 in the groove 321, and Z-shaped pressing plate 51 cooperates the clamping corner posts to be connected a sidewall of groove 321 with secondary flange 41.The height of pressing plate seat 52 is less than the height of the flange 41 of corner post 4, can necessarily move freely to corner post 4 directions during with 3 assemblings of assurance wallboard, connects groove is connected boss with wallboard matching requirements with the wallboard on the side frame of realizing adjacent wallboard 3.For attractive in appearance, can in storage box, connect a dihedral trim board 45 corresponding to corner post 4 positions.

As Fig. 3 A, shown in Figure 6, when the utility model transports at empty van, can be earlier wallboard, top plate member, bottom deck assembly and the corner post of storage box be disassembled.Corner post 4 is packaged into a packing part separately.Owing to have certain distance between the lower wing plate of the outer side bar 111 of described case skirt member and the case bottom cross beam 12, and distance is equal to or greater than roof box 22 upper surfaces to the distance between the upper surface of the rectangular beam 212 of case top side rail 21, is packaged into one so case bottom component 1 can be combined in case top component 2 and other parts.Concrete operations are: the hyoplastron 1110 of case skirt member 11 is inserted in the breach 2120 of case top side rail 21 bottoms, at this moment roof box 22 and cover between the box plate (not shown) on the case bottom cross beam 12 and have certain space, all wallboards 3 and the parts except that corner post all can be put into transportation (not shown) in this space, thereby make packing succinct, neat, not at random; And then pressing plate 61 1 ends are pressed onto on the outer side bar 111 of flute profile of case top component, the screw that the other end passes on the case skirt member 11 that is arranged on the case bottom component with bolt 62 is fastening, and case bottom component and the binding of case top component is fixing, forms a packing part.Simultaneously, the underframe that outstanding case bottom cross beam 12 bottom surface portions of case skirt member 11 surround can overlap among the protruding frame F that is formed by L shaped beam 211 and rectangular beam 212 in the cartonning top side rail 21, per like this 6～7 groups of packing parts pile a buttress, have not only compressed space shared when transport in the space to greatest extent; Simultaneously, become the transportation that can directly pack into the container of the packing part of buttress, very convenient, saved the traffic cost of empty van significantly.

Box top part in the utility model is made of aluminium section bar back timber and aluminum alloy roof box, and wallboard adds the sandwich extruded sheet by the aluminium section bar frame and aluminium alloy panel constitutes, and deadweight significantly alleviates, and safe and reliable.Parts are lightweight to greatest extent, suitable frequent assembling, field-strip.Two operation personnel can finish the assembling of whole storage box in 2 hours, can finish the dismounting of whole storage box or the replacing of fragile part in 1 hour, and this fully demonstrates quick, the flexible characteristics of the utility model dismounting.

Though described the utility model with reference to several exemplary embodiments, should be appreciated that used term is explanation and exemplary and nonrestrictive term.The spirit or the essence that do not break away from utility model because the utility model can specifically be implemented in a variety of forms, so be to be understood that, the foregoing description is not limited to any aforesaid details, and should be in the spirit and scope that claim limited of enclosing explain widely, therefore fall into whole variations in claim or its equivalent scope and remodeling and all should be the claim of enclosing and contain.

Claims (9)

1. storage box, comprise rectangular box bottom component (1), rectangular box top component (2), connect four corner posts (4) of described case bottom component (1) and case top component (2) and be connected at least one wallboard (3) between described case bottom component (1), case top component (2) and adjacent two corner posts (4), it is characterized in that described wallboard (3) and corner post (4) and described case bottom component (1), case top component (2) socket connection accordingly are together.

2. storage box according to claim 1, the upper and lower end portion that it is characterized in that described wallboard (3) is fixed with the section bar end frame (31) that has slot (311) respectively, upward be provided with corner post with described corner post joint portion is connected groove (321) to wallboard (3), and the wallboard connection boss (322) that the both sides that mutually combine of adjacent two wallboards (3) are respectively equipped with coupling is connected groove (323) with wallboard; Described case bottom component (1) comprises the case skirt member (11) of rectangle frame shape and is fixed on some case bottom cross beams (12) on the case skirt member (11), has the hyoplastron (1110) of the slot (311) that can be inserted into described end frame (31) above its raising middle flask skirt member (11); Described case top component (2) comprises roof box (22) and fixes rectangular box-like case top side rail (21) around it, is provided with the breach (2120) of the end frame (31) that is used to hold described wallboard (3) below the case top side rail (21); The cross section of described corner post (4) is a dihedral, both sides form secondary flange (41), two joint portions inboard and contiguous and described wallboard (3) at corner post (4) respectively are provided with the inhibiting device (5) of a restriction wallboard (3) at the horizontal surface intrinsic displacement, this inhibiting device (5) comprises that the U-shaped pressing plate seat (52) and the end that are fixed in the described dihedral post (4) are fixed on the U-shaped pressing plate seat (52), the corner post that the other end stretches into described wallboard (3) connects the interior Z-shaped pressing plate (51) of groove (321), and Z-shaped pressing plate (51) cooperates the clamping corner post to be connected a sidewall of groove (321) with secondary flange (41).

3. storage box according to claim 2, it is characterized in that described case skirt member (11) comprises that outer side bar (111) of flute profile and cross section are Z-shaped interior side bar (112), the outer side bar (111) of flute profile has relatively and upper flange, lower wing plate that is arranged in parallel and the web that is connected two blocks of wing plates, and described upper flange end upwards turnover forms described hyoplastron (1110); Side bar (112) wherein is fixedly connected on the flute profile upper limb board of side bar (111) outward in the end of one side in Z-shaped, and another side is connected on the described case bottom cross beam (12), and the end face of described case bottom cross beam (12) is connected on the web of the outer side bar (111) of described flute profile.

4. storage box according to claim 3, it is characterized in that described case top side rail (21) is a section bar, comprise the rectangular beam (212) of the rectangular shaped as frame shape in cross section and the dihedral beam (211) L-shaped with the cross section of its one, be used to hold the bottom surface that the breach (2120) of holding frame (31) is arranged on rectangular beam (212), and contiguous its inner face (2121), inner face (2121) is provided with and is used to limit the locating part (23) of described wallboard (3) at the vertical plane surface intrinsic displacement, and the bottom surface of rectangular beam (212) is provided with in-flanges (2122); The vertical edge end of described L shaped dihedral beam (211) is connected the end face of described rectangular beam (212) and near inner face (2121), horizontal sides connects described roof box (22).

5. storage box according to claim 4, it is characterized in that having certain distance between the lower wing plate of outer side bar (111) of described case skirt member (11) and the described case bottom cross beam bottom surface, this distance is equal to or greater than roof box (22) upper surface to the distance between the upper surface of the rectangular beam (212) of case top side rail (21).

6. storage box according to claim 5 is characterized in that the web of the outer side bar (111) of flute profile of described case skirt member (11) is provided with screw.

7. according to the arbitrary described storage box of claim 1-6, it is characterized in that described wallboard (3) comprises two aluminium alloy panel (34) and is positioned at sandwich extruded sheet (33) between two aluminium alloy panel (34).

8. storage box according to claim 7 is characterized in that described roof box (22) is blind brush line aluminium alloy plate.

9. storage box according to claim 7, it is characterized in that at least one wallboard (3), being equipped with an assembly (30), door assembly (30) comprises door-plate (301), is fixed in door-plate (301) door-plate frame (302) all around and the door opening doorframe (306) all around that is installed in wallboard (3), wherein on door-plate frame (302), be provided with the sealing member (303) that is used for hermatic door sheet frame (302) and doorframe (306), one side of door-plate frame (302) is hinged on the doorframe (306) by hinge (304), and opposite side is equipped with door lock (305).
