Abstract
The utility model relates to kitchen equipment, in particular to an automatic lifting cabinet, which comprises a cabinet body, a lifting bracket and a driving mechanism. The cabinet body comprises a table top with an opening, the lifting bracket can pass in and out by the opening, the lifting bracket and the driving mechanism are both arranged in the space under the table top of the cabinet body, wherein, the driving mechanism is further arranged at the bottom of the lifting bracket and can drive the lifting bracket to move; the space at the periphery of the lifting bracket is symmetrically provided with a rack element, and the driving mechanism is matched with the rack element. By means of the structure, the space under the table top is fully utilized to ensure that the kitchen space is neat and clean, meanwhile, the weight of the lifting bracket is balanced, so that the lifting bracket can also stably move even if being burdened with more loads; and the defect that the existing hanging cabinet is overhigh and overweight is overcome by bottom-top movement of the lifting bracket, therefore, users can easily take out objects with more convenient use.
Description
[technical field]
The utility model relates to a kind of cooking apparatus, is meant a kind of automatic lifting cabinet especially.
[background technology]
In the modern kitchen, combined kitchen cabinet attractive in appearance and generous is adopted by wide model, use and cleaning aspect more easily than traditional cooking apparatus really, but, because the every articles for use amount in the kitchen is big and of a great variety, and the purposes difference of every article, the position of required storing is also inequality, and this still becomes a puzzlement greatly of present modern kitchen.
Cite an actual example, the kitchen cabinet that has be according to the user require customized, had many parking spaces during design on the operating desk, but for some article that need often take (as flavouring such as oil, salt, sauce, vinegar, chopsticks tube, cooking instrument ... Deng) generally just can only bank up is exposed to operating table surface, or hang on the metope of operating table surface correspondence, this in addition originally should be neatly and the table top of cleaning change disorderly and unsystematic, make article be subject to fume pollution again and be difficult to and clean, and along with increasing of kitchen tools article, this confusion all the more that can become in a jumble.Situation like this, the user enters the kitchen and has a kind of uncomfortable feeling, influences mood.
The kitchen cabinet that also has is provided with fixing or electronic hanging cupboard for solving described problem, to utilize height space that some above-mentioned article are placed in the hanging cupboard and the unlikely outside that is exposed to, but this hanging cupboard operated by rotary motion position is all higher, or inertia is bigger in use owing to the gravity effect, also is not very easily in fact for this hanging cupboard of most of housewifves.
Therefore, be necessary to provide a kind of novel automatic lifting cabinet, promptly can make full use of the space, avoid too much article all are placed on the confusion that causes kitchen environment on the kitchen cabinet operating table surface, can make the user more convenient to operate again.
[utility model content]
The purpose of this utility model is for overcoming the above-mentioned defective of existing kitchen cabinet, a kind of automatic lifting cabinet is provided, and it is rational in infrastructure, has made full use of the lifting cabinet volume inside, can be manually or straighforward operation, and more user-friendly, and make kitchen space neatly clean.
For realizing described purpose, the utility model automatic lifting cabinet comprises cabinet, crane and driving mechanism, described crane and driving mechanism all are arranged on the cabinet inner space, cabinet is provided with opening, wherein said driving mechanism is set at the bottom of crane, also be arranged with rack member in the described space around the described crane, described driving mechanism matches with rack member.
Compare with existing kitchen cabinet, the utility model automatic lifting cabinet has made full use of the cabinet volume inside, and many scattered articles are placed in the cabinet, and the operating desk surface is clean and tidy clean because of having put many article less; Be symmetrical arranged rack member, balance the weight of crane, even make crane bear a heavy burden motion more too steadily; Crane moves from bottom to top in addition, introduces the manual technical measures that combine with remote control again, and the user can lighter easy taking artical, uses convenient.
The utility model is described in further detail below in conjunction with accompanying drawing and preferred embodiment.
[description of drawings]
Fig. 1 is the stereogram of the utility model automatic lifting cabinet;

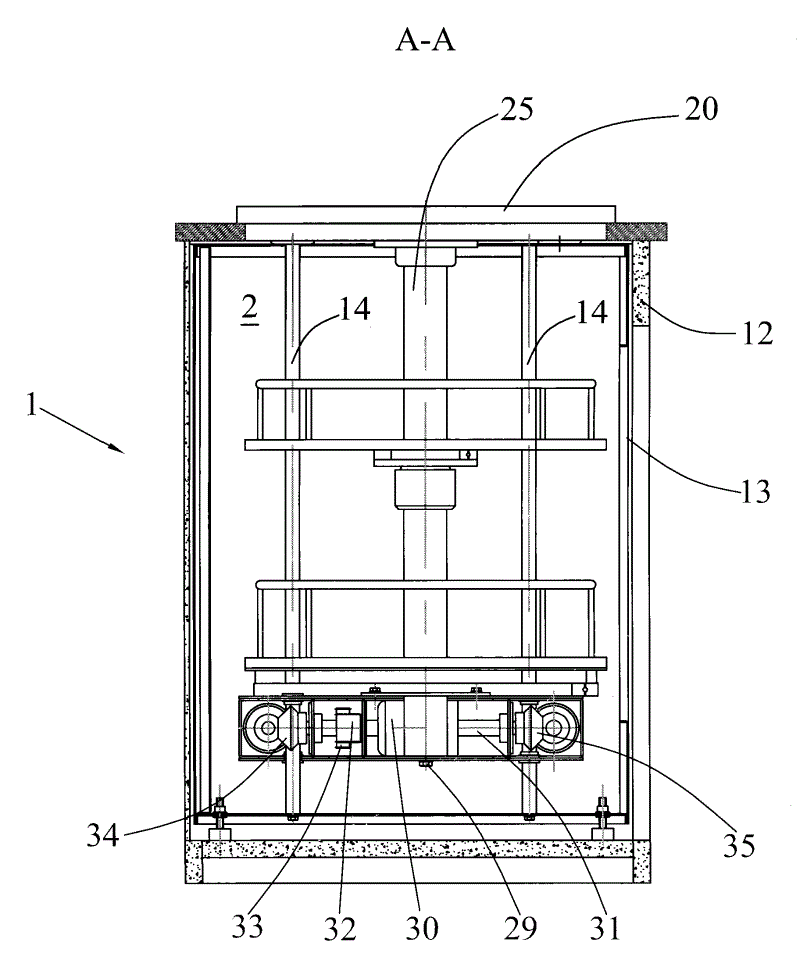

Fig. 2 is the cutaway view along A-A line among Fig. 1;
State diagram when Fig. 3 is the use of the utility model automatic lifting cabinet;
Fig. 4 is the cutaway view along B-B line among Fig. 3;
Fig. 5 is the transmission principle figure of the utility model automatic lifting cabinet.
[specific embodiment]
As Fig. 1, automatic lifting cabinet shown in Figure 4, mainly comprise cabinet 1, crane 2 and be connected in crane 2 bottoms and place the driving mechanisms in the lifting box 3 to form, automatic lifting cabinet of the present utility model can place in the kitchen and use separately, also can with other kitchen cabinet class, combine as kitchen cabinet, the kitchen range top etc., as place the bottom of the kitchen range top, use as the some of combined type kitchen cabinet.
Please in the lump with reference to Fig. 2, shown in Figure 3, cabinet 1 comprises table top 10, side plate 11, cabinet door fixed head 12, cabinet door 13 and is located at some rising tooth bars 14 in the cabinet 1.Present embodiment adopts four rising tooth bars 14, and rising tooth bar 14 is installed with vertical state in cabinet 1, and is left and right symmetry status distribution.This symmetrically arranged purpose will be discussed in detail in the back.The bottom of cabinet 1 is provided with regulates bolt 15, regulates bolt 15 cabinet 1 is horizontal, and table top 10 centres are provided with opening 16.
Lifting box 3 usefulness bolts 29 are fixedly arranged on the bottom of the vertical rod 25 of crane 2, and can do synchronous upper and lower motion with crane 2 one.Drive motors 30, final drive shaft 31, spur gear 32,33,40 are installed, bevel gear 34,35,38,39, bearing block 41 and a pair of lifting shaft 36,37 in the lifting box 3.Motor control switch (not shown) is connected in the outside of cabinet 1.Please join Fig. 5 transmission principle figure in the lump, drive motors 30 heads and final drive shaft 31 are provided with the spur gear 32 that pair of matched is closed, 33, the two ends of final drive shaft 31 are provided with a pair of bevel gear 34,35, this is to bevel gear 34,35 respectively be located at a pair of lifting shaft 36, bevel gear 38 on 37,39 cooperatively interact, lifting shaft 36, the installation site of 37 corresponding rising tooth bars 14 is a left side, the right side is symmetrical arranged, in each lifting shaft 36, corresponding each the rising tooth bar 14 in 37 two ends is equipped with a spur gear 40, these spur gears 40 cooperatively interact with rising tooth bar 14, and set bearing block 41 is respectively with final drive shaft 31, lifting shaft 36,37 are connected with lifting box 3.But this drive motors 30 should be selected a kind of motor of forward and backward for use, forward and backward by manual control motor control switch control drive motors 30 or stop to control the lifting of crane 2, drive motors 30 drives final drive shaft 31 and rotates, the aforementioned bevel gear that matches 34,38,35,39 give lifting shaft 36,37 with the transmission of torque of final drive shaft 31, so lifting shaft 36,37 spur gear 40 that is provided with of two ends and rising tooth bar 14 interact and lifting box 3 are together done together with crane 2 rise or descending motion separately.Because rising tooth bar 14 is to be symmetrically distributed in the cabinet 1, lifting shaft 36,37 also corresponding rising tooth bars 14 are symmetrically distributed, and have adopted the mode of gear, tooth bar engaged transmission, so crane 2 can prevent from even running when rising and descend.And travel switch control (not shown) can be established by other in the upper and lower dead-centre position of crane 2.And then, also can in the electric wiring of drive motors 30, insert remote-controlled receiver (not shown), and control the elevating movement of crane 2 with remote control.
The utility model automatic lifting cabinet can be used for some article that often will use (as flavouring such as oil, salt, sauce, vinegar, chopsticks tube, cooking instrument ... Deng), classification is placed on mounting plate 22 or the bottom plate 24, and enclose indigo plant 21,23 because of mounting plate 22 is provided with bottom plate 24 on every side, can prevent article to drop.At ordinary times time spent not, crane 2 all is contained in space in the cabinet 1 together with these article, and cover plate 20 covers table tops 10 openings 16, and cover plate 20 can serve as chopping board again simultaneously, is used for incision of food; In the time will using the article of being placed, crane 2 can be risen from table top 10 in cabinet 1 by mechanism kinematic in the aforementioned lifting box 3, take required article.Mounting plate 22 is free to rotate when getting thing with bottom plate 24, and the set lampet 28 convenient users in cover plate 20 bottoms take article night.
Automatic lifting cabinet of the present utility model takes full advantage of the space in the cabinet, and article pick and place safety convenient, It is quiet that kitchen space is neatly done, and has substantive distinguishing features and positive effect.
Claims (10)
1. automatic lifting cabinet, comprise cabinet, crane and driving mechanism, it is characterized in that: described crane and driving mechanism all are arranged on the cabinet inner space, cabinet is provided with opening, wherein said driving mechanism is set at the bottom of crane, also be arranged with rack member in the described space around the described crane, described driving mechanism matches with rack member.
2. automatic lifting cabinet as claimed in claim 1 is characterized in that: described cabinet can be contained in operating desk and be provided with in the combined kitchen cabinet of opening.
3. automatic lifting cabinet as claimed in claim 1 is characterized in that: described driving mechanism can be with the crane translation.
4. automatic lifting cabinet as claimed in claim 1, it is characterized in that: described driving mechanism comprises drive motors, final drive shaft, some spur gears and bevel gear, a pair of lifting shaft and is used for fixing the align member of described final drive shaft and lifting shaft, wherein, adopt the spur gear engagement between described final drive shaft and drive motors, the two ends of described final drive shaft are provided with bevel gear and mesh with the bevel gear of being located at respectively on the described a pair of lifting shaft, the two ends of described arbitrary lifting shaft are equipped with spur gear, are used for and described rack member engagement.
5. automatic lifting cabinet as claimed in claim 1 is characterized in that: described crane comprises vertical rod, mounting plate or bottom plate, and described mounting plate or bottom plate can vertical rod be that axle rotates.
6. automatic lifting cabinet as claimed in claim 4 is characterized in that: described align member is a bearing block.
7. automatic lifting cabinet as claimed in claim 5 is characterized in that: the top of described vertical rod is fixed with cover plate, and the cover plate bottom is provided with Lighting Division.
8. automatic lifting cabinet as claimed in claim 5 is characterized in that: the bottom thread of described vertical rod is connected with a box body, accommodates described driving mechanism in it.
9. automatic lifting cabinet as claimed in claim 7 is characterized in that: described cover plate is a kind of chopping board, and described Lighting Division is a lampet.
10. the automatic lifting cabinet described in any one of claim 1 to 9, it is characterized in that: described bottom of cabinet bulk is provided with the adjusting bolt.
