Abstract
The utility model discloses a high-low temperature double-layered embedded type sterilizer which includes a sterilizer main cabinet body. The main cabinet body is divided into a low-temperature sterilizing chamber and a high-temperature sterilizing chamber; and heating tubes are arranged in the high-temperature sterilizing chamber. The high-low temperature double-layered embedded type sterilize is characterized in that two or more than two heating tubes are arranged at the bottom in the high-temperature sterilizing chamber. The high-low temperature double-layered embedded type sterilize has the advantages of uniform temperature in the high-temperature chamber, good sterilizing effect, reliable quality and long service life.
Description
Technical field
This utility model relates to the disinfection cabinet technical field, more particularly relates to the double-deck embedded type sterilizing cabinet of high low temperature.
Background technology
At present, the double-deck embedded type sterilizing cabinet of high low temperature generally is provided with low temperature chamber on top, the bottom is provided with the high-temperature sterilization chamber, and its high-temperature sterilization chamber generally is that a sterilization heat-generating pipe is set in the bottom, as Chinese patent open/notification number is 2497790, denomination of invention is a vertical computer disinfector, open/day for announcing is the patent application on July 3rd, 2002, it comprises to the doorstep, the Xiamen, the bowl frame, dish stand, electric-control board, glass stand, cabinet, housing, power circuit, it is characterized in that: the indoor ozonator that is equipped with on cabinet, temperature controller, baker, pick off is equipped with in following chamber at cabinet, far infrared quartz pipe and door trip, on intermediary electric-control board, be provided with the liquid display screen, operation push-button, temperature controller, pick off, operation push-button, central control circuit is all sent in the output of door trip, the output of central control circuit is delivered to the far infrared quartz pipe by the Far-infrared Heating drive circuit respectively, deliver to baker by ozone chamber oven dry drive circuit, deliver to ozonator by the ozone drive circuit.Chinese patent application number is 99222170 for another example, the applying date is JIUYUE in 1999 2 days, denomination of invention is a kind of patent of high and low temperature disinfection cabinet, and it provides a kind of high and low temperature disinfection cabinet technical scheme.This scheme mainly includes cabinet; in the intravital middle and lower part of cabinet wall is arranged; below wall, be furnished with high temperature door body mutually and form the high-temperature sterilization chamber with cabinet; on wall, form the cold sterilization chamber by low temperature Men Tiyu cabinet; air-vent is all arranged on the cabinet of two disinfection cavities; at the cold sterilization intracavity ozonator is arranged in addition; at the high-temperature sterilization intracavity electric heating tube is arranged; such scheme is a heat-generating pipe is set in the bottom; thereby the defective that the local temperature that the individual tubes structure occurs is too high makes the non-uniform temperature in the hot room, and Disinfection Effect is not good; and because sterilization pipe unprotect device is fragile.
Summary of the invention
The purpose of this utility model is exactly that more uniform temperature, Disinfection Effect in a kind of hot room that provides for the deficiency that solves prior art is good, the high low temperature double layer disinfecting cabinet of reliable in quality, long service life.
This utility model is to adopt following technical solution to realize above-mentioned purpose: this high low temperature double layer disinfecting cabinet is made up of the disinfection cabinet main cabinet, main cabinet is divided into cold sterilization chamber, high-temperature sterilization chamber at interval, the high-temperature sterilization intracavity is provided with heat-generating pipe, it is characterized in that, the described heat-generating pipe that is arranged on the high-temperature sterilization intracavity is two or more, and is arranged on the bottom.
As further specifying of such scheme, described heat-generating pipe is fixed on the bottom in high-temperature sterilization chamber by the two corresponding briquettings that are provided with, briquetting is fastened by last lower lock block and constitutes, be buckled between the last lower lock block and the corresponding recess hole of heat-generating pipe end profiles, the heat-generating pipe end is fixed between the two cover briquettings.
The bottom of described heat-generating pipe also is provided with the heating tube cover base plate, and this backplate surface is a heat-reflecting surface.
The periphery of described heat-generating pipe also is provided with mat, and this mat is fixed by the heating tube cover base plate.
The beneficial effect that this utility model adopts above-mentioned technical solution to reach is:
1, a heat-generating pipe was respectively put in about the hot room bottom or front and back under high and low temperature domestic embedded type sterilizing cabinet heat-generating pipe of the present utility model adopted; More uniform temperature in the such structure distribution, hot room, Disinfection Effect is better; Avoid the too high defective of local temperature of individual tubes structure to a certain extent;
2, heat-generating pipe fixed installation of the present utility model is more firm, and can give full play to the heat energy of heat-generating pipe, and effect is better.
Description of drawings

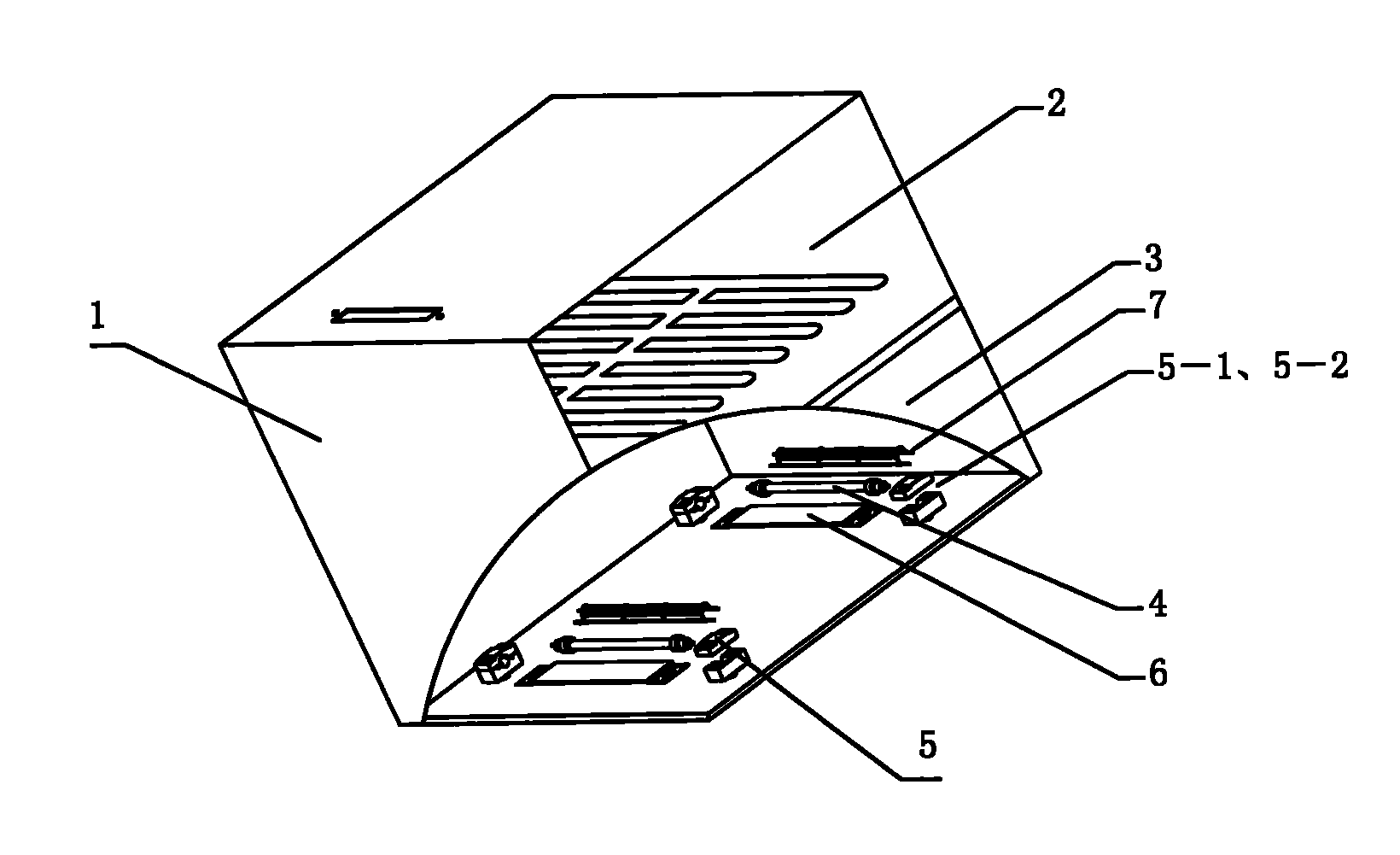

Fig. 1 is this utility model embedded type sterilizing cabinet broken section structural representation;
Description of reference numerals: 1, main cabinet 2, cold sterilization chamber 3, high-temperature sterilization chamber 4, heat-generating pipe 5, briquetting 5-1, upper holder block 5-2, lower lock block 6, heating tube cover base plate 7, mat
The specific embodiment
As shown in Figure 1 and Figure 2, this high low temperature double layer disinfecting cabinet of the present utility model is made up of disinfection cabinet main cabinet 1, main cabinet 1 is divided into cold sterilization chamber 2, high-temperature sterilization chamber 3 at interval, be provided with two heat-generating pipes 4 in the high-temperature sterilization chamber 3, the described heat-generating pipe 4 that is arranged on the high-temperature sterilization intracavity also can be for more than two, and all are arranged on the bottom; Described heat-generating pipe 4 is fixed on the bottom in high-temperature sterilization chamber 3 by the two corresponding briquettings 5 that are provided with, briquetting 5 is fastened by last lower lock block 5-1,5-2 and constitutes, be buckled between the last lower lock block 5-1,5-2 and the corresponding recess hole of heat-generating pipe end profiles, the heat-generating pipe end is fixed between the two cover briquettings 5; The bottom of described heat-generating pipe 4 also is provided with heating tube cover base plate 6, and these cover base plate 6 bottoms are fixed on by screw on the cabinet of bottom of heat-generating pipe 4, and these base plate 6 surfaces are heat-reflecting surface; The periphery of described heat-generating pipe 4 also is provided with mat 7, and this mat 7 is fixing by heating tube cover base plate 6.
This utility model is not limited to the foregoing description, and described two or more heat-generating pipes can laterally or vertically be set up in parallel, or oblique setting also can; Those skilled in the art also can do numerous modifications and variations, under the spirit that does not break away from utility model, all in the claimed scope of this utility model.
Claims (5)
1, the double-deck embedded type sterilizing cabinet of a kind of high low temperature, form by the disinfection cabinet main cabinet, main cabinet is divided into cold sterilization chamber, high-temperature sterilization chamber at interval, the high-temperature sterilization intracavity is provided with heat-generating pipe, it is characterized in that, the described heat-generating pipe that is arranged on the high-temperature sterilization intracavity is two or more, and is arranged on the bottom.
2, the double-deck embedded type sterilizing cabinet of high low temperature according to claim 1, it is characterized in that: the briquetting that described heat-generating pipe is oppositely arranged by two covers is fixed on the bottom in high-temperature sterilization chamber, briquetting is fastened by last lower lock block and constitutes, be buckled between the last lower lock block and the corresponding recess hole of heat-generating pipe end profiles, the heat-generating pipe end is fixed between the two cover briquettings.
3, the double-deck embedded type sterilizing cabinet of high low temperature according to claim 2, it is characterized in that: the bottom of described heat-generating pipe also is provided with the heating tube cover base plate, and this backplate surface is a heat-reflecting surface.
4, the double-deck embedded type sterilizing cabinet of high low temperature according to claim 3, it is characterized in that: the periphery of described heat-generating pipe also is provided with mat, and this mat is fixed by the heating tube cover base plate.
5, the double-deck embedded type sterilizing cabinet of high low temperature according to claim 1, it is characterized in that: described two or more heat-generating pipes laterally or vertically are set up in parallel.
