一种带热风循环的消毒柜，包括外壳及内胆，内胆中设置有电热管，消毒柜内设置有驱动柜内空气循环的风机，该风机设置在消毒柜的顶部或底部，其进风口设置在外壳上，内胆的内壁上设置有与柜外相通的出风口。消毒柜为上下两层结构，上层和下层分别设置有风机；其中，上层风机设置在消毒柜的上层内胆顶部和外壳之间，上层电热管设置在上层内胆的后壁和/或底部，上出风口设置在上层内胆的后壁上，与外界相通。本实用新型结构简单合理，既可以用于单内胆的消毒柜，也可用于双内胆或多内胆的消毒柜，其适用范围广、消毒效果好、加热温度均匀、能耗低、能够彻底消灭柜体内每一个角落的病菌，且餐具不会受热变黄。
A disinfection cabinet with hot air circulation, including a shell and an inner tank. An electric heating tube is arranged in the inner tank. A fan for driving air circulation in the cabinet is arranged in the disinfection cabinet. The fan is arranged on the top or bottom of the disinfection cabinet, and the air inlet It is arranged on the shell, and the inner wall of the liner is provided with an air outlet communicating with the outside of the cabinet. The disinfection cabinet has an upper and lower two-layer structure, and the upper layer and the lower layer are respectively equipped with fans; wherein, the upper layer fan is arranged between the top of the upper inner tank and the outer shell of the disinfection cabinet, and the upper layer electric heating tube is arranged on the rear wall and/or bottom of the upper inner tank. The upper air outlet is arranged on the rear wall of the upper inner tank and communicates with the outside world. The utility model has a simple and reasonable structure, and can be used not only in a single liner disinfection cabinet, but also in a double liner or multi-liner disinfection cabinet. It has wide application range, good disinfection effect, uniform heating temperature, low energy consumption, and can Completely eliminate germs in every corner of the cabinet, and the tableware will not turn yellow when heated.
Description
Technical field
This utility model relates to a kind of disinfection cabinet, particularly a kind of disinfection cabinet with hot air circulation.
Background technology
Disclose a kind of electrothermal sterilizing cabinet among the Chinese patent CN91216535.9, included casing, chamber door and temperature control circuit, it is characterized in that two enamel far infrared heat-generating pipes of vertical installation on the after panel box, the lower limb of casing doorframe is equipped with a door opening electrical outage switch.Though carrying out sterilization to a certain extent, handles the electrothermal sterilizing cabinet of this structure, but heating region is concentrated during its work, cause tableware hot soak condition such as dish in the heating region easily and turn to be yellow, and interior synergetic part of dish of heating region and the outer dish of heating region can not be by thorough disinfection, particularly some places, disinfection cabinet dead angle can not very easily be caused secondary pollution by thorough sterilization.
The utility model content
Technical problem to be solved in the utility model be to provide a kind of simple and reasonable, applied widely, Disinfection Effect is good, heating-up temperature is even, energy consumption is low, can utterly destroy the pathogenic bacteria in each corner in the cabinet, and can the not be heated disinfection cabinet of band hot air circulation of flavescence of tableware is to overcome weak point of the prior art.
The technical scheme in the invention for solving the above technical problem is: a kind of disinfection cabinet with hot air circulation, comprise shell and inner bag, be provided with electrothermal tube in the inner bag, its architectural feature is to be provided with the blower fan that drives air circulation in the cabinet in the disinfection cabinet, this blower fan is arranged on the top or the bottom of disinfection cabinet, its air inlet is arranged on the shell, and interior cholic inwall is provided with the air outlet that is interlinked to the outside with cabinet.
Above-mentioned disinfection cabinet is a double-layer structure up and down, and the upper and lower are respectively arranged with blower fan; Wherein, the upper strata blower fan is arranged between the inner bag top, upper strata and shell of disinfection cabinet, and the upper strata electrothermal tube is arranged on cholic rear wall and/or bottom in the upper strata, and last air outlet is arranged in the upper strata on the cholic rear wall, communicates with the external world; Lower floor's blower fan is arranged between the lower floor inner bag bottom and shell of disinfection cabinet, and lower floor's electrothermal tube is arranged on cholic rear wall and/or bottom in the lower floor, and following air outlet is arranged in the lower floor on the cholic rear wall, communicates with the external world.
In order to prevent that foreign material or mouse, Blatta seu periplaneta etc. from entering inner bag, be provided with drainage screen or filter grid in above-mentioned air inlet and/or air outlet place.
This utility model is provided with the blower fan that drives air circulation in the disinfection cabinet in common electrothermal sterilizing cabinet, the heat that electrothermal tube is produced by flowing of air is taken to each zone in the disinfection cabinet, whole sterilization in-cabinet temperature is even, prevented that effectively be heated for a long time situation of flavescence of tableware from taking place, simultaneously also eliminated sterilization dead angle in the past, accomplished thorough disinfection, and realized under the disinfectant prerequisite, save disinfecting time, reduced energy consumption.
Blower fan in this utility model both can be the vane type blower fan, also can be centrifugal fan, its highly versatile.
This utility model both can be used for single interior cholic disinfection cabinet, also can be used for two inner bags or many interior cholic disinfection cabinets, and it is applied widely.
Description of drawings

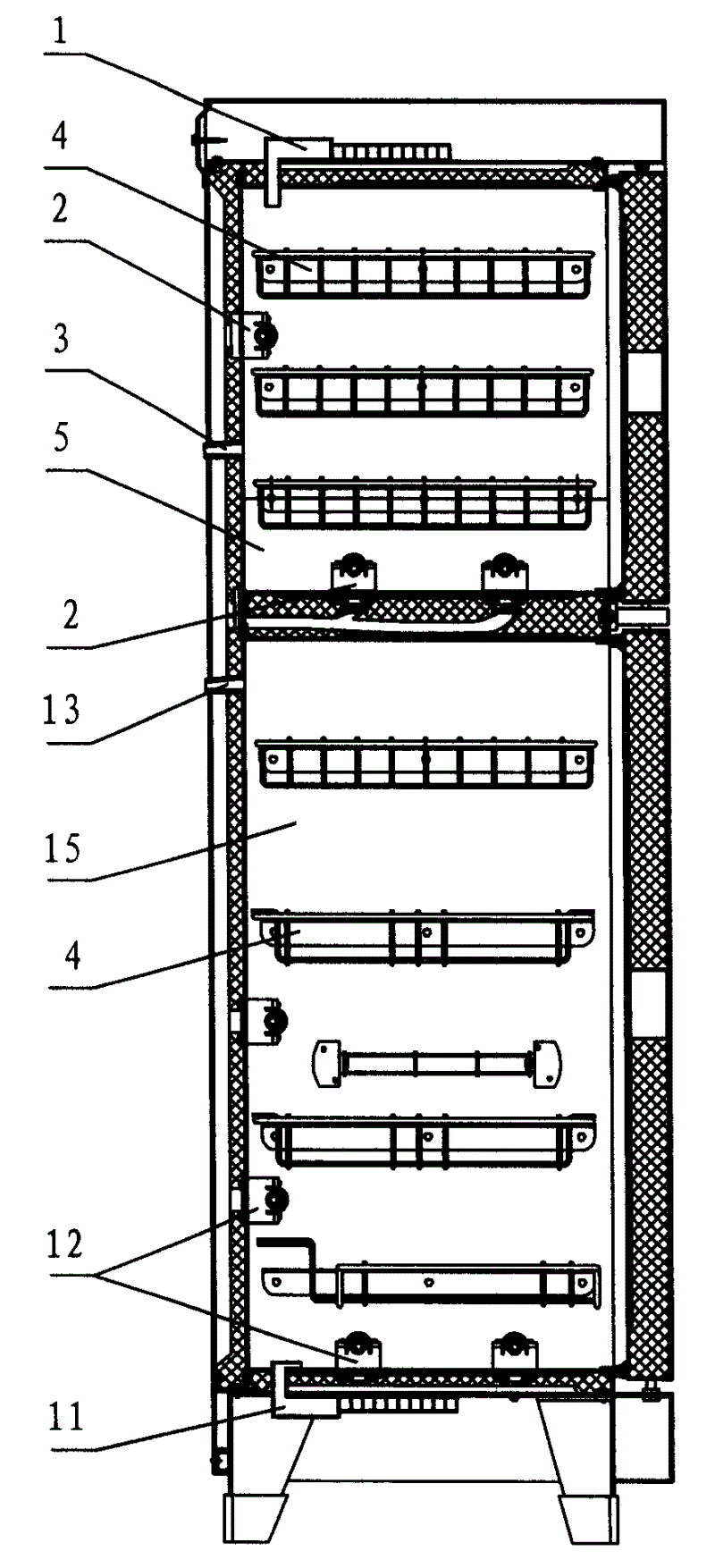

Fig. 1 is this utility model one example structure sketch map.
Fig. 2 is the A-A sectional structure sketch map of Fig. 1.
Fig. 3 is the B-B sectional structure sketch map of Fig. 1.
Fig. 4 is the structural representation of looking up of Fig. 2.
The specific embodiment
Below in conjunction with drawings and Examples this utility model is further described.
Among the figure, 1 is the upper strata blower fan, and 2 is the upper strata electrothermal tube, and 3 is last air outlet, and 4 is dish rack, and 5 is the upper strata inner bag, and 11 is lower floor's blower fan, and 12 is lower floor's electrothermal tube, and 13 are following air outlet, and 15 is lower floor's inner bag.
Referring to Fig. 1-Fig. 4, the disinfection cabinet of this band hot air circulation, comprise shell and upper strata inner bag 5 and lower floor's inner bag 15, be respectively arranged with upper strata infrared ray electric heat pipe 2 and lower floor's infrared ray electric heat pipe 12 in upper strata inner bag 5 and the lower floor's inner bag 15, upper strata infrared ray electric heat pipe 2 is separately positioned on the rear wall and the bottom of upper strata inner bag 5, and lower floor's electrothermal tube 12 is separately positioned on the rear wall and the bottom of lower floor's inner bag 15; Upper strata blower fan 1 is arranged in upper strata inner bag 5 tops and the electrical equipment box between the shell of disinfection cabinet, sees Fig. 1-Fig. 3, and air outlet 3 is arranged in the upper strata on the cholic rear wall on it, communicates with the external world, sees Fig. 2; Lower floor's blower fan 11 is arranged in the electrical equipment box between lower floor's inner bag 15 bottoms and the shell, its down air outlet 13 be arranged on the rear wall of lower floor's inner bag 15, communicate with the external world.Wherein, upper strata blower fan 1 and lower floor's blower fan 11 are provided with air inlet respectively at shell, and this air inlet is provided with drainage screen or filters grid, and air inlet does not draw among the figure.
Claims (6)
1. disinfection cabinet with hot air circulation, comprise shell and inner bag, be provided with electrothermal tube in the inner bag, it is characterized in that being provided with in the described disinfection cabinet blower fan that drives air circulation in the cabinet, this blower fan is arranged on the top or the bottom of disinfection cabinet, its air inlet is arranged on the shell, and interior cholic inwall is provided with the air outlet that is interlinked to the outside with cabinet.
2. the disinfection cabinet of band hot air circulation according to claim 1 is characterized in that described disinfection cabinet is double-layer structure up and down, and the upper and lower are respectively arranged with blower fan; Wherein, upper strata blower fan (1) is arranged between upper strata inner bag (5) top and shell of disinfection cabinet, and upper strata electrothermal tube (2) is arranged on cholic rear wall and/or bottom in the upper strata, and last air outlet (3) is arranged in the upper strata on the cholic rear wall, communicates with the external world; Lower floor's blower fan (11) is arranged between lower floor's inner bag (15) bottom and shell of disinfection cabinet, and lower floor's electrothermal tube (12) is arranged on cholic rear wall and/or bottom in the lower floor, and following air outlet (13) is arranged in the lower floor on the cholic rear wall, communicates with the external world.
3. the disinfection cabinet of band hot air circulation according to claim 2 is characterized in that described upper strata blower fan (1) is arranged in the electrical equipment box at disinfection cabinet top, and/or lower floor's blower fan (11) is arranged in the electrical equipment box of disinfection cabinet bottom.
4. the disinfection cabinet of band hot air circulation according to claim 1 is characterized in that described electrothermal tube is the infrared ray electric heat pipe.
5. the disinfection cabinet of band hot air circulation according to claim 1 is characterized in that described air inlet and/or air outlet place are provided with drainage screen or filter grid.
6. the disinfection cabinet of band hot air circulation according to claim 1 is characterized in that described blower fan is vane type blower fan or centrifugal fan.
