Abstract
The utility model relates to a household towel disinfection frame which is suitable for household life, prevents bacteria from spreading, and is safe and healthy; a towel hanging frame is arranged on the upper part of the disinfection frame of the rectangle towel; an ultraviolet radiation disinfection lighting tube is arranged in the lower frame board or on the frame board of the towel frame; an electrothermal tube is arranged in the frame board and the surface of the frame board is provided with a plurality of holes. The utility model has the advantages of: 1, being suitable for living life and convenient to be used; 2, not only being capable of sufficiently, effectively and quickly sterilize bacterial, but also being able to be quickly dried, thus avoiding diseases from spreading.
Description
Technical field
This utility model relates to a kind of suitable house life to be used, and prevents spread of germs, and the domestic disinfecting towel hanger of safety and sanitation belongs to the articles for daily use and makes the field.
Background technology
In life, the total institute of towel role is known, but in daily recycling, towel easily grows a large amount of antibacterials, even can make the towel fouling of being clamminess.The general method that adopts is delivered to for the cleaning of adding desinfactant detergent or with towel and is sterilized in the large-scale disinfection cabinet, uses comparatively inconvenience and loaded down with trivial details.
Summary of the invention
Purpose of design: avoid the weak point in the background technology, design a kind of suitable house life and use, prevent spread of germs, the domestic disinfecting towel hanger of safety and sanitation.
Design: in order to realize above-mentioned purpose of design.1, flat rectangle disinfecting towel hanger top is equipped with button, and Towel hanging rack is positioned at the design of its lower end, is one of feature of this utility model design.The purpose of doing like this is: small and exquisite structure has made things convenient for the use of family life, towel can be sterilized timely simultaneously, prevents the propagation of antibacterial effectively and grows.2, the disinfection by ultraviolet light fluorescent tube is installed on the Towel hanging rack opposite face respectively and the design of the both sides of electrothermal tube, be this utility model design feature two.The purpose of doing like this is: the antibacterial that can will be placed on the top towel is killed timely, has reduced growing and transmission of disease of antibacterial.3, have electron rectifier to link to each other in the disinfecting tube of quartz glass and there is insulant the outer end, design, be this utility model design feature three.The purpose of doing like this is: when having prevented that part moisture from entering, the ozone that makes the fluorescent tube radiant intensity increase in the while Burdick lamp energy ionized air remedies the antibacterial that ultraviolet does not kill, thereby has accomplished efficiently to concentrate kill bacteria in all directions.4, Sterilizing shelf has the design of hot plate, be this utility model design feature four.The purpose of doing like this is: with part is the towel of in time wringing out, oven dry timely, thus further prevented growing of antibacterial effectively.
Technical scheme: the domestic disinfecting towel hanger, flat rectangle disinfecting towel framework upper is provided with Towel hanging rack, in the frame plate or on the frame plate disinfection by ultraviolet light fluorescent tube is housed below the towel bracket, and the plate face that electrothermal tube is positioned at frame plate and frame plate has a plurality of holes.
This utility model is compared with background technology, and the one, be fit to family life and use, easy to use; The 2nd, can be comprehensively kill bacteria fast and effectively, again can flash baking, avoided transmission of disease.
Description of drawings

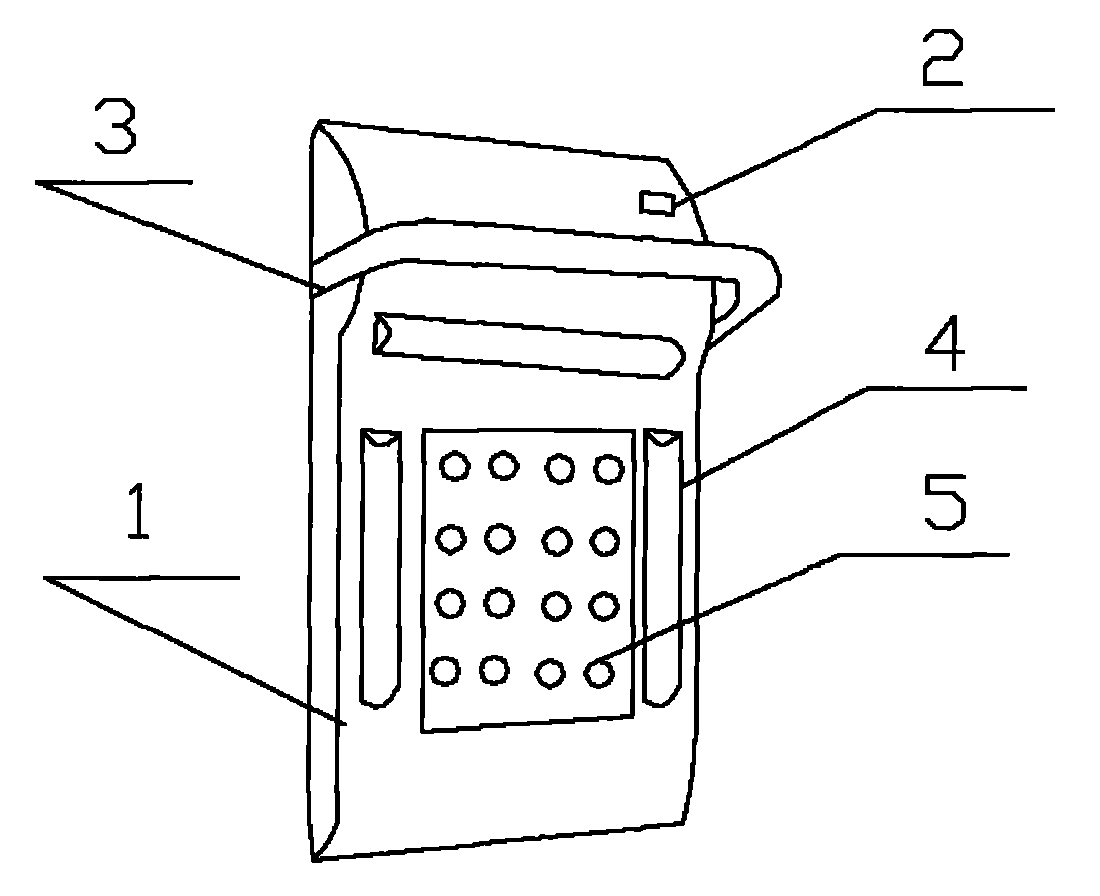

Fig. 1 is a domestic disinfecting towel hanger sketch map.
The specific embodiment
Embodiment 1: with reference to accompanying drawing 1.The domestic disinfecting towel hanger, flat rectangle disinfecting towel framework 1 top is provided with Towel hanging rack 3, in the towel bracket 3 below frame plates or on the frame plate disinfection by ultraviolet light fluorescent tube is housed, the plate face that electrothermal tube 5 is positioned at frame plate and frame plate has a plurality of holes, rectangle disinfecting towel framework top is equipped with button 2, and electrothermal tube 5 and disinfection by ultraviolet light fluorescent tube 4 are staggered and adopt gauge tap control respectively.
Embodiment 2: on the basis of embodiment 1, and the domestic disinfecting towel hanger, flat rectangle disinfecting towel hanger 1 top is equipped with button 2, and Towel hanging rack 3 is positioned at its lower end, and disinfection by ultraviolet light fluorescent tube 4 is installed in respectively on the Towel hanging rack opposite face and the both sides of electrothermal tube 5.After towel hung on Towel hanging rack, start button, disinfection by ultraviolet light fluorescent tube just can be killed the antibacterial on the towel effectively apace, cooperate hot plate work simultaneously, and the towel of not wringing out is in time dried, and have avoided growing of antibacterial.The airborne ozone of quartz burner energy electric power has remedied the dead angle that ultraviolet is not sterilized, thereby sterilization more in all directions is fit to family in conjunction with small and exquisite structure and uses very much.
What need understand is: though the foregoing description is to this utility model detailed text description of contrasting; but these text descriptions; just the simple text of this utility model mentality of designing is described; rather than to the restriction of utility model mentality of designing; any combination, increase or modification that does not exceed this utility model mentality of designing all falls in the protection domain of the present utility model.
Claims (3)
1, a kind of domestic disinfecting towel hanger is characterized in that: flat rectangle disinfecting towel framework upper is provided with Towel hanging rack, in the frame plate or on the frame plate disinfection by ultraviolet light fluorescent tube is housed below the towel bracket, and the plate face that electrothermal tube is positioned at frame plate and frame plate has a plurality of holes.
2, domestic disinfecting towel hanger according to claim 1 is characterized in that: rectangle disinfecting towel framework top is equipped with button.
3, domestic disinfecting towel hanger according to claim 1 is characterized in that: electrothermal tube and disinfection by ultraviolet light fluorescent tube are staggered and adopt gauge tap control respectively.
