The invention discloses a humidity sensing type tower disinfecting and drying rack. A fan component is connected with a hollow support rod, fixed supports are mounted at two ends of the hollow support rod, rotary sleeves are mounted on the hollow support rod, hollow towel rods are mounted on the rotary sleeves, communication holes are reserved at positions of the hollow support rod corresponding to the hollow towel rods, air holes are reserved on the hollow towel rods, and electric heaters are mounted in the hollow towel rods. The humidity sensing type towel disinfecting and drying rack has the advantages that by feeding air through pipes, towel ventilation and drying are facilitated; the hollow towel rods can rotate horizontally by 180 degrees, the whole drying and hanging space is controlled freely, wet and dry towels can be separated, independent drying and hanging space of each towel can be kept, so that cross infection of bacteria is avoided; a humidity sensor is arranged on the top of hollow towel rod to sense humidity of the towels; and a PTC (positive temperature coefficient) heater and ultraviolet generator are independently arranged in each hollow towel rod so as to heat and disinfect the towels.
Description
Technical field
The present invention relates to household electrical appliance, be specifically related to a kind of sterilization, oven dry towel rack with humidity inductive function.
Background technology
Towel is the necessity of daily life, and used towel does not have sterilization, the drying plant of specialty to process after cleaning, generally hangs over Indoor Natural and dries and then use, because indoor do not have a solar radiation, it is not smooth to ventilate, and the time of drying in the shade is long, become easily infected by dustproof and breed bacteria, produce peculiar smell, reuse such towel, bring harm to health, people generally adopt the sun to be exposed to the sun, the Disinfection Methods such as salt solution boiling, elapsed time is longer, poor effect.Micro-wave oven is the electrical equipment of processed food, and towel is carried out disinfection can mix taste of food, and towel is emitted bad smell.Disinfectant has good Disinfection Effect to towel, but the towel use is frequent, and with the disinfectant sterilization, efficient is low, the time is long.
Summary of the invention
The object of the invention is to, for the defects of prior art, provide a kind of wettability induction type sterilization, oven dry towel rack.
Technical scheme provided by the invention is as follows: a kind of type moisture sensor sterilization, oven dry towel rack, fan component is connected with hollow support rails, fixed support is equipped with at two ends in hollow support rails, in hollow support rails revoling tube is housed, at revoling tube hollow towel bar is housed, on hollow support rails, have intercommunicating pore with hollow towel bar corresponding section, have air vent at hollow towel bar, in hollow towel bar, electric heater is housed.
There are 2~8 revoling tube stacks to connect in hollow support rails, but the 180 degree rotations of revoling tube level.
In hollow towel bar, ultraviolet generater is housed.
Be provided with humidity sensor at hollow towel bar.
Electric heater is ptc heater.
Type moisture sensor sterilization, oven dry towel rack are controlled by control panel.
The present invention has following beneficial effect: 1. be arranged on the ventilation assembly at hollow support rails top, by the pipeline air-supply, promote towel aeration-drying; 2. 2~8 revoling tube stacks, hollow towel bar can rotate by level 180 degree, freely controls whole cold and hangs space size, and can separate dried wet towel, keeps the independent cold of every towel to hang the space, avoids bacterial cross-infection.3. every hollow towel bar top is provided with the humidity that humidity sensor is responded to towel; 4. every hollow towel bar inside arranges independently ptc heater and ultraviolet generater and can heat and sterilize towel, and Modular function design can be saved energy resource consumption, reduces use cost; 5. the user can be according to indoor environment, weather condition, demands of individuals, by control panel ventilation or the sterilizing function of towel rack are set, and the multiple combined functions of ventilation, auxiliary heat, sterilization also can be set, and fully satisfy user's personalization, diversity demand.
Description of drawings

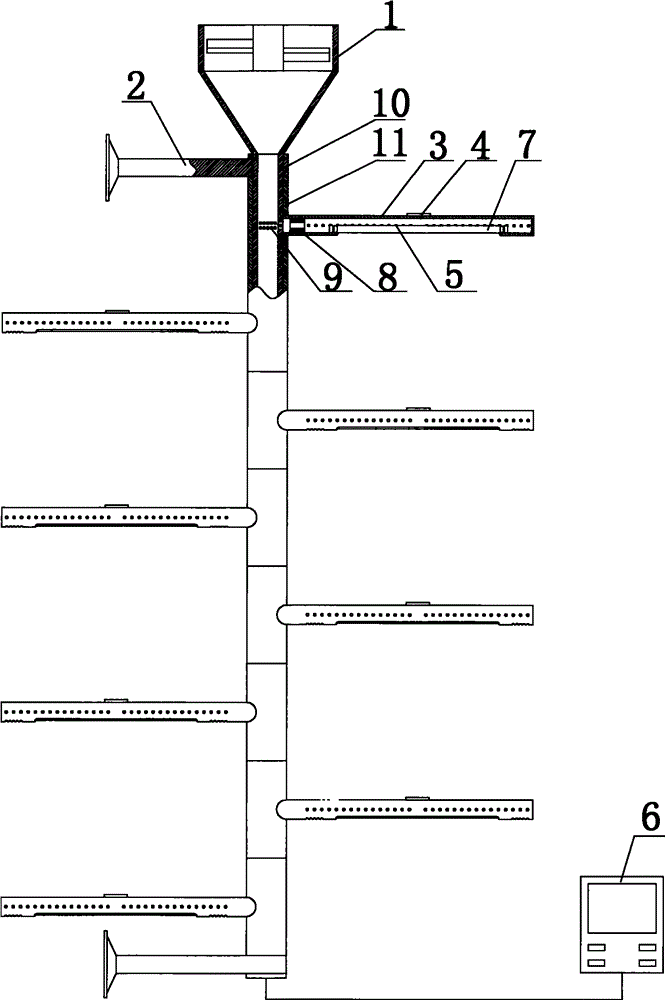

Fig. 1 is structural representation of the present invention.
The specific embodiment
Embodiment
As shown in Figure 1: a kind of type moisture sensor sterilization, oven dry towel rack, fan component 1 is connected with hollow support rails 10, at the two ends of hollow support rails 10 fixed support 2 is housed, in hollow support rails 10 revoling tube 11 is housed, at revoling tube 11 hollow towel bar 3 is housed, on hollow support rails 10, have intercommunicating pore 9 with hollow towel bar 3 corresponding sections, have air vent 5 at hollow towel bar 3, in hollow towel bar 3, electric heater 8 is housed; There are 11 stacks of 2~8 revoling tubes to connect in hollow support rails 10, but the 180 degree rotations of revoling tube 11 levels; Be provided with ultraviolet generater 7 at hollow towel bar 3; In hollow towel bar 3, humidity sensor 4 is housed; Electric heater 8 is ptc heater; Type moisture sensor sterilization, oven dry towel rack fully satisfy user individual, diversity demand by control panel 6 controls.
Claims (6)
1. type moisture sensor sterilization, the oven dry towel rack, it is characterized in that: fan component (1) is connected with hollow support rails (10), at the two ends of hollow support rails (10) fixed support (2) is housed, in hollow support rails (10) revoling tube (11) is housed, at revoling tube (11) hollow towel bar (3) is housed, upward have intercommunicating pore (9) with hollow towel bar (3) corresponding section in hollow support rails (10), have air vent (5) at hollow towel bar (3), electric heater (8) is housed in hollow towel bar (3).
2. a kind of type moisture sensor sterilization according to claim 1, oven dry towel rack is characterized in that: have 2~8 revoling tubes (11) stack to connect in hollow support rails (10), revoling tube (11) but level 180 degree rotations.
3. a kind of type moisture sensor sterilization according to claim 1, oven dry towel rack is characterized in that, are provided with ultraviolet generater (7) at hollow towel bar (3).
4. a kind of type moisture sensor sterilization according to claim 1, oven dry towel rack is characterized in that: humidity sensor (4) is housed in hollow towel bar (3).
5. a kind of type moisture sensor according to claim 1 is sterilized, is dried towel rack, and it is characterized in that: electric heater (8) is ptc heater.
6. a kind of type moisture sensor according to claim 1 is sterilized, dried towel rack, it is characterized in that: type moisture sensor sterilization, oven dry towel rack are controlled by control panel (6).
